Honda Ridgeline. Manual - part 563





02

SJC8A00K791000R229XFAAT00

YES

NO

Special Tools Required

YES

NO

DTC 22-9x (‘‘x’’ can be 0 thru 9 or A thru F):

24-77

24-77

SRS UNIT CONNECTOR B (28P)

10. Disconnect the driver’s seat belt tensioner

connector (see step 6 on page 24-26).

11. Disconnect SRS unit connector B (28P) from the

SRS unit (see step 7 on page 24-26).

12. Disconnect the simulator lead from the floor wire

harness.

13. Reconnect the negative cable to the battery.

14. Turn the ignition switch ON (II).

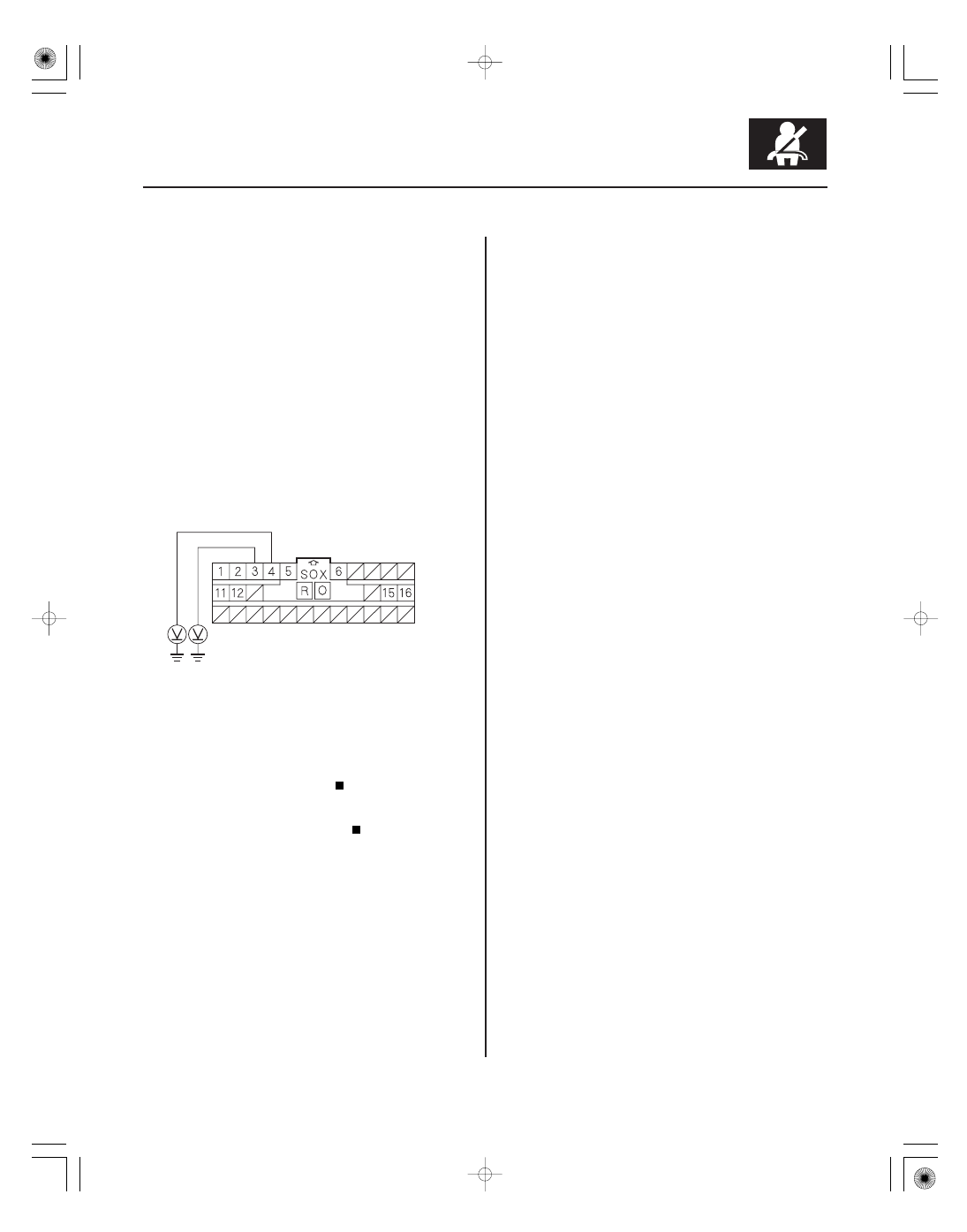

15. Measure the voltage between the No. 3 terminal of

SRS unit connector B (28P) and body ground, and
between the No. 4 terminal and body ground.
There should be 0.5 V or less.

Faulty SRS unit or poor connection at SRS

unit connector B (28P) and the SRS unit. Check the
connection; if the connection is OK, replace the
SRS unit (see page 24-188).

Short to power in the floor wire harness;

replace the floor wire harness.

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead F 07XAZ-SZ30100

NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-16) and General Troubleshooting Information
(see page 24-27).

1. Clear the DTC memory (see page 24-28).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, the system is OK at this

time. Go to Troubleshooting Intermittent Failures
(see page 24-29). If another DTC is indicated,
troubleshoot the DTC.

3. Turn the ignition switch OFF. Disconnect the

negative cable from the battery, and wait for 3
minutes.

(cont’d)

Short to Ground in Front Passenger’s Seat
Belt Tensioner

Wire side of female terminals

Is the voltage as specif ied?

Does the SRS indicator stay on, and is DT C 22-9x
indicated?

01

02

YES

NO

YES

NO

24-78

SRS

DTC Troubleshooting (cont’d)

07XAZ-SZ30100

07SAZ-TB4011A

A

SRS UNIT CONNECTOR B (28P)

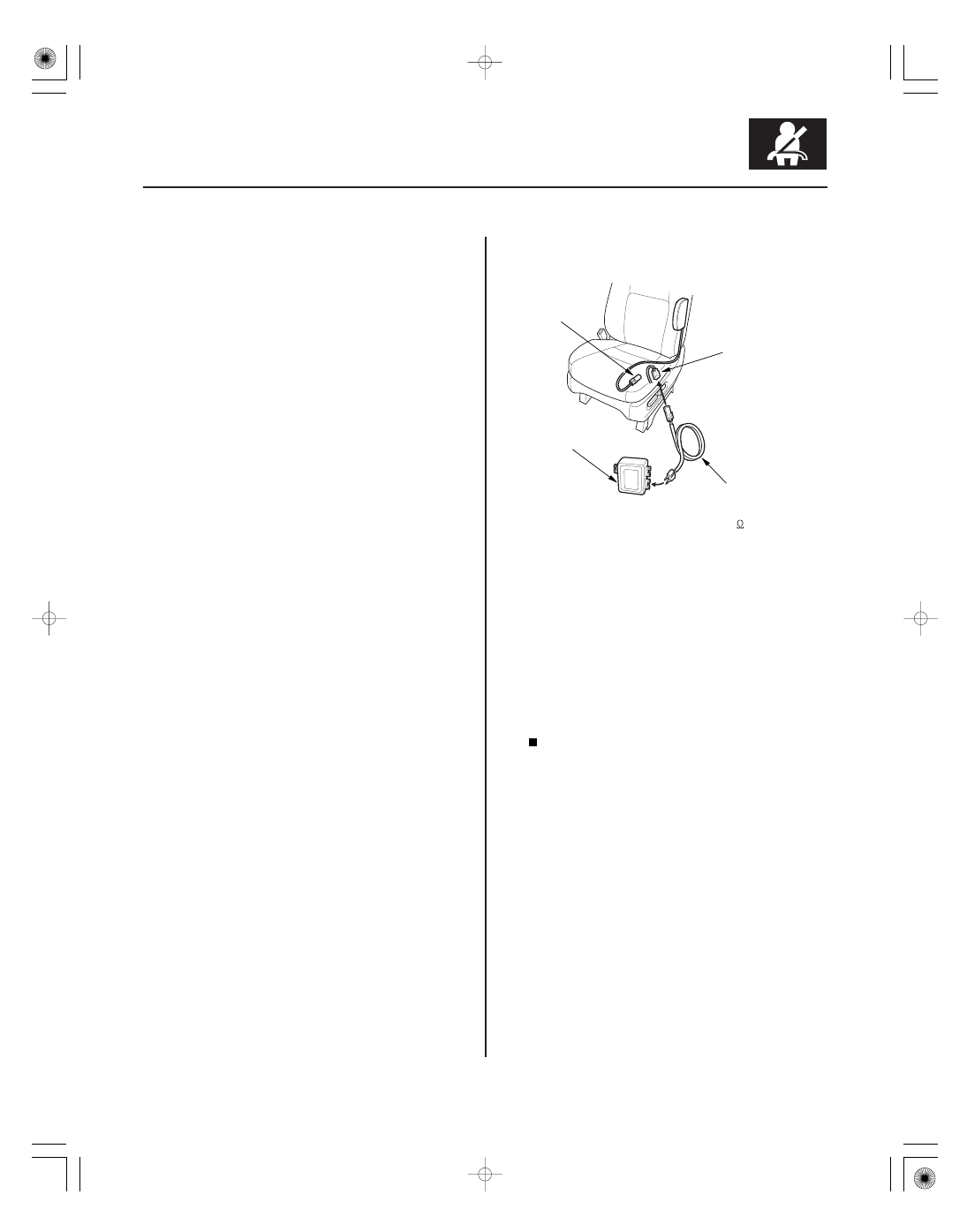

4. Disconnect the floor wire harness 4P connector (A)

from the front passenger’s seat belt tensioner.

5. Connect the SRS inflator simulator (2

connectors) and simulator lead F to the floor wire
harness.

6. Reconnect the negative cable to the battery.

7. Clear the DTC memory.

8. Read the DTC (see page 24-27).

Go to step 9.

Short to ground in the front passenger’s seat

belt tensioner; replace the front passenger’s seat
belt (see page 24-4).

9. Turn the ignition switch OFF. Disconnect the

negative cable from the battery, and wait for 3
minutes.

10. Disconnect the driver’s seat belt tensioner

connector (see step 6 on page 24-26).

11. Disconnect SRS unit connector B (28P) from the

SRS unit (see step 7 on page 24-26).

12. Disconnect the simulator lead from the floor wire

harness.

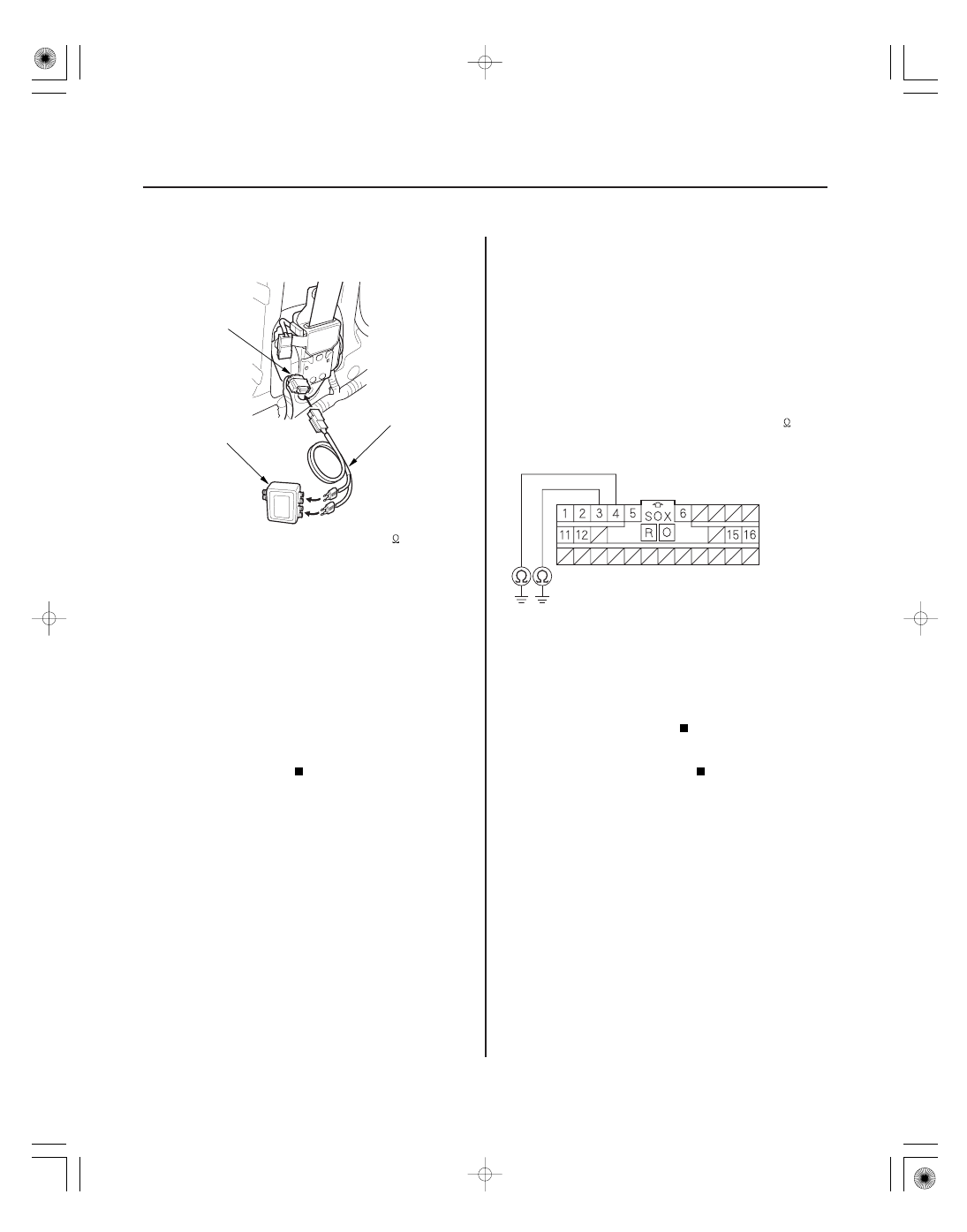

13. Measure the resistance between the No. 3 terminal

of SRS unit connector B (28P) and body ground,
and between the No. 4 terminal and body ground.
There should be an open circuit or at least 1 M

.

Faulty SRS unit or poor connection at SRS

unit connector B (28P) and the SRS unit. Check the
connection; if the connection is OK, replace the
SRS unit (see page 24-188).

Short to ground in the floor wire harness;

replace the floor wire harness.

Wire side of female terminals

Is DT C 22-9x indicated?

Is the r esistance as specif ied?

01

SJC8A00K791000R311XFAAT00

DTC 31-1x (‘‘x’’ can be 0 thru 9 or A thru F):

Special Tools Required

YES

NO

YES

NO

24-79

A

B

07XAZ-S1A0200

07SAZ-TB4011A

Open in Driver’s Side Airbag Inflator

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead E 07XAZ-S1A0200

NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-16) and General Troubleshooting Information
(see page 24-27).

1. Clear the DTC memory (see page 24-28).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, the system is OK at this

time. Go to Troubleshooting Intermittent Failures
(see page 24-29). If another DTC is indicated,
troubleshoot the DTC.

3. Turn the ignition switch OFF. Disconnect the

negative cable from the battery, and wait for 3
minutes.

4. Disconnect the floor wire harness 2P connector (A)

from the driver’s side airbag (B).

5. Connect the SRS inflator simulator (2

connector)

and simulator lead E to the floor wire harness.

6. Reconnect the negative cable to the battery.

7. Clear the DTC memory.

8. Read the DTC (see page 24-27).

Go to step 9.

Open in the driver’s side airbag inflator;

replace the driver’s side airbag (see page 24-176).

9. Turn the ignition switch OFF. Disconnect the

negative cable from the battery, and wait for 3
minutes.

(cont’d)

Does the SRS indicator stay on, and is DT C 31-1x
indicated?

Is DT C 31-1x indicated?

02

SJC8A00K791000R313XFAAT00

YES

NO

Special Tools Required

YES

NO

DTC 31-3x (‘‘x’’ can be 0 thru 9 or A thru F):

24-80

24-80

SRS

DTC Troubleshooting (cont’d)

FLOOR
WIRE HARNESS
2P CONNECTOR

07XAZ-S1A0200

10. Disconnect SRS unit connector C (28P) from the

SRS unit (see step 7 on page 24-26).

11. Disconnect the SRS inflator simulator from the SRS

simulator lead.

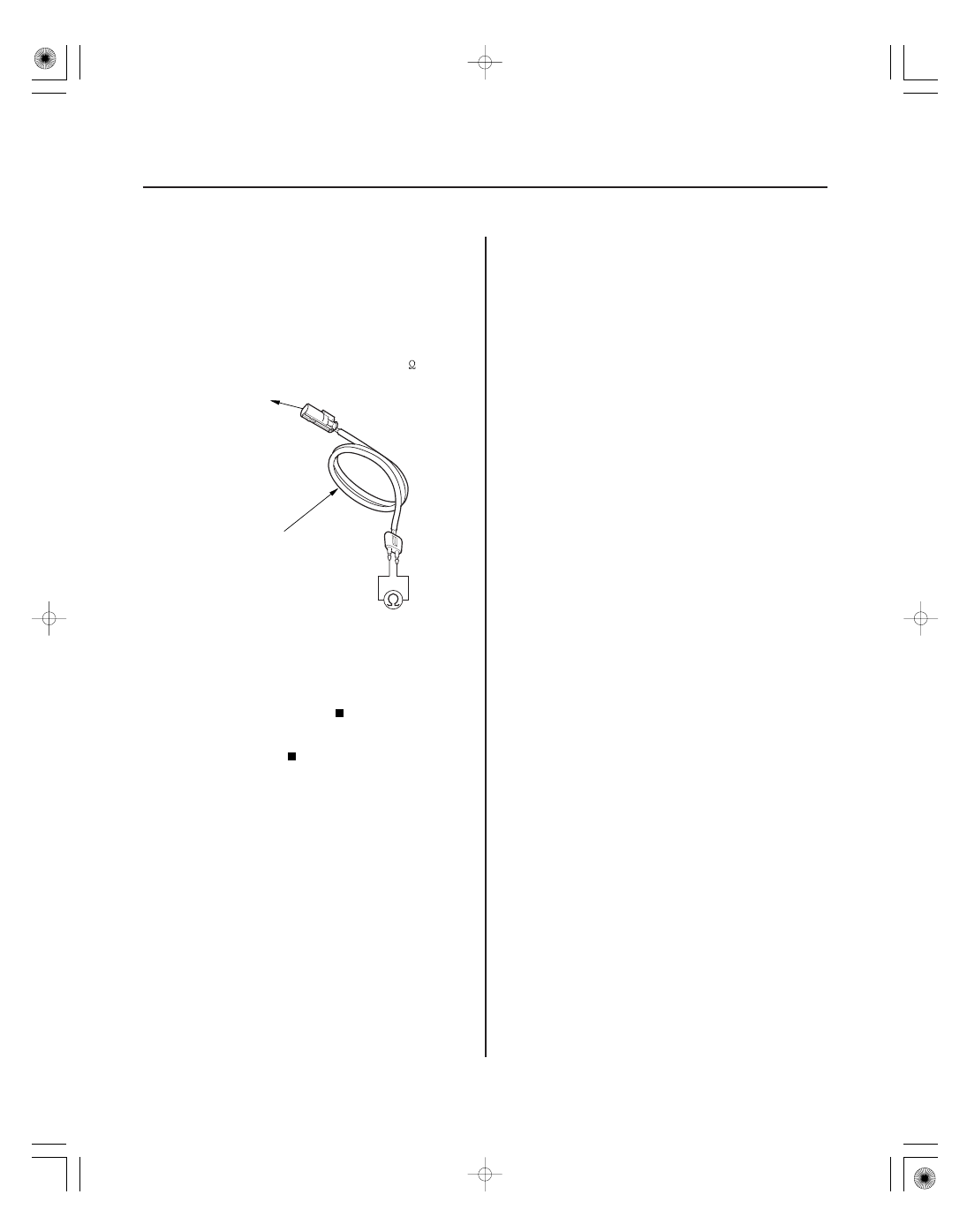

12. Measure the resistance between the terminals of

SRS simulator lead. There should be 1.0

or less.

Faulty SRS unit or poor connection at SRS

unit connector C (28P) and the SRS unit. Check the
connection; if the connection is OK, replace the
SRS unit (see page 24-188).

Open in the floor wire harness; replace the

floor wire harness.

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead E 07XAZ-S1A0200
• SRS short canceller 070AZ-SAA0100

NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-16) and General Troubleshooting Information
(see page 24-27).

1. Clear the DTC memory (see page 24-28).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, the system is OK at this

time. Go to Troubleshooting Intermittent Failures
(see page 24-29). If another DTC is indicated,
troubleshoot the DTC.

3. Turn the ignition switch OFF. Disconnect the

negative cable from the battery, and wait for 3
minutes.

Short to Another Wire or Decreased
Resistance in Driver’s Side Airbag Inflator

Is the r esistance as specif ied?

Does the SRS indicator stay on, and is DT C 31-3x
indicated?
