Honda Ridgeline. Manual - part 552





02

*01

SJC8A0BH46400053727MAAT00

’07-08 Models

24-33

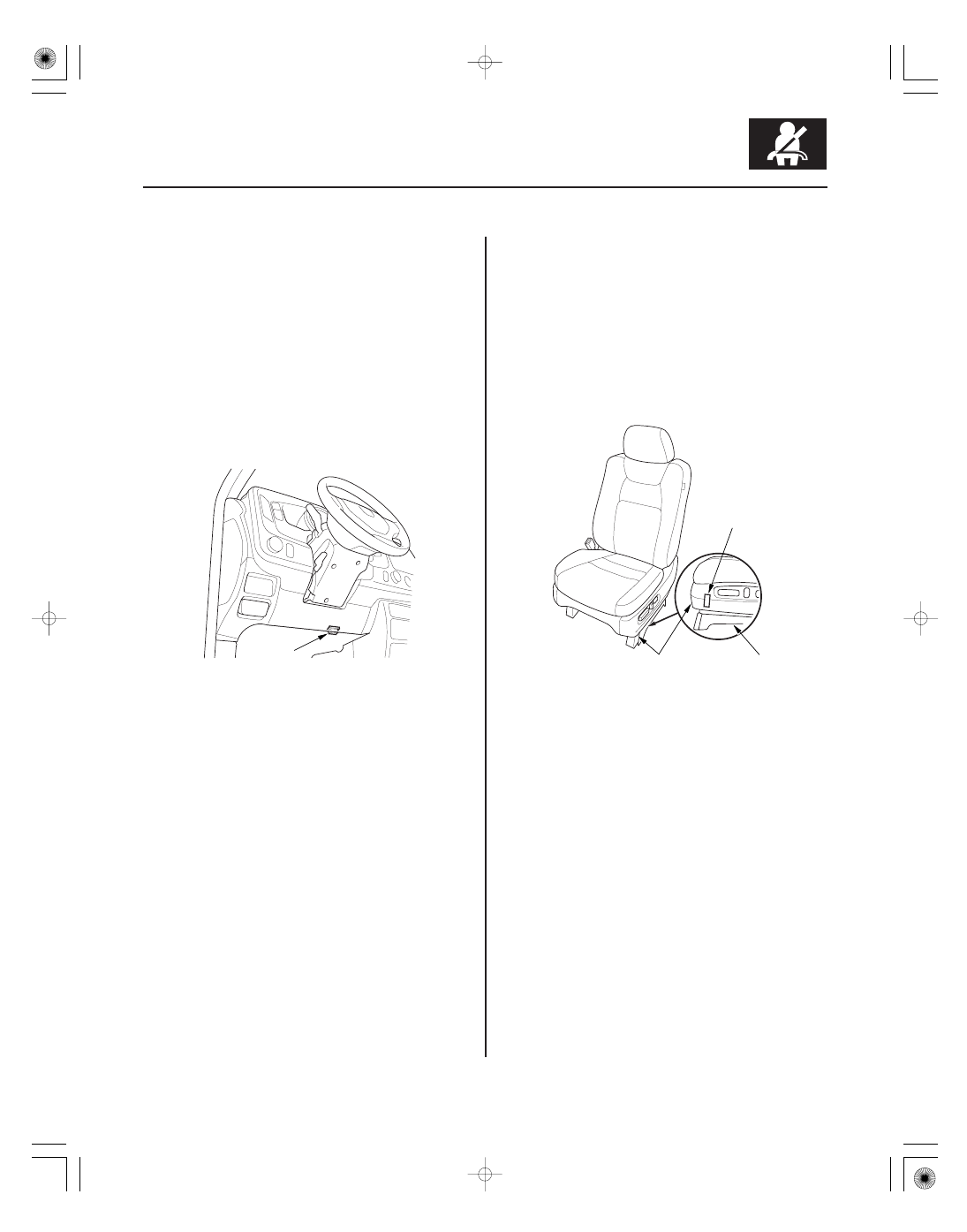

Driver’s Seat Position Sensor Operation Check

A

A

B

C

Check the driver’s seat position after any of these
actions.

• Driver’s seat position sensor replacement
• Cover plate (front side of driver’s seat slide rail)

replacement

1. Make sure the driver’s seat is at its full forward

position.

2. Make sure the ignition switch is OFF (0).

3. Connect the HDS to the data link connector (DLC)

(A).

4. Turn the ignition switch ON (II).

5. From the HDS Main Menu, select SRS, then

parameter information, then buckle switch, seat
position sensor.

6. Move the driver’s seat all the way forward.

7. Using a piece of tape (A), mark a line on the seat’s

outer cover (B) where the front riser cover meets
the seat riser (C). The driver’s seat position sensor
should read ‘‘NEAR.’’

8. Move the seat back in small increments (about

0.2 in., 5 mm) until the SPS reads ‘‘NOT NEAR.’’
The seat should be about 1 in. (25 mm) from the
front.

NOTE: It takes a few seconds for the HDS to display
changes, so wait about 5 seconds between each
move.

If the driver’s seat position sensor does not work as
described above, check the driver’s seat position
sensor or the cover plate for damage, and replace
parts as needed.

9. Turn the ignition switch OFF, and disconnect the

HDS from the DLC.

SJC8A00H46400000000GAAT00

DTC

Latch

Reset

Detection Item

Notes

1

2

24-34

SRS

DTC Troubleshooting Index

11-1x

Open in driver’s airbag first inflator

(see page 24-53)

11-3x

Short to another wire or decreased resistance in driver’s airbag first
inflator

(see page 24-55)

11-4x

Open in driver’s airbag second inflator

(see page 24-53)

11-6x

Short to another wire or decreased resistance in driver’s airbag
second inflator

(see page 24-55)

11-8x

Short to power in driver’s airbag first inflator

(see page 24-57)

11-9x

Short to ground in driver’s airbag first inflator

(see page 24-59)

11-Ax

Short to power in driver’s airbag second inflator

(see page 24-57)

11-Bx

Short to ground in driver’s airbag second inflator

(see page 24-59)

12-1x

Open in front passenger’s airbag first inflator

(see page 24-61)

12-3x

Short to another wire or decreased resistance in front passenger’s
airbag first inflator

(see page 24-62)

12-4x

Open in front passenger’s airbag second inflator

(see page 24-61)

12-6x

Short to another wire or decreased resistance in front passenger’s
airbag second inflator

(see page 24-62)

12-8x

Short to power in front passenger’s airbag first inflator

(see page 24-64)

12-9x

Short to ground in front passenger’s airbag first inflator

(see page 24-65)

12-Ax

Short to power in front passenger’s airbag second inflator

(see page 24-64)

12-Bx

Short to ground in front passenger’s airbag second inflator

(see page 24-65)

21-1x

Open in driver’s seat belt tensioner

(see page 24-67)

21-3x

Short to another wire or decreased resistance in driver’s seat belt
tensioner

(see page 24-68)

21-8x

Short to power in driver’s seat belt tensioner

(see page 24-70)

21-9x

Short to ground in driver’s seat belt tensioner

(see page 24-71)

22-1x

Open in front passenger’s seat belt tensioner

(see page 24-73)

22-3x

Short to another wire or decreased resistance in front passenger’s
seat belt tensioner

(see page 24-74)

22-8x

Short to power in front passenger’s seat belt tensioner

(see page 24-76)

22-9x

Short to ground in front passenger’s seat belt tensioner

(see page 24-77)

31-1x

Open in driver’s side airbag inflator

(see page 24-79)

31-3x

Short to another wire or decreased resistance in driver’s side airbag
inflator

(see page 24-80)

31-8x

Short to power in driver’s side airbag inflator

(see page 24-82)

31-9x

Short to ground in driver’s side airbag inflator

(see page 24-83)

32-1x

Open in front passenger’s side airbag inflator

(see page 24-85)

32-3x

Short to another wire or decreased resistance in front passenger’s
side airbag inflator

(see page 24-86)

32-8x

Short to power in front passenger’s side airbag inflator

(see page 24-88)

32-9x

Short to ground in front passenger’s side airbag inflator

(see page 24-89)

33-1x

Open in left side curtain airbag inflator

(see page 24-91)

33-3x

Short to another wire or decreased resistance in left side curtain
airbag inflator

(see page 24-93)

33-8x

Short to power in left side curtain airbag inflator

(see page 24-95)

33-9x

Short to ground in left side curtain airbag inflator

(see page 24-97)

34-1x

Open in right side curtain airbag inflator

(see page 24-99)

34-3x

Short to another wire or decreased resistance in right side curtain
airbag inflator

(see page 24-101)

34-8x

Short to power in right side curtain airbag inflator

(see page 24-103)

34-9x

Short to ground in right side curtain airbag inflator

(see page 24-105)

DTC

Latch

Reset

Detection Item

Notes

1

2

24-35

41-1x

No signal from the left front impact sensor

(see page 24-107)

41-2x

Internal failure of the left front impact sensor

(see page 24-112)

41-3x

41-Bx

42-1x

No signal from the right front impact sensor

(see page 24-110)

42-2x

Internal failure of the right front impact sensor

(see page 24-112)

42-3x

42-Bx

43-1x

No signal from the left side impact sensor (first)

(see page 24-113)

43-2x

Internal failure of the left side impact sensor (first)

(see page 24-118)

43-3x

43-Bx

44-1x

No signal from the right side impact sensor (first)

(see page 24-115)

44-2x

Internal failure of the right side impact sensor (first)

(see page 24-118)

44-3x

44-Bx

45-1x

No signal from the left side impact sensor (second)

(see page 24-118)

45-2x

Internal failure of the left side impact sensor (second)

(see page 24-123)

45-3x

45-Bx

46-1x

No signal from the right side impact sensor (second)

(see page 24-121)

46-2x

Internal failure of the right side impact sensor (second)

(see page 24-123)

46-3x

46-Bx

51-xx

Internal failure of the SRS unit

(see page 24-124)

52-xx
53-xx
54-xx
55-xx
56-xx
61-1x

Open in driver’s seat belt buckle switch

(see page 24-125)

61-2x

Short in driver’s seat belt buckle switch

(see page 24-128)

62-1x

Open in front passenger’s seat belt buckle switch

(see page 24-131)

62-2x

Short in front passenger’s seat belt buckle switch

(see page 24-134)

NOTE:

The ‘‘x’’ at the end of each DTC denotes a numeric character (0 thru 9) or an alpha character (A thru F) that you will see on the HDS
display. The character is unrelated to your troubleshooting; it designates the SRS unit manufacturer and other details used for product
analysis.

1:

The SRS indicator comes on and stays on whenever the ignition switch is in the ON (II) position, or until the code is cleared.

2:

The SRS indicator comes on when the DTC is set. The SRS indicator will not come on after the ignition switch is cycled from ON (II) to
OFF (0), but the DTC will be stored in the SRS unit.

(cont’d)

DTC

Latch

Reset

Detection Item

Notes

B-CAN DTCs

DTC

Detection item or Symptom

ECU

DTC type

page

1

2

24-36

SRS

DTC Troubleshooting Index (cont’d)

71-1x

Open in driver’s seat position sensor (’07-08 models)

(see page 24-137)

71-2x

Short in driver’s seat position sensor (’07-08 models)

(see page 24-138)

81-4x

Internal failure of the ODS unit (’07-08 models)

(see page 24-145)

81-5x
81-61

No signal from the ODS unit (’07-08 models)

(see page 24-140)

81-62

Response data error from the ODS unit (’07-08 models)

81-63

Internal failure of the ODS unit (’07-08 models)

(see page 24-145)

81-64
81-71

ODS unit does not calibrate (’07-08 models)

(see page 24-144)

81-78
81-79

Front passenger’s weight sensors initial check failure (’07-08 models)

(see page 24-145)

82-1x

No signal from the inner side front passenger’s weight sensor (’07-08
models)

(see page 24-146)

83-2x

No signal from the outer side front passenger’s weight sensor (’07-08
models)

85-4x

(see page 24-151)

85-5x
85-61

No signal from the OPDS unit (’06 model)

(see page 24-147)
(see page 24-140)

85-62

(see page 24-147)
(see page 24-140)

85-63

(see page 24-151)

85-64
85-71

(see page 24-144)

85-78
85-79

(see page 24-151)

86-1x

Faulty OPDS sensor

(see page 24-152)

86-2x
87-31

Side airbag cutoff indicator stays on/off

(see page 24-153)

87-32
91-1x

Short to ground in the SRS indicator circuit

(see page 24-155)

92-1x

Open in the passenger’s airbag cutoff indicator (’07-08 models)

(see page 24-156)

92-2x

Open or short to ground in the passenger’s airbag cutoff indicator
(’07-08 models)

(see page 24-158)

A1-1x

Faulty power supply (VA line)

(see page 24-159)

A2-1x

Faulty power supply (VB line)

(see page 24-160)

B1-1x

No signal from the roll rate sensor

(see page 24-162)

B1-8x

Internal failure of the roll rate sensor

(see page 24-165)

B1-9x

B1-Ax
B1-Bx

Ex-xx

Control operation recorded

(see page 24-124)

Fx-xx

Airbags and/or Tensioners deployment recorded

B1032

MICU collision detection signal (CDS) input failure

MICU

Signal error

(see page 24-165)

NOTE:

The ‘‘x’’ at the end of each DTC denotes a numeric character (0 thru 9) or an alpha character (A thru F) that you will see on the HDS
display. The character is unrelated to your troubleshooting; it designates the SRS unit manufacturer and other details used for product
analysis.

1:

The SRS indicator comes on and stays on whenever the ignition switch is in the ON (II) position, or until the code is cleared.

2:

The SRS indicator comes on when the DTC is set. The SRS indicator will not come on after the ignition switch is cycled from ON (II) to
OFF (0), but the DTC will be stored in the SRS unit.

Internal failure of the OPDS/ODS unit

No signal from the ODS unit (’07-08 models)

Internal failure of the OPDS/ODS unit

Response data error from the ODS unit (’06 model)

OPDS sensor initial check failure

Response data error from the OPDS unit (’07-08 models)

OPDS/ODS unit does not initialize
