Honda Ridgeline. Manual - part 551





01

Troubleshooting Intermittent Failures

Checking seat weight sensors after a vehicle
collision (’07-08 Models)

24-29

A

If there was a malfunction that sets a DTC, but it does
not recur, it will be stored in the memory as an
intermittent failure, and the SRS indicator may come on
depending on the malfunction detected.

NOTE:

• Check the condition of the battery (see page 22-74),

and the charging system (see page 4-28). Low battery
voltage may cause some intermittent failures.

• A faulty cable reel can cause intermittent connections

related to the driver’s airbag inflator DTCs.

After checking the DTC, troubleshoot as follows:

1. Read the DTC (see ‘‘Reading the DTC’’).

2. Clear the DTC memory (see ‘‘How to Clear the DTC

Memory’’).

3. Set the parking brake, then start the engine, and let

it idle.

4. The SRS indicator comes on for about 6 seconds

and then goes off.

5. Shake the related wire harnesses and the

connectors, and look for loose connections, poor
pinfits, and poor grounds.

6. Take a test-drive (quick acceleration, quick braking,

and cornering), turn the steering wheel fully left
and right, and hold it there for 5 to 10 seconds. If
the problem recurs, the SRS indicator will come on.

7. If you cannot duplicate the concern, ask the

customer about the conditions when it occurred, or
ask the customer to demonstrate the concern.

8. If you cannot duplicate the intermittent failure, the

system is OK at this time.

1. Position the front passenger’s seat to the rear most

position, adjust the recliner to the forwardmost
position. Do not move it from this position.

2. Drive the vehicle, accelerate to 20 mph (36 km/h),

then stop on level ground.

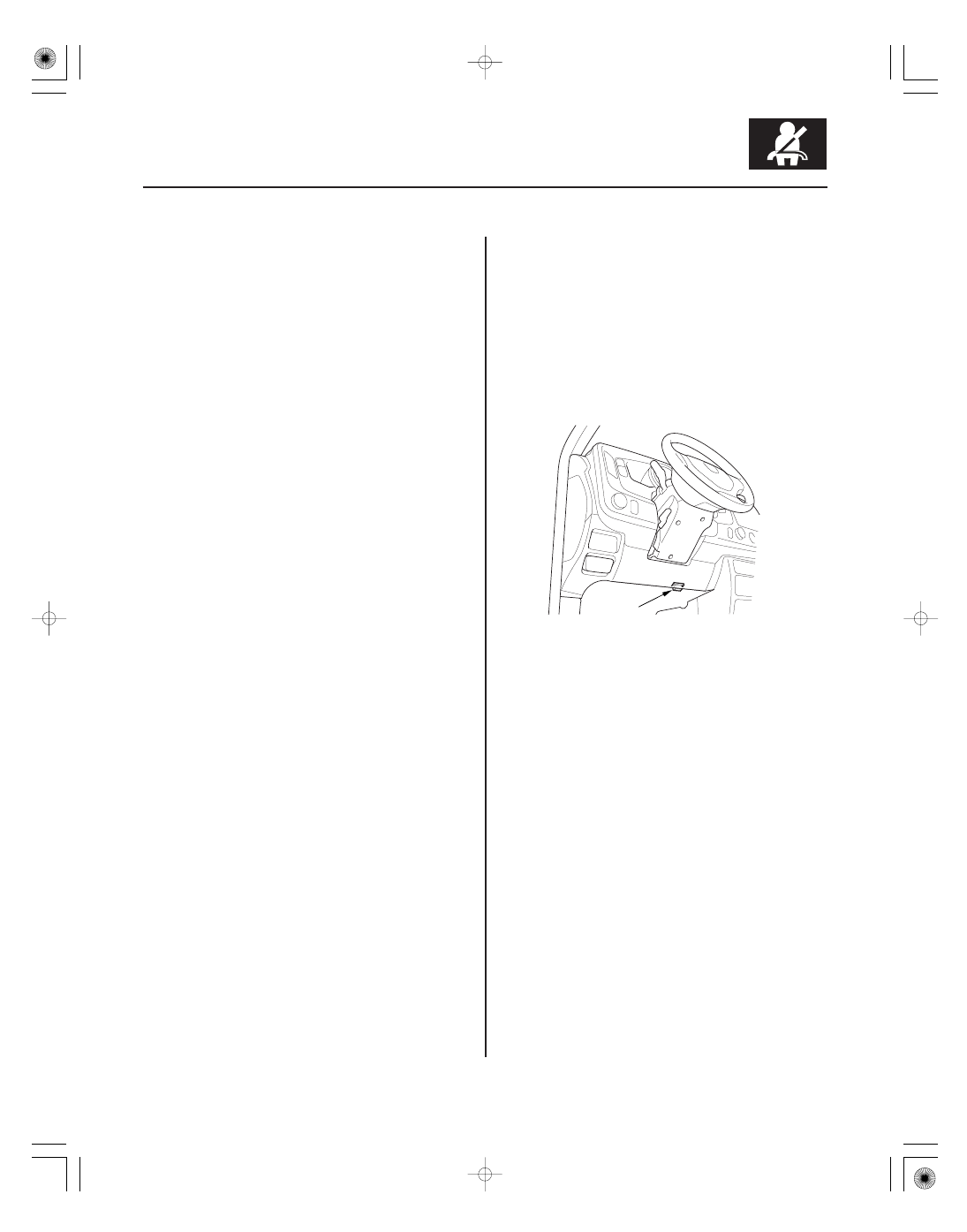

3. Connect the HDS to the data link connector (DLC)

(A).

4. From the SRS inspection menu, select Seat Weight

Sensor, then Misc test, then ‘‘SEAT OUTPUT CHK’’
and follow the prompts until the ODS operation
check has been completed.

02

SJC8A0AH46400043771BBAT00

24-30

SRS

OPDS/ODS Unit Initialization

A

When a seat-back cover, seat-back cushion, and/or the
OPDS/ODS unit is replaced, initialize the OPDS/ODS
unit by following the procedure.

NOTE: A new (uninitialized) OPDS/ODS unit installed
with a faulty OPDS sensor can cause DTC 85-71.

1. Clear the DTC memory (see page 24-28),

2. Make sure the front passenger’s seat is dry. Set the

seat-back in a normal position, and make sure there
is nothing on the seat.

3. Make sure the ignition switch is OFF and the MES

connector is not shorted.

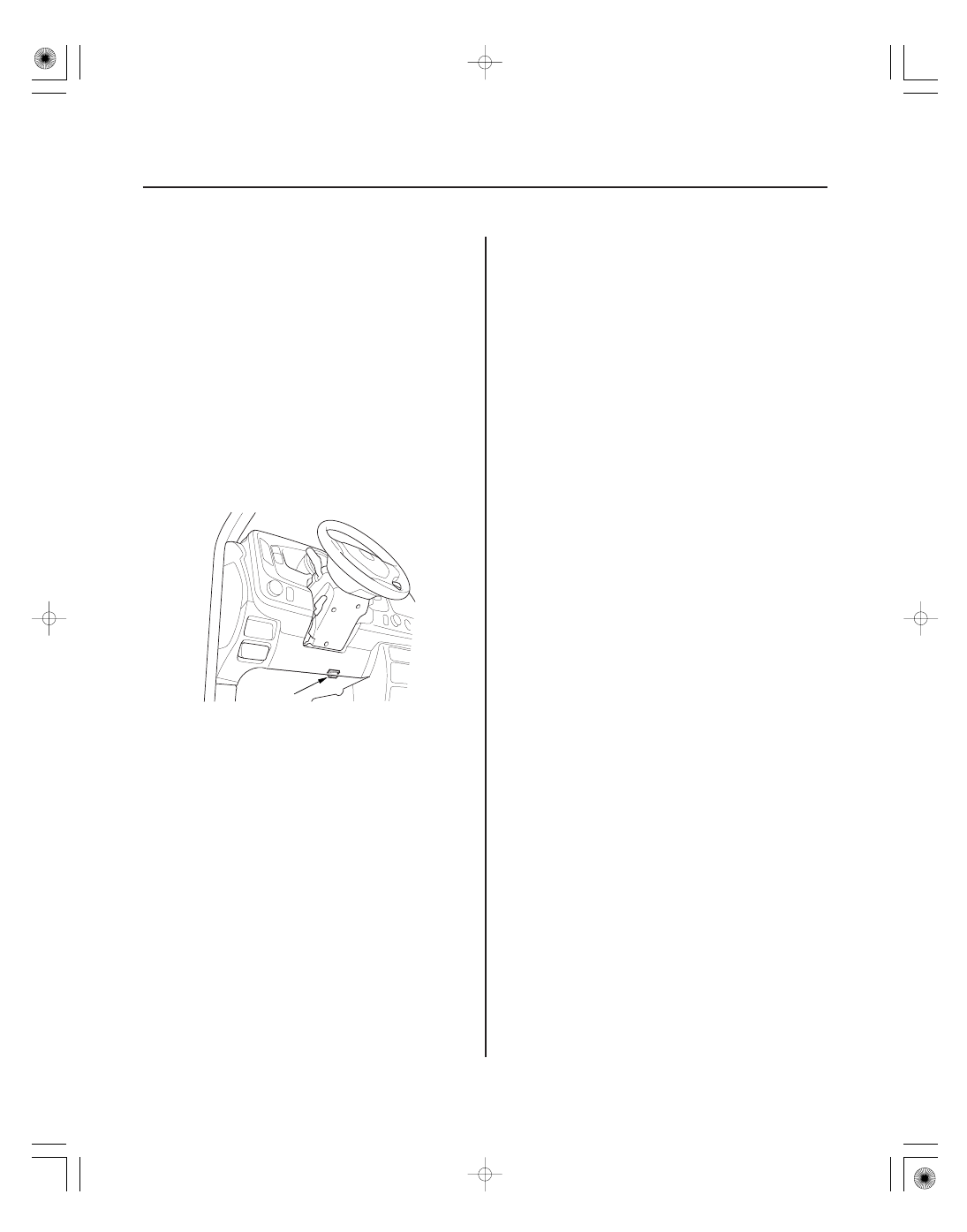

4. Connect the HDS to the data link connector (DLC)

(A).

5. Turn the ignition switch ON (II).

6. From the HDS Main Menu, select SRS, then SRS,

then Calibration. In the Calibration Menu, select
OPDS/ODS INITIALIZATION. Follow the screen
prompts to initialize the OPDS/ODS.

7. Turn the ignition switch OFF.

8. Disconnect the HDS from the DLC.

NOTE: If the OPDS/ODS system fails to initialize
after several attempts, replace the OPDS sensor/
seat-back and retry. If the OPDS/ODS system
continues to fail to initialize, replace the OPDS/ODS
unit (see page 24-192).

02

SJC8A0BH46400043081BBAT01

’07-08 Models

24-31

ODS Unit Calibration

A

When you replace the SRS unit, front passenger’s
weight sensors or ODS unit, calibrate the ODS unit.

While calibrating the ODS unit, observe these
precautions:

• Make sure all components of the front passenger’s

seat are correctly installed.

• Make sure nothing is on or under the front passenger’s

seat.

• Make sure there is nothing in the front passenger’s

seat-back pocket.

• Keep the windows closed.
• Do all calibration procedures except, test- driving, in

the service bay.

• Make sure the vehicle is on level ground.
• Keep the A/C and the heater off.
• Do not touch the front passenger’s seat until you are

prompted to or when you have completed the
calibration.

• Do not expose the front passenger’s seat to sudden

temperature changes.

1. Position the front passenger’s seat to the rearmost

position, and adjust the recliner to the forwardmost
position. Do not move the seat from this position.

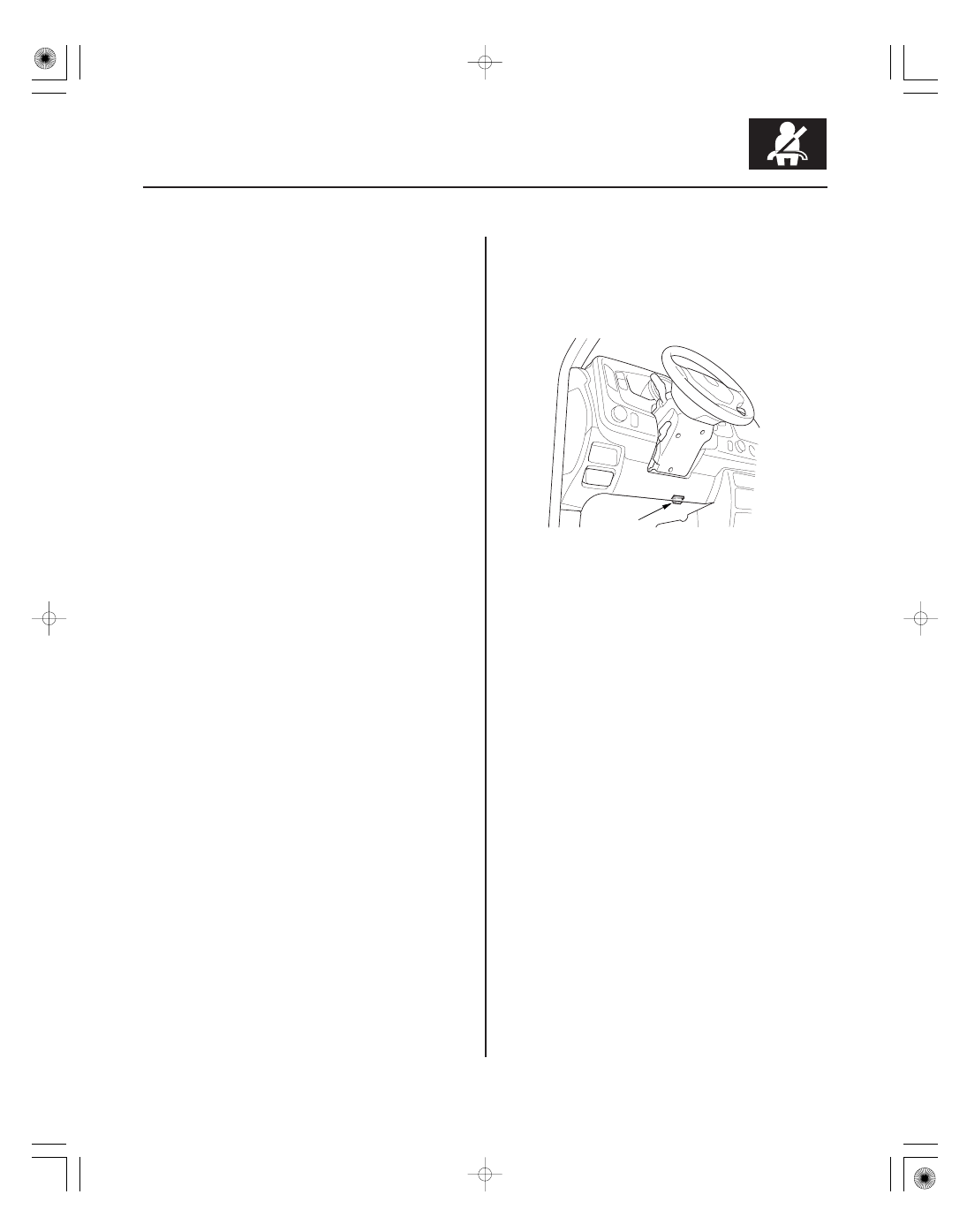

2. Connect the HDS to the data link connector (DLC)

(A).

3. Drive the vehicle, and accelerate to 20 mph

(36 km/h), then stop on level ground.

4. From the Main Menu, select SRS, then Calibration,

then Misc Test, then select ‘‘SWS INITILIZATION,’’
and follow the prompts until the calibration has
been completed.

02

SJC8A0BH46400043081MAAT00

’07-08 Models

Pre-Operation Check Set-up

After Replacing Front Passenger’s Seat
Component(s)

24-32

SRS

ODS Unit Operation Check

A

Check the ODS operation after any of these actions.

• Replacement of front passenger’s seat component(s)

(except ODS unit and/or front passenger’s weight
sensors)

• After a vehicle collision
• SRS unit replacement

• Make sure all the components of the front passenger’s

seat are correctly installed.

• Position the front passenger’s seat to the rearmost

position. Adjust the seat recline to the forwardmost
position.

• Do not move the seat from this position.
• Make sure nothing is on or under the front passenger’s

seat.

• Make sure there is nothing in the front passenger’s

seat-back pocket.

• Keep the windows closed.
• Do all calibration procedures, except test-driving, in

the service bay.

• Make sure the vehicle is on level ground.
• Keep the A/C and heater off.
• Do not touch the passenger’s seat during the

operation check.

• Do not expose the front passenger’s seat to sudden

temperature changes.

• Make sure all aftermarket devices such as amplifiers,

fluorescent lights, air purifiers, CB or HAM radios, etc.
are turned off.

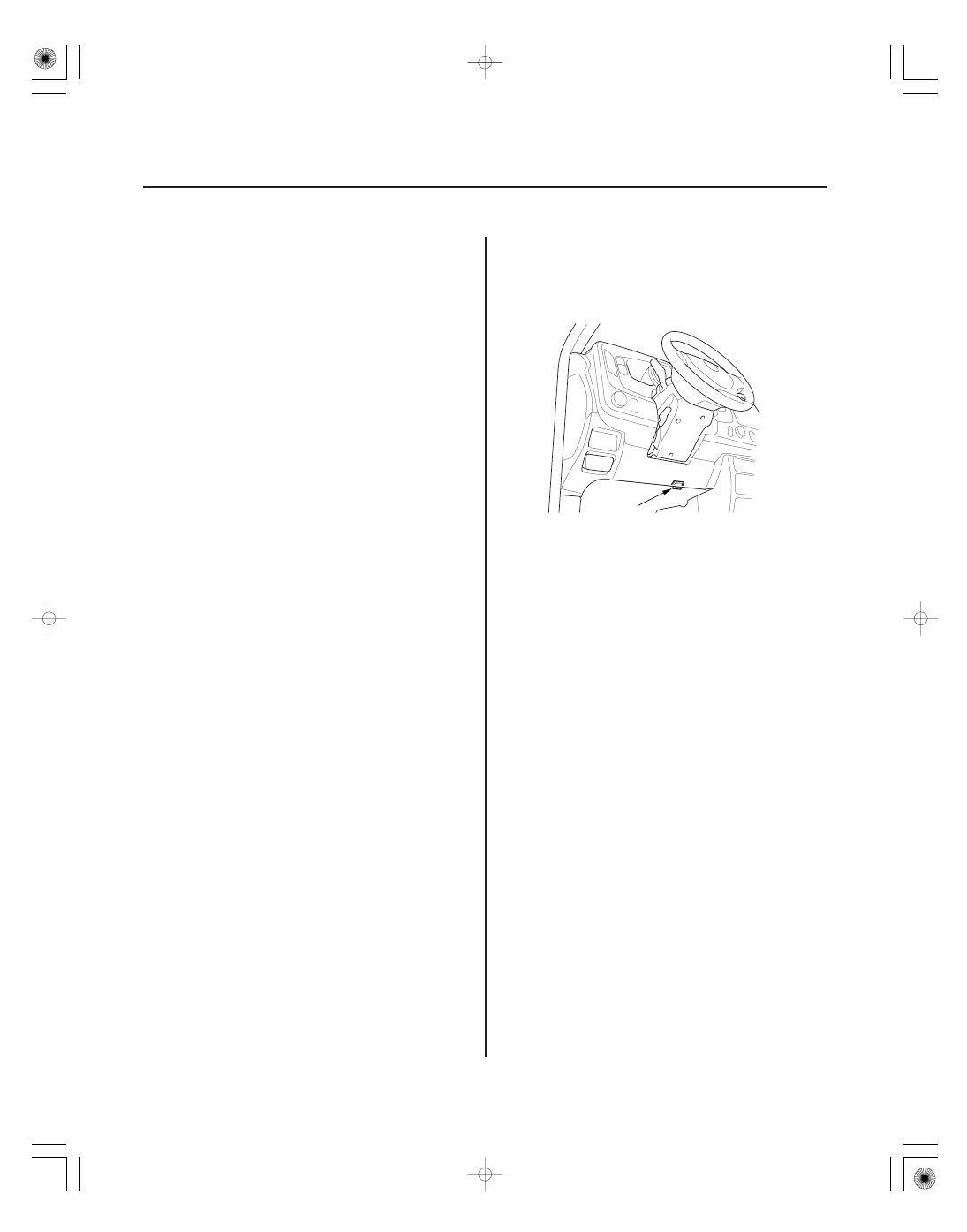

1. Connect the HDS to the data link connector (DLC)

(A).

2. Drive the vehicle, accelerate to 20 mph (36 km/h),

then stop on level ground.

3. From the HDS Main Menu, select SRS, then

Inspection. In the HDS Inspection Menu, select
‘‘SEAT OUTPUT CHK’’ and follow the prompts until
the ODS unit operation check has been completed.
