Honda Ridgeline. Manual - part 534





01

06

YES

NO

YES

NO

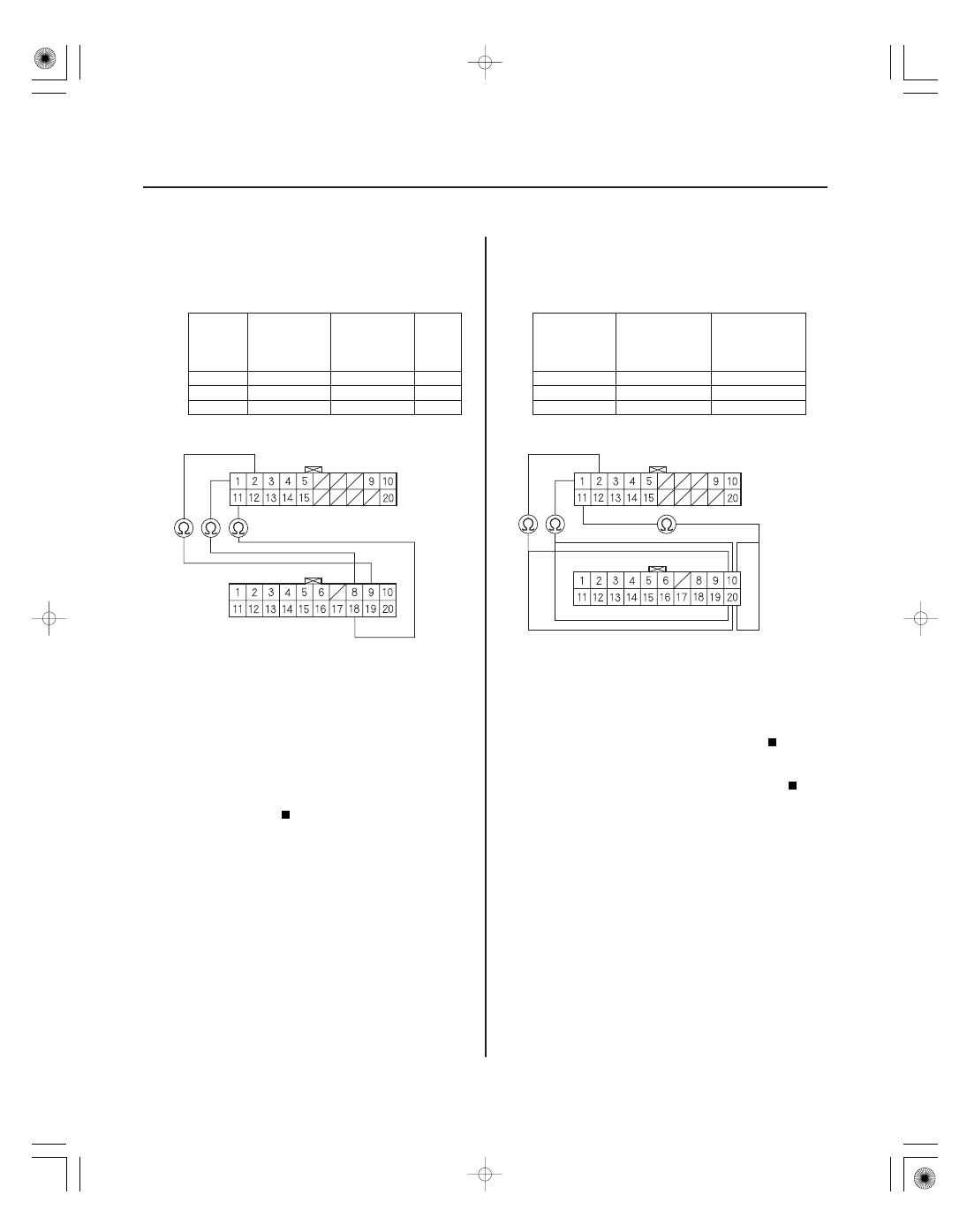

23-102

Navigation System

Symptom Troubleshooting (cont’d)

NAVIGATION UNIT CONNECTOR A (20P)

NAVIGATION DISPLAY CONNECTOR A (20P)

G SIG (RED)

R SIG
(WHT)

B SIG (YEL)

R SIG (WHT)

G SIG
(RED)

B SIG (YEL)

NAVIGATION UNIT CONNECTOR A (20P)

NAVIGATION DISPLAY CONNECTOR A (20P)

G SIG (RED)

R SIG
(WHT)

B SIG (YEL)

SIG SH GND (GRY)

GND (BLK)

5. Check for continuity between the appropriate

terminals of navigation unit connector A (20P) to
navigation display connector A (20P) based on the
missing color(s).

Missing

color

circle

Navigation

unit

connector A

(20P)

Navigation

display

connector A

(20P)

Wire

color

Blue

A11

A18

YEL

Green

A2

A9

RED

Red

A1

A8

WHT

Go to step 6.

There is an open in the circuit between the

navigation display and the navigation unit. Check
for poor connections or loose terminals at the
display and navigation units. If a poor connection
or loose terminal is found, replace the affected
shielded harness.

6. Check for continuity between the appropriate

terminals of navigation unit connector A (20P) and
navigation display connector A (20P) based on the
missing color(s).

Missing

color circle

Navigation

unit connector

A (20P)

Navigation

display

connector

A (20P)

Blue

A11

A10, A20

Green

A2

A10, A20

Red

A1

A10, A20

There is a short to body ground in the circuit

between the navigation display and the navigation
unit. Replace the affected shielded harness.

Replace the navigation unit. If the problem is

still unresolved, replace the navigation display.

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is ther e continuity?

Is ther e continuity?

SJC8AN1J36100000000FAAT04

Picture has lines or rolls

YES

NO

YES

NO

YES

NO

YES

NO

YES

NO

23-103

version are installed.

1. Check for electronic aftermarket accessories

(possibly hidden) mounted near the navigation
display or the navigation unit.

Disable the accessories, and recheck.

Go to step 2.

2. Start the vehicle and observe the navigation picture.

Check for an open or short to ground in the C

SIG wire from navigation unit connector A (20P)
terminal No. 12 to navigation display connector A
(20P) terminal No. 19. Also check for a short to
ground between navigation display connector A
(20P) terminal No. 19 and terminal No. 20.

Go to step 3.

3.

test under Monitor Check (see page 23-122).

Do the troubleshooting for the picture is

missing a color or tone or is an odd color (see page
23-101).

Go to step 4.

4. Turn the ignition switch ON (II) and observe the

navigation picture.

Check for sources of electrical noise, such as

poor battery connection, alternator, defective
battery, aftermarket accessories or cell phone, poor
pin fits at the display or control unit.

Go to step 5.

5. Substitute a known-good navigation display, and

recheck.

Replace the navigation display.

Replace the navigation unit (see page 23-139).

Ar e ther e any electr onic accessor ies?

Is the pictur e scr olling hor izontally ( lef t to r ight or
r ight to lef t)?

Is the pictur e missing a r ed, gr een or blue color
cir cle?

Did the image impr ove?

Is the pictur e OK ?

Always compare the screen image to a known-good

that it is a characteristic of the system.
Always check the connectors for poor connections or
loose terminals.
Before troubleshooting, make sure you have the
audio system and the navigation system anti-theft
codes.

NOTE:

• Always make sure that the correct DVD color and

service information about the navigation system.

vehicle. If the screen looks the same, inform the client

Check any official Honda service website for more

Go into the Diagnostic mode and use RGB Color

02

*01

SJC8AN1J36100000000FAAT05

Special Tools Required

YES

NO

YES

NO

YES

NO

YES

NO

YES

NO

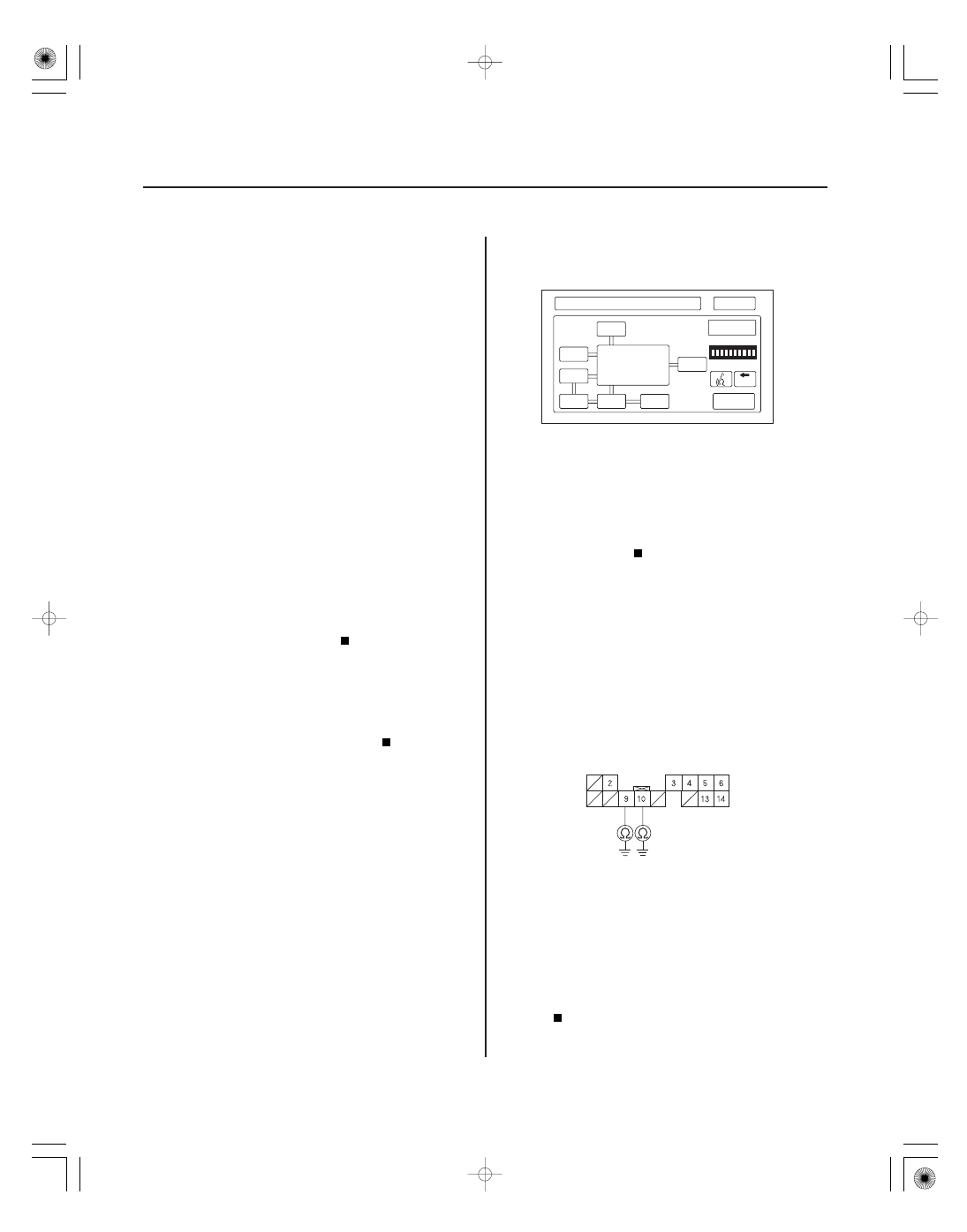

Navigation display buttons do not work or
respond properly

23-104

Navigation System

Symptom Troubleshooting (cont’d)

Navi System Link

Navi.ECU

Return

Exit Diag

OK

BACK

Air

Con

Display

XM

Radio

6CD

R- Camera

GPS Ant.

AUDIO UNIT CONNECTOR B (14P)

AUD BUS
(YEL)

AUD BUS
(RED/BLU)

SCS service connector 07PAZ-0010100

NOTE:

• Always make sure that the correct DVD color and

version are installed.

loose terminals.

• Make sure that the correct colored DVD and version

are installed.

• Inspect the DVD for damage.

1. Turn the ignition switch ON (II).

Go to step 2.

Refer to troubleshooting for no picture is

displayed (see page 23-100).

2. Try several navigation buttons and touch screen

buttons.

The system is OK at this time.

• If all navigation hard buttons and touch screen

• If only some navigation buttons operate normally,

while others do not, go into the Diagnostic mode
and use Touch Panel diagnostic under Monitor
Check (see page 23-122) and if necessary, Hard
Key diagnostic under Unit Check (see page
23-124).

3. Try to load and play a CD in the CD changer.

Go to step 9.

Go to step 4.

4. Do the forced starting of the display (see page

23-138).

Check the operation of the navigation screen,

press Return. Then press Monitor Check. Then
press Touch Panel Check. If any the buttons on the
screen do not respond properly, replace the
navigation display.

• The display, 6CD, radio and the XM are RED: Go

to step 4.

• Only some of the links are RED: Go to step 9.

5. Remove the radio without disconnecting the

connectors.

6. Check for continuity between B9 and B10 of the

audio unit connector B (14P) and body ground.

Go to step 7.

Check all pin fits, and recheck operation. If the

circuit is OK, substitute a navigation control unit. If
there is no change, replace the navigation display
unit.

Wire side of female terminals

Does the navigation display tur n on?

Do all the buttons f unction pr oper ly?

Does the CD display on the audio unit when the
CD button is pushed?

Ar e all the connections nor mal ( gr een)?

Is ther e continuity?

audio system and the navigation system anti-theft
codes.

Check any official Honda service website for more

Always check the connectors for poor connections or

Before troubleshooting, make sure you have the

service information about the navigation system.

buttons are inoperative, go to step 3.

*02

*03

YES

NO

YES

NO

23-105

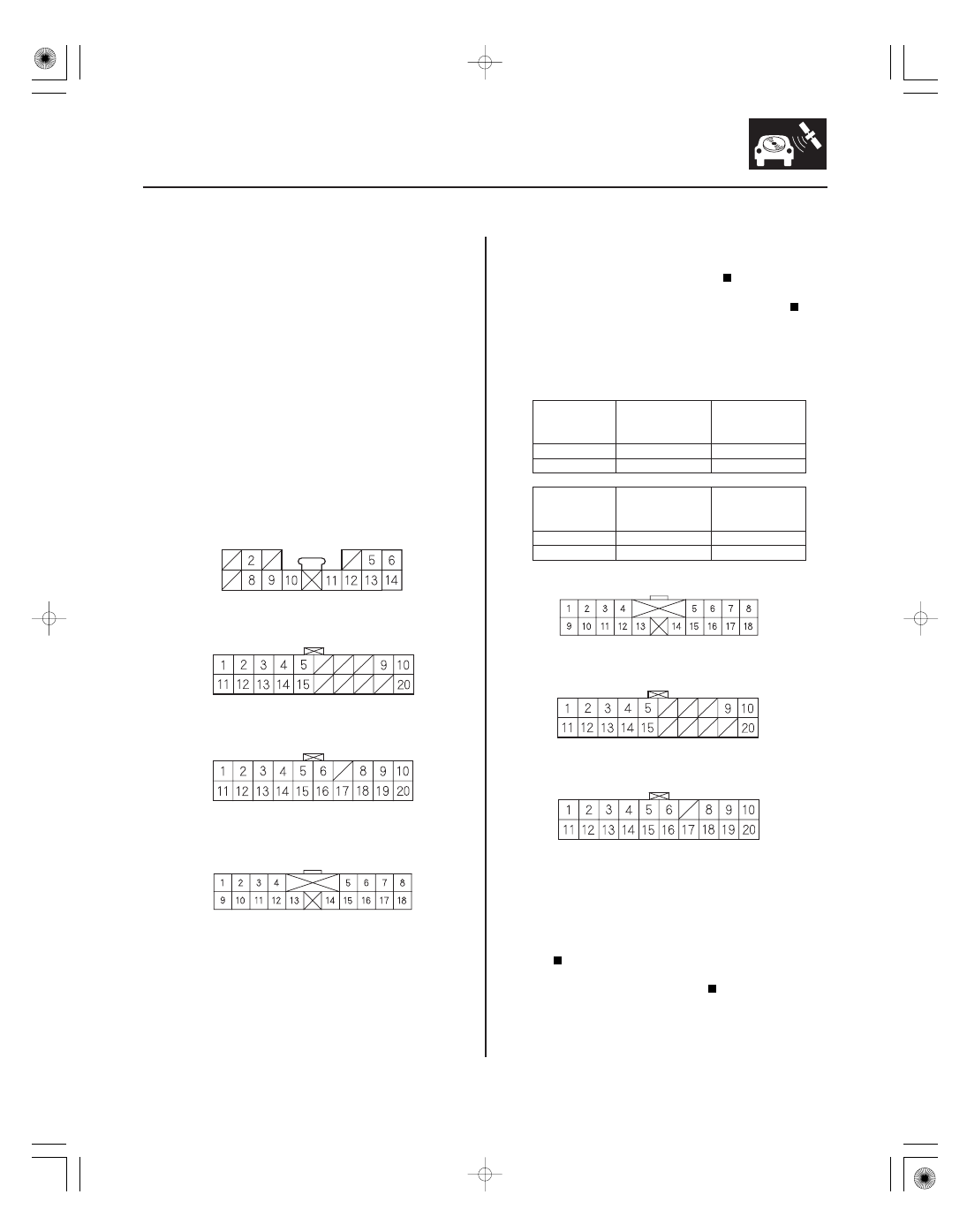

NAVIGATION UNIT CONNECTOR B (14P)

NAVIGATION UNIT CONNECTOR A (20P)

NAVIGATION DISPLAY CONNECTOR A (20P)

CD CHANGER CONNECTOR A (18P)

CD CHANGER CONNECTOR A (18P)

NAVIGATION UNIT CONNECTOR A (20P)

NAVIGATION DISPLAY CONNECTOR A (20P)

7. In this order, disconnect the connectors one at a

time until you no longer have continuity to ground.

• XM receiver A (14P) connector.
• Navigation control unit B (14P) connector.
• Navigation control unit A (20P) connector.
• Navigation display A (20P) connector.
• CD changer B (14P) connector.
• CD changer A (18P) connector.
• Audio unit B (14P) connector.

8. On the connector that you disconnected and lost

continuity, check for continuity to ground on each
terminal listed.

• Navigation control unit B2 and B8.
• Navigation control unit A10 and A20.
• Navigation display A3 and A13.
• CD changer A5 and A15.

Replace the shorted harness.

Replace the unit that is shorted to ground.

9. Check for continuity between the CD changer

connector B, navigation display connector A, and
navigation control unit connector A according to
the table.

CD changer

connector

Navigation

display

connector

Wire color

B9

A3

WHT

B10

A13

BLU/RED

Navigation

display

connector

Navigation

control unit

connector

Wire color

A5

A10

LT GRN

A15

A20

PUR

Check all pin fits and recheck operation. If the

circuit is OK, substitute a navigation control unit. If
there is no change, replace the navigation display
unit.

Replace the faulty harness.

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is ther e continuity to gr ound?

Is ther e continuity?
