Honda Ridgeline. Manual - part 520





SJC8A00J10300000000FAAT11

YES

NO

YES

NO

YES

NO

YES

NO

Audio remote switch does not work properly

23-46

23-46

Audio System

Symptom Troubleshooting (cont’d)

5. Insert the diagnostic skip test CD (07AAZ-SDBA300).

Play tracks 2

11 and note the track number(s) the

CD starts skipping. Do the same test on a known-
good vehicle.

Operation is normal.

Go to step 6.

6. Insert the diagnostic skip test CD (07AAZ-SDBA200).

Play tracks 7

11 and tracks 13

15 and note the

track number(s) where the CD starts skipping. Do
the same test on a known-good vehicle.

Operation is normal.

• With navigation: Replace CD changer (see page

23-58).

• Without navigation: Replace audio unit.

(see page 23-57).

NOTE:

• Check the vehicle battery condition first.
• Always check for poor connections or loose terminals.

1. Test the radio remote switch (see page 23-62).

Go to step 2.

Replace the audio remote switch (see page

23-62).

2. Turn the ignition switch ON (II).

3. Turn on the audio unit and check the audio unit

operation (volume up, volume down, CH (UP), CH
(DOWN), MODE).

Go to step 4.

Replace the audio unit (see page 23-57), and

recheck.

4. Turn the ignition switch OFF.

5. Remove the audio unit (see page 23-57).

NOTE: Eject all the CDs before removing the audio
unit and CD changer to prevent damaging the CD
player’s load mechanism.

Does the disk skip on same tr ack( s) number as
known-good vehicle?

Does the disk skip on same tr ack number ( s) as
known-good vehicle?

Is the audio r emote switch OK ?

Is the audio unit oper ation OK ?

08

09

AUDIO REMOTE SWITCH TABLE

YES

NO

YES

NO

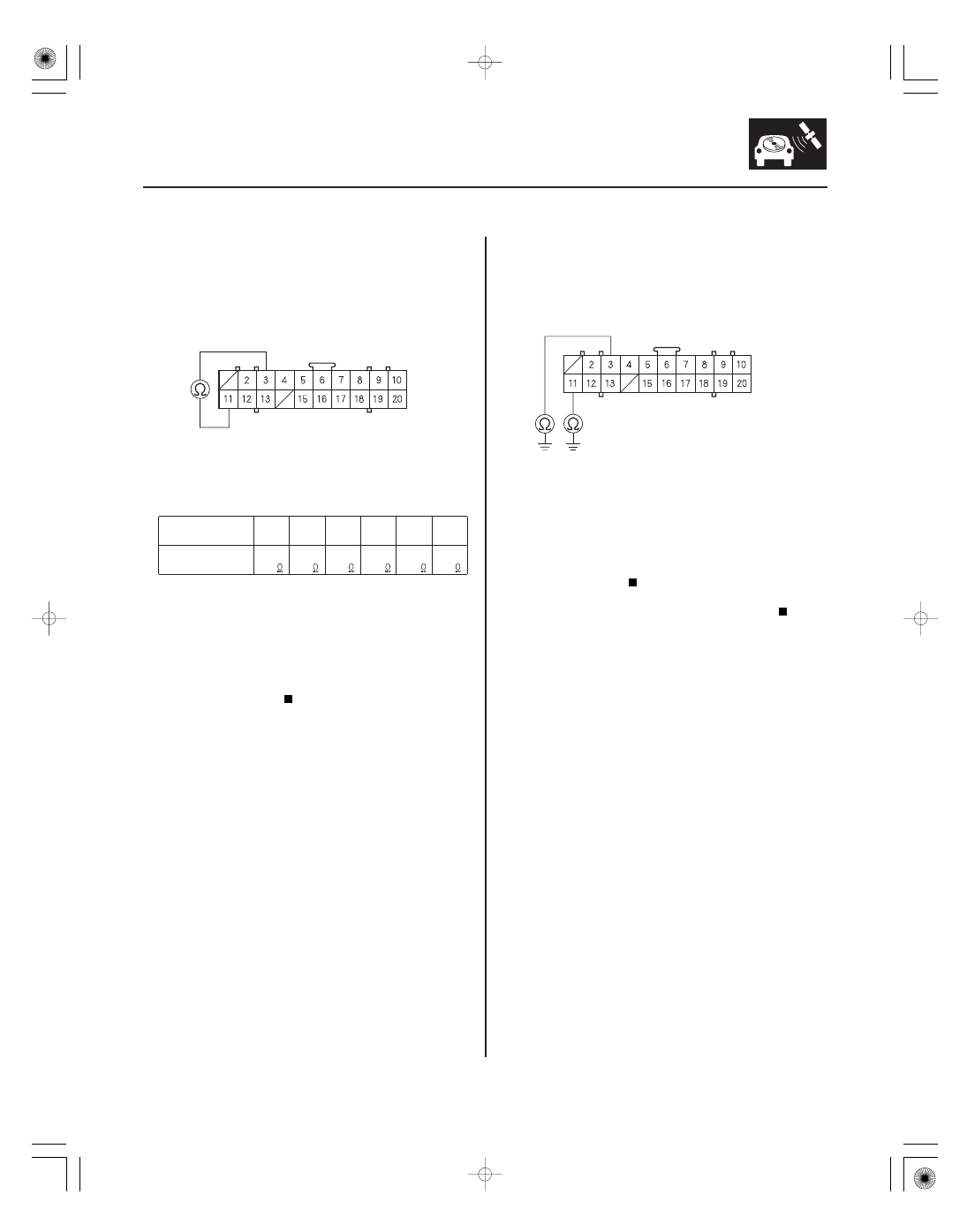

23-47

AUDIO UNIT CONNECTOR A (20P)

REMOTE CONTROL (GRN/RED)

REMOTE GND (BRN)

AUDIO UNIT CONNECTOR A (20P)

REMOTE CONTROL (GRN/RED)

REMOTE GND (BRN)

6. Measure the resistance between the audio unit

connector A (20P) No. 3 and No. 11 terminals as
specified in the table.

Go to step 7.

Repair open or high resistance in the circuit

between the audio unit and the audio remote
switch. If the wires are OK, replace the cable reel
(see page 24-185).

7. Check for continuity between the No. 3 and No. 11

terminals of the audio unit connector A (20P) and
body ground.

Repair the short to body ground in the circuit

between the audio unit and the audio remote
switch. If the wires are OK, replace the cable reel
(see page 24-185).

Replace the audio unit (see page 23-57).

Button held down

VOL

DOWN

VOL UP CH ( ) CH ( ) MODE (NONE)

Resistance

about

100

about

357

about

775

about

1.7 k

about

3.7 k

about

10 k

Wire side of female terminals

Wire side of female terminals

Is the r esistance OK ?

Is ther e continuity?

SJC8AN1J10300000000FAAT16

Unable to select CD changer

YES

NO

23-48

Audio System

Symptom Troubleshooting (cont’d)

NOTE: Check the vehicle battery condition first.

1. Turn the ignition switch ON (II).

Substitute a known-good CD changer, then

reconnect all connectors and recheck. If the
symptom/indication goes away, replace the
original CD changer.

If the vehicle has a navigation system, go to

system troubleshooting in the navigation section. If
the vehicle does not have a navigation system,
substitute a known-good CD changer. If the XM
radio still does not work, substitute a known-good
XM receiver.

Does the X M r adio wor k?

*01

*02

*03

SJC8AN1J10300000000FAAT17

Special Tools Required

YES

NO

XM receiver connector

Wire color

YES

NO

XM receiver

connector

CD changer

Wire color

YES

NO

Poor or no sound with audio disc changer

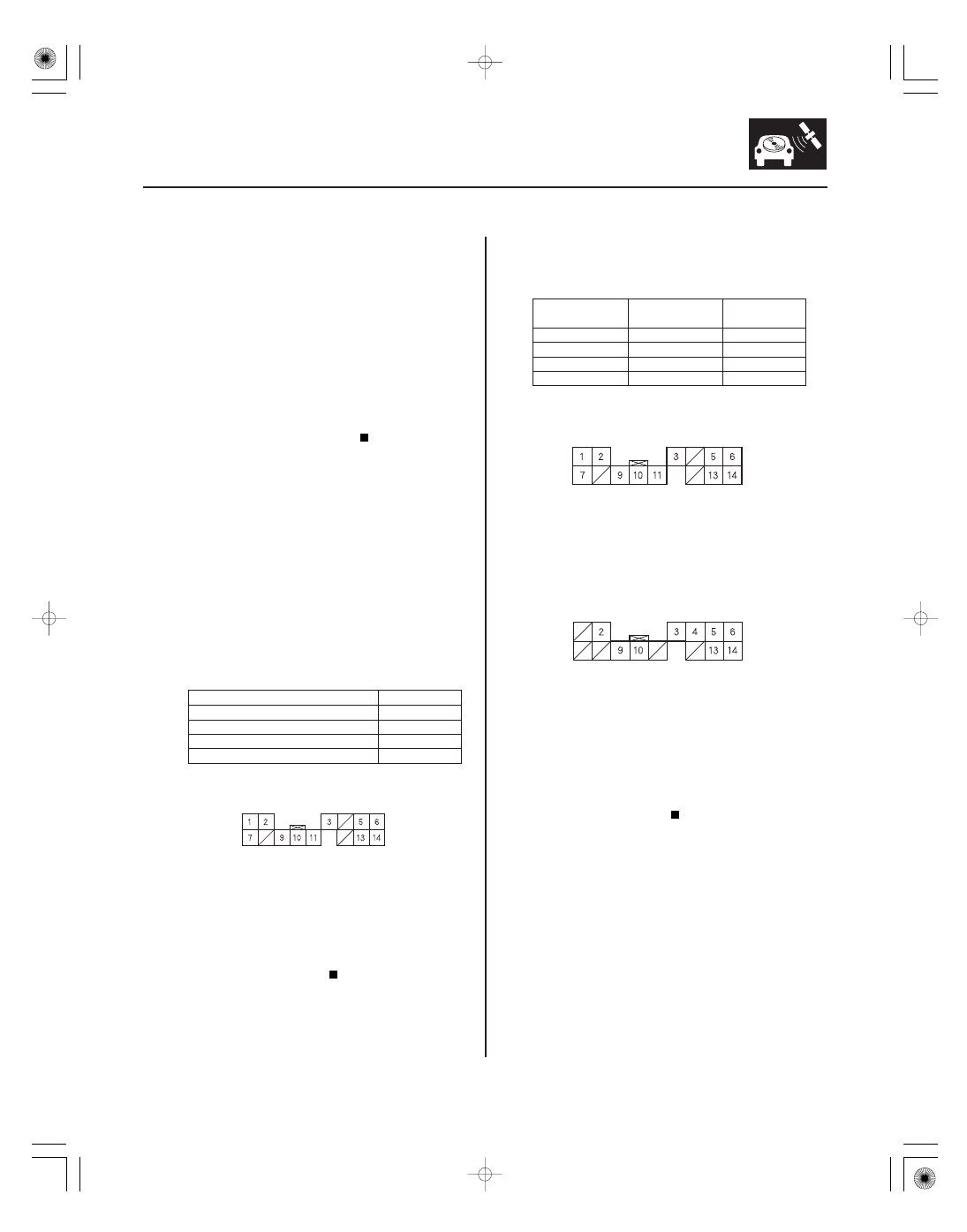

23-49

XM RECEIVER CONNECTOR A (14P)

XM RECEIVER CONNECTOR A (14P)

CD CHANGER CONNECTOR B (14P)

Diagnostics audio disc 07AAZ-SDBA100

NOTE: Check the vehicle battery condition first.

1. Insert audio diagnostic CD (T/N 07AAZ-SDBA100)

in the CD changer.

The original disc is faulty.

Go to step 2.

2. Disconnect CD changer connector B (14P) and the

XM receiver connector A (14P).

NOTE: Eject all the CDs before removing the audio
unit and CD changer to prevent damaging the CD
player’s load mechanism.

3. Check for continuity between XM receiver

connector A (14P) and body ground according to
the table. Then check for continuity between the
same terminals listed in the table and CD changer
connector B (14P) No. 4 terminal (the harness
shield).

A6

RED

A14

GRN

A5

WHT

A13

BLK

Repair short in the wire between the CD

changer and the XM receiver, or replace the
affected shielded harness.

Go to step 4.

4. Check for continuity between the XM receiver

connector A (14P) and CD changer connector B
(14P) according to the table.

A6

B6

RED

A14

B14

GRN

A5

B5

WHT

A13

B13

BLK

Go to step 5.

Repair open in the wire between the CD

changer and XM receiver.

(cont’d)

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is the CD sound quality nor mal?

Is ther e continuity?

Is ther e continuity?
