Audio system sound is weak or distorted
(display is normal)

23-30

23-30

Audio System

Symptom Troubleshooting (cont’d)

AUDIO UNIT CONNECTOR A (20P)

RR R SPKR
(RED/BLU)

FR L SPKR
(LT GRN)

FR R SPKR

(BLU)

RR L SPKR

(BRN/WHT)

FR L SPKR
(PUR)

FR R SPKR
(RED)

RR L SPKR
(RED/YEL)

RR R SPKR
(YEL)

AUDIO UNIT CONNECTOR C (8P)
(Except 1CD type)

RR WOOFER
(YEL/BLK)

RR WOOFER
(LT GRN/RED)

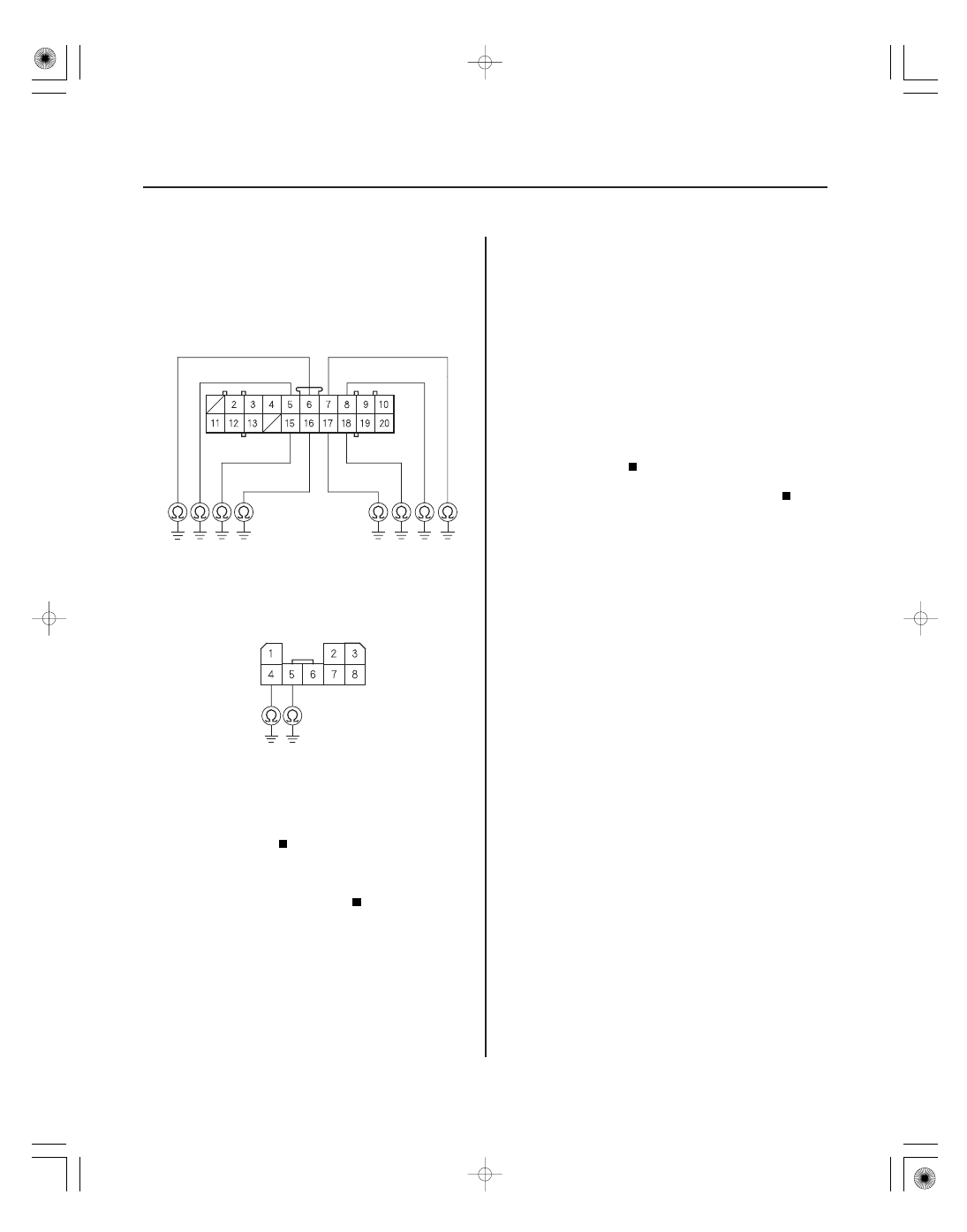

13. Check for continuity between body ground and

audio unit connector A (20P) No. 5, 6, 7, 8, 15, 16, 17
terminals and 18 individually and between body
ground and audio unit connector C (8P) terminals
No. 4 and No. 5 individually.

Repair short in the wire between the audio

unit and speaker.

Substitute a known-good audio unit and

recheck. If the symptom/ indication goes away,
replace the original audio unit.

NOTE: Check the vehicle battery condition first.

1. Turn the ignition switch ON (II).

2. Turn on the audio unit and check for sound in each

mode (AM, FM, XM, and CD).

Intermittent failure. The system is OK at this

time. Check for loose connection at the audio unit,
and each speaker.

Speakers all work, sound quality is poor.

• If sound quality is poor only with the XM radio, or

the XM radio does not function, go to poor or no
sound with XM radio (see page 23-32).

• If the sound quality is poor only with AM or FM,

go to poor radio reception or interference
(see page 23-24).

• If sound is poor in all modes, go to sound quality

diagnosis (see page 23-51).

Wire side of female terminals

Wire side of female terminals

Is ther e continuity?

Is ther e sound f r om the speaker s, and is the sound
quality nor mal in each mode?

06

07

SJC8A00J10300000000FAAT07

Audio unit button illumination does not
work

YES

NO

YES

NO

YES

NO

YES

NO

23-31

AUDIO UNIT CONNECTOR A (20P)

ILL

(RED)

GAUGE CONTROL MODULE CONNECTOR C (20P)

ILL

(RED)

AUDIO UNIT CONNECTOR A (20P)

ILL

(RED/BLK)

NOTE: Check the vehicle battery condition first.

1. Turn the ignition switch ON (II).

2. Turn the headlight switch to the parking light

position.

3. Check the illumination of the audio unit buttons.

Intermittent problem: the audio unit is OK at

this time. Check for loose or poor connections at
audio unit connector A (20P).

Go to step 4.

4. Check the illumination of several other buttons not

related to the audio system.

Go to step 5.

Troubleshoot the interior lights. Start by

checking the No. 4 (15 A) fuse in the under-hood
fuse/relay box. If the fuse is OK, check for an open
in the wire between the under-hood fuse/relay box
and the audio unit.

5. Turn the ignition switch OFF.

6. Disconnect audio unit connector A (20P).

NOTE: Eject all the CDs before removing the audio
unit and CD changer to prevent damaging the CD
player’s load mechanism.

7. Disconnect gauge control module connector A

(30P).

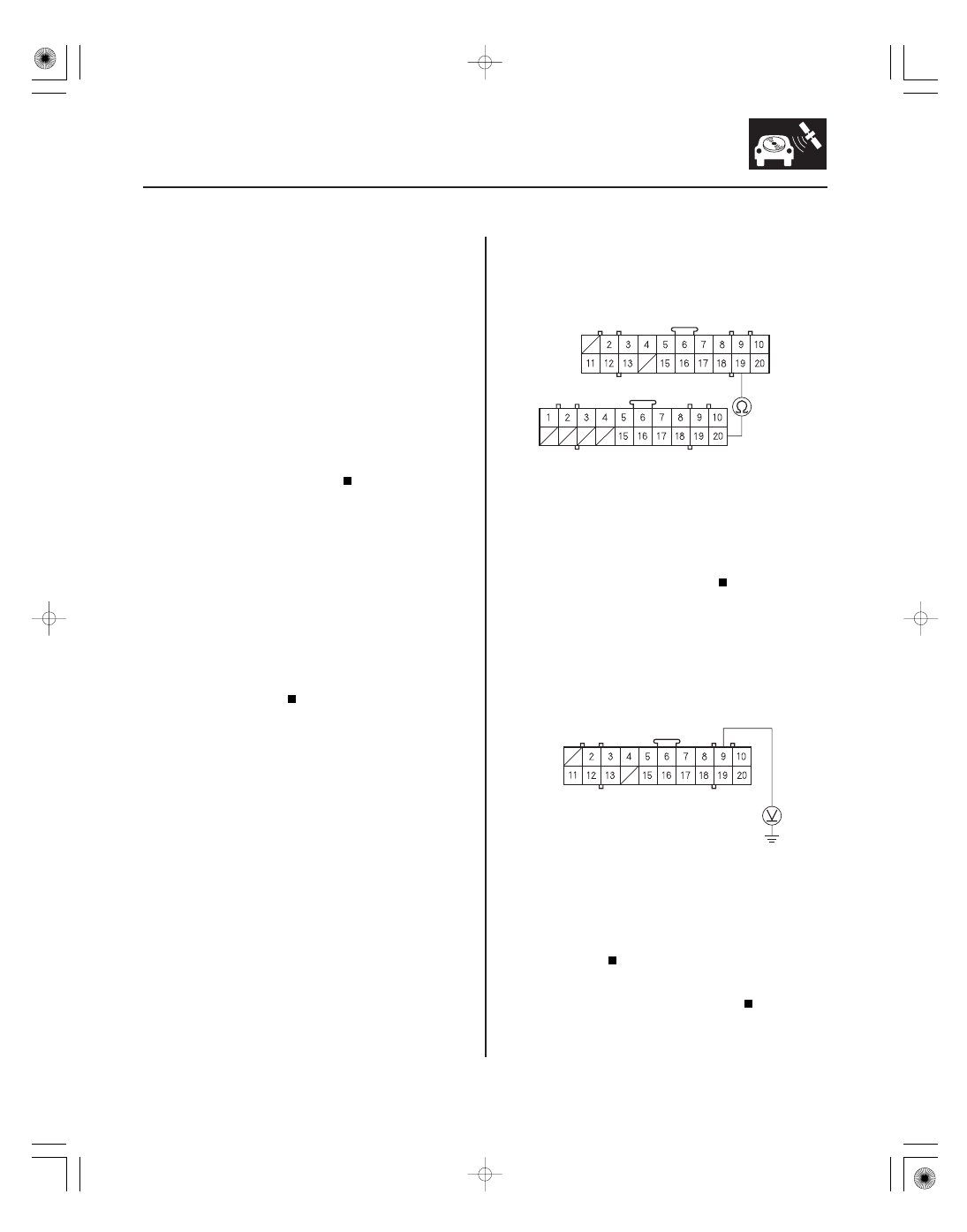

8. Check for continuity between audio unit connector

A (20P) No. 19 terminal and gauge control module
connector C (20P) No. 20 terminal.

Go to step 9.

Repair open in the wire between the gauge

control module and the audio unit.

9. Turn the ignition switch ON (II).

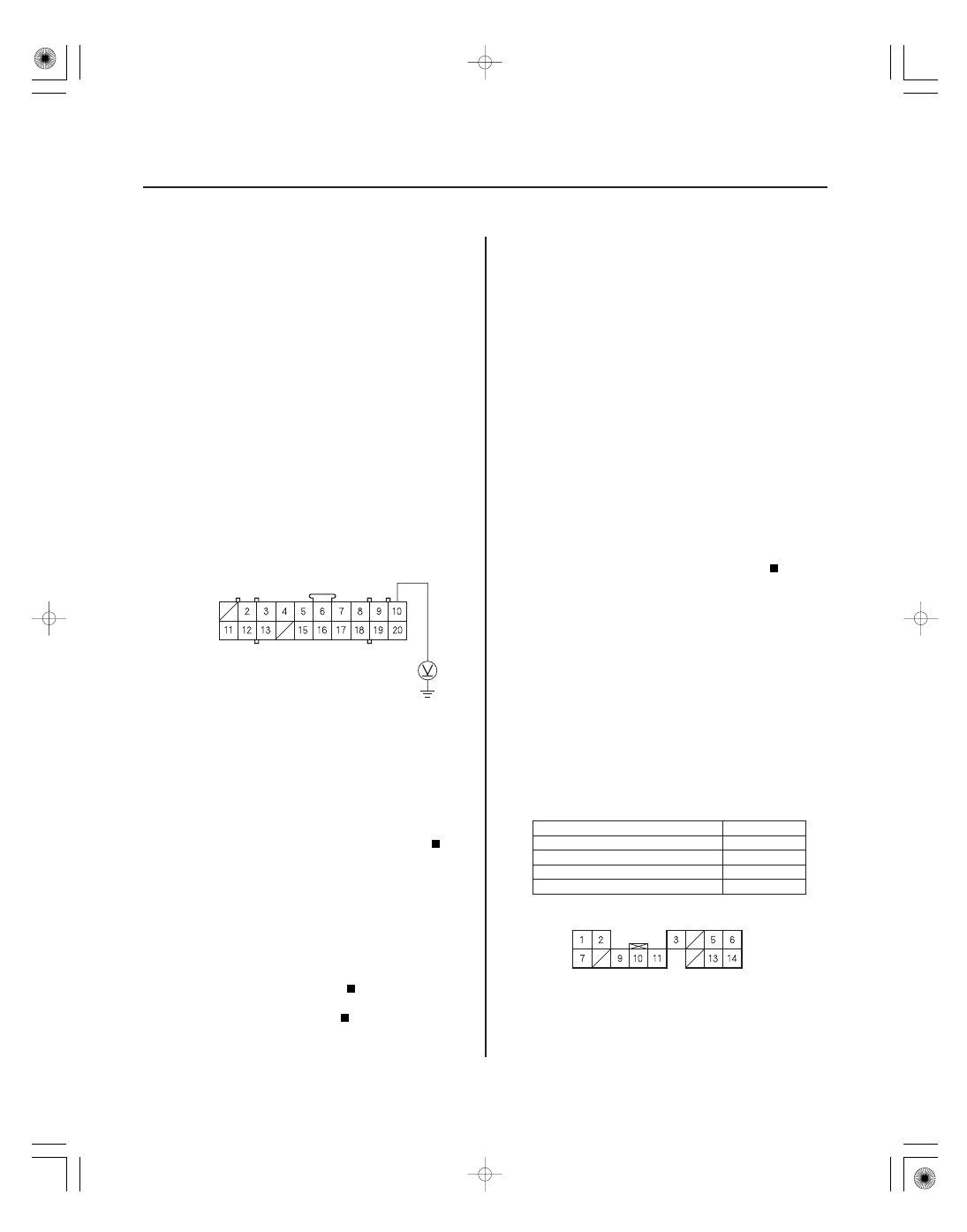

10. With the headlight switch still on, measure the

voltage between audio unit connector A (20P) No. 9
terminal and body ground.

Check the connections at the audio unit

connector A (20P). If all connections are OK, replace
the audio unit.

Repair open in the wire between the under-

hood fuse/relay box and the audio unit.

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Ar e the buttons illuminated?

Ar e the buttons illuminated?

Is ther e continuity?

Is ther e batter y voltage?

01

SJC8A00J10300000000FAAT08

*01

SJC8AN3J10300000000FAAT12

Radio preset memory is lost

Poor or no sound with XM radio (Audio unit
does display XM channels)

YES

NO

YES

YES

YES

NO

YES

NO

XM receiver connector

Wire color

23-32

23-32

Audio System

Symptom Troubleshooting (cont’d)

AUDIO UNIT CONNECTOR A (20P)

B AUDIO (WHT)

XM RECEIVER CONNECTOR A (14P)

NOTE:

• Check the vehicle battery condition first.
• If only XM stations are lost, go to XM radio preset

memory is lost (see page 23-41).

1. Turn the ignition switch ON (II).

2. Turn on the audio unit and set each of the radio

station preset buttons.

Go to step 4.

Go to step 3.

3. Measure the voltage between audio unit connector

A (20P) No. 10 terminal and body ground.

Go to step 4.

Repair open in the wire between the No. 5

(7.5 A) fuse and under-dash fuse/relay box and
audio unit connector A (20P) No. 10 terminal.

4. Turn off the ignition switch for 1 minute, then turn it

back to ON (II).

5. Test the preset buttons for proper recall operation.

System is normal at this time. Check

connections at the audio unit.

Replace the audio unit.

NOTE:

• Check the vehicle battery condition first.
• Check the radio reception in an open area. Poor

reception/interference can be caused by tall buildings,
mountains, or nearby high-voltage power lines.

• If you can only tune to channel 000, 001, 174, and 247,

make sure the audio unit is set to channel mode (see
owner’s manual), if it is set to channel mode, call XM
satellite Radio customer support and check the
account activation status.

1. Turn the ignition switch ON (II).

2. Turn on the audio unit, and select XM radio.

3. Check for an error message on the display.

Go to error code list (see page 23-23).

• With navigation: Go to step 7.
• Without navigation: Go to step 4.

4. Turn the ignition switch OFF.

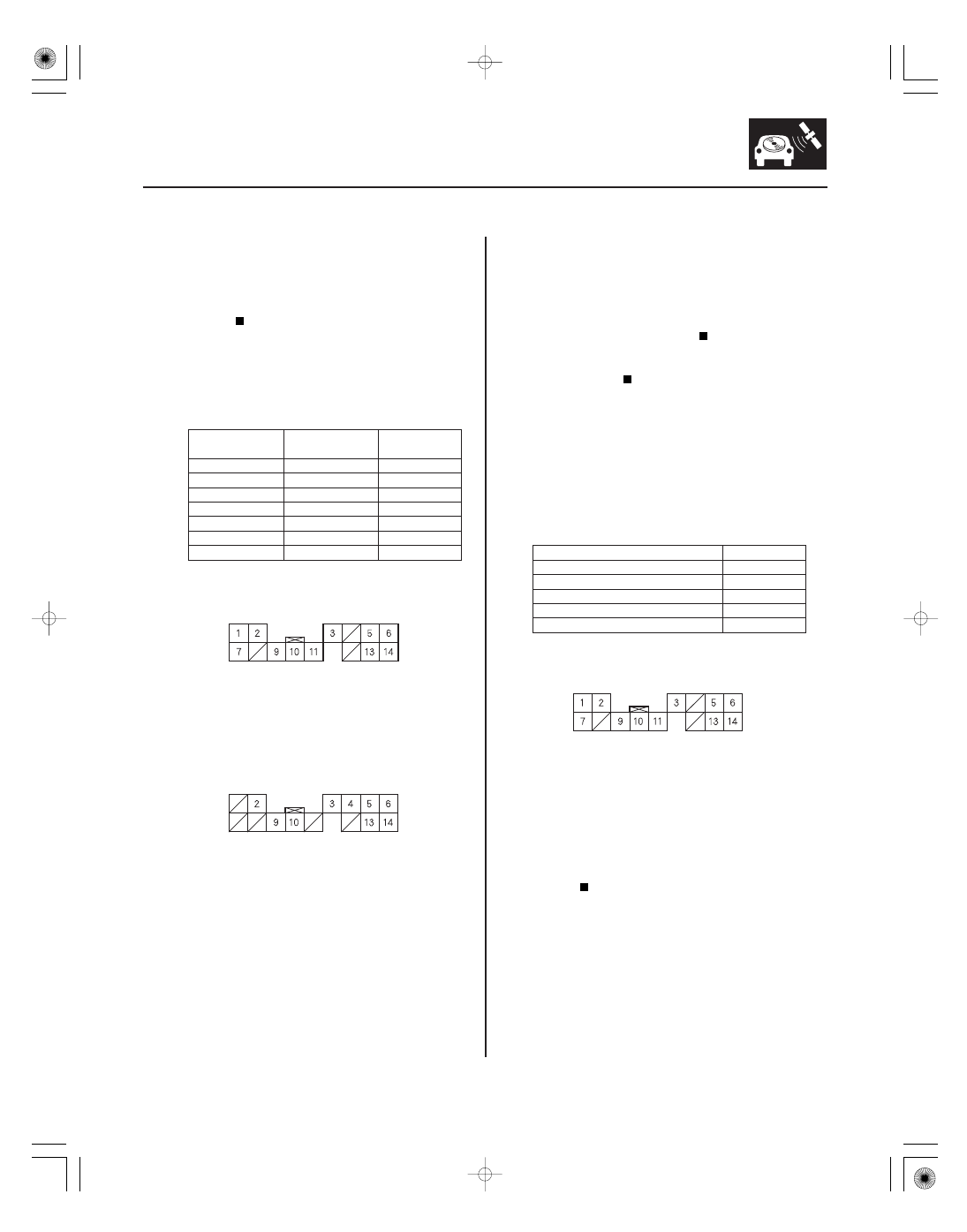

5. Disconnect audio unit connector B (14P) and the

XM receiver connector A (14P).

6. Check for continuity between XM receiver

connector A (14P) and body ground according to
the table. Then check for continuity between the
same terminals listed in the table and audio unit
connector B (14P) No. 4 terminal (the harness
shield).

A6

RED

A14

GRN

A5

WHT

A13

BLK

Wire side of female terminals

Wire side of female terminals

Does each button set pr oper ly?

Is ther e batter y voltage?

Do the pr eset buttons r ecall the set r adio stations?

Ar e ther e any messages displayed?

*02

*03

*04

YES

NO

XM receiver

connector

Audio unit

connector

Wire color

YES

NO

XM receiver connector

Wire color

YES

NO

23-33

XM RECEIVER CONNECTOR A (14P)

AUDIO UNIT CONNECTOR B (14P)

XM RECEIVER CONNECTOR A (14P)

Repair short in the wire between the audio

unit and the XM receiver or short between the
shield wire (replace the appropriate shielded
harness).

Go to step 6.

7. Check for continuity between XM receiver

connector A (14P) and audio unit connector B (14P)
according to the table.

A6

B6

RED

A14

B14

GRN

A5

B5

WHT

A13

B13

BLK

A9

B9

BLU

A10

B10

PNK

A2

B2

ORN

Substitute a known-good XM receiver, then

reconnect all connector and recheck. If the
symptom/indication goes away, replace the
original XM receiver. If symptom/indication is still
present, replace the audio unit.

Repair open in the wire between audio unit

and XM receiver.

8. Disconnect CD changer connector B (14P) and XM

receiver connector A (14P).

9. Check for continuity between XM receiver

connector A (14P) and body ground according to
the table. Then check for continuity between the
same terminals listed in the table and CD changer
connector B (14P) No. 4 terminal (the harness
shield).

A6

RED

A14

GRN

A5

WHT

A13

BLK

A2

ORN

Repair short in the wire between the CD

changer and the XM receiver or a short between
the shield wire (replace the appropriate shielded
harness).

Go to step 10.

(cont’d)

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is ther e continuity?

Is ther e continuity?

Is ther e continuity?
