Audio Glossary

Item

Definition

23-10

Audio System

System Description (cont’d)

Track

A sound recording on a CD, tape, or PC card.

Treble

An adjustment to control the ‘‘volume’’ of the high frequency sounds.

Tuner

A component (or part of a component) that receives radio signals and selects
one broadcast from many.

Tweeter

A speaker designed to reproduce the higher frequencies (treble) only.

Voice Coil

A coil of wire wrapped around a tube and then attached to the speaker cone or
diaphragm. When an audio signal is applied, the coil becomes an
electromagnet and interacts with the permanent magnet causing the cone or
diaphragm to vibrate. We interpret this vibration as sound.

Volume Control

Allows you to control the loudness of the music.

WMA music file

Windows Media Audio File. This is an accepted format for music files to be
played on either a CD-R, a CD-RW, or a PC card.

Woofer

A speaker that is designed to reproduce bass frequencies only.

XM Radio

Satellite based radio transmission, which also uses a ground based repeater
network to ensure seamless reception. The channels originate from XM’s
broadcast center, in Washington, DC, and uplink to two satellites. These
satellites transmit the signal across the entire continental United States.

XM Receiver

The external component that receives and processes the XM signals from the
XM satellites, and terrestrial (land) stations. The audio unit communicates to
the XM receiver over the GA-Net bus.

*03

*04

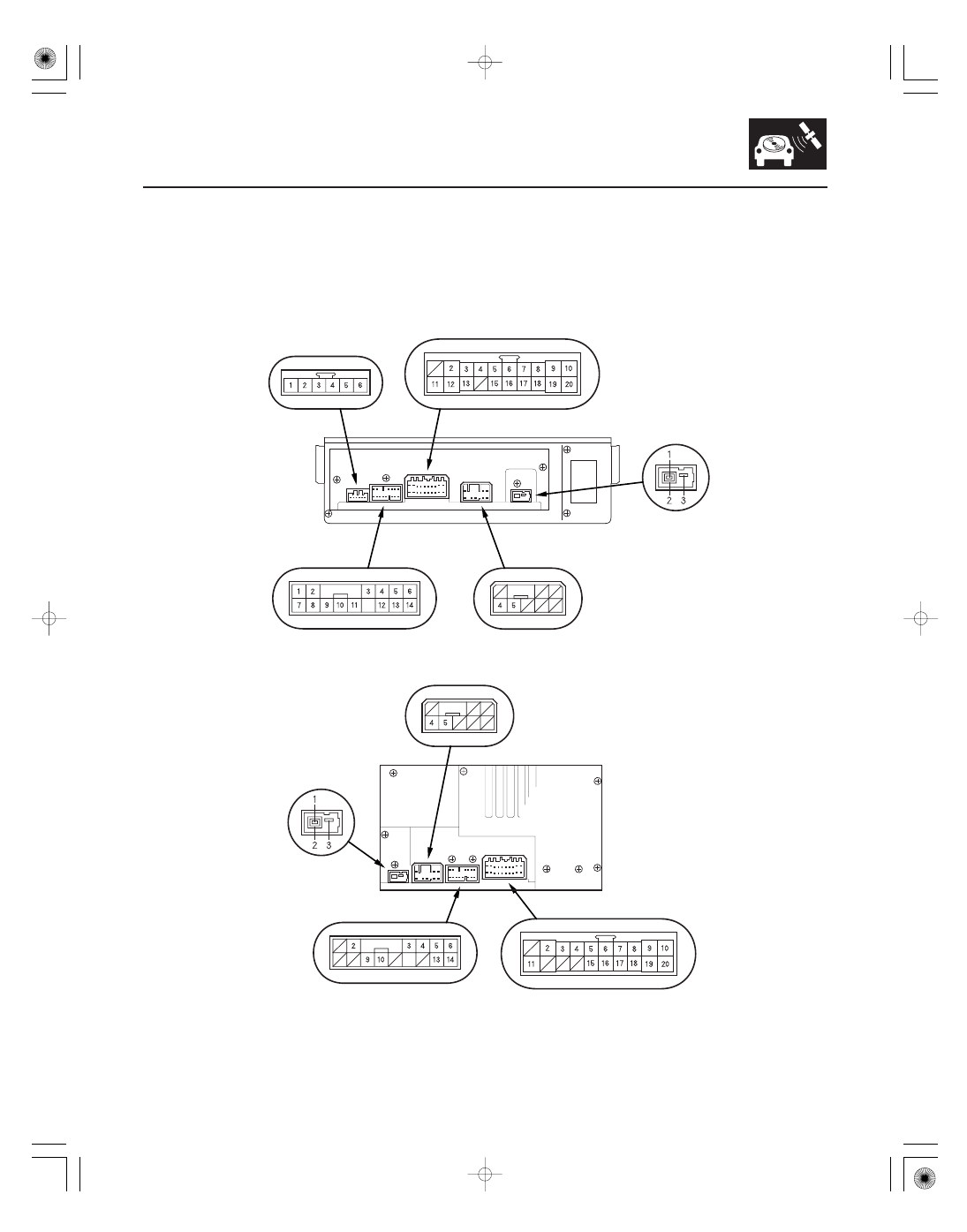

Audio Unit Connector for Inputs and Outputs

With navigation

Without navigation/6CD type

23-11

CONNECTOR A (20P)

CONNECTOR D (6P)

CONNECTOR E (3P)

CONNECTOR C (8P)

CONNECTOR B (14P)

CONNECTOR C (8P)

CONNECTOR B (14P)

CONNECTOR A (20P)

CONNECTOR E (3P)

When replacing an audio unit connector, match the wires to the cavities listed in the following tables.

(cont’d)

*05

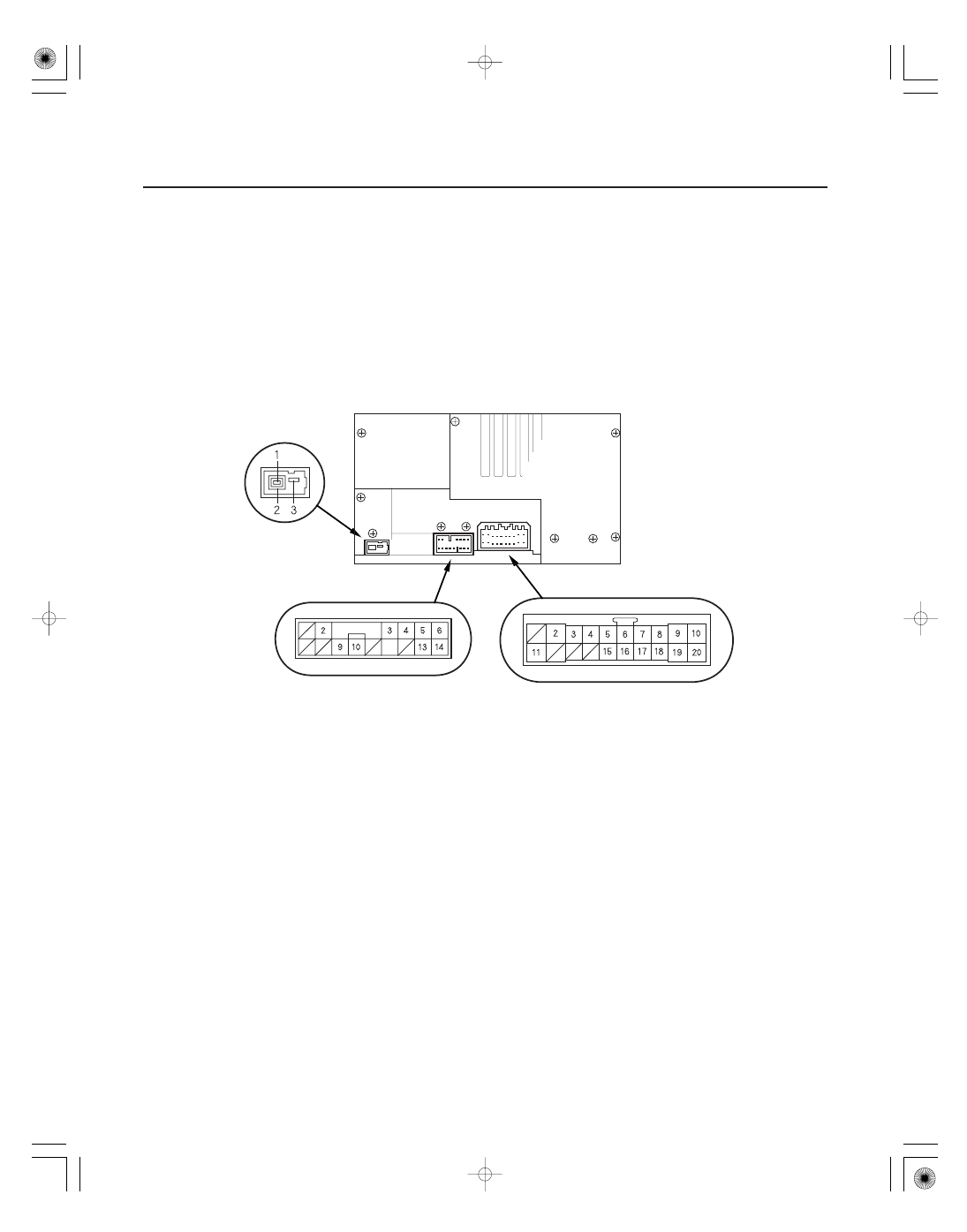

Without navigation/1CD type

23-12

Audio System

System Description (cont’d)

CONNECTOR E (3P)

CONNECTOR B (14P)

CONNECTOR A (20P)

―――

―――

Cavity

Wire

Connect to

Cavity

Wire

Connect to

Cavity

Connect to

23-13

A1

Not used

A2

YEL/RED

ACC (main stereo power
supply)

A3

GRN/RED

Audio remote switch

A4

GRN/WHT

Navigation display
(SCTY)

RED/WHT

MICU (SCTY)

A5

RED/BLU

Right rear speaker (

)

A6

BRN/WHT

Left rear speaker (

)

A7

BLU

Front passenger’s door
speaker (

),

Right tweeter (

)

A8

LT GRN

Driver’s door speaker (

),

Left tweeter (

)

A9

RED/BLK

Lights-on signal

A10

WHT

Constant power

A11

BRN

Audio remote switch
ground

A12

BLU/RED

Navigation unit
(RG GND)

A13

WHT

Navigation unit (RG L

)

A15

YEL

Right rear speaker (

)

A16

RED/YEL

Left rear speaker (

)

A17

RED

Front passenger’s door
speaker (

),

Right tweeter (

)

A18

PUR

Driver’s door speaker (

),

Left tweeter (

)

A19

RED

Dash lights brightness
controller

A20

BLK

Ground (G404)

: With navigation

B1

YEL

CD changer
(

B GA-NET)

B2

PUR

CD changer
(SYSTEM ACC)

B3

GRN/BLK

CD changer
(AUD BUS GA-NET
shield)

B4

LT GRN

CD changer (AUD shield)

B5

BLK

CD changer (AUD R

)

B6

GRN

CD changer (AUD L

)

B7

BLU

CD changer
(

B GA-NET2)

B8

GRN/BLK

CD changer (ILL

)

B9

RED/BLU

CD changer (AUD BUS
GA-NET)

B10

YEL

CD changer (AUD BUS
GA-NET)

B11

GRN/RED

CD changer (Ground)

B12

GRN

CD changer
(GA-NET ILL CTRL)

B13

RED

CD changer (AUD R

)

B14

CD changer (AUD L

)

B1

Not used

B2

ORN

XM receiver
(SAT SYSTEM ACC)

B3

BRN

XM receiver (SAT BUS
(GA-NET) shield)

B4

GRY

XM receiver (SAT shield
GND)

B5

WHT

XM receiver (SAT R

)

B6

RED

XM receiver (SAT L

)

B9

BLU

XM receiver (SAT BUS
(GA-NET))

B10

PNK

XM receiver (SAT BUS
(GA-NET))

B13

BLK

XM receiver (SAT R

)

B14

GRN

XM receiver (SAT L

)

: The shielded wires have a heat-shrunk tube

insulating the outside of the wire. The color of the
insulating tube, typically black or dark gray, may
not match the color of the wire listed on the
schematic.

(cont’d)

Wire

WHT

AUDIO CONNECTOR A (20P)

AUDIO CONNECTOR B (14P) With navigation

AUDIO CONNECTOR B (14P)

Without navigation/With XM radio
