23-2

Audio, Navigation, and Telematics

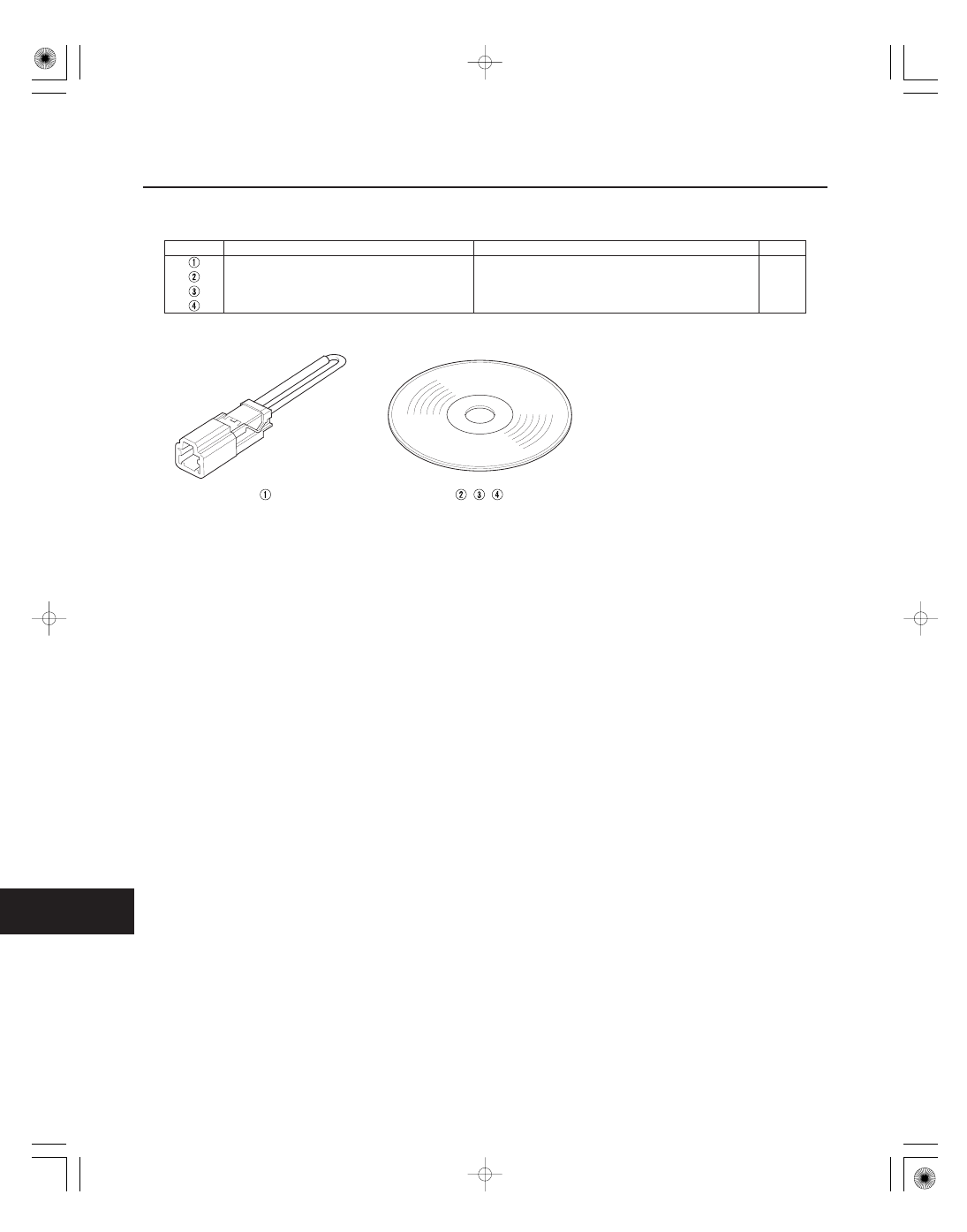

Special Tools

07PAZ-0010100

SCS Service Connector

1

07AAZ-SDBA100

Diagnostics CD

1

07AAZ-SDBA200 (ABEX-TCD-725B)

Skip Test CD

1

07AAZ-SDBA300 (ABEX-TCD-721)

Skip Test CD

1

,

,

*01

SJC8A00J10300000000DAAT80

23-3

Audio System

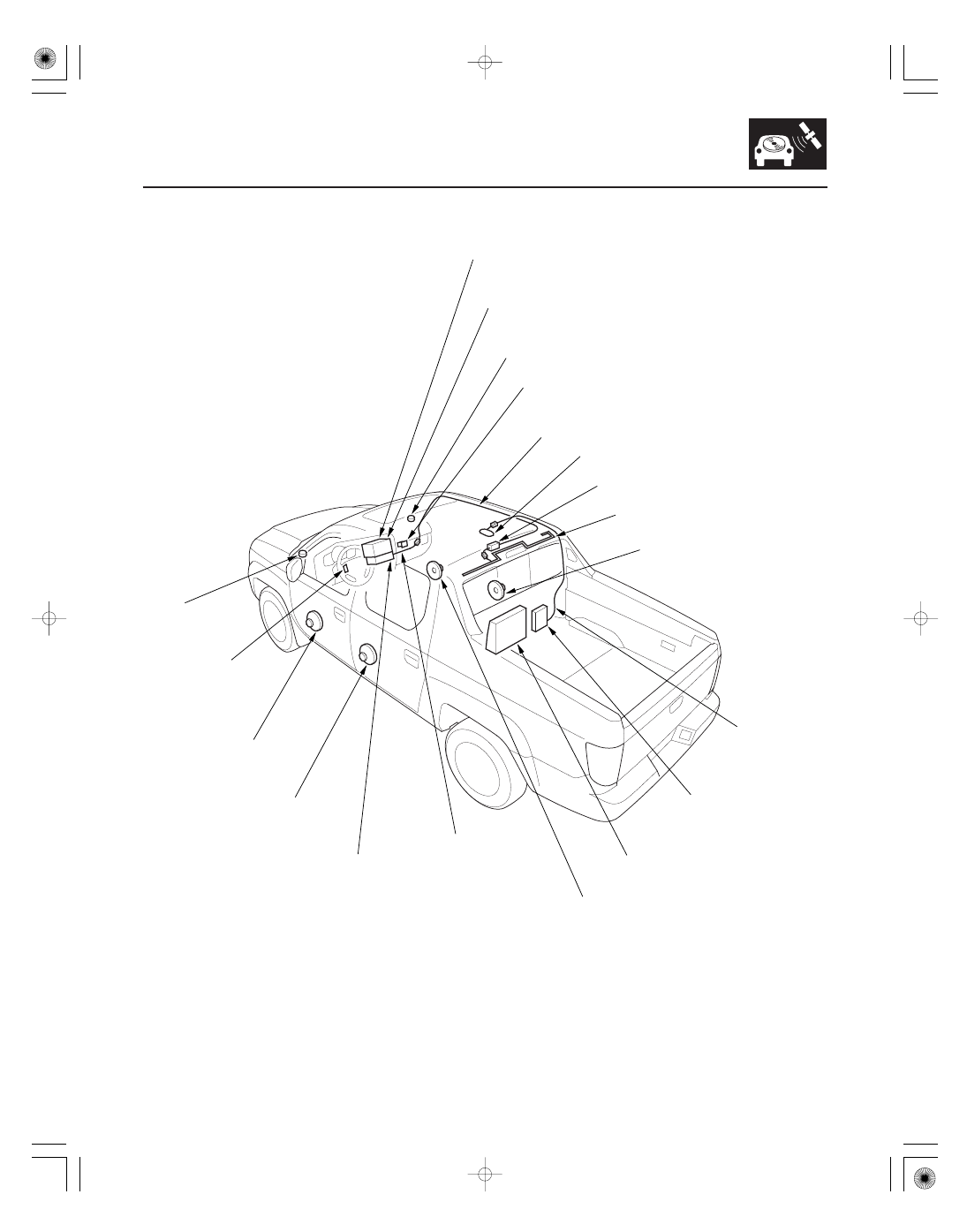

Component Location Index

CD CHANGER
(With navigation)

AUDIO UNIT
(Without navigation)

RIGHT TWEETER

AUXILIARY JACK ASSEMBLY
(With navigation)

AM/FM ANTENNA LEAD

XM ANTENNA

AM/FM ANTENNA AMPLIFIER

AM/FM ANTENNA

XM ANTENNA
LEAD

LEFT TWEETER

AUDIO REMOTE SWITCH
(With 6CD type)

DRIVER’S DOOR
SPEAKER

AUDIO UNIT
(With navigation)

AM/FM ANTENNA SUBLEAD

LEFT REAR SPEAKER

FRONT PASSENGER’S
DOOR SPEAKER

RIGHT REAR SPEAKER

SUBWOOFER
(Except 1CD type)

XM RECEIVER

Connector Inputs and Outputs, page 23-15
Removal/Installation, page 23-58

Connector Inputs and Outputs, page 23-11
Removal/Installation, page 23-57

Replacement, page 23-60

Connector Inputs and Outputs, page 23-17
Replacement, page 23-61

Replacement, page 23-63

Replacement, page 23-62

Removal/Installation, page 20-175

Replacement,

page 23-60

Replacement,

page 17-22

Test, page 23-62

Replacement,

page 23-59

Connector Inputs and Outputs, page 23-11
Removal/Installation, page 23-57

Replacement,

page 23-59

Replacement, page 23-59

Replacement, page 23-59

Replacement, page 23-60

Connector Inputs and Outputs,

page 23-16

Removal/Installation,

page 23-61

SJC8A00J10300000000HBAT01

Symptom

Diagnostic procedure

Also check for

23-4

Audio System

Symptom Troubleshooting Index


Poor AM or FM radio reception or
interference

Symptom Troubleshooting (see page
23-24)

AM/FM antenna lead and/or
sublead short or open in
the wire
AM/FM antenna open

Power switch will not turn ON (No
information display and no sound)

Symptom Troubleshooting (see page
23-27)

Radio stays powered with the ignition
switch OFF

Symptom Troubleshooting (see page
23-28)

No sound is heard from speaker(s)
(display is normal)

Symptom Troubleshooting (see page
23-28)

Audio system sound is weak or distorted
(display is normal)

Symptom Troubleshooting (see page
23-30)

Audio unit button illumination does not
work

Symptom Troubleshooting (see page
23-31)

Radio preset memory is lost

Symptom Troubleshooting (see page
23-32)

Battery condition
Battery cable condition

Volume does not change

Symptom Troubleshooting (see page
23-43)

Radio tuner does not change stations

Symptom Troubleshooting (see page
23-44)

Audio remote switch does not work
properly

Symptom Troubleshooting (see page
23-46)

Poor or no sound with XM radio (Audio
unit does display XM channels)

Symptom Troubleshooting (see page
23-32)

XM radio display is blank and no station
information is displayed

Symptom Troubleshooting (see page
23-35)

XM radio preset memory is lost

Symptom Troubleshooting (see page
23-41)

Error code: XM NO SIGNAL or XM
ANTENNA is displayed

Symptom Troubleshooting (see page
23-39)

Unable to select CD changer

Symptom Troubleshooting (see page
23-48)

Poor or no sound with audio disc
changer

Symptom Troubleshooting (see page
23-49)

Audio disc does not eject

Symptom Troubleshooting (see page
23-42)

Audio disc changer does not load all six
discs

Symptom Troubleshooting (see page
23-42)

Tire pressure (over-inflated),
disc smudged, dirty, or
scratched

Audio disc changer does not move
between discs

Symptom Troubleshooting (see page
23-43)

Audio disc does not load

Symptom Troubleshooting (see page
23-44)

Audio disc does not play

Symptom Troubleshooting (see page
23-45)

Audio disc skips

Symptom Troubleshooting (see page
23-45)

Tire pressure (over-inflated),
disc smudged, dirty, or
scratched

SJC8A00J10311113151CAAT01

Overview

23-5

System Description

The audio Unit acts as the ‘‘processor’’ for all audio functions. Selection of the audio functions can be done from the
front panel, the audio remote (on steering wheel), or by using the navigation voice control system. The audio display
provides the current front audio status. For vehicles with the navigation option, additional audio information is
available by touching the audio button on the Navigation Audio Screen (See the owner’s manual and the navigation
user’s guide for more details.)

The CD changer, XM receiver, and navigation unit send their signals to the audio unit. In addition, they communicate
with the audio unit via the GA-Net bus. Any open connection in the G-Net bus circuit will cause audio and navigation
functions to become inoperative.

For vehicles with the navigation option, pressing the ‘‘open/close’’ switch on the navigation display panel accesses the
CD changer unit.

A security signal is daisy-chained between the audio and navigation components for integration into the vehicle’s
alarm system.

(cont’d)
