22-328

Immobilizer System

Immobilizer Control Unit-Receiver Input Test (cont’d)

5. Reconnect the connector to the immobilizer control unit-receiver, and make these input tests at the connector.

• If any test indicates a problem, find and correct the cause, then recheck the system.
• If all the input tests prove OK, the immobilizer control unit-receiver must be faulty; replace it.






1

Under all
conditions

Measure voltage to ground:
There should be less than 0.5 V.

Poor ground (G101)
An open in the wire
Faulty PCM

7

Under all
conditions

Measure voltage between
immobilizer control unit-receiver
7P connector No. 7 terminal and
body ground:
There should be battery voltage.

Blown No. 7 (7.5 A) fuse in
the under-dash fuse/relay
box
An open in the wire

6

Ignition switch
ON (II)

Measure voltage to ground:
There should be battery voltage.

Blown No. 19 (15 A) fuse in
the under-dash fuse/relay
box
An open in the wire

2

PCM, imoes
unit, and
immobilizer
control unit-
receiver
connectors
disconnected

Should have continuity between
PCM, imoes unit and immobilizer
control unit-receiver. Should not
have continuity to ground.

Open circuit
Short to ground

BRN/YEL

WHT/RED

BLK/GRN

RED/BLU

(S-NET)

(Signal)

(LG1)

(+B)

(IG1)

(IMOLD)

01

SJC8A00J46636234491KBAT00

22-329

Immobilizer Control Unit-Receiver Replacement

A

C

B

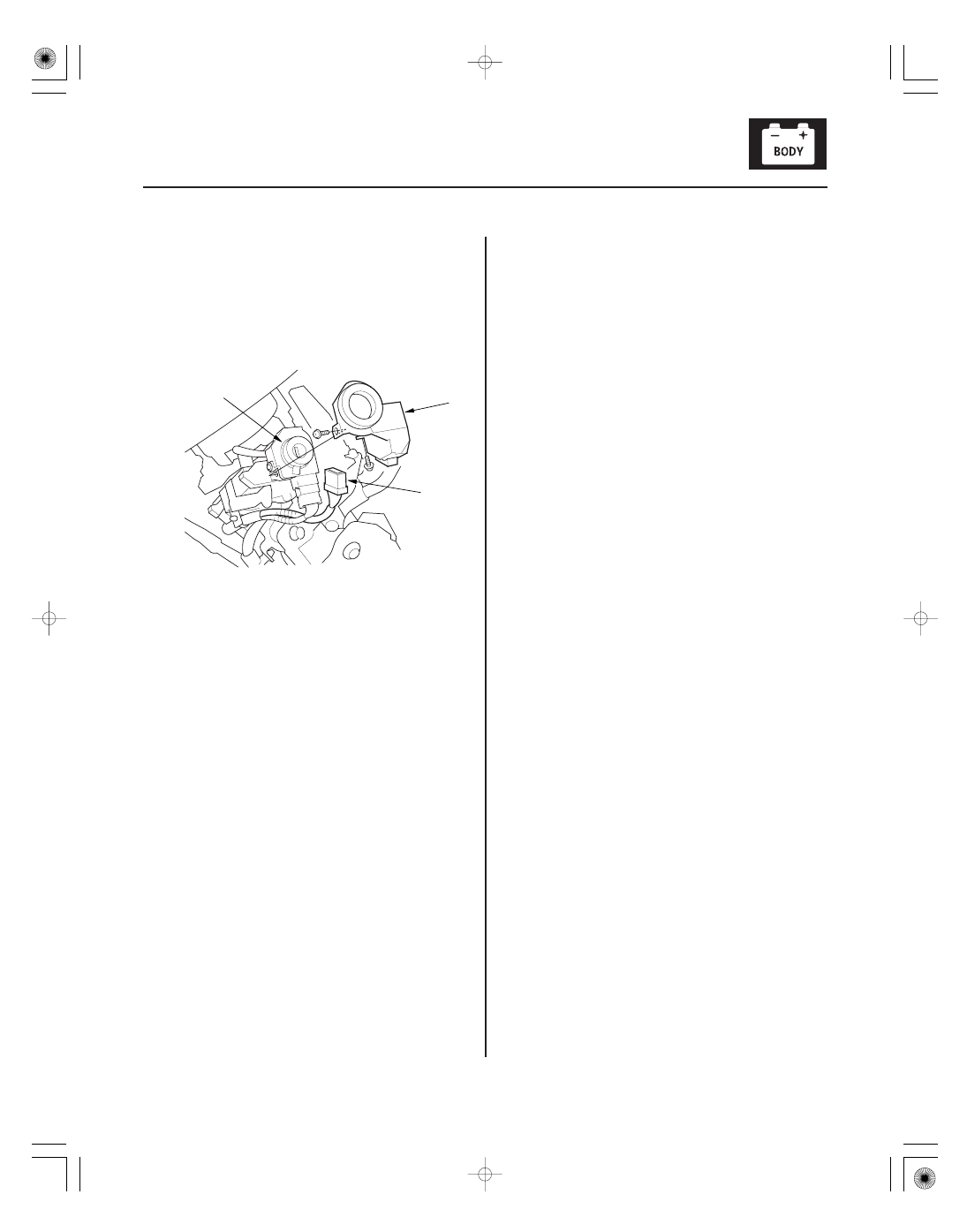

1. Remove the driver’s dashboard lower cover

(see page 20-83).

2. Remove the steering column covers (see page

17-24).

3. Disconnect the 7P connector (A) from the

immobilizer control unit-receiver (B).

4. Remove the two screws and the immobilizer

control unit-receiver from the ignition key cylinder
(C).

5. Install the immobilizer control unit-receiver in the

reverse order of removal.

6. After replacement, check the immobilizer system.

SJC8A000000000J2323ABAT00

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) (If Audio, Navigation, and Telematics
maintenance is required)

The Ridgeline SRS includes a driver’s airbag in the steering wheel hub, a passenger’s airbag in the dashboard above
the glove box, seat belt tensioners in the front seat belt retractors, side curtain airbags in the sides of the roof, and side
airbags in the front seat-backs. Information necessary to safely service the SRS is included in this Service Manual.
Items marked with an asterisk (

) on the contents page include or are located near SRS components. Servicing,

disassembling, or replacing these items requires special precautions and tools, and should be done by an authorized
Honda dealer.

• To avoid rendering the SRS inoperative, which could lead to personal injury or death in the event of a severe frontal

or side collision, all SRS service work should be done by an authorized Honda dealer.

• Improper service procedures, including incorrect removal and installation of the SRS, could lead to personal injury

caused by unintentional deployment of the airbags and/or side airbags.

• Do not bump or impact the SRS unit, front impact sensors, or side impact sensors when the ignition switch is ON (II),

or for at least 3 minutes after the ignition switch is turned OFF; otherwise, the system may fail in a collision, or the
airbags may deploy.

• SRS electrical connectors are identified by yellow color coding. Related components are located in the steering

column, front console, dashboard, dashboard lower panel, in the dashboard above the glove box, in the front seats,
in the roof side, and around the floor. Do not use electrical test equipment on these circuits.

SJC8A000000000J2323ZCAT00
