Electrical Compass

Electrical Compass Calibration

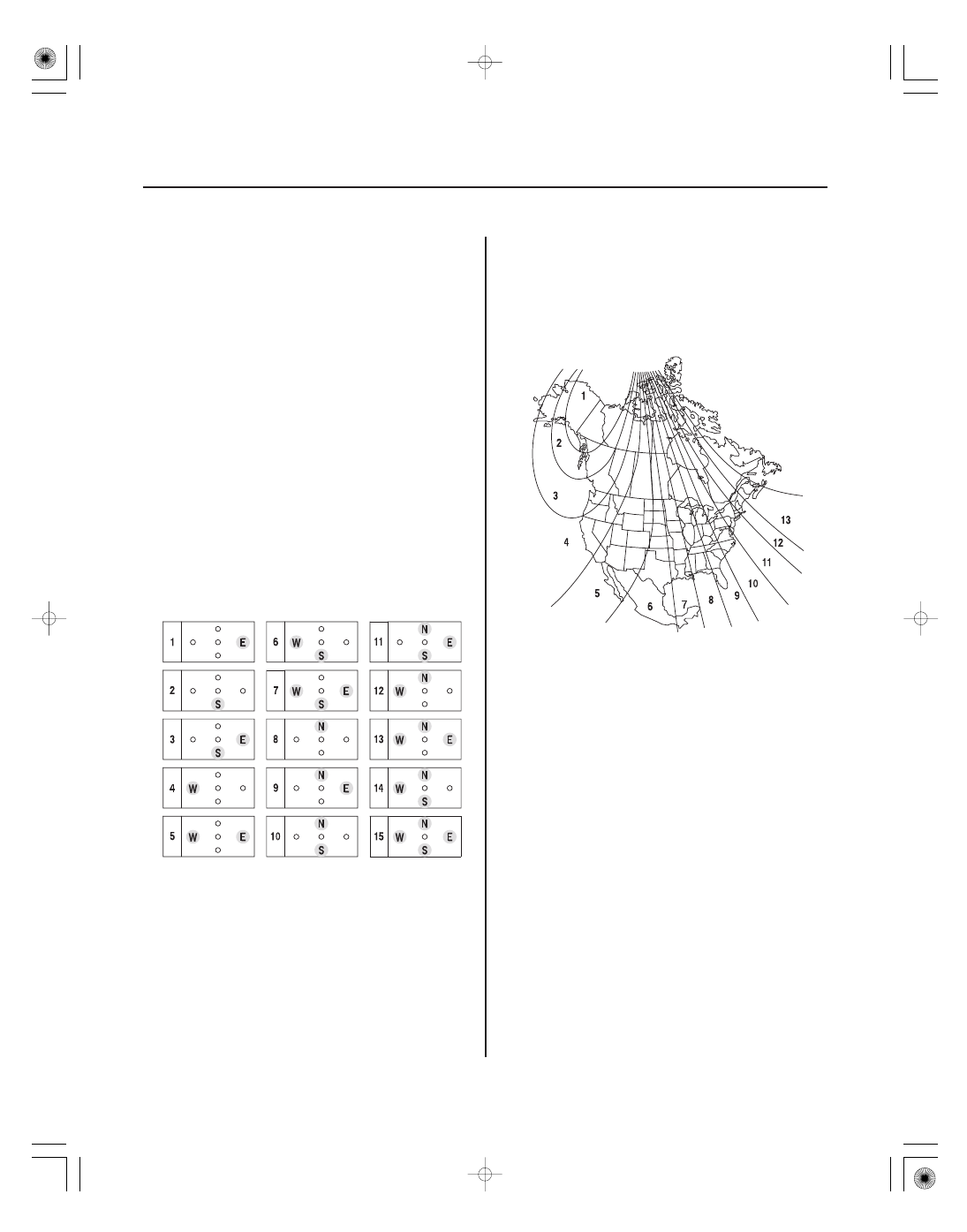

DISPLAY REFERENCE FOR ZONE

1. Briefly press the button to toggle the display ‘‘ON/

OFF’’.

NOTE: The compass display will default ‘‘ON’’ at
each new ignition cycle.

2. With the BLUE CENTER LED displayed, press and

hold the button for six seconds, or until a RED
CENTER LED is displayed in the compass window,
then release the button. While the RED CENTER
LED is ‘‘ON’’ release the button. The compass is
now in calibration mode. To calibrate, drive the
vehicle in circles at less then 5 mph (8 km/h) until a
BLUE CENTER LED is displayed. Typically
2

5 circles are required.

3. Find your current location and determine the

correct zone number, for your geographic area,
from the table ‘‘DISPLAY REFERENCE FOR ZONE’’.
Press and hold the button for three seconds (until
ALL DIRECTION BLUE LEDs BLINK), then release
the button. The BLINKING LED(s) displayed is/are
the current zone value. (see the table ‘‘DISPLAY
REFERENCE FOR ZONE’’)

4. If a new zone value is desired, briefly press the

button to increment the displayed value (Range
1

15) until you find your desired zone setting.

No button activity for four seconds ends the zone
entry mode. The compass display will return to
normal operation and the new zone number will be
set.

NOTE: See the table ‘‘DISPLAY REFERENCE FOR
ZONE’’.

5. Zone selection is required to compensate for the

difference between magnetic North and geographic
North. This deviation is referred to as declination
and can be compensated for by selecting the zone
that corresponds with your area.
See this illustration. Each zone represents about
5 degrees of declination.

*01

SJC8A00J54334700000DAAT00

22-309

Heated Windshield Wiper Area

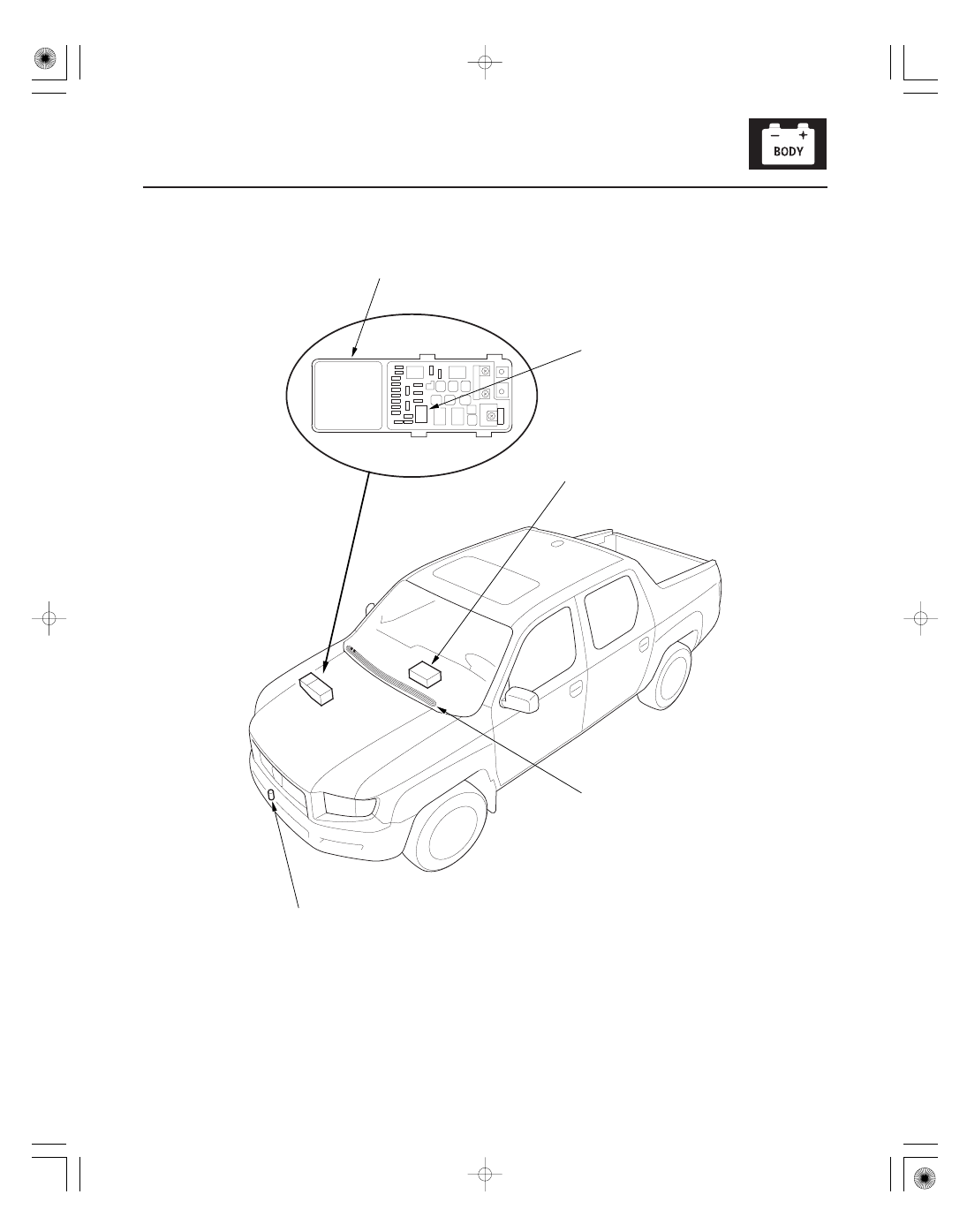

Component Location Index

HEATED WINDSHIELD WIPER AREA RELAY

RELAY CONTROL MODULE
(Built into the under-hood fuse/relay box)

CLIMATE CONTROL UNIT or
HVAC CONTROL UNIT

HEATED WINDSHIELD WIPER AREA

OUTSIDE AIR TEMPERATURE SENSOR

Test, page 22-75

Function Test, page 22-311

01

SJC8A00J54334700000EAAT00

[ ]

[ ]

[ ]

[ ]

[ ]

[ ]

22-310

Heated Windshield Wiper Area

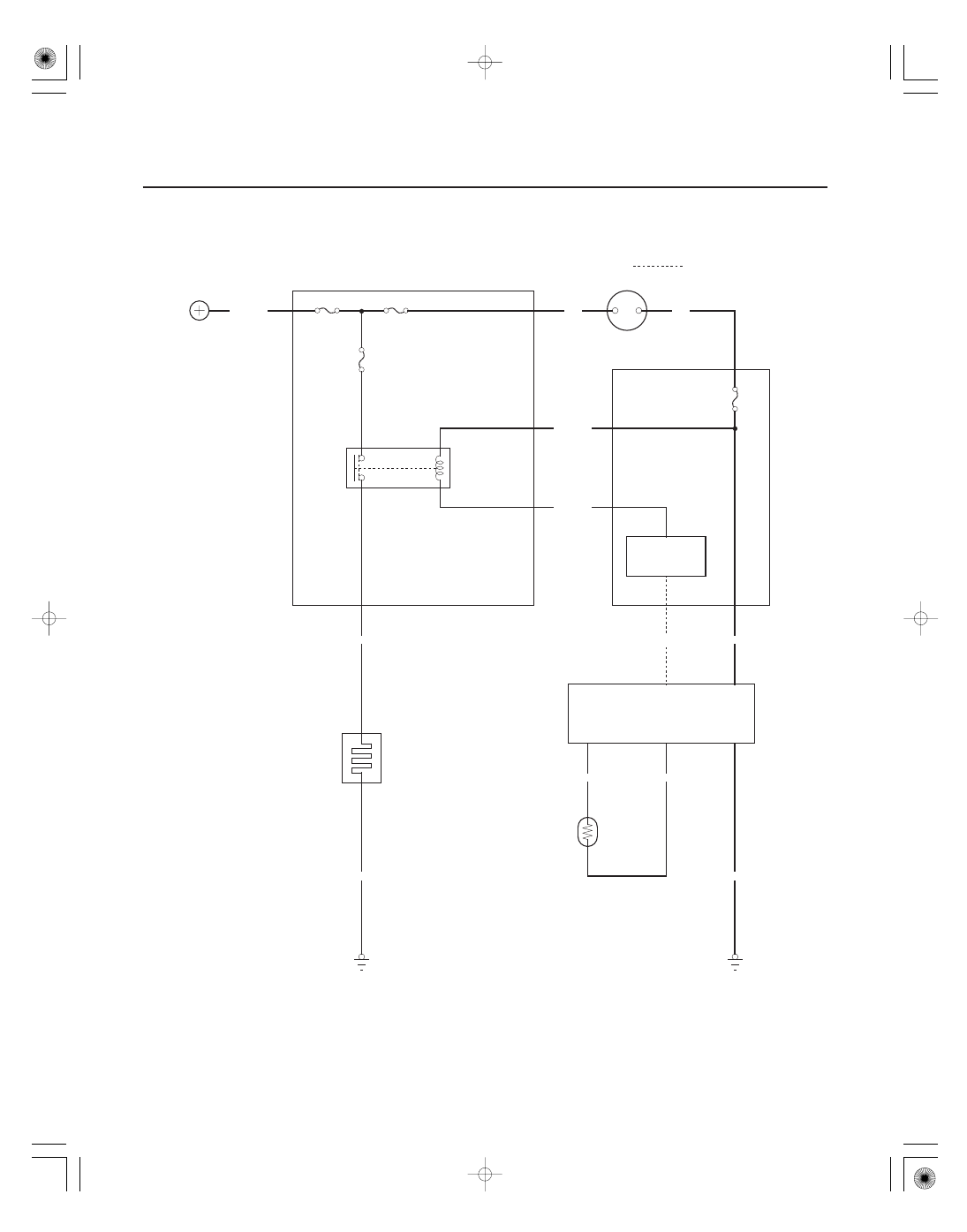

Circuit Diagram

A4

G1

: Communication line

B CAN

B CAN

BLK/YEL

D7

N20

N22

D3

E16

E7

1

2

9

8

22

20

PNK

RED/BLK

UNDER DASH FUSE/RELAY BOX

G401

2

1

P23

BLK/YEL

GRN/BLK

(20 A)

No.14

: Without climate control

IG2 HOT in ON (II)

15

1

1

15

30

11

MICU

No.22 (BAT) (120 A)

No.23 (IG) (50 A)

BLK

G402

BLK

UNDER HOOD FUSE/RELAY BOX

BLK/YEL

LT BLU

BLK/YEL

No.30
(7.5 A)

YEL

IGNITION SWITCH

IG2

BAT

WHT

BATTERY

HEATED
WINDSHIELD
WIPER AREA
RELAY

CLIMATE CONTROL UNIT or
HVAC CONTROL UNIT

HEATED
WINDSHIELD
WIPER
AREA

OUTSIDE AIR
TEMPERATURE
SENSOR

01

02

SJC8A00J54334700000FEAT00

22-311

Function Test

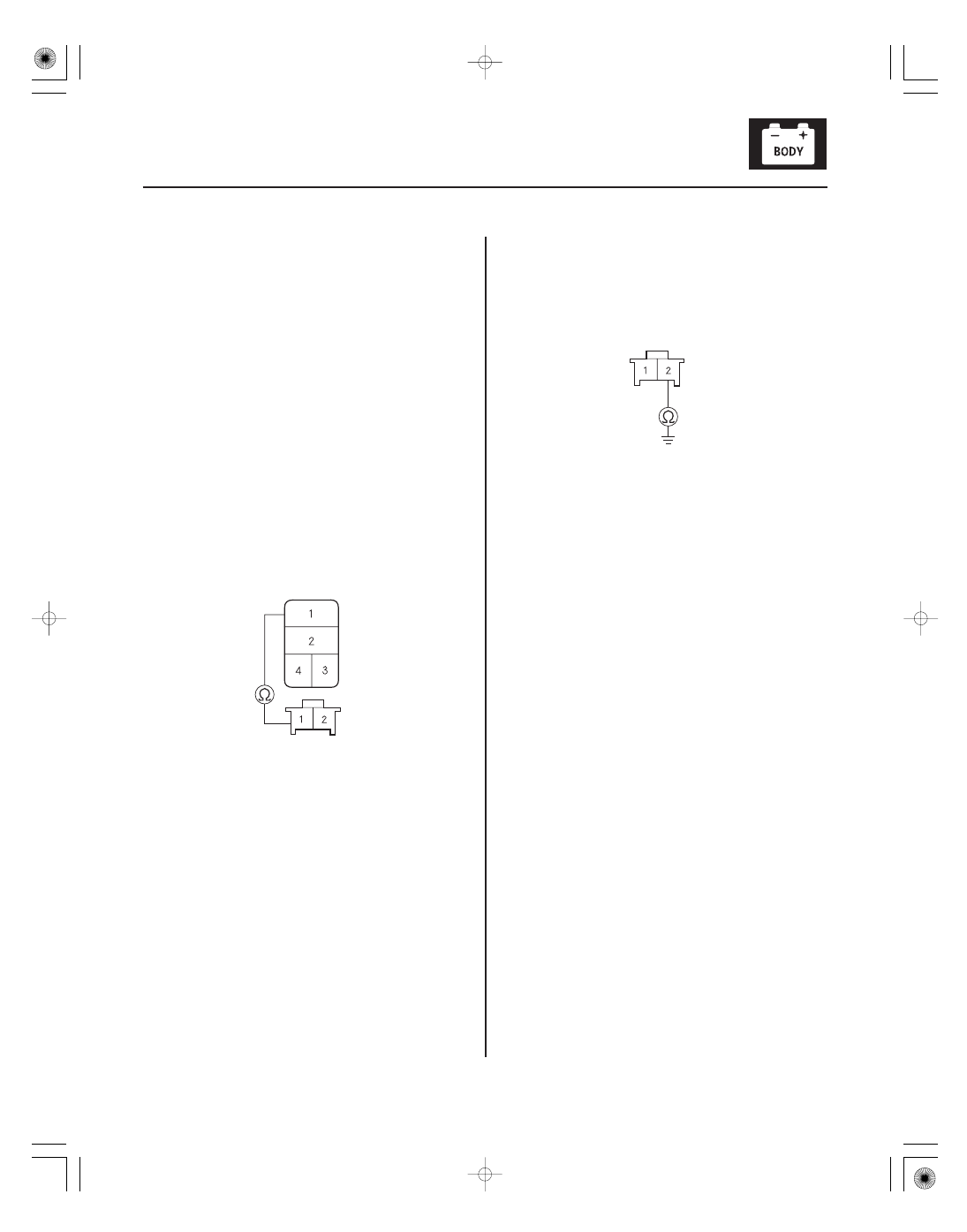

HEATED WINDSHIELD WIPER AREA
RELAY 4P SOCKET

HEATED WINDSHIELD WIPER AREA
2P CONNECTOR

BLK/YEL

BLK/YEL

HEATED WINDSHIELD WIPER AREA
2P CONNECTOR

BLK

Before troubleshooting the heated windshield wiper
area circuit, do the multiplex integrated control system
troubleshooting using B-CAN System Diagnosis Test
Mode A (see page 22-99).

NOTE: Before testing, check the No. 14 (20 A) fuse in the
under-hood fuse/relay box, No. 30 (7.5 A) fuse in the
under-dash fuse/relay box and the heated windshield
wiper area relay in the under-hood fuse/relay box.

1. Disconnect the heated windshield wiper area relay

from the under-hood fuse/relay box.

2. Remove the glove box (see page 20-85).

3. Disconnect the heated windshield wiper area 2P

connector.

4. Check for continuity between the No. 1 terminal of

the heated windshield wiper area relay 4P socket
and front window defogger 2P connector No. 1
terminal.

5. There should be continuity.

• If there is no continuity, check for:

– An open in the BLK/YEL wire between the

heated windshield wiper area relay and heated
windshield wiper area.

• If there is continuity, go to step 6.

6. Check for continuity between the heated

windshield wiper area 2P connector No. 2 terminal
and body ground.

7. If there is no continuity, check for an open in the

wiper or poor ground (G401).

• If there is continuity, check for:

– Faulty climate control unit (or heater control

panel).

– An open in the heated windshield wiper area

wire. Repair the heated windshield wiper area
wire or replace the windshield.

Terminal side of female terminals

Terminal side of female terminals
