Honda Ridgeline. Manual - part 465





01

02

SJC8A00J24200032411FEAT00

22-156

Horns

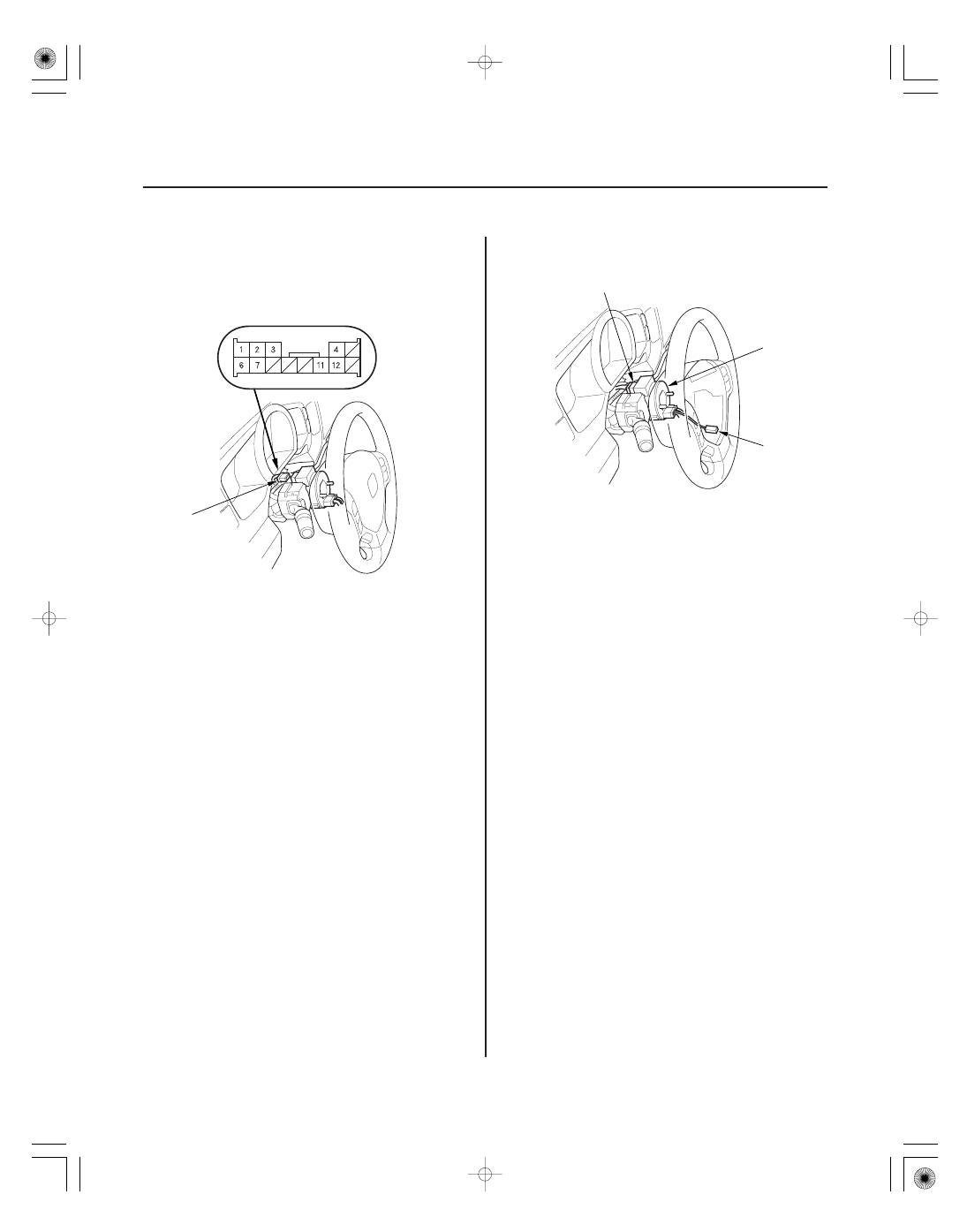

Horn Switch Test

A

A

B

C

1. Remove the steering column covers (see page

17-24).

2. Disconnect the 13P connector (A) from the cable

reel.

3. Using a jumper wire, connect the No. 1 terminal of

the dashboard wire harness 13P connector to body
ground.

• If the horns sound, go to step 4.
• If the horns don’t sound, check these items:

– No. 13 (20 A) fuse in the under-hood

fuse/relay box.

– Relay control module in the under-hood

fuse/relay box.

– Horns (see page 22-155).
– An open in the wire.

4. Reconnect the cable reel 13P connector (A) to the

dashboard wire harness.

5. Remove the driver’s airbag assembly (see page

24-174), and disconnect the horn switch 1P positive
terminal from the cable reel (B).

6. Using a jumper wire, connect the cable reel side 1P

connector (C) to body ground, and turn the wheel
side to side.

• If the horns sound, replace the driver’s airbag

assembly.

• If the horns don’t sound or sounds intermittently,

replace the cable reel.

Wire side of
female terminals

*01

SJC8A00J32100000000DAAT00

22-157

Exterior Lights

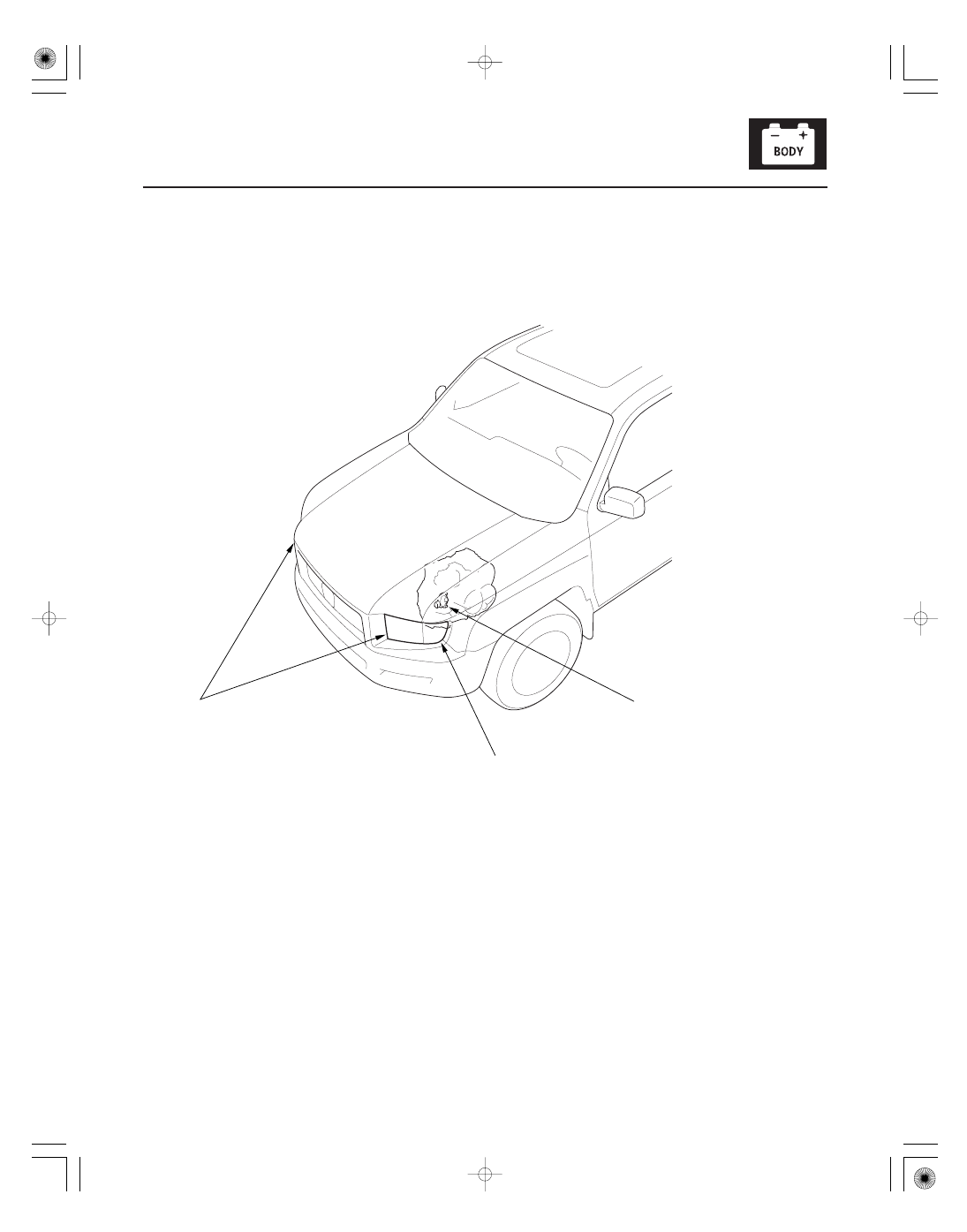

Component Location Index

TRANSMISSION RANGE SWITCH

FRONT TURN SIGNAL/SIDE MARKER LIGHTS

HEADLIGHTS

(cont’d)

Test, page 14-272
Replacement, page 14-273

Bulb Replacement, page 22-177
Replacement, page 22-176

Bulb Replacement, page 22-177
Replacement, page 22-176
Adjustment, page 22-175

*02

22-158

Exterior Lights

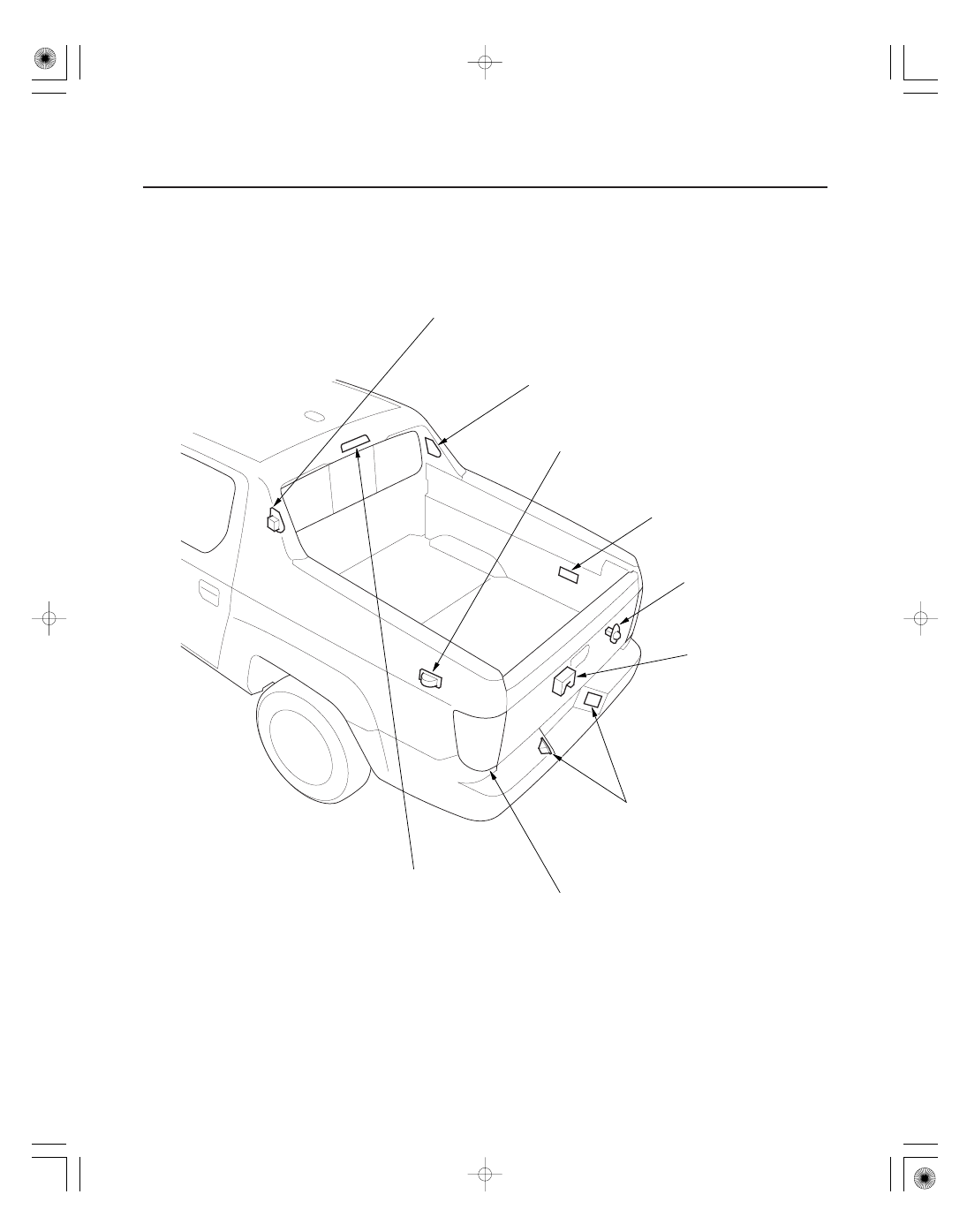

Component Location Index (cont’d)

IN-BED TRUNK LID
LATCH SWITCH

TAILGATE SWITCH

RIGHT CARGO AREA LIGHT 2

LEFT CARGO AREA LIGHT 2

RIGHT CARGO AREA LIGHT 1

LEFT CARGO AREA LIGHT 1

LICENSE PLATE LIGHTS

TAILLIGHT and BRAKE LIGHT

REAR TURN SIGNAL LIGHT

BACK-UP LIGHT

HIGH MOUNT BRAKE LIGHT

Test, page 22-180

Test/Replacement/

Adjustment,
page 22-182

Replacement, page 22-180

Replacement, page 22-180

Replacement, page 22-180

Replacement, page 22-180

Replacement, page 22-178

Replacement, page 22-178

Replacement, page 22-178

Replacement, page 22-178

Replacement, page 22-179

*03

22-159

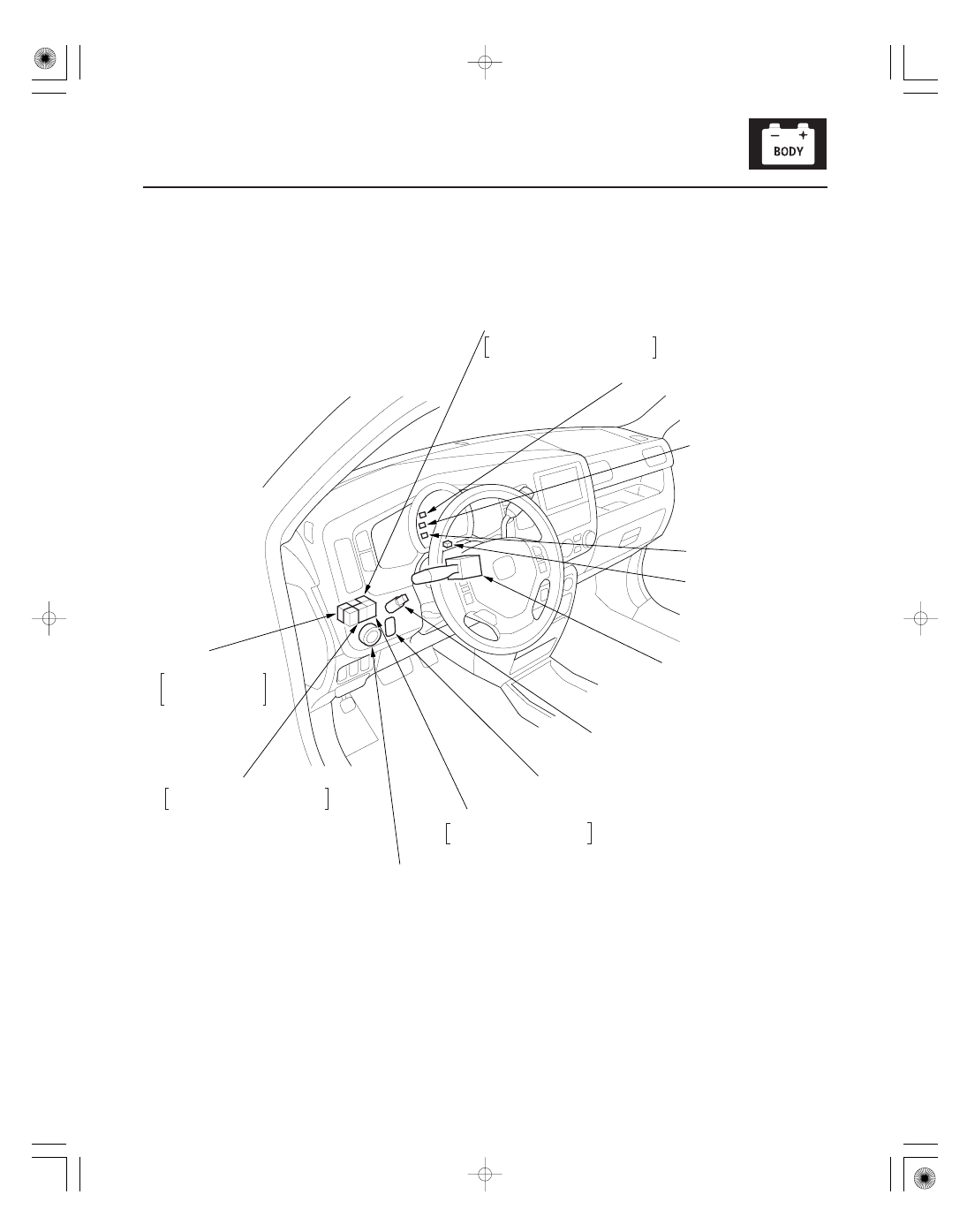

DAYTIME RUNNING LIGHTS RELAY (Canada)

HIGH BEAM INDICATOR

DRL INDICATOR
(Canada)

LIGHTS-ON INDICATOR

COMBINATION SWITCH
CONTROL UNIT
(Built into the
combination switch)

BRAKE PEDAL POSITION SWITCH

CARGO AREA LIGHT SWITCH

LOW BEAM CUT RELAY (Canada)

CARGO AREA LIGHT RELAY

HEADLIGHT SWITCH

TRAILER LIGHTING

BACK-UP LIGHTS DIODE
(’07-08 models)

Wire colors: RED/BLK, RED/WHT,
RED/WHT, BLK and BLU/WHT

Input Test, page 22-124

Test, page 22-174

Test, page 22-174

Wire colors: BLK, BLK/WHT
RED/BLK and RED/GRN

Wire colors: RED/WHT,
BLU/BLK, RED/WHT, YEL/BLU

Test/Replacement, page 22-181

Wire colors: BLK
BLK/YEL, GRN and
WHT/BLK

Test, page 22-75

RELAY (Optional)

Test, page 22-75

Test, page 22-75
