Honda Ridgeline. Manual - part 458





SJC8A00J46643400000CAAT00

Security Alarm System

Panic Mode

22-128

Keyless/Power Door Locks/Security System

System Description

NOTE: This applies to RTS and RTL (USA) or EXL (Canada).

The security alarm system is armed automatically after the doors, hood, and trunk are closed and locked. For the
system to arm, the ignition switch must be off, the key must be removed, and the MICU must receive signals that the
doors, hood, in-bed trunk are closed and locked. The alarm can be disarmed at any time by unlocking the driver’s door
with the key or pressing the UNLOCK button on the remote transmitter.

When everything is closed and locked, the only inputs that are grounded, and have 0 V, are the driver’s door lock knob
switch (LOCK position), and the audio unit or CD changer. In other words, all of the other switches are open, and have
about 5 V with system awake and 1 V in sleep mode, including the key cylinder switches. The security indicator in the
driver’s door panel begins to flash immediately after the vehicle is completely closed and locked, and 15 seconds later,
the security system arms and the security indicator flashes on for a shorter amount of time than before. If the security
indicator does not flash, the system is not arming. A beep sounds and parking lights flash to confirm the security
alarm system is armed if the LOCK button is pressed a second time within 5 seconds.

If one of the switches is misadjusted or shorted internally, or there is a short in the circuit, the security system will not
arm. As long as the control unit continues to receive a ground signal (0 V), it senses that the vehicle is not closed and
locked, and the system will not arm. A switch that is slightly misadjusted can cause the alarm to sound for no apparent
reason. In this case, a significant change in outside air temperature, the vibration of a passing truck, or someone
bumping into the vehicle could cause the alarm to sound. There is no glass breakage or motion detector feature.

If anything is opened or improperly unlocked after the system is armed, the control unit receives a ground signal from
that switch, and the 1

5 V reference drops to 0 V. If the audio unit or CD changer is disconnected, the input loses its

ground, and the input voltage goes to 1

5 V. The system sounds the alarm when any of these occur:

• A door or the in-bed trunk is forced open
• A door is unlocked without using the key or the remote transmitter
• The hood is opened
• The audio unit or CD changer is disconnected
• The remote panic is operated

When the system sounds the alarm, the horns sound and the exterior lights flash for 2 minutes. The alarm can be
stopped at any time by unlocking the driver’s door with the key or by pressing any button on the remote transmitter.

The panic mode sounds the alarm in order to attract attention. When the PANIC button on the remote transmitter is
pressed and held for 2 seconds, the alarm sounds and the exterior lights flash for about 20 seconds.

The panic mode can be cancelled at any time by pressing any button on the remote transmitter or by turning the
ignition switch ON (II). The panic mode will not function if the ignition switch is ON (II).

Keyless Entry System

22-129

The keyless entry system is integrated with the MICU. The multiplex integrated control unit (MICU) receives LOCK,
UNLOCK and PANIC signals from the door multiplex control unit (keyless receiver).

The keyless entry system allows you to lock and unlock the vehicle with the remote transmitter. When you press the
LOCK button, all doors lock. When you press the UNLOCK button once, only the driver’s door unlocks. The other doors
will unlock at the second time you press the button. The doors will not lock with the remote transmitter if a door is not
fully closed, or if the key is in the ignition switch.

If the UNLOCK button is pressed, released, then pressed and held, the windows will start to open. The windows stop if
the button is released. See Power Windows and troubleshooting for more information.

When the switch for the ceiling light is in the center position, the ceiling light will come on as the UNLOCK button is
pressed. If a door is not opened, the light will go off in about 30 seconds, and the doors will relock. If the doors are
locked with the remote transmitter within 30 seconds, the light will go off immediately.

*90

SJC8A00J46643400000EAAT00

22-130

Keyless/Power Door Locks/Security System

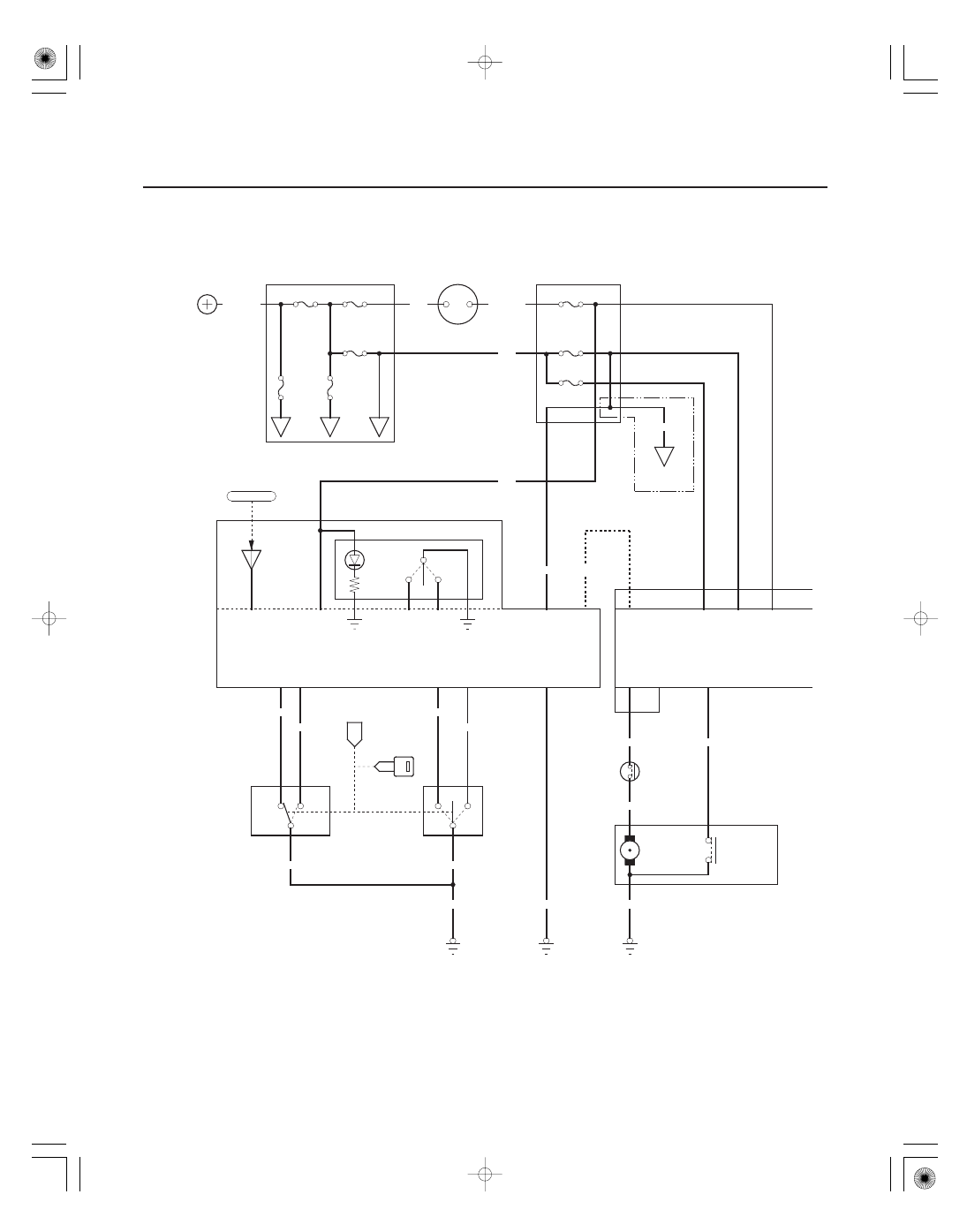

Circuit Diagram

20

J4

J9

K5

15

WHT/RED

A6

B4

D6

G1

2

3

1

BLU/YEL

Q7

YEL/BLU

G601

BLK

2

1

F5

RED/WHT

YEL

*

WHT/RED

BLK/YEL

B CAN

B CAN

MICU

DOOR LOCK SWITCH

POWER WINDOW MASTER SWITCH

16

BRN/BLK

IGN

LOCK

(Fuse/relay box socket)

(Fuse/relay box socket)

DOOR MULTIPLEX CONTROL UNIT

(Fuse/relay box socket)

1

BLK

G501

LOCK

UN

BLK

BLK

G401

21

WHT

WHT/RED

8

BLK

3

1

2

LOCK

YEL/RED

22

3

2

1

WHT/BLK

7

UNLOCK

LOCK

No.8 (20 A)

No.7 (7.5 A)

No.21 (7.5 A)

BLK/YEL

IGNITION SWITCH

IG1

BAT

YEL

WHT

No.15 (40 A)

BATTERY

No.22 (BAT) (120 A)

No.23 (IG) (50 A)

UNDER HOOD FUSE/RELAY BOX

UNDER DASH
FUSE/RELAY BOX

DRIVER’S
DOOR LOCK
KNOB
SWITCH

DRIVER’S
DOOR KEY
CYLINDER
SWITCH

IG1 HOT in ON (II)
and START (III)

DOOR
LOCK KNOB

UN
LOCK

KEYLESS
RECEIVER
ANTENNA

UNDER DASH
FUSE/RELAY
BOX

SECURITY
INDICATOR

IN BED
TRUNK LID
MAIN
SWITCH
(Closed :
Trunk lid open)

IN BED
TRUNK LID
ACTUATOR

IN BED
TRUNK LID
ACTUATOR/
LATCH
SWITCH

IN BED
TRUNK LID
LATCH
SWITCH
(Closed :
Trunk lid open)

LIGHT
(LED)

No.13
(20 A)

No.4
(15 A)

D

C

B

A

TRANSMITTER

KEY

*90

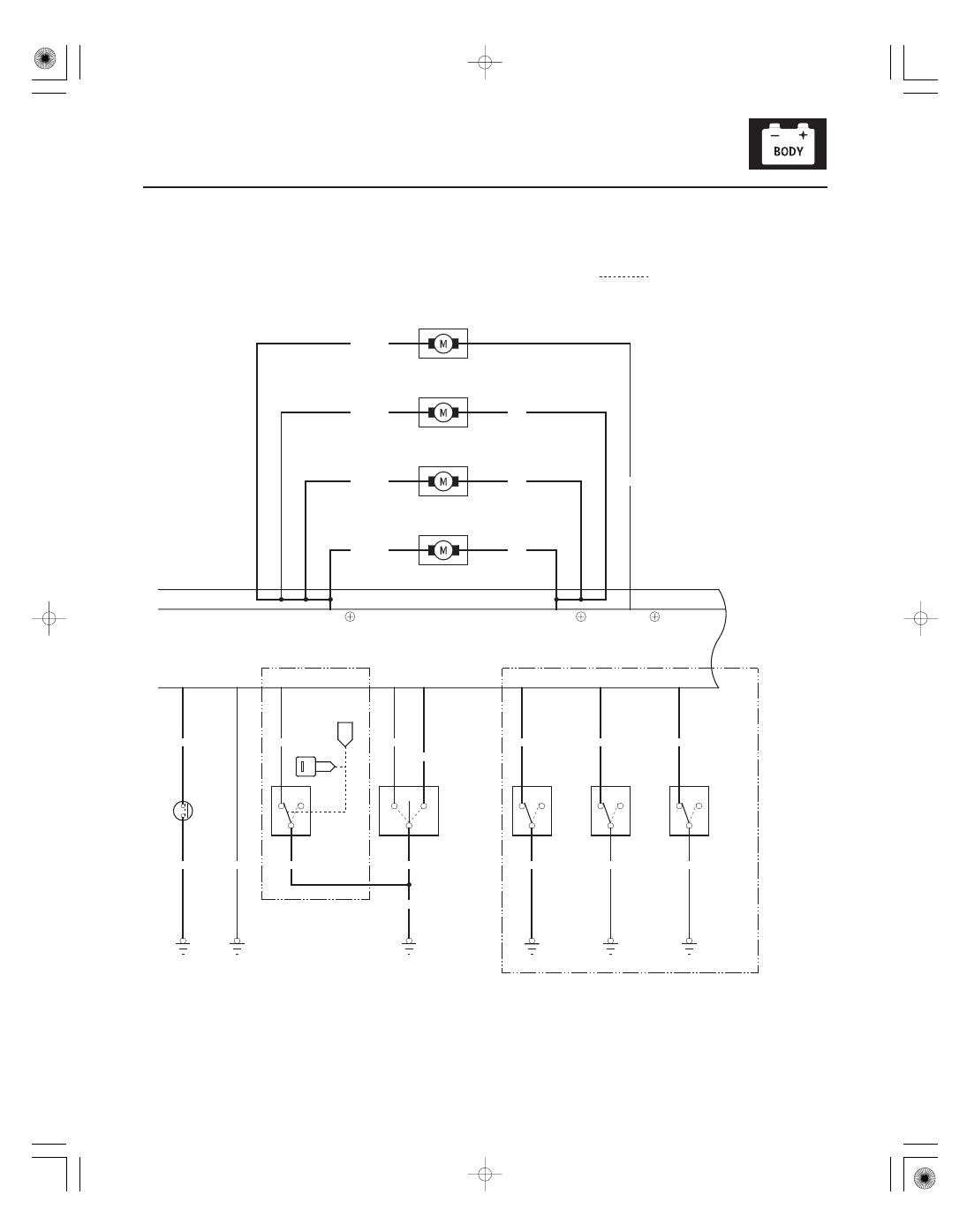

22-131

: Communication line

K2

N9

H10

E8

E2

H3

N7

K12

MICU

RTS, RTL, and EXL models

* :

UNLOCK

UNLOCK

LOCK

UNDNER DASH FUSE/RELAY BOX

YEL/BLK

1

2

YEL/GRN

YEL/BLK

1

2

YEL

YEL/BLK

1

2

YEL

YEL

2

1

YEL/BLK

BLK

G602

RED/BLU

Q12

2

1

G403

BLK

P1

*

UNLOCK

2

1

BLK

Q4

GRY/BLU

G602

UNLOCK

3

1

BLK

Q3

BLK/RED

G501

G501

UNLOCK

BLK/WHT

Q2

BLK

3

1

*

UNLOCK

LOCK

UNLOCK

P29

BRN/WHT

3

1

9

1

2

BLK

P25

PNK/BLK

PNK/BLU

P9

G402

BLK

BLK

DOOR
LOCK KNOB

FRONT
PASSENGER’S
DOOR
LOCK
SWITCH

FRONT
PASSENGER’S
DOOR LOCK
KNOB
SWITCH

LEFT
REAR
DOOR
LOCK
KNOB
SWITCH

RIGHT
REAR
DOOR
LOCK
KNOB
SWITCH

IN BED
TRUNK LID
KEY
CYLINDER
SWITCH

IN BED
TRUNK LID
HANDLE
SWITCH
(Closed :
Switch ON)

RIGHT REAR
DOOR LOCK
ACTUATOR

LEFT REAR
DOOR LOCK
ACTUATOR

FRONT
PASSENGER’S
DOOR LOCK
ACTUATOR

DRIVER’S
DOOR LOCK
ACTUATOR

KEY

(cont’d)
