22-124
Multiplex Integrated Control System

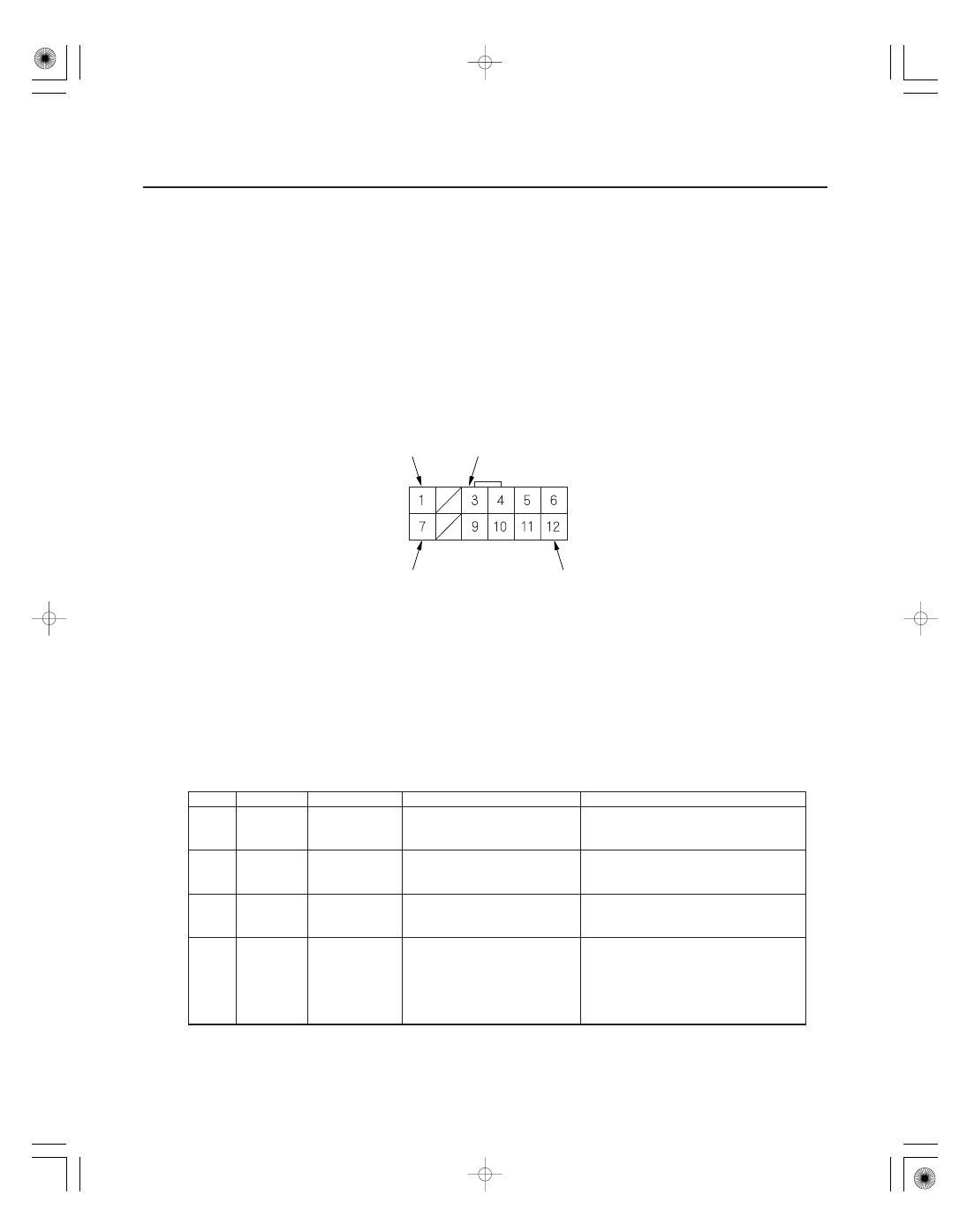

Combination Switch Control Unit Input Test
YEL
BLK
WHT/RED

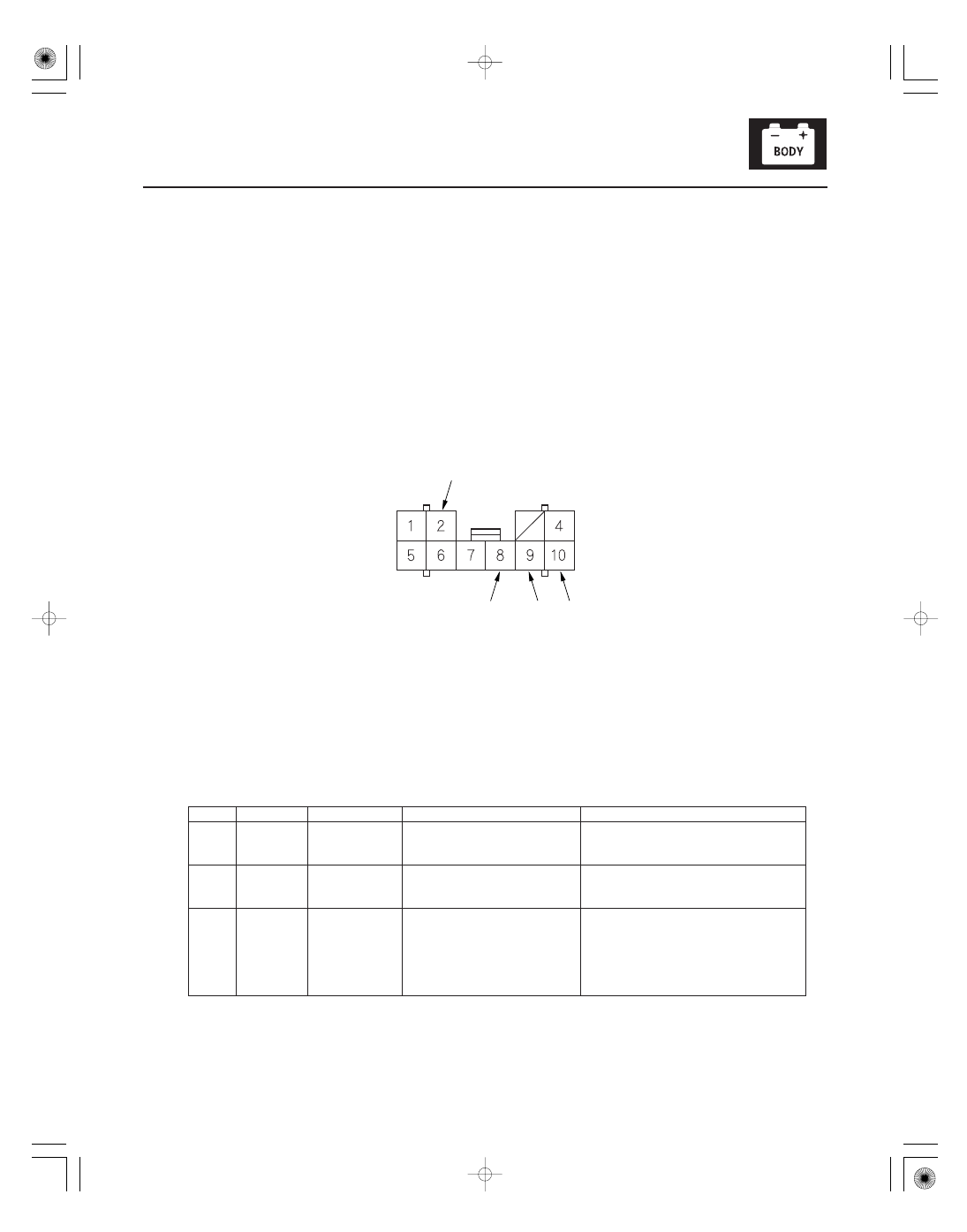

COMBINATION SWITCH CONTROL UNIT 12P CONNECTOR
LT GRN
NOTE: Check the No.22 (120 A) No. 23 (50 A), No. 15 (40 A) fuse in the under-hood fuse/relay box before
troubleshooting.
1. Before troubleshooting the multiplex integrated control system, troubleshoot the B-CAN System Diagnosis Test
mode A (see page 22-99).
2. Turn the ignition switch OFF.
3. Remove the steering column covers (see page 17-24).
4. Disconnect the 12P connector from the combination switch
5. Inspect the connector and socket terminals to be sure they are all making good contact.
• If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
• If the terminals look OK, go to step 6.
6. Reconnect all the connector to the control unit, and make these input tests at the connector.
• If any test indicates a problem, find and correct the cause, then recheck the system.
• If all the input tests prove OK, the combination switch control unit must be faulty, replace the combination
switch.
•
•
•
•
•
•
12
BLK
Under all
conditions
Check for voltage to ground:
There should be less than
0.5 V.
Poor ground (G401)
An open in the wire
7
WHT/RED
Under all
conditions
Check for voltage to ground:
There should be battery
voltage.
Blown No. 7 (7.5 A) fuse in the
under-dash fuse/relay box
An open in the wire
1
YEL
Ignition switch
ON (II)
Check for voltage to ground:
There should be battery
voltage.
Blown No. 21 (7.5 A) fuse in the
under-dash fuse/relay box
An open in the wire
3
LT GRN
Under all
conditions
Check for continuity between
No. 3 terminal and the under-
dash fuse/relay box
connector X (39P) No. 27
terminal:
There should be continuity.
An open in the wire
Wire side of female terminals
