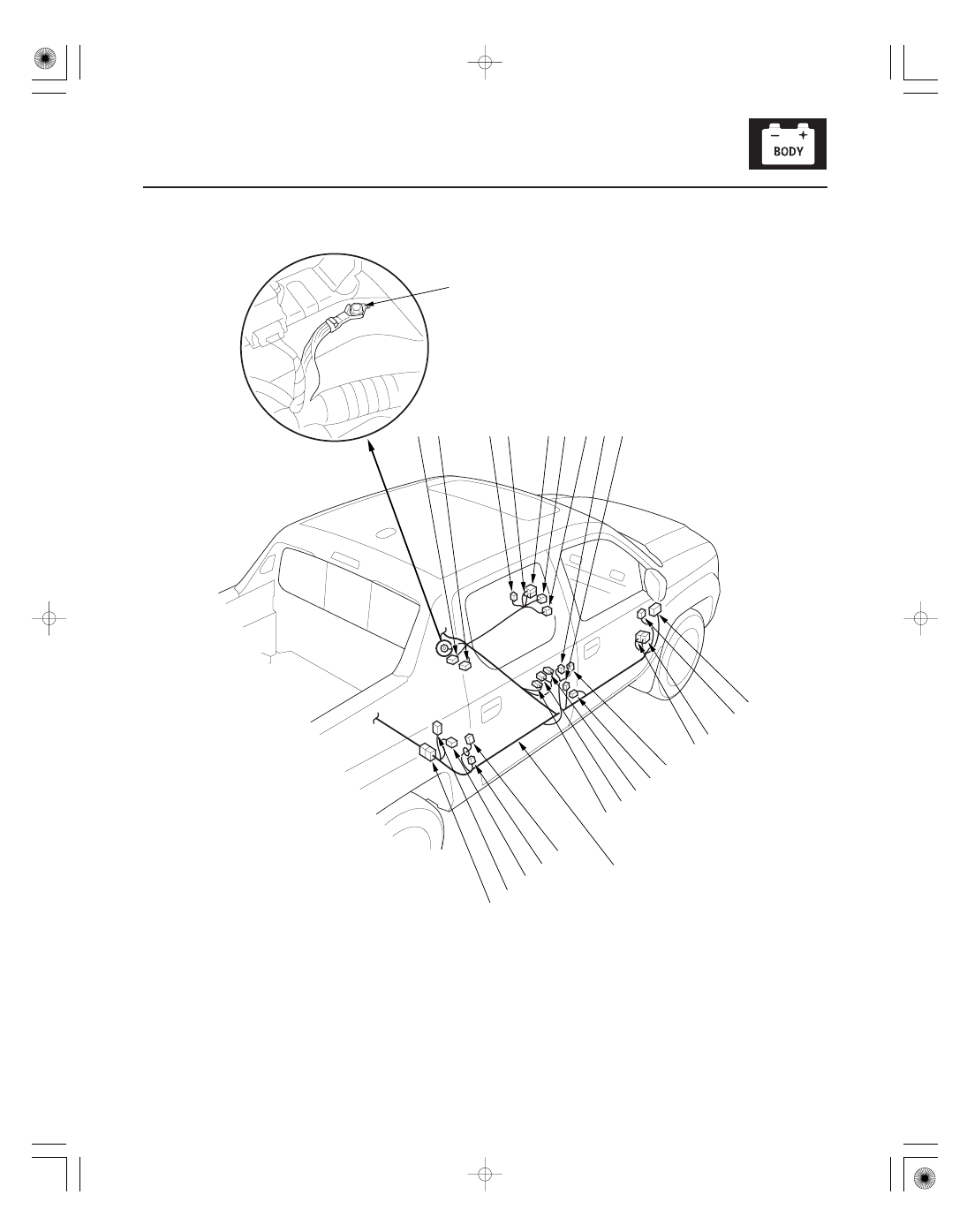

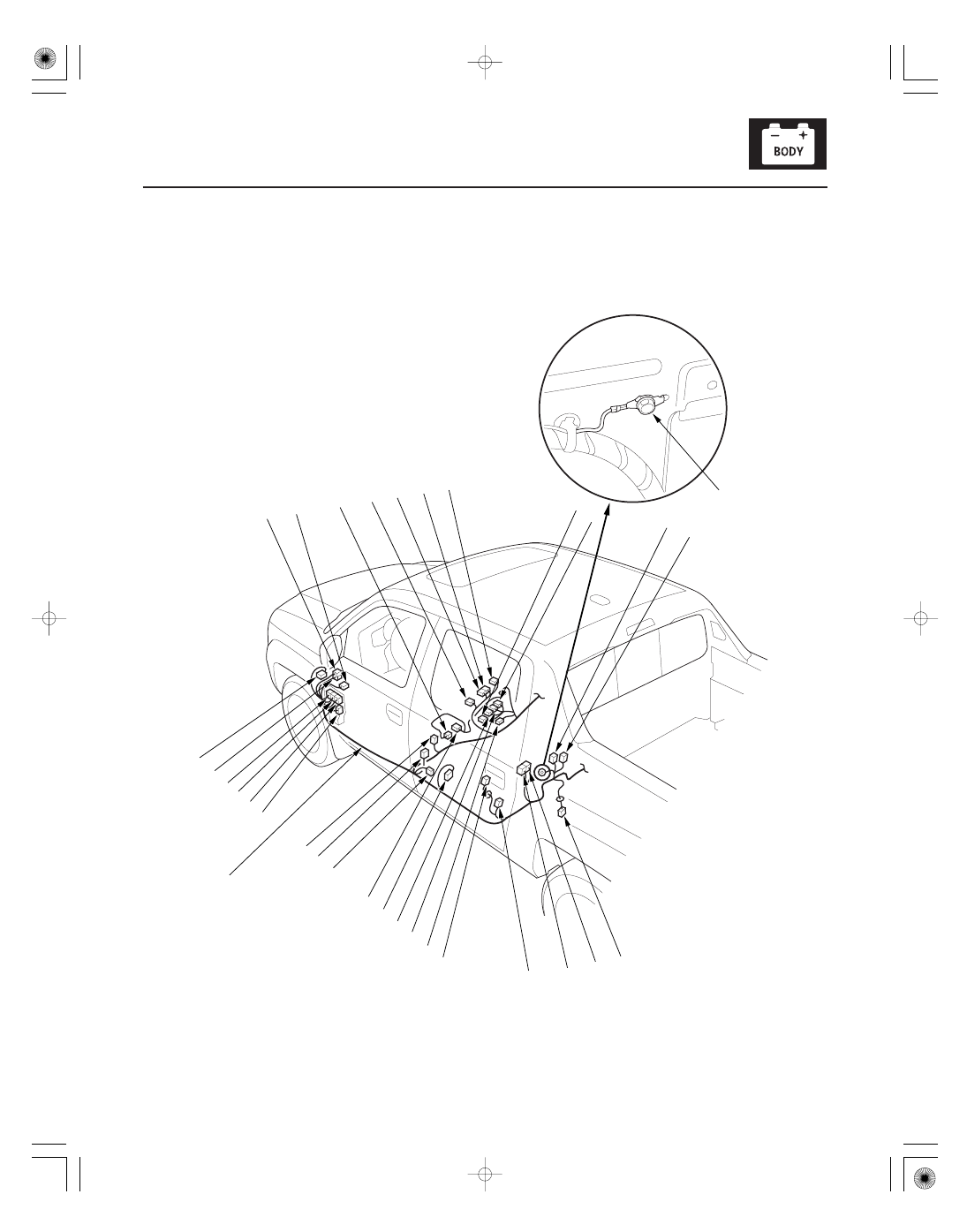

Floor Wire Harness (Left branch)
Connector or Terminal
Ref
Cavities
Location
Connects to
Notes
22-36
Connectors and Harnesses
Connector to Harness Index (cont’d)
Driver’s door switch
7
1
Left B-pillar
Driver’s seat belt buckle switch
27
3
Under driver’s seat
3
Driver’s seat belt buckle switch
27
6
Under driver’s seat
5
Driver’s seat belt tensioner
8
4
Left B-pillar
Driver’s side airbag inflator
28
2
Under driver’s seat
EVAP canister vent shut valve
29
2
Under left side of floor
Fuel pump/fuel gauge sending unit
19
5
Fuel tank
Fuel tank pressure (FTP) sensor
10
3
Under left side of floor
Imoes unit
21
5
Left cabin back panel
6
Left rear door switch
15
1
Left C-pillar
Left side impact sensor (first)
9
2
Under driver’s seat
Left side impact sensor (second)
16
2
Left C-pillar
Navigation service check connector
14
2
Under driver’s seat
1
Navigation unit connector A
12
20
Under driver’s seat
1
Navigation unit connector B
13
14
Under driver’s seat
1
Navigation unit connector C
23
8
Under driver’s seat
1
Navigation unit connector (GPS antenna)
24
2
Under driver’s seat
1
Subwoofer
20
2
Left cabin back panel
Under-dash fuse/relay box connector E
(see page 22-61)
4
16
Left kick panel
Under-dash fuse/relay box connector F
(see page 22-61)
3
14
Left kick panel
Under-dash fuse/relay box connector H
(see page 22-61)
5
14
Left kick panel
Under-dash fuse/relay box connector Q
(MICU) (see page 22-61)
6
14
Left kick panel
C402
31
24
Left kick panel
Dashboard wire harness
(see page 22-28)
C403
2
16
Left kick panel
Dashboard wire harness
(see page 22-28)
C501
1
4
Left kick panel
Roof wire harness (see page
22-40)
C502
30
4
Left kick panel
Driver’s door subharness
RTS, RTL, and EXL models:
(see page 22-44).
RT, RTX, and LX models:
(see page 22-46).
C503
26
12
Under driver’s seat
Driver’s seat wire harness
(see page 22-54)
2
C503
26
8
Under driver’s seat
Driver’s seat wire harness
(see page 22-54)
3
C503
26
13
Under driver’s seat
Driver’s seat wire harness
(see page 22-54)
4
C506
11
12
Left B-pillar
Left rear door wire harness
(see page 22-49)
C509
17
23
Left cabin back panel
Rear wire harness (see page
22-42)
C510
18
16
Left cabin back panel
Rear wire harness (see page
22-42)
C511
25
2
Under driver’s seat
Seat position sensor harness
(see page 22-54)
5
G502
22
Left cabin back panel
Body ground, via floor wire
harness
1: With navigation system
2: ’06 model: RTL
’06 model: EXL
3: ’06 model: RT and RTS
’06 model: LX
4: ’07-08 models: RTS and RTL
’07-08 models: EXL
5: ’07-08 models: RT and RTX
’07-08 models: LX
6: ’07-08 Canada models, ’08 USA models
