Engine Wire Harness (cont’d)

Shift Solenoid/Torque Converter Clutch Solenoid Wire Harness

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

22-20

Connectors and Harnesses

Connector to Harness Index (cont’d)

C101

1

23

Right side of engine compartment

Right engine compartment wire
harness (see page 22-22)

C102

3

2

Right side of engine compartment

Right engine compartment wire
harness (see page 22-22)

C103 (Junction connector)

6

24

Middle of engine compartment

C104 (Junction connector)

8

24

Middle of engine compartment

C105 (Junction connector)

2

24

Right side of engine compartment

C151

24

5

Left side of engine compartment

Shift solenoid/Torque converter
clutch solenoid wire harness

G101

17

Left side of engine compartment

Body ground, via engine wire
harness

G102

4

Right side of engine compartment

Body ground, via engine wire
harness

Shift solenoid valve A

22

1

Left side of engine compartment

Shift solenoid valve B

23

1

Left side of engine compartment

Shift solenoid valve C

20

1

Left side of engine compartment

Torque converter clutch solenoid
valve

21

1

Left side of engine compartment

C151

24

5

Left side of engine compartment

Engine wire harness

０２

22-21

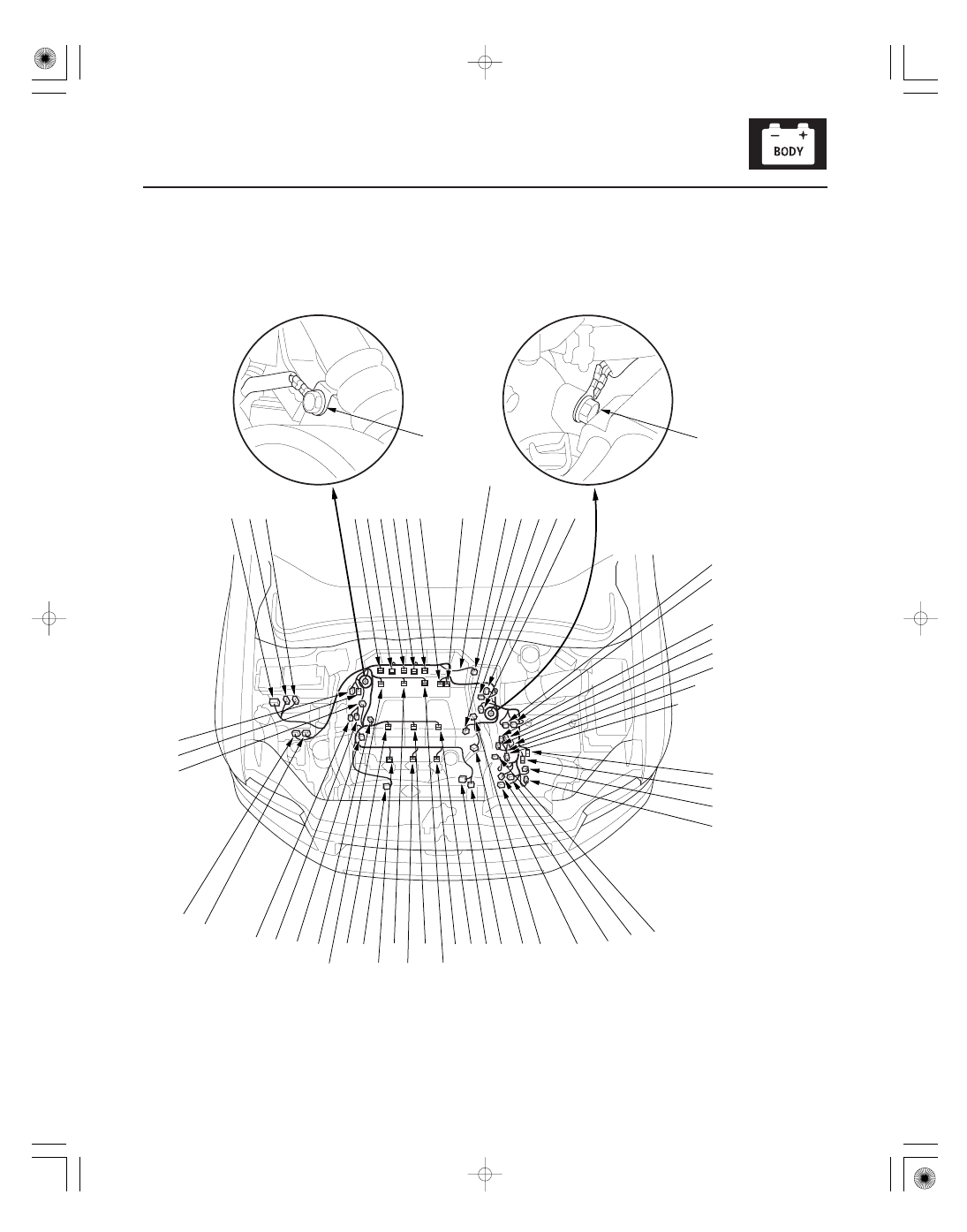

SHIFT SOLENOID/
TORQUE CONVERTER
CLUTCH SOLENOID
WIRE HARNESS

ENGINE
WIRE HARNESS

1

2

3

4

5 6 7 8 9 10

11

12 13 14 15 16

17

18

19

20

21
22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

ＳＪＣ８Ａ００Ｊ５４２８３２２４５０２ＤＢＡＴ００

Right Engine Compartment Wire Harness

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

22-22

Connectors and Harnesses

Connector to Harness Index (cont’d)

A/C compressor clutch

26

1

Behind middle of front bumper

A/C condenser fan motor

27

2

Behind middle of front bumper

A/C condenser fan relay

33

5

Right side of engine compartment

A/C pressure switch

44

4

Right side of engine compartment

Accelerator pedal position sensors 1 and
2 (APP 1, APP 2)

45

6

Right side of engine compartment

Diode (for A/C)

2

4

Under right side of dash

Fan control relay

31

5

Right side of engine compartment

Horn (high)

23

1

Behind middle of front bumper

Left front initiator

34

3

Left side of engine compartment

Optional connector (for fog light)

21

2

Behind middle of front bumper

Outside air temperature sensor

30

2

Behind middle of front bumper

PCM connector A

12

44

Right side of engine compartment

Power steering pressure (PSP) switch

43

2

Right side of engine compartment

Radiator fan motor

28

2

Behind middle of front bumper

Radiator fan relay

32

4

Right side of engine compartment

Right front initiator

4

3

Right side of engine compartment

Right front turn signal/parking light

18

3

Behind right headlight

Right front wheel sensor

46

2

Right side of engine compartment

Right headlight

22

3

Behind right headlight

SRS right front impact sensor

25

2

Behind middle of front bumper

Security hood switch

29

2

Behind middle of front bumper

Under-dash fuse/relay box connector B
(see page 22-61)

37

6

Under left side of dash

Under-dash fuse/relay box connector C
(see page 22-61)

35

12

Under left side of dash

Under-dash fuse/relay box connector D
(see page 22-61)

36

17

Under left side of dash

Under-hood fuse/relay box connector A
(ELD unit) (see page 22-60)

6

3

Right side of engine compartment

Under-hood fuse/relay box connector B
(see page 22-60)

10

1

Right side of engine compartment

Under-hood fuse/relay box connector C
(see page 22-60)

9

2

Right side of engine compartment

Under-hood fuse/relay box connector D
(see page 22-60)

5

9

Right side of engine compartment

Under-hood fuse/relay box connector E
(see page 22-60)

47

16

Right side of engine compartment

Under-hood fuse/relay box connector F
(see page 22-60)

8

20

Right side of engine compartment

Under-hood fuse/relay box connector G
(see page 22-60)

7

2

Right side of engine compartment

Under-hood fuse/relay box connector H
(see page 22-60)

11

18

Right side of engine compartment

Under-hood fuse/relay box connector J
(see page 22-60)

14

10

Right side of engine compartment

Under-hood fuse/relay box connector K
(see page 22-60)

13

5

Right side of engine compartment

Washer fluid level switch

24

2

Behind middle of front bumper

Windshield washer motor

20

2

Behind middle of front bumper

Windshield wiper motor

42

5

Left side of engine compartment

: RTS, RTL, and EXL models

＊０１

22-23

2

3

4

5

1

16

17

19

18

20

11

12

14

13 15

26

27

29

28

30

21

22

24

23

25

36

37

39

38

40

31

32

34

33

35

46

41

42

44

43

45

10

6

7

8

9

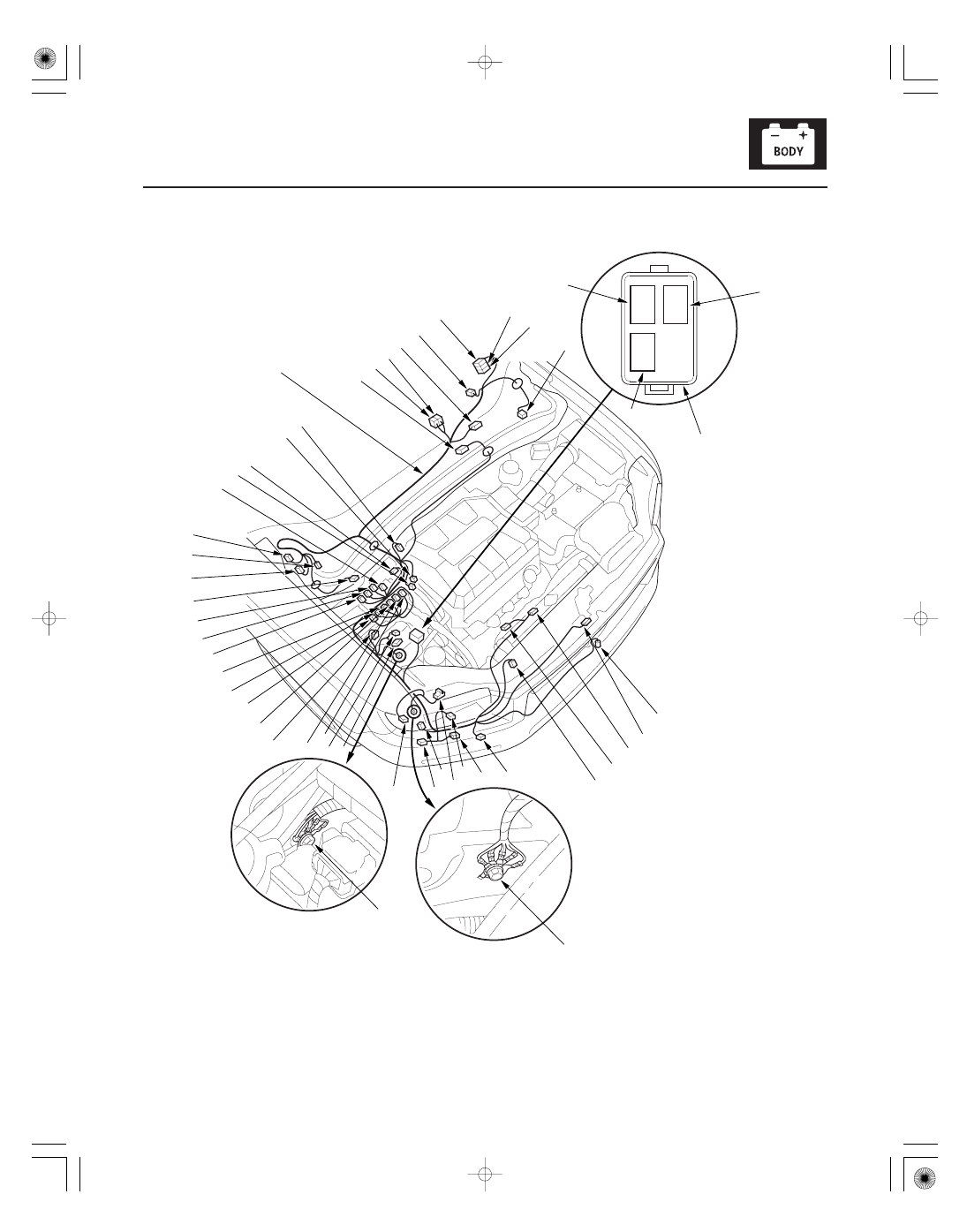

AUXILIARY UNDER-HOOD
RELAY BOX

RIGHT ENGINE
COMPARTMENT
WIRE HARNESS

47

(cont’d)
