21-128

Climate Control

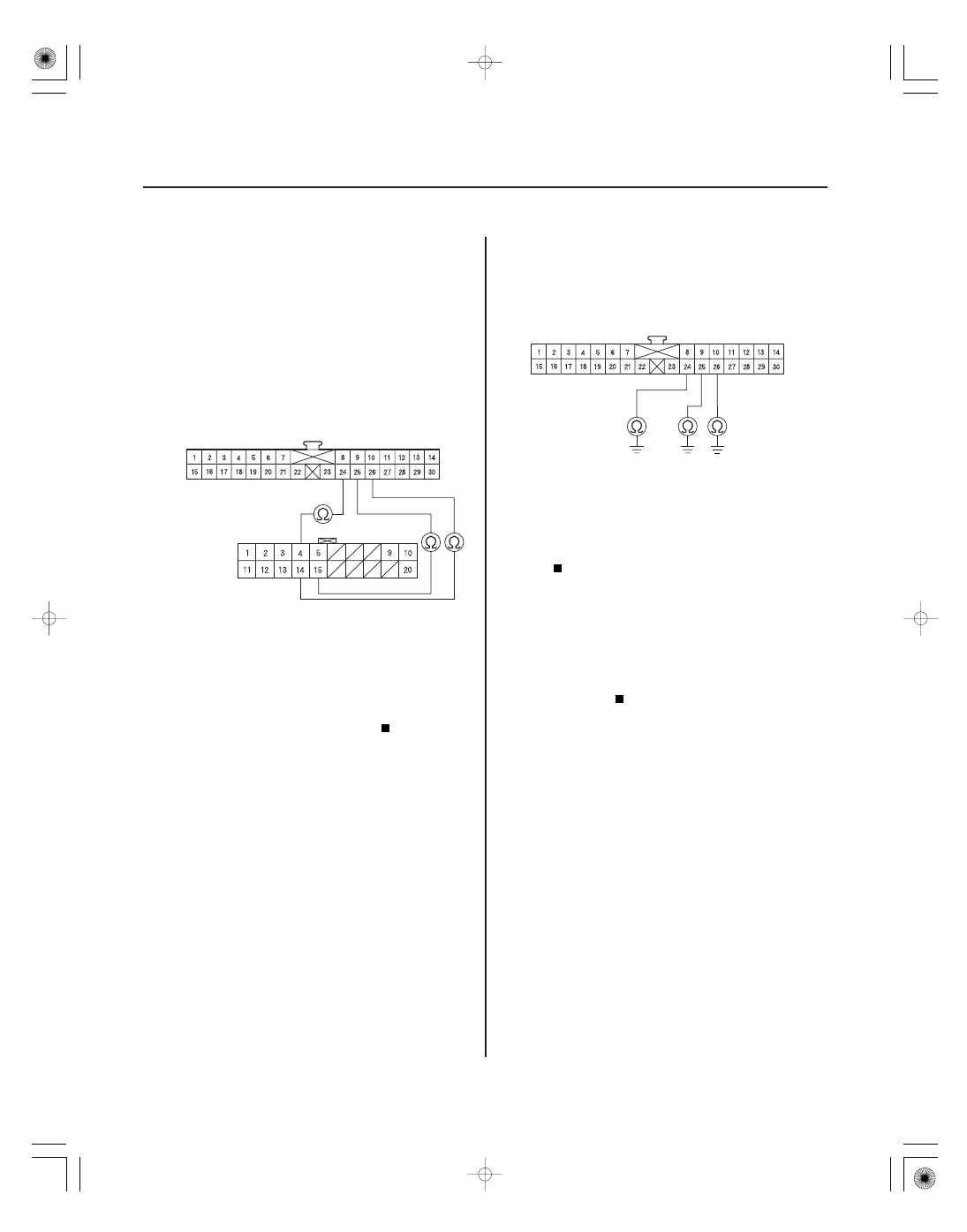

Navigation Communication Line Circuit Troubleshooting

CLIMATE CONTROL UNIT 30P CONNECTOR

NAVIGATION UNIT CONNECTOR A (20P)

WHT/BLU

WHT/RED

WHT/BLK

WHT/BLU

WHT/RED

WHT/BLK

WHT/BLK

CLIMATE CONTROL UNIT 30P CONNECTOR

WHT/BLU

WHT/RED

1. Disconnect navigation unit connector A (20P).

2. Disconnect the climate control unit 30P connector.

3. Check for continuity between the following

terminals of the climate control unit 30P connector
and navigation unit connector A (20P).
30P

20P

No. 24

No. 4

No. 25

No. 15

No. 26

No. 14

Go to step 4.

Repair open in the wires between the climate

control unit and the navigation unit.

4. Check for continuity between body ground and the

climate control unit 30P connector No. 24, 25, and
26 terminals individually.

Repair short to body ground in the wires

between the climate control unit and the navigation
unit.

Check for loose wires or poor connections at

the climate control unit 30P connector and at the
navigation unit connector A (20P). If the
connections are good, substitute a known-good
climate control unit and/or navigation unit, and
recheck. If the symptom/indication goes away,
replace the original climate control unit and/or
navigation unit.

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is ther e continuity?

Is ther e continuity?

01

02

SJC8AH7G10500016701FAAT00

YES

NO

YES

NO

YES

NO

21-129

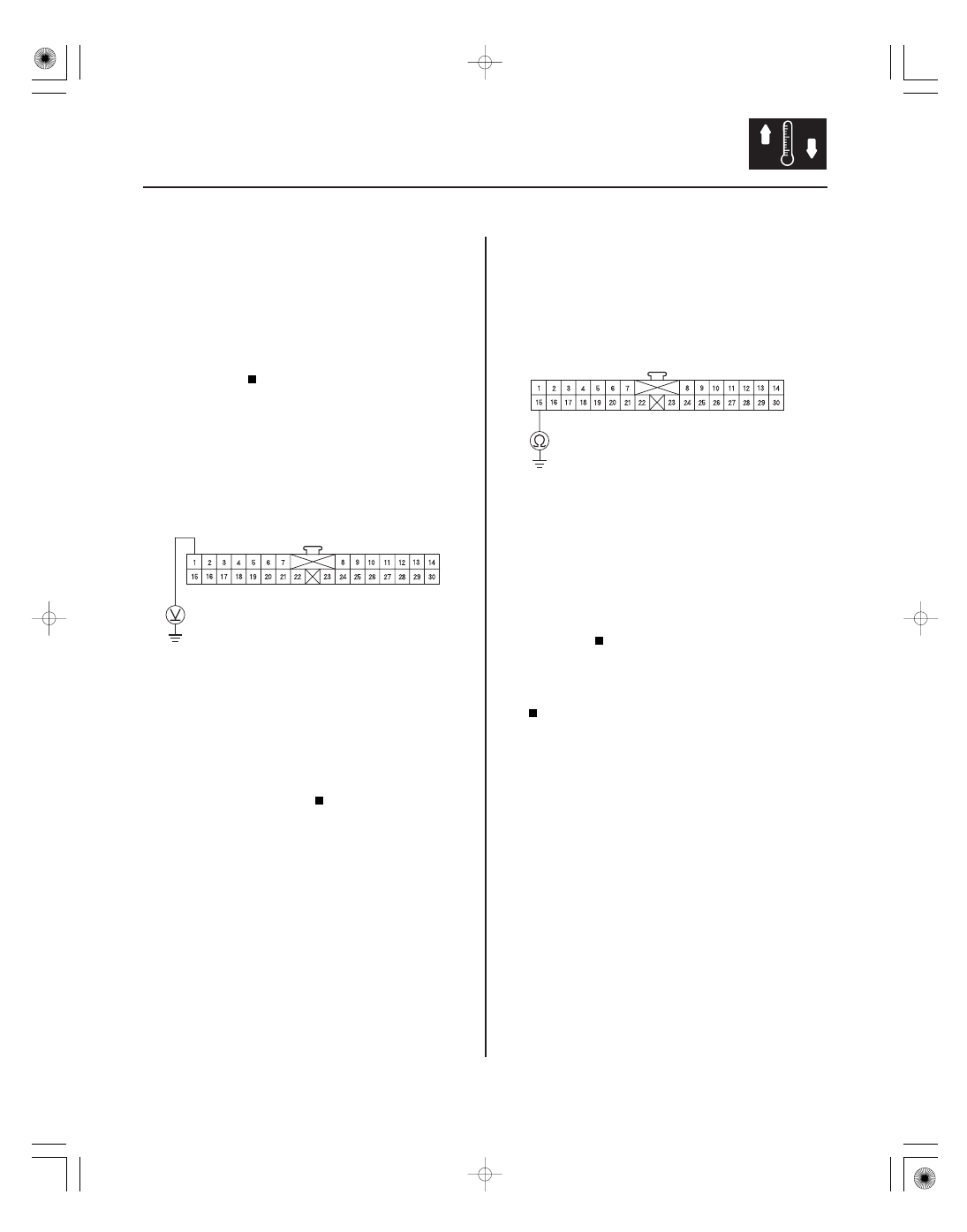

Climate Control Power and Ground Circuit Troubleshooting

BLK/YEL

CLIMATE CONTROL UNIT 30P CONNECTOR

BLK

CLIMATE CONTROL UNIT 30P CONNECTOR

1. Check the No. 30 (7.5 A) fuse in the under-dash

fuse/relay box.

Go to step 2.

Replace the fuse, and recheck. If the fuse

blows again, check for a short in the No. 30 (7.5 A)
fuse circuit.

2. Disconnect the climate control unit 30P connector.

3. Turn the ignition switch ON (II).

4. Measure the voltage between the climate control

unit 30P connector No. 1 terminal and body ground.

Go to step 5.

Repair an open in the wire between the No. 30

(7.5 A) fuse in the under-dash fuse/relay box and
the climate control unit.

5. Turn the ignition switch OFF.

6. Check for continuity between the climate control

unit 30P connector No. 15 terminal and body
ground.

Check for loose wires and poor connections

at the climate control unit 30P connector. If
connections are good, substitute a known-good
climate control unit and recheck. If the symptom/
indication goes away, replace the original climate
control unit.

Check for an open in the wire between the

climate control unit and body ground. If the wire is
OK, check for poor ground at G402 (see page 22-68).

Wire side of female terminals

Wire side of female terminals

Is the f use OK ?

Is ther e batter y voltage?

Is ther e continuity?

01

07

02

SJC8AH7G10100012062FAAT80

YES

NO

YES

NO

YES

NO

YES

NO

21-130

Climate Control

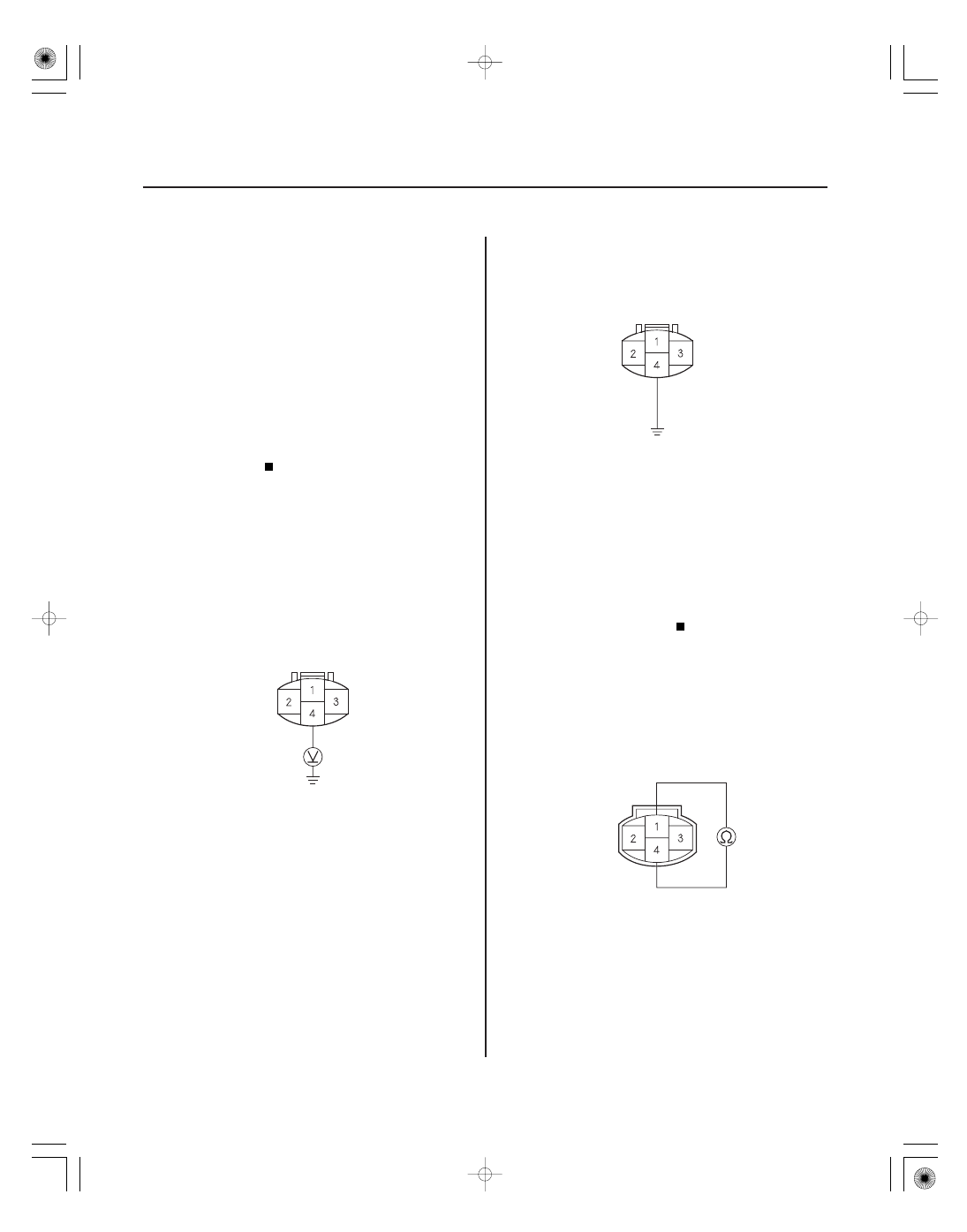

A/C Pressure Switch Circuit Troubleshooting

A/C PRESSURE SWITCH 4P CONNECTOR

BLU/RED

A/C PRESSURE SWITCH 4P CONNECTOR

BLU/RED

JUMPER WIRE

A/C PRESSURE SWITCH

NOTE:

• Do not use this troubleshooting procedure if any of

the following items are operative; condenser fan,
radiator fan, A/C compressor. Refer to the symptom
troubleshooting index.

• Before doing any symptom troubleshooting, check

for powertrain DTCs (see page 11-3).

1. Check for body DTCs using B-CAN system

diagnosis test mode A troubleshooting (see page
22-99).

Do the appropriate troubleshooting for the

DTC indicated.

Go to step 2.

2. Disconnect the A/C pressure switch 4P connector.

3. Turn the ignition switch ON (II).

4. Measure the voltage between the A/C pressure

switch 4P connector No. 4 terminal and body
ground.

Go to step 5.

Go to step 19.

5. Connect the A/C pressure switch 4P connector

No. 4 terminal to body ground with the jumper wire.

6. Start the engine

Go to step 7.

Check the connection of under-hood fuse/

relay box connector H (18P) No. 3 terminal. If the
connection is OK, replace the under-hood fuse/
relay box (see page 22-72).

7. Disconnect the jumper wire, and turn the ignition

switch OFF.

8. Check for continuity between the A/C pressure

switch No. 1 and No. 4 terminals.

Go to step 9.

Go to step 18.

Wire side of female terminals

Wire side of female terminals

Ar e ther e any DT Cs indicated?

Is ther e 5 V or mor e?

Does the compr essor and f ans come on?

Is ther e continuity?

03

04

YES

NO

YES

NO

YES

NO

21-131

YEL

CLIMATE CONTROL UNIT 30P CONNECTOR

CLIMATE CONTROL UNIT 30P CONNECTOR

BRN

RED/BLK

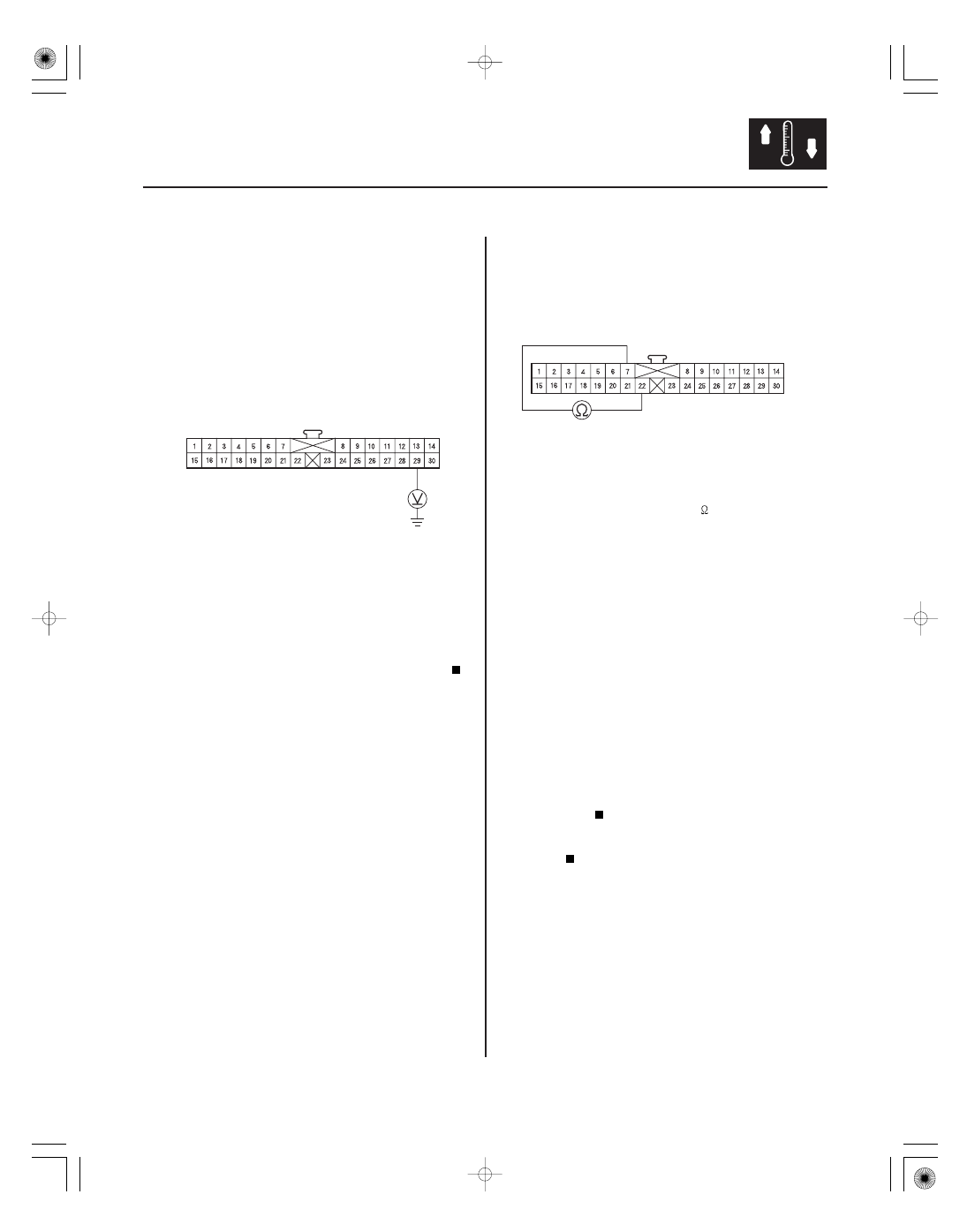

9. Reconnect the A/C pressure switch 4P connector.

10. Disconnect climate control unit 30P connector.

11. Turn the ignition switch ON (II).

12. Measure the voltage between the climate control

unit 30P connector No. 29 terminal and body
ground.

Go to step 13.

Repair the open in the wire between the

climate control unit and the A/C pressure switch.

13. Turn the ignition switch OFF.

14. Measure the evaporator temperature sensor

resistance between the climate control unit 30P
connector No. 7 and No. 22 terminals.

Go to step 15.

Test the evaporator temperature sensor

(see page 21-53).

15. Reconnect the climate control unit 30P connector.

16. Turn the ignition switch ON (II).

17. Check that blower motor operates at all speeds.

Check for loose wires or poor connections at

the climate control unit 30P connector and at the
A/C pressure switch 4P connector. If the
connections are good, substitute a known-good
climate control unit and recheck. If the symptom/
indication goes away, replace the original climate
control unit.

Repair the problem in the blower motor

circuit.

(cont’d)

Wire side of female terminals

Wire side of female terminals

Is ther e 5 V or mor e?

Is the r esistance less than 24 k

?

Does the blower motor oper ate at all speeds?
