DTC B1227 or DTC indicator C:

YES

21-104

Climate Control

DTC Troubleshooting (cont’d)

CLIMATE CONTROL UNIT 30P CONNECTOR

OUTSIDE AIR TEMPERATURE SENSOR 2P CONNECTOR

PNK

An Open in

the Outside Air Temperature Sensor Circuit

1. Clear the DTC with the HDS.

2. Operate the climate control system in several

modes.

3. Check for DTCs using the HDS or self-diagnostic.

Go to step 4.

Intermittent failure, check for loose wires or

poor connections on the outside air temperature
sensor circuit.

4. Turn the ignition switch OFF.

5. Remove the outside air temperature sensor

(see page 21-52) and test it (see page 21-52).

Go to step 6.

Replace the outside air temperature sensor.

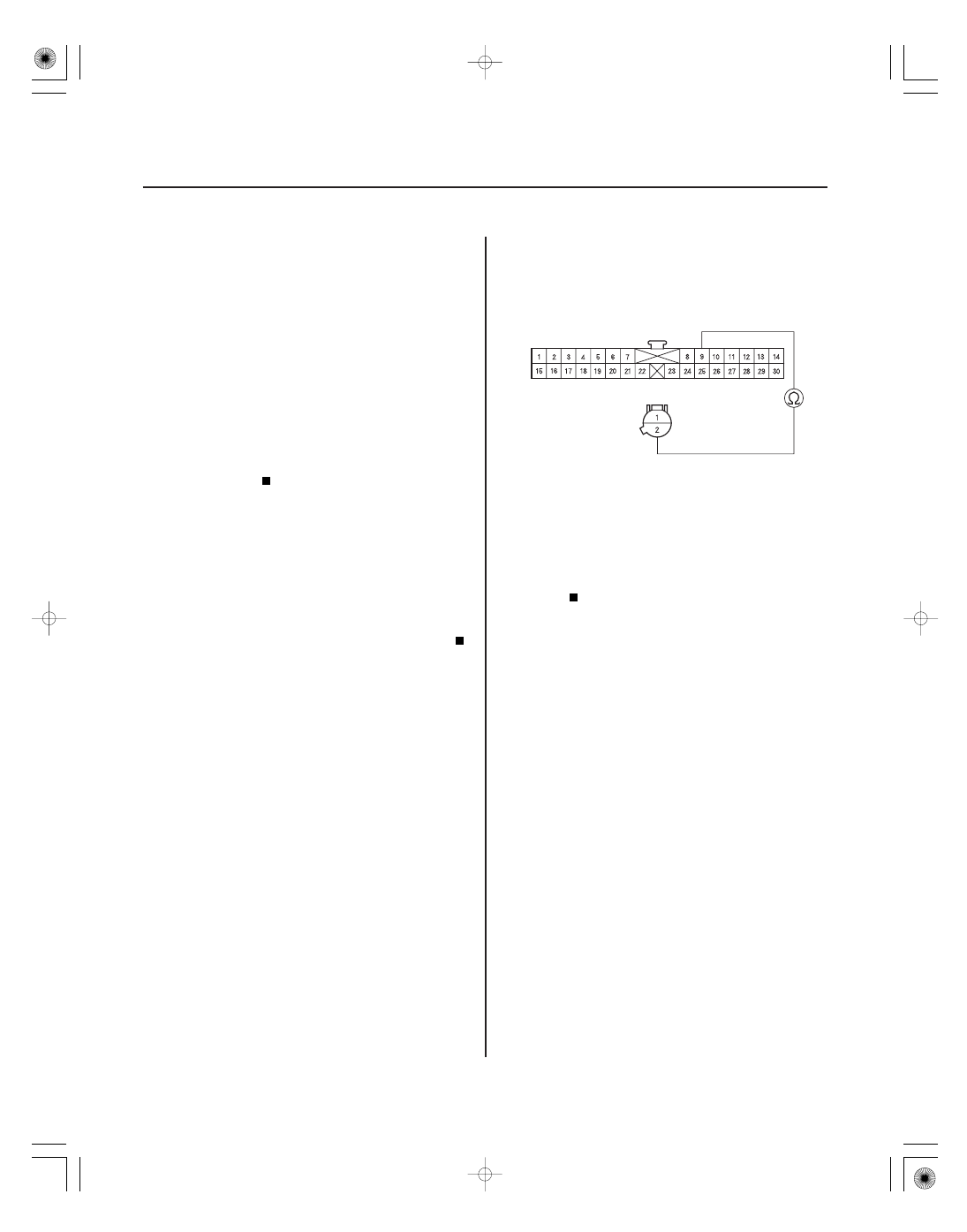

6. Disconnect the climate control unit 30P connector.

7. Check for continuity between the climate control

unit 30P connector No. 9 terminal and the outside
air temperature sensor 2P connector No. 2 terminal.

Go to step 8.

Repair open in the wire between the climate

control unit and the outside air temperature
sensor.

Wire side of female terminals

Is DT C B1227 or C indicated?

Is the outside air temper atur e sensor OK ?

Is ther e continuity?

０２

ＳＪＣ８ＡＨ７Ｋ７１１０００Ｙ１２２８ＦＡＡＴ００

−

YES

DTC B1228 or DTC indicator D:

21-105

CLIMATE CONTROL UNIT 30P CONNECTOR

RED/BLK

OUTSIDE AIR TEMPERATURE SENSOR 2P CONNECTOR

RED/BLK

8. Check for continuity between the climate control

unit 30P connector No. 22 terminal and the outside
air temperature sensor 2P connector No. 1 terminal.

Check for loose wires or poor connections at

the climate control unit 30P connector and at the
outside air temperature sensor 2P connector. If the
connections are good, substitute a known-good
climate control unit, and recheck. If the symptom/
indication goes away, replace the original climate
control unit.

Repair open in the wire between the climate

control unit and the outside air temperature
sensor.

1. Clear the DTC with the HDS.

2. Operate the climate control system in several

modes.

3. Check for DTCs using the HDS or self-diagnostic.

Go to step 4.

Intermittent failure.

4. Turn the ignition switch OFF.

5. Remove the outside air temperature sensor

(see page 21-52) and test it (see page 21-52).

Go to step 6.

Replace the outside air temperature sensor.

6. Disconnect the climate control unit 30P connector.

(cont’d)

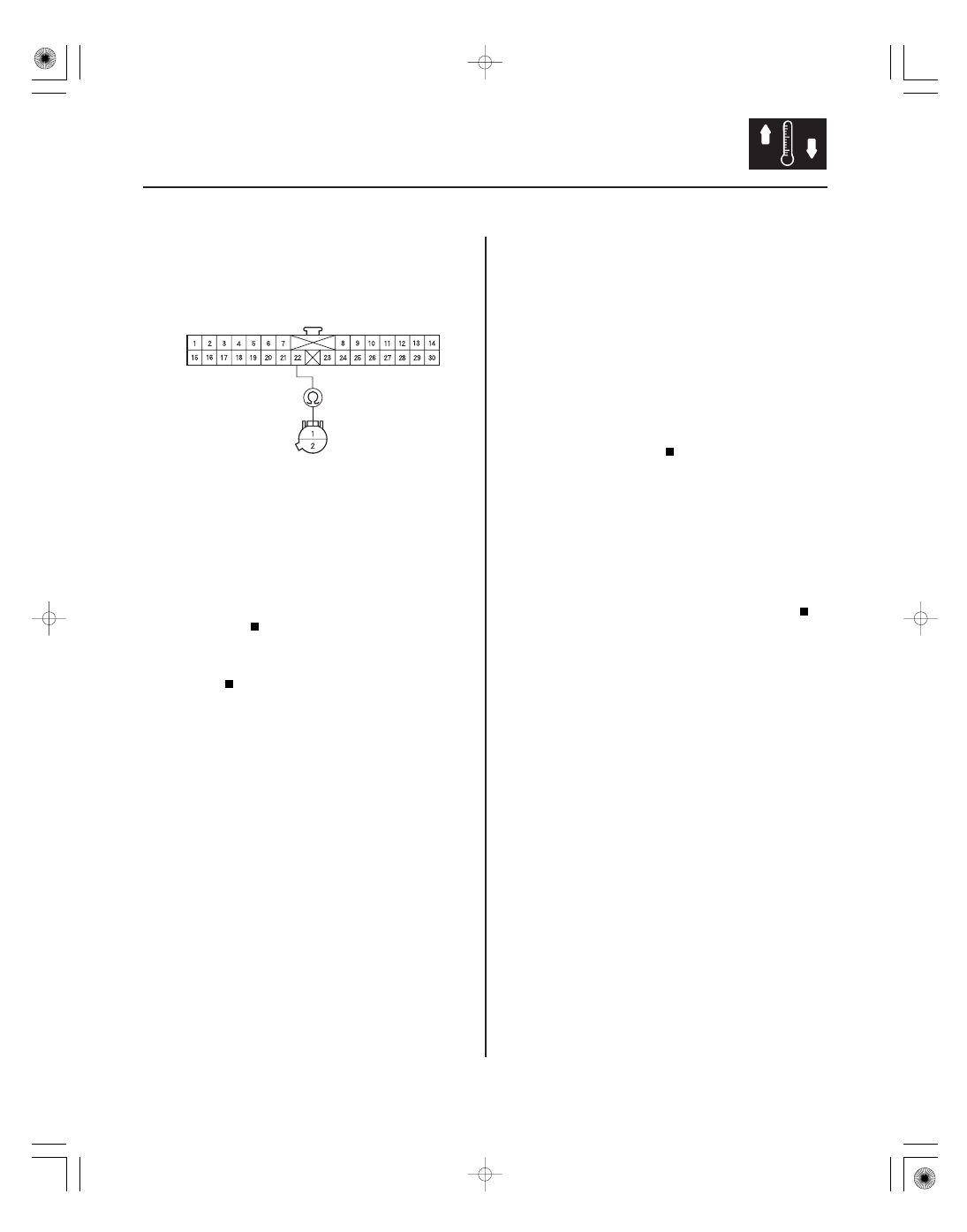

A Short in the

Outside Air Temperature Sensor Circuit

Wire side of female terminals

Is ther e continuity?

Is DT C B1228 or D indicated?

Is the outside air temper atur e sensor OK ?

０１

０２

０１

ＳＪＣ８ＡＨ７Ｋ７１１０００Ｙ１２２９ＦＡＡＴ００

−

YES

DTC B1229 or DTC indicator E:

21-106

Climate Control

DTC Troubleshooting (cont’d)

CLIMATE CONTROL UNIT 30P CONNECTOR

RED/BLK

PNK

CLIMATE CONTROL UNIT 30P CONNECTOR

PNK

RED/BLK

CLIMATE CONTROL UNIT 30P CONNECTOR

SUNLIGHT SENSOR 2P CONNECTOR

ORN

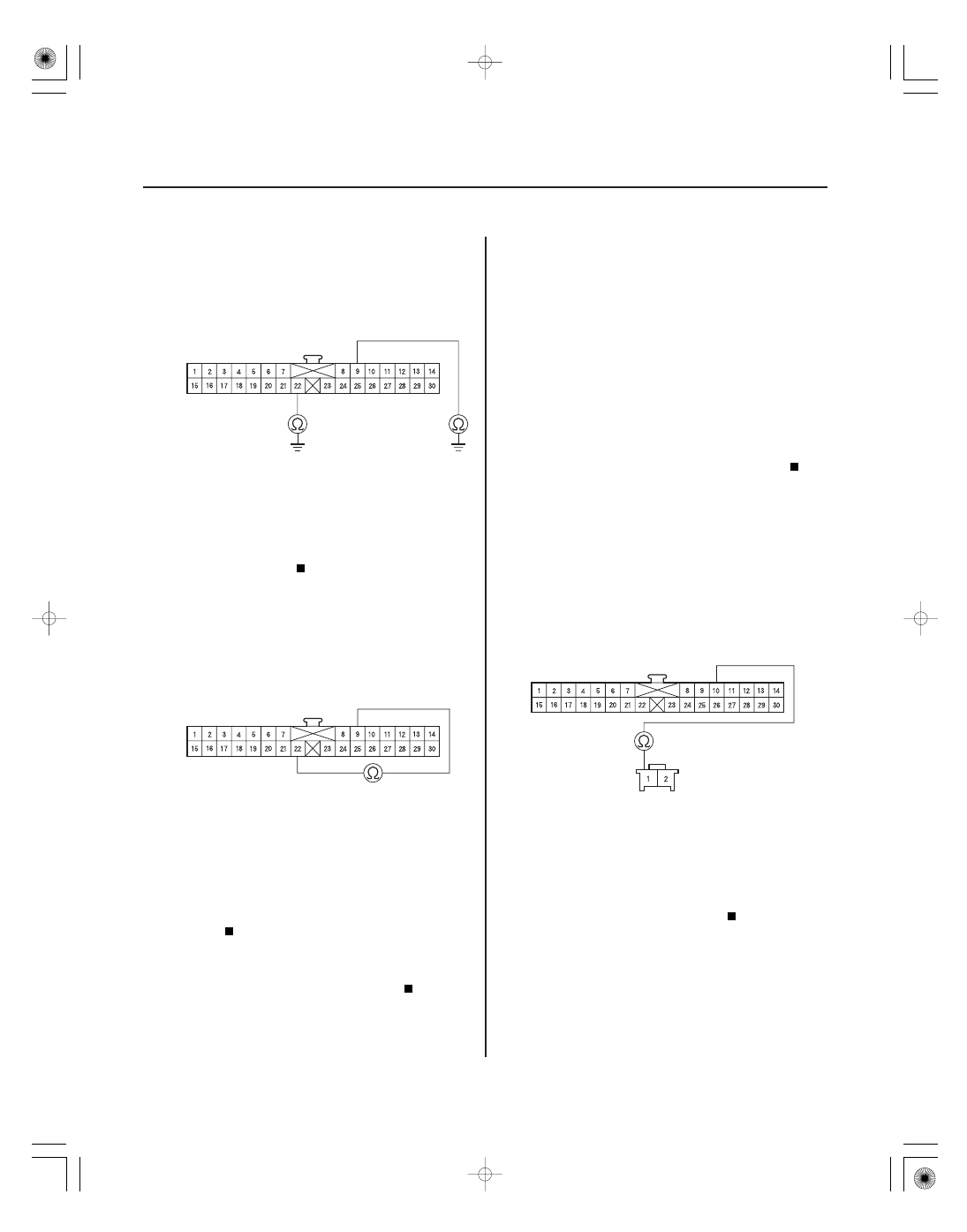

7. Check for continuity between body ground and the

climate control unit 30P connector No. 9 and No. 22
terminals.

Repair short to body ground in the wires

between the climate control unit and the outside air
temperature sensor.

Go to step 8.

8. Check for continuity between the climate control

unit 30P connector No. 9 and No. 22 terminals.

Repair short in the wires between the climate

control unit and the outside air temperature
sensor.

Substitute a known-good climate control unit,

and recheck. If the symptom/indication goes away,
replace the original climate control unit.

1. Clear the DTC with the HDS.

2. Operate the climate control system in several

modes.

3. Check for DTCs using the HDS or self-diagnostic.

Go to step 4.

Intermittent failure, check for loose wires or

poor connections on the sunlight sensor circuit.

4. Turn the ignition switch OFF.

5. Disconnect the sunlight sensor 2P connector.

6. Disconnect the climate control unit 30P connector.

7. Check for continuity between the climate control

unit 40P connector No. 10 terminal and the sunlight
sensor 2P connector No. 1 terminal.

Go to step 8.

Repair open in the wire between the climate

control unit and the sunlight sensor.

An Open in

the Sunlight Sensor Circuit

Wire side of female terminals

Is ther e continuity?

Is DT C B1229 or E indicated?

Is ther e continuity?

０２

０１

ＳＪＣ８ＡＨ７Ｋ７１１０００Ｙ１２３０ＦＡＡＴ００

−

YES

DTC B1230 or DTC indicator F:

21-107

CLIMATE CONTROL UNIT 30P CONNECTOR

RED/BLK

SUNLIGHT SENSOR 2P CONNECTOR

CLIMATE CONTROL UNIT 30P CONNECTOR

RED/BLK

ORN

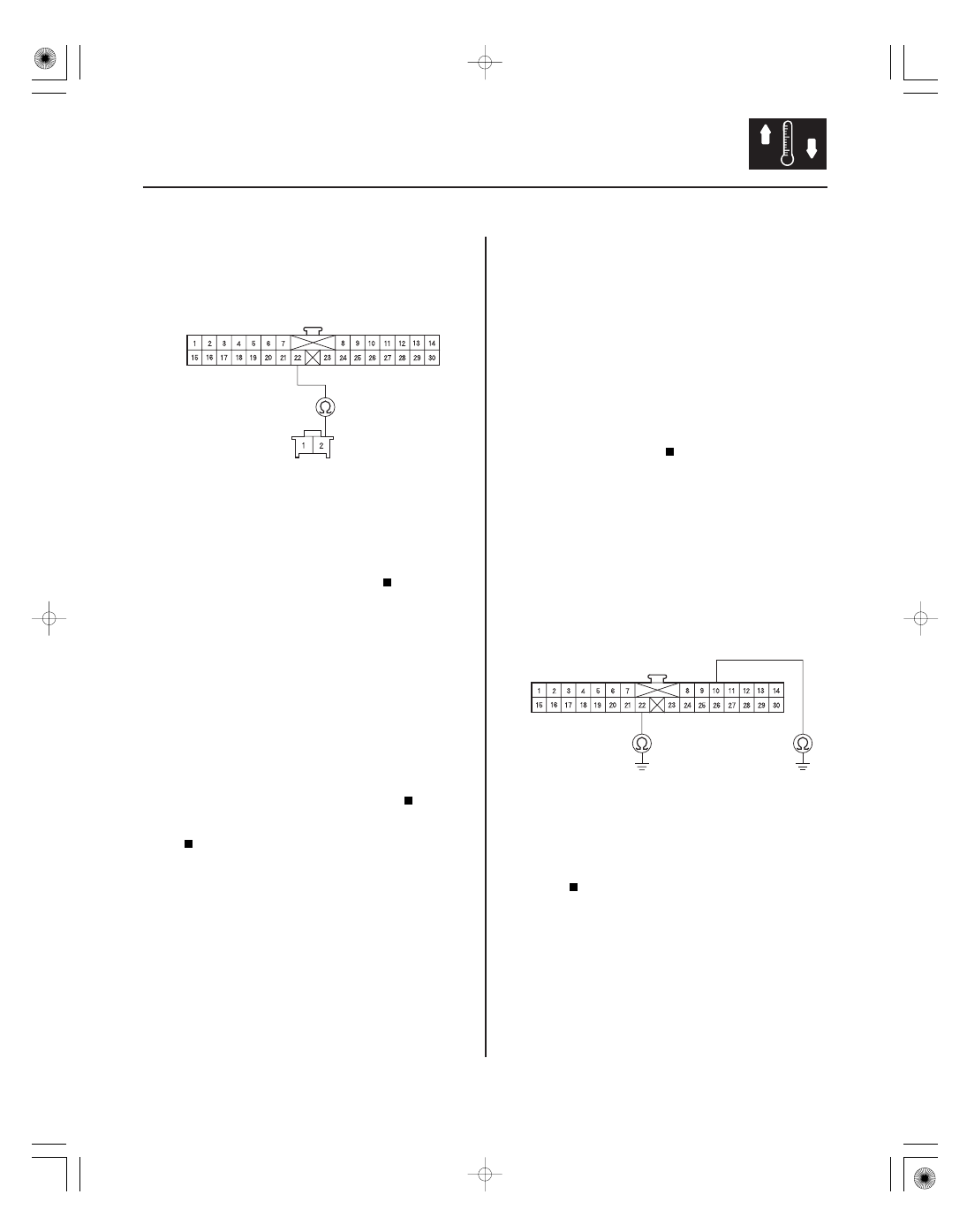

8. Check for continuity between the climate control

unit 30P connector No. 22 terminal and the sunlight
sensor 2P connector No. 2 terminal.

Go to step 9.

Repair open in the wire between the climate

control unit and the sunlight sensor.

9. Reconnect the sunlight sensor 2P connector.

10. Reconnect the climate control unit 30P connector.

11. Test the sunlight sensor (see page 21-134).

Check for loose wires or poor connections at

the climate control unit 30P connector and at the
sunlight sensor 2P connector. If the connections are
good, substitute a known-good climate control unit,
and recheck. If the symptom/indication goes away,
replace the original climate control unit.

Replace the sunlight sensor (see page 21-134).

1. Clear the DTC with the HDS.

2. Operate the climate control system in several

modes.

3. Check for DTCs using the HDS or self-diagnostic.

Go to step 4.

Intermittent failure.

4. Turn the ignition switch OFF.

5. Disconnect the sunlight sensor 2P connector.

6. Disconnect the climate control unit 30P connector.

7. Check for continuity between body ground and the

climate control unit 30P connector No. 10 and
No. 22 terminals.

Repair short to body ground in the wires

between the climate control unit and the sunlight
sensor.

Go to step 8.

(cont’d)

A Short in the

Sunlight Sensor Circuit

Wire side of female terminals

Is ther e continuity?

Is the sunlight sensor OK ?

Is DT C B1230 or F indicated?

Is ther e continuity?
