Honda Ridgeline. Manual - part 405





01

SJC8A00G24100040301FEAT80

02

SJC8A00G24100040301KBAT80

21-56

21-56

Heating/Air Conditioning

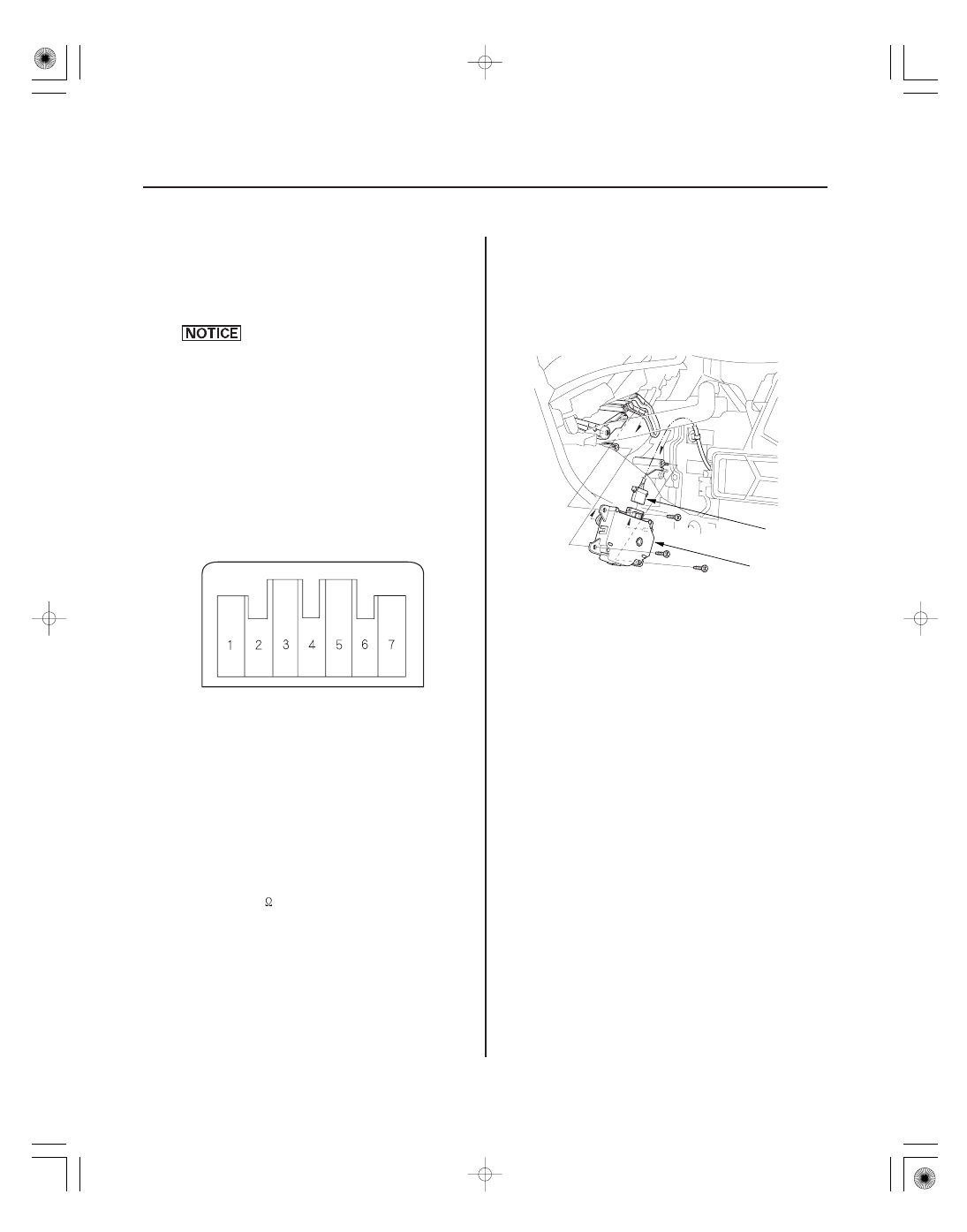

Mode Control Motor Test

Mode Control Motor Replacement

MODE CONTROL MOTOR

A

B

NOTE: Before testing, check for HVAC DTCs (see page
21-8).

1. Disconnect the 7P connector from the mode control

motor.

Incorrectly applying power and ground to
the mode control motor will damage it.
Follow the instructions carefully.

2. Connect battery power to the No. 1 terminal of the

mode control motor, and ground the No. 2
terminal; the mode control motor should run
smoothly, and stop at Vent. If it doesn’t, reverse the
connections; the mode control motor should run
smoothly, and stop at Defrost. When the mode
control motor stops running, disconnect battery
power immediately.

3. If the mode control motor did not run in step 2,

remove it, then check the mode control linkage and
doors for smooth movement.

• If the linkage and doors move smoothly, replace

the mode control motor (see page 21-56).

• If the linkage or doors stick or bind, repair them

as needed.

• If the mode control motor runs smoothly, go to

step 4.

4. Use a digital multimeter with an output of 1 mA or

less at the 20 k

range. With the mode control

motor running as in step 2, check for continuity
between the No. 3, 4, 5, and 6 terminals and the
No. 7 terminal individually. There should be
continuity for a moment at each terminal as the
motor moves past the switch’s terminal.

5. If there is no continuity for a moment at each

terminal, replace the mode control motor (see page
21-56).

1. Open the glove box. Remove the damper and the

glove box stop on each side, then let the glove box
hang down (see page 20-85).

2. Disconnect the 7P connector (A) from the mode

control motor (B). Remove the self-tapping screws
and the mode control motor from the heater unit.

3. Install the motor in the reverse order of removal.

Make sure the pin on the motor is properly
engaged with the linkage. After installation, make
sure the motor runs smoothly.

01

SJC8A00G24100050601FEAT80

01

SJC8A00G24100050601KBAT80

21-57

21-57

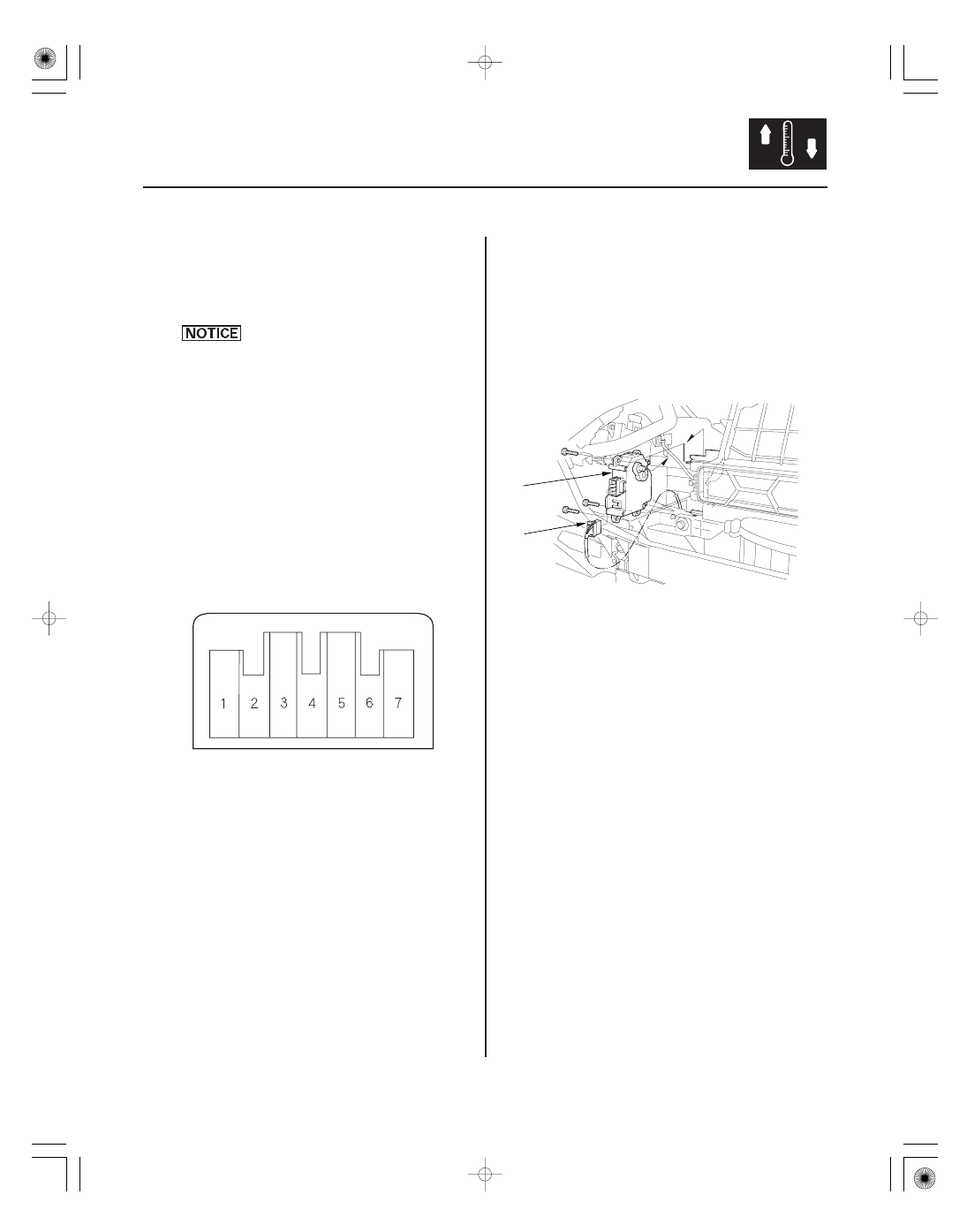

Recirculation Control Motor Test

Recirculation Control Motor
Replacement

RECIRCULATION CONTROL MOTOR

B

A

NOTE: Before testing, check for HVAC DTCs (see page
21-8).

1. Disconnect the 7P connector from the recirculation

control motor.

Incorrectly applying power and ground to
the recirculation control motor will damage it.
Follow the instructions carefully.

2. Connect battery power to the No. 1 terminal of the

recirculation control motor, and ground the No. 5
and No. 7 terminals; the recirculation control motor
should run smoothly. To avoid damaging the
recirculation control motor, do not reverse power
and ground. Disconnect the No. 5 or No. 7
terminals from ground; the recirculation control
motor should stop at Fresh (when the No. 7
terminal is disconnected) or Recirculate (when the
No. 5 terminal is disconnected). Don’t cycle the
recirculation control motor for a long time.

3. If the recirculation control motor did not run in step

2, remove it, then check the recirculation control
linkage and door for smooth movement.

• If the linkage and door move smoothly, replace

the recirculation control motor (see page 21-57).

• If the linkage or door stick or bind, repair them as

needed.

1. Open the glove box. Remove the damper and the

glove box stop on each side, then let the glove box
hang down (see page 20-85).

2. Disconnect the 7P connector (A) from the

recirculation control motor (B). Remove the self-
tapping screws and the recirculation control motor
from the blower unit.

3. Install the motor in the reverse order of removal.

Make sure the pin on the motor is properly
engaged with the linkage. After installation, make
sure the motor runs smoothly.

01

SJC8AH6G24100032585KDAT00

01

02

SJC8A00G24100022401KBAT80

21-58

21-58

Heating/Air Conditioning

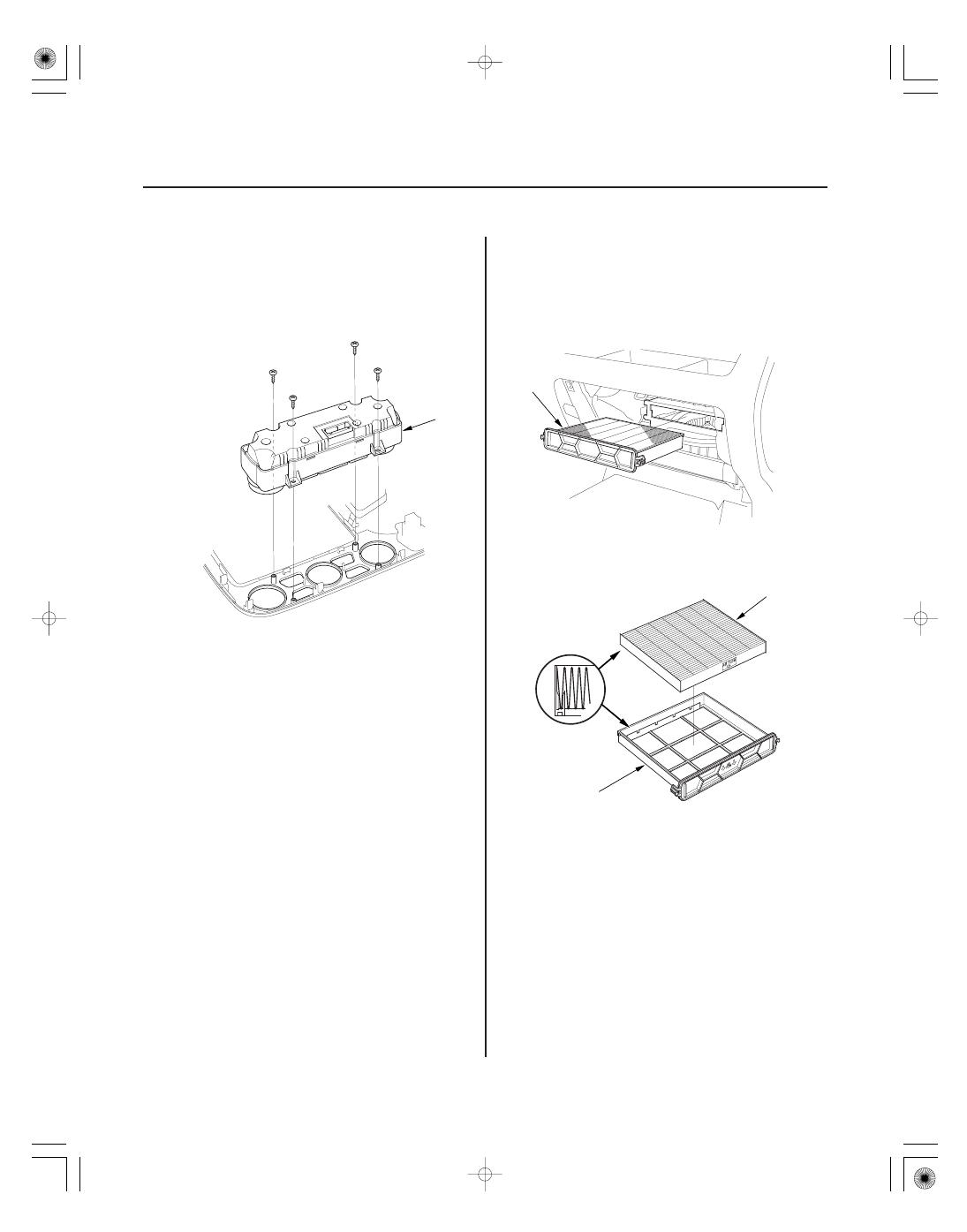

HVAC Control Unit Removal/
Installation

Dust and Pollen Filter Replacement

A

A

A

B

1. Remove the instrument panel (see page 20-81).

2. Remove the self-tapping screws, and the HVAC

control unit (A).

3. Install the control unit in the reverse order of

removal. After installation, operate the various
functions to make sure they work properly.

4. Run the self-diagnosis function to confirm that

there are no problems in the system (see page
21-8).

1. Open the glove box. Remove the damper and the

glove box stop on each side, then let the glove box
hang down (see page 20-85).

2. Remove the dust and pollen filter assembly (A)

from the evaporator.

3. Remove the filter (A) from the housing (B), and

replace the filter.

4. Install the filter in the reverse order of removal.

Make sure that there is no air leaking out of the
evaporator.

01

02

03

04

SJC8A00G24113600000KDAT02

21-59

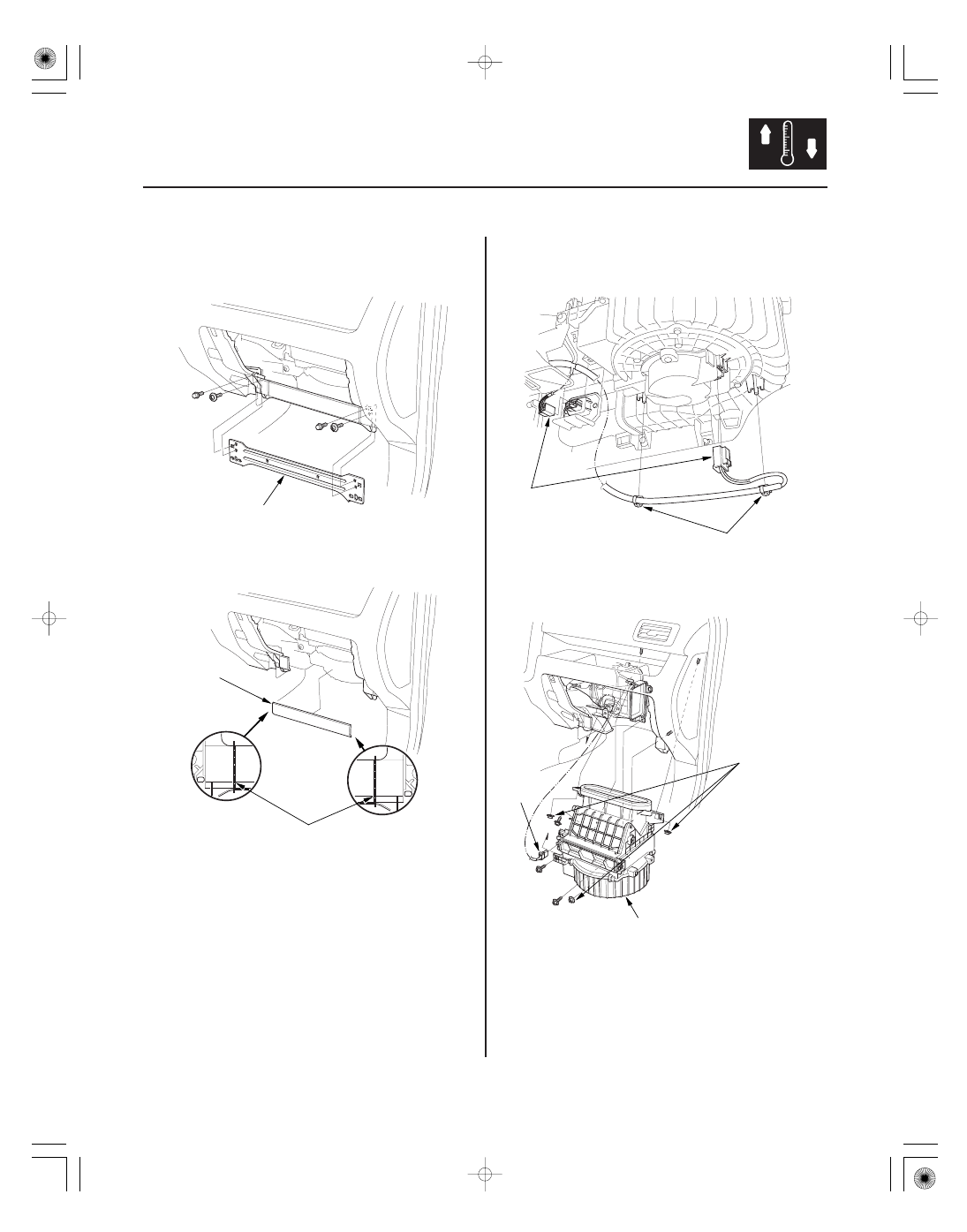

Blower Unit Removal/Installation

A

A

A

B

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)

B

A

1. Remove the glove box housing (see page 20-85).

2. Remove the bolts and the glove box frame (A).

3. Cut the plastic cross brace (A) in the glove box

opening with diagonal cutters in the area shown,
and discard it.

4. Disconnect the connectors (A) from the blower

motor and the power transistor, then remove the
wire harness clips (B).

5. Disconnect the connector (A) from the recirculation

control motor, then remove the self-tapping screws,
the mounting nuts, and the blower unit (B).

6. Install the unit in the reverse order of removal.

Make sure that there is no air leakage.

Cut here.
