Honda Ridgeline. Manual - part 400





08

09

10

YES

NO

YES

NO

YES

NO

21-36

Heating/Air Conditioning

DTC Troubleshooting (cont’d)

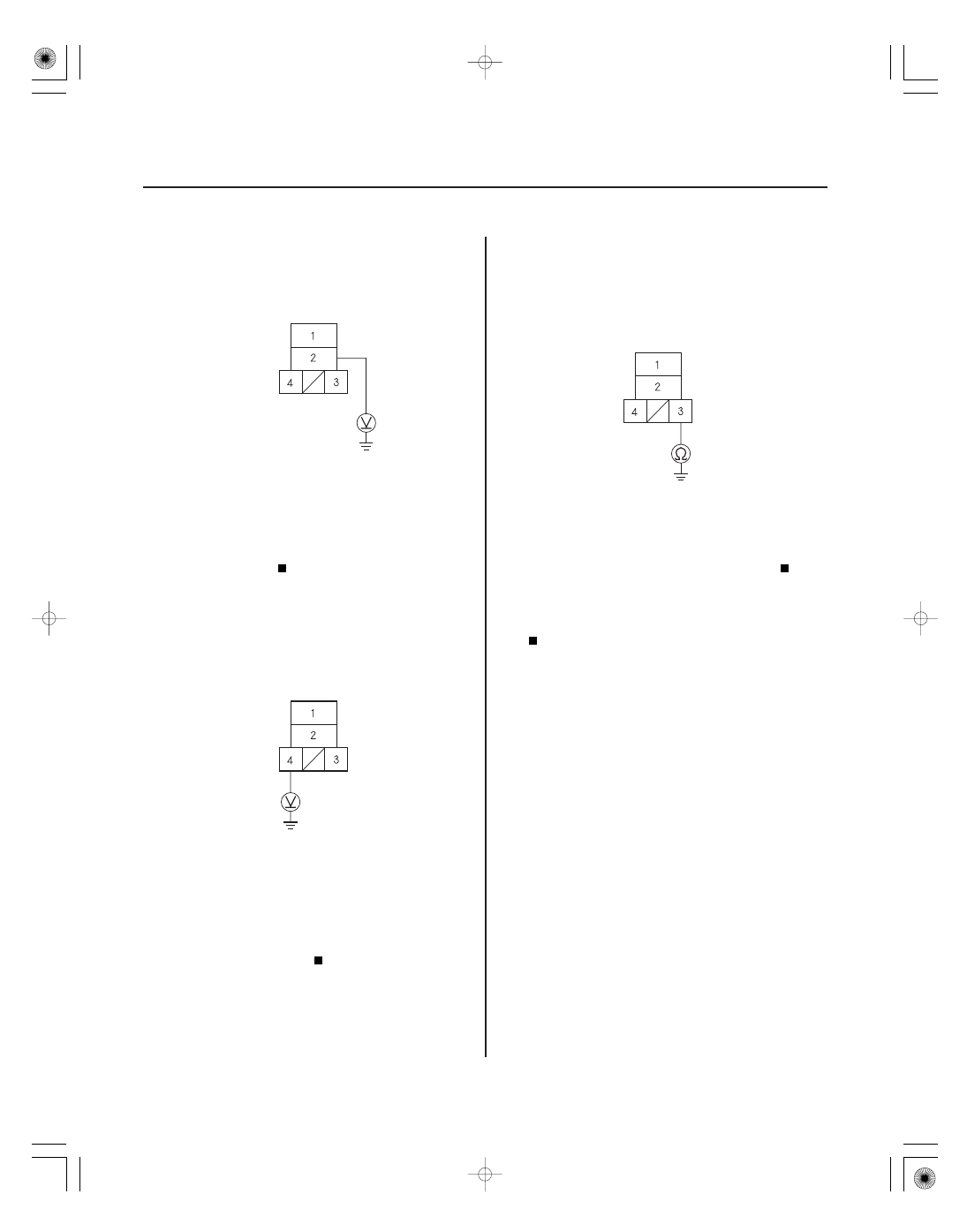

BLOWER MOTOR RELAY 4P SOCKET

BLOWER MOTOR RELAY 4P SOCKET

BLK/YEL

BLOWER MOTOR RELAY 4P SOCKET

BLK

28. Measure the voltage between the blower motor

relay 4P socket No. 2 terminal and body ground.

Go to step 29.

Replace the under-hood fuse/relay box

(see page 22-72).

29. Turn the ignition switch ON (II).

30. Measure the voltage between the blower motor

relay 4P socket No. 4 terminal and body ground.

Go to step 31.

Repair open in the wire between the No. 30

(7.5 A) fuse in the under-dash fuse/relay box and
the blower motor relay.

31. Turn the ignition switch OFF.

32. Check for continuity between the blower motor

relay 4P socket No. 3 terminal and body ground.

Repair open in the WHT/BLU wire between

the blower motor relay and the blower motor.

Check for an open in the wire between the

blower motor relay and body ground. If the wire is
OK, check for poor ground at G202 (see page 22-68).

Is ther e batter y voltage?

Is ther e batter y voltage?

Is ther e continuity?

01

02

SJC8AH6G24100050602FAAT80

YES

NO

YES

NO

YES

NO

YES

NO

21-37

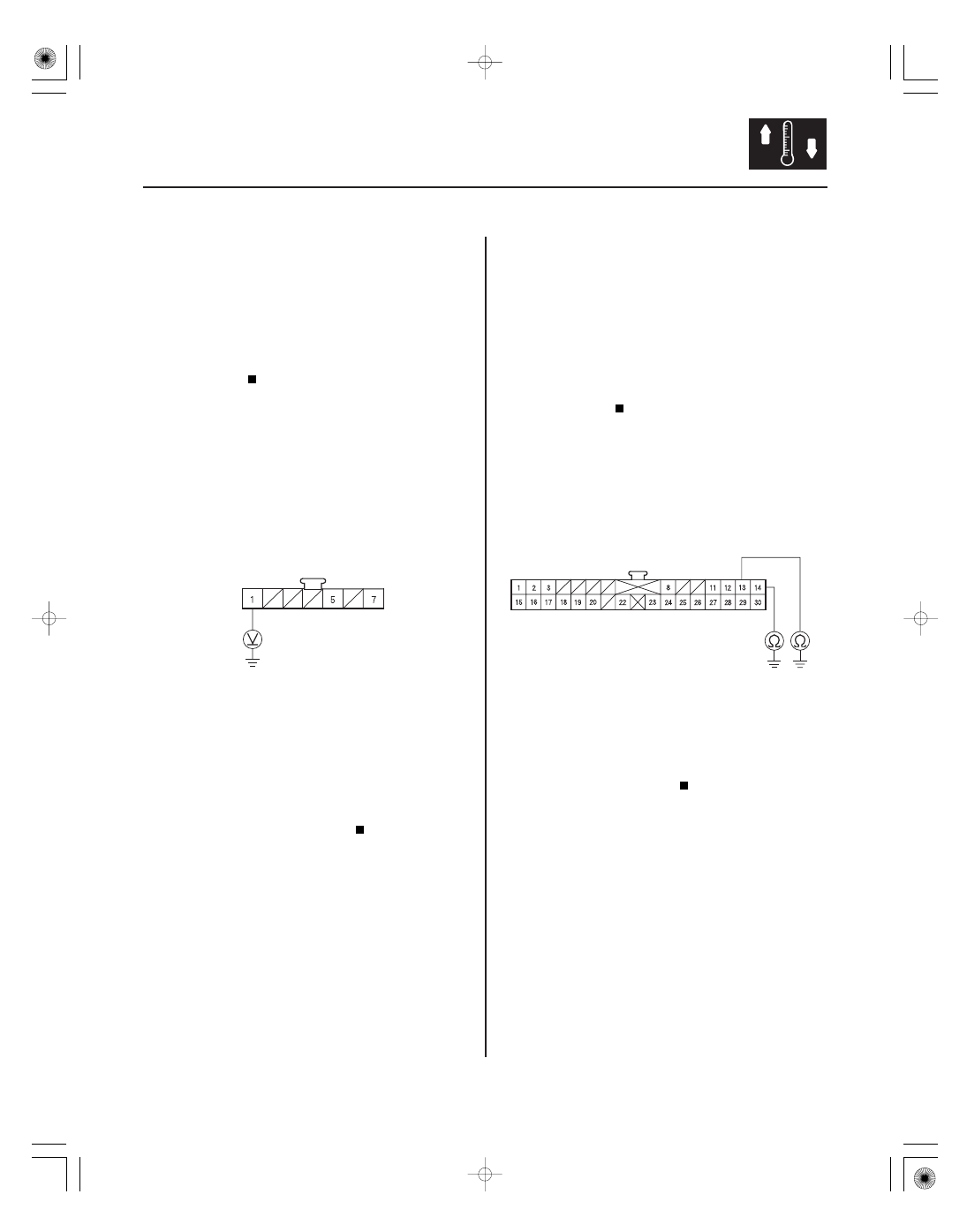

Recirculation Control Motor Circuit Troubleshooting

RECIRCULATION CONTROL MOTOR 7P CONNECTOR

BLK/YEL

GRN/RED

GRN/
WHT

HVAC CONTROL UNIT 30P CONNECTOR

1. Check the No. 30 (7.5 A) fuse in the under-dash

fuse/relay box.

Go to step 2.

Replace the fuse, and recheck. If the fuse

blows again, check for a short in the No. 30 (7.5 A)
fuse circuit.

2. Disconnect the recirculation control motor 7P

connector.

3. Turn the ignition switch ON (II).

4. Measure the voltage between the recirculation

control motor 7P connector No. 1 terminal and
body ground.

Go to step 5.

Repair open in the wire between the No. 30

(7.5 A) fuse in the under-dash fuse/relay box and
the recirculation control motor.

5. Turn the ignition switch OFF.

6. Test the recirculation control motor (see page

21-57).

Go to step 7.

Replace the recirculation control motor

(see page 21-57), or repair the recirculation control
linkage or door.

7. Disconnect the HVAC control unit 30P connector.

8. Check for continuity between body ground and the

HVAC control unit 30P connector No. 13 and No. 14
terminals individually.

Repair short to body ground in the wires

between the HVAC control unit and the
recirculation control motor.

Go to step 9.

(cont’d)

Wire side of female terminals

Wire side of female terminals

Is the f use OK ?

Is ther e batter y voltage?

Is the r ecir culation contr ol motor OK ?

Is ther e continuity?

03

04

YES

NO

YES

NO

21-38

Heating/Air Conditioning

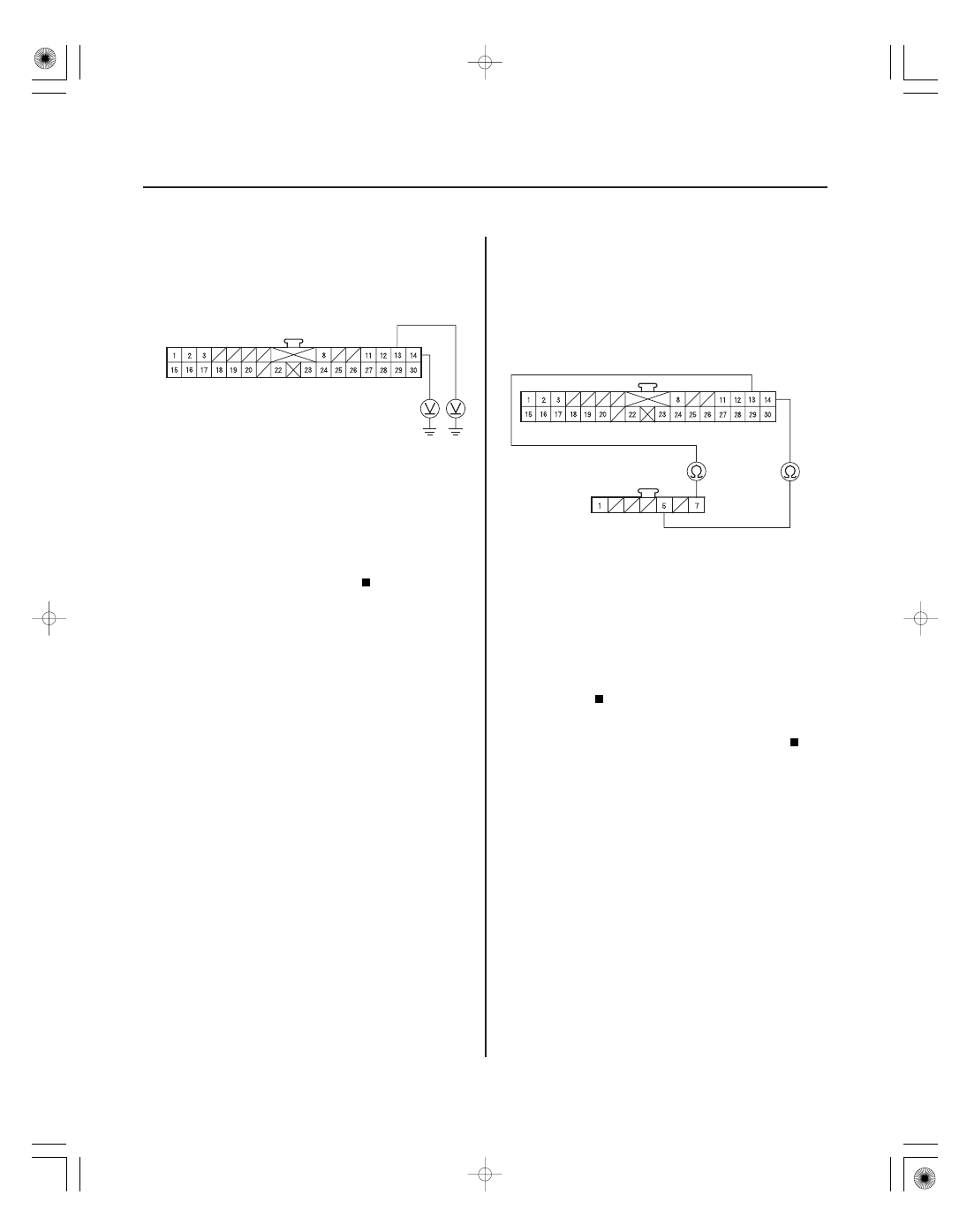

Recirculation Control Motor Circuit Troubleshooting (cont’d)

GRN/RED

GRN/
WHT

HVAC CONTROL UNIT 30P CONNECTOR

RECIRCULATION CONTROL MOTOR 7P CONNECTOR

GRN/RED

GRN/WHT

HVAC CONTROL UNIT 30P CONNECTOR

GRN/
WHT

GRN/RED

9. Turn the ignition switch ON (II), and check the same

terminals for voltage to body ground.

Repair short to power in the wires between

the HVAC control unit and the recirculation control
motor. This short may also damage the HVAC
control unit. Repair the short to power before
replacing the HVAC control unit.

Go to step 10.

10. Turn the ignition switch OFF.

11. Check for continuity between the following

terminals of the HVAC control unit 30P connector
and the recirculation control motor 7P connector.
30P:

7P:

No. 13

No. 7

No. 14

No. 5

Check for loose wires or poor connections at

the HVAC control unit 30P connector and at the
recirculation control motor 7P connector. If the
connections are good, substitute a known-good
HVAC control unit, and recheck. If the symptom/
indication goes away, replace the original HVAC
control unit.

Repair open in the wires between the HVAC

control unit and the recirculation control motor.

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is ther e any voltage?

Is ther e continuity?

01

02

SJC8AH6G24100032581FAAT00

YES

NO

YES

NO

YES

NO

21-39

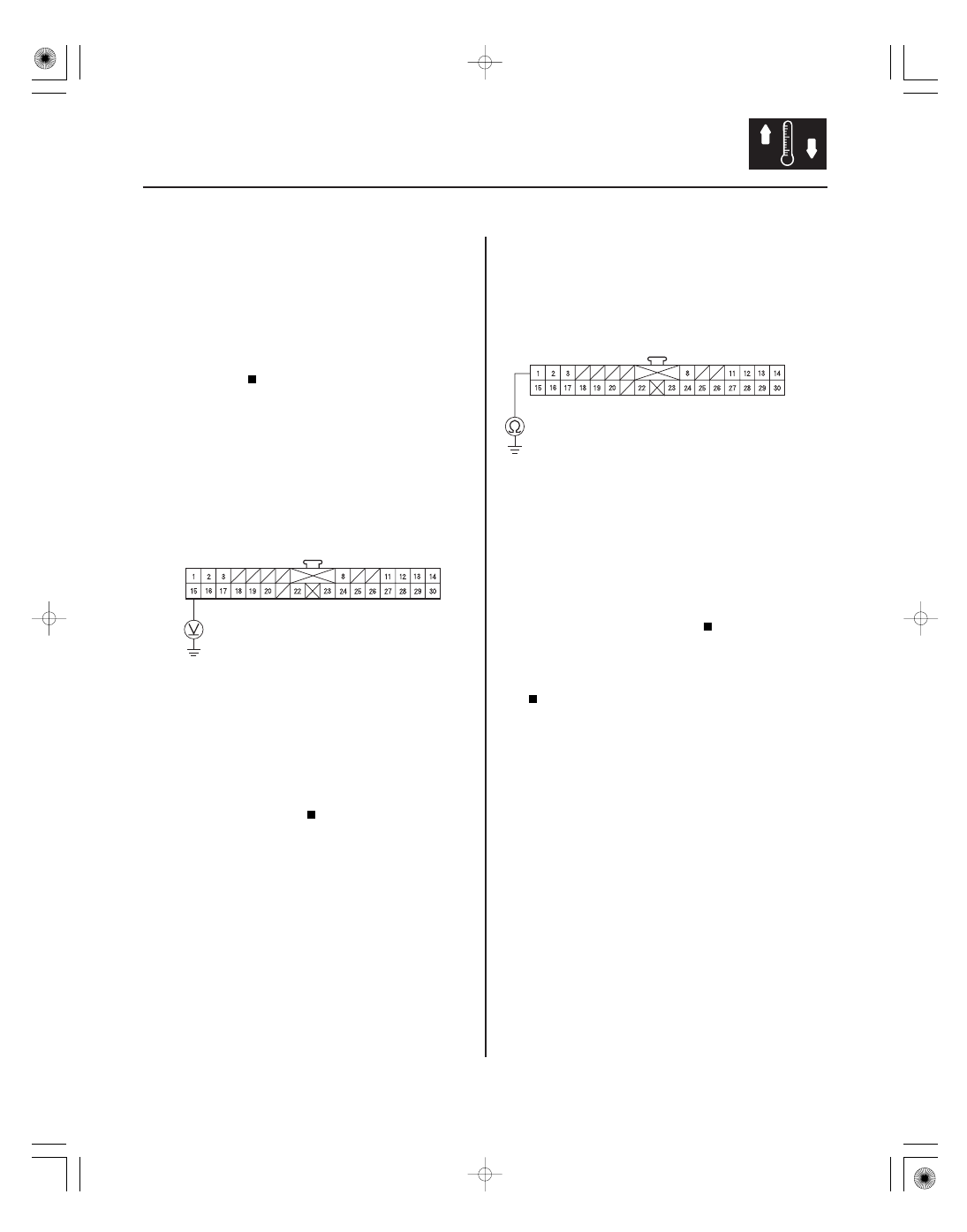

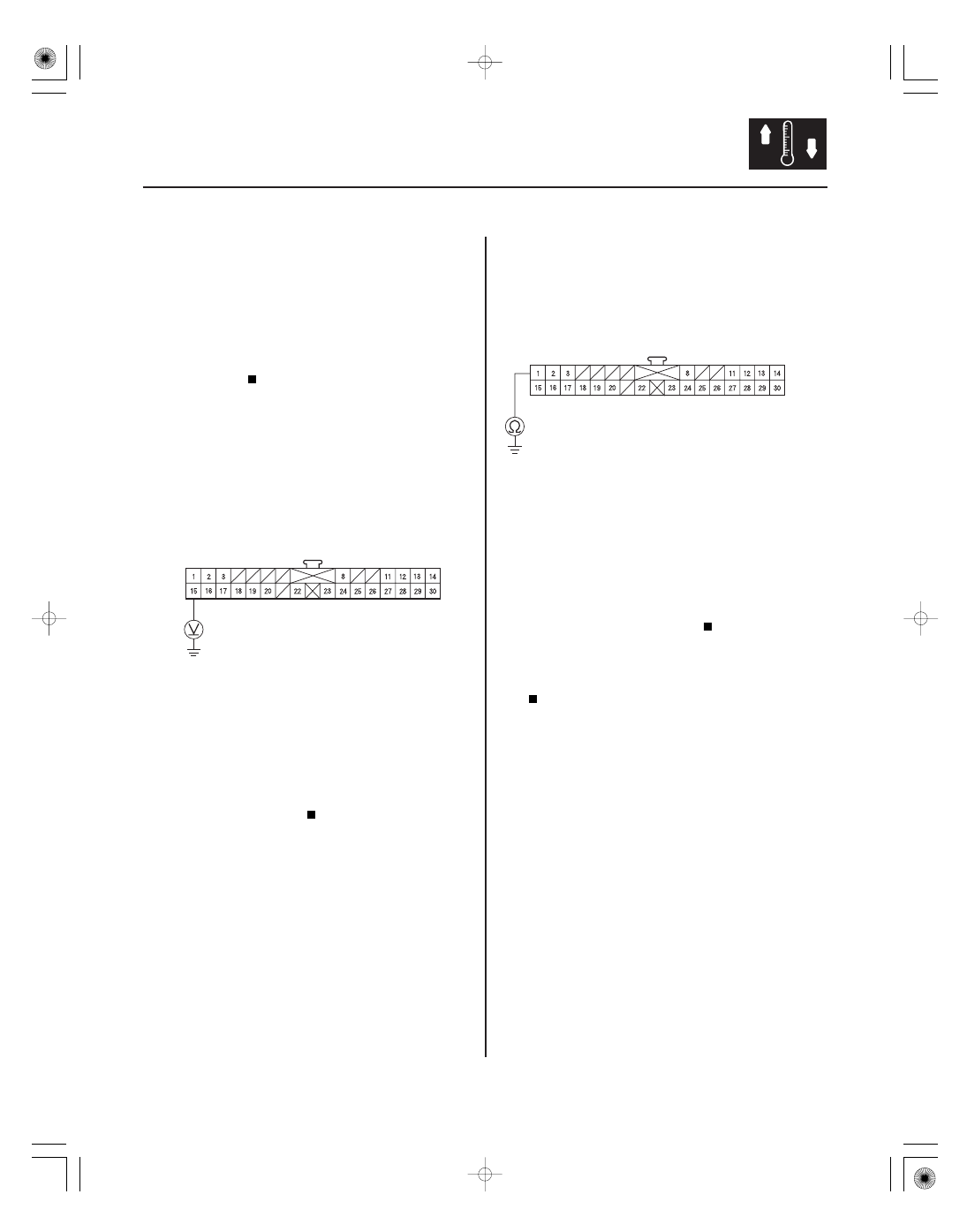

HVAC Control Power and Ground Circuit Troubleshooting

HVAC CONTROL UNIT 30P CONNECTOR

BLK/YEL

HVAC CONTROL UNIT 30P CONNECTOR

BLK

1. Check the No. 30 (7.5 A) fuse in the under-dash

fuse/relay box.

Go to step 2.

Replace the fuse, and recheck. If the fuse

blows again, check for a short in the No. 30 (7.5 A)
fuse circuit.

2. Disconnect the HVAC control unit 30P connector.

3. Turn the ignition switch ON (II).

4. Measure the voltage between the HVAC control

unit 30P connector No. 15 terminal and body
ground.

Go to step 5.

Repair open in the wire between the No. 30

(7.5 A) fuse in the under-dash fuse/relay box and
the HVAC control unit.

5. Turn the ignition switch OFF.

6. Check for continuity between the HVAC control unit

30P connector No. 1 terminal and body ground.

Check for loose wires or poor connections at

the HVAC control unit 30P connector. If the
connections are good, substitute a known-good
HVAC control unit, and recheck. If the symptom/
indication is still present, substitute a known-good
HVAC control unit, and recheck.

Check for an open in the wire between the

HVAC control unit and body ground. If the wire is
OK, check for poor ground at G402 (see page 22-68).

Wire side of female terminals

Wire side of female terminals

Is the f use OK ?

Is ther e batter y voltage?

Is ther e continuity?
