Honda Ridgeline. Manual - part 398





*03

SJC8AH6K733000Y1235FAAT00

YES

NO

YES

NO

YES

NO

DTC B1235 or DTC indicator 3:

21-28

21-28

Heating/Air Conditioning

DTC Troubleshooting (cont’d)

HVAC CONTROL UNIT 30P CONNECTOR

GRY

PNK/BLK

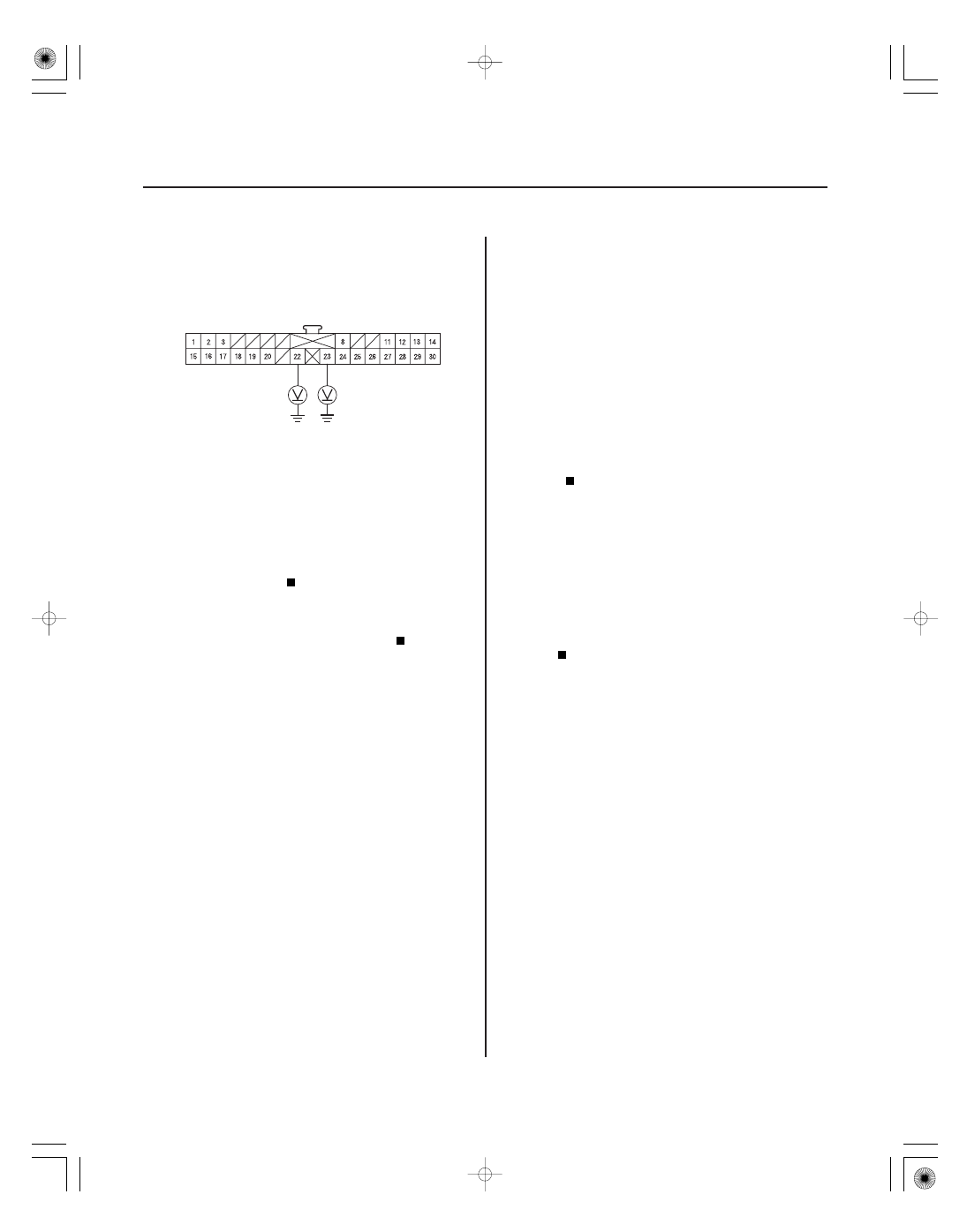

10. Turn the ignition switch ON (II), and check the same

terminals for voltage to body ground.

Repair short to power in the wire(s) between

the HVAC control unit and the air mix control motor.
This short may also damage the HVAC control unit.
Repair the short to power before replacing the
HVAC control unit.

Substitute a known-good HVAC control unit,

and recheck. If the symptom/indication goes away,
replace the original HVAC control unit.

1. Clear the DTC with the HDS.

2. Operate the heater-A/C control system in several

modes.

3. Check for DTCs using the HDS or self-diagnostic.

Go to step 4.

Intermittent failure, check for loose wires or

poor connections on the air mix control motor
circuit.

4. Turn the ignition switch OFF.

5. Test the air mix control motor (see page 21-55).

Go to step 6.

Replace the air mix control motor (see page

21-55), or repair the air mix control linkage or
door.

6. Disconnect the air mix control motor 7P connector.

7. Disconnect HVAC control unit 30P connector.

A Problem in

the Air Mix Control Linkage, Door, or Motor

Wire side of female terminals

Is ther e voltage?

Is DT C B1235 or 3 indicated?

Is the air mix contr ol motor OK ?

*01

*02

YES

NO

YES

NO

21-29

AIR MIX CONTROL MOTOR 7P CONNECTOR

HVAC CONTROL UNIT 30P CONNECTOR

PNK/BLU

GRN

PNK/BLU

GRN

HVAC CONTROL UNIT 30P CONNECTOR

PNK/BLU

GRN

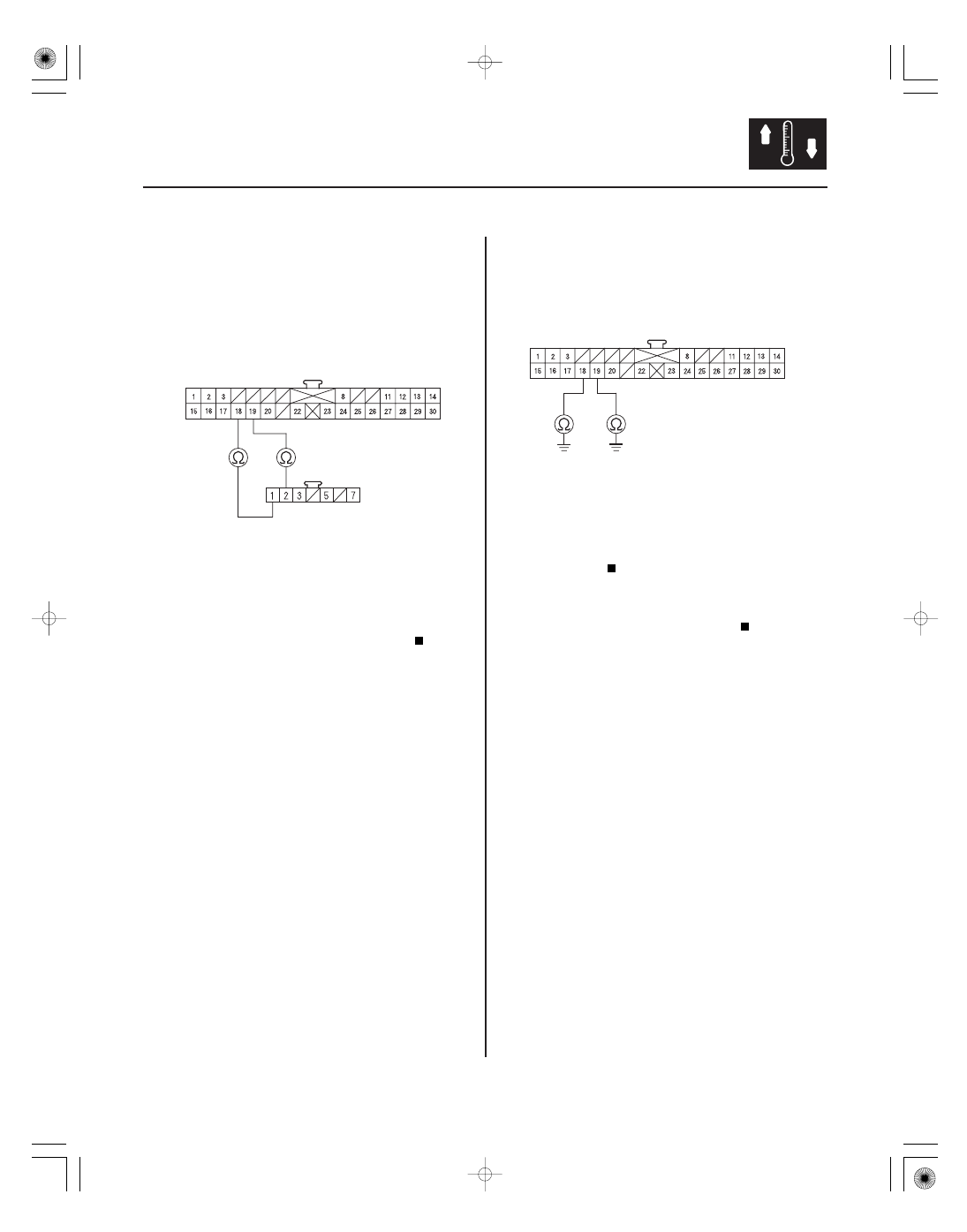

8. Check for continuity between the following

terminals of HVAC control unit 30P connector and
the air mix control motor 7P connector.
30P:

7P:

No. 18

No. 1

No. 19

No. 2

Go to step 9.

Repair open in the wire(s) between the HVAC

control unit and the air mix control motor.

9. Check for continuity between body ground and

HVAC control unit 30P connector No. 18 and No. 19
terminals individually.

Repair short to body ground in the wire(s)

between the HVAC control unit and the air mix
control motor.

Substitute a known-good HVAC control unit,

and recheck. If the symptom/indication goes away,
replace the original HVAC control unit.

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is ther e continuity?

Is ther e continuity?

*01

SJC8AH6K733000Y1239FAAT00

DTC B1239 or DTC indicator 4:

YES

NO

YES

NO

YES

NO

21-30

Heating/Air Conditioning

DTC Troubleshooting (cont’d)

HVAC CONTROL UNIT 30P CONNECTOR

RED/BLK

YEL/GRN

WHT/BLU

RED/BLU

RED/
YEL

RED/BLU

RED/YEL

RED/
BLK

WHT/BLU

YEL/
GRN

MODE CONTROL MOTOR 7P CONNECTOR

An Open or

Short in the Mode Control Motor Circuit

1. Clear the DTC with the HDS.

2. Operate the heater-A/C control system in several

modes.

3. Check for DTCs using the HDS or self-diagnostic.

Go to step 4.

Intermittent failure, check for loose wires or

poor connections on the mode control motor
circuit.

4. Turn the ignition switch OFF.

5. Test the mode control motor (see page 21-56).

Go to step 6.

Replace the mode control motor (see page

21-56).

6. Disconnect the mode control motor 7P connector.

7. Disconnect the HVAC control unit 30P connector.

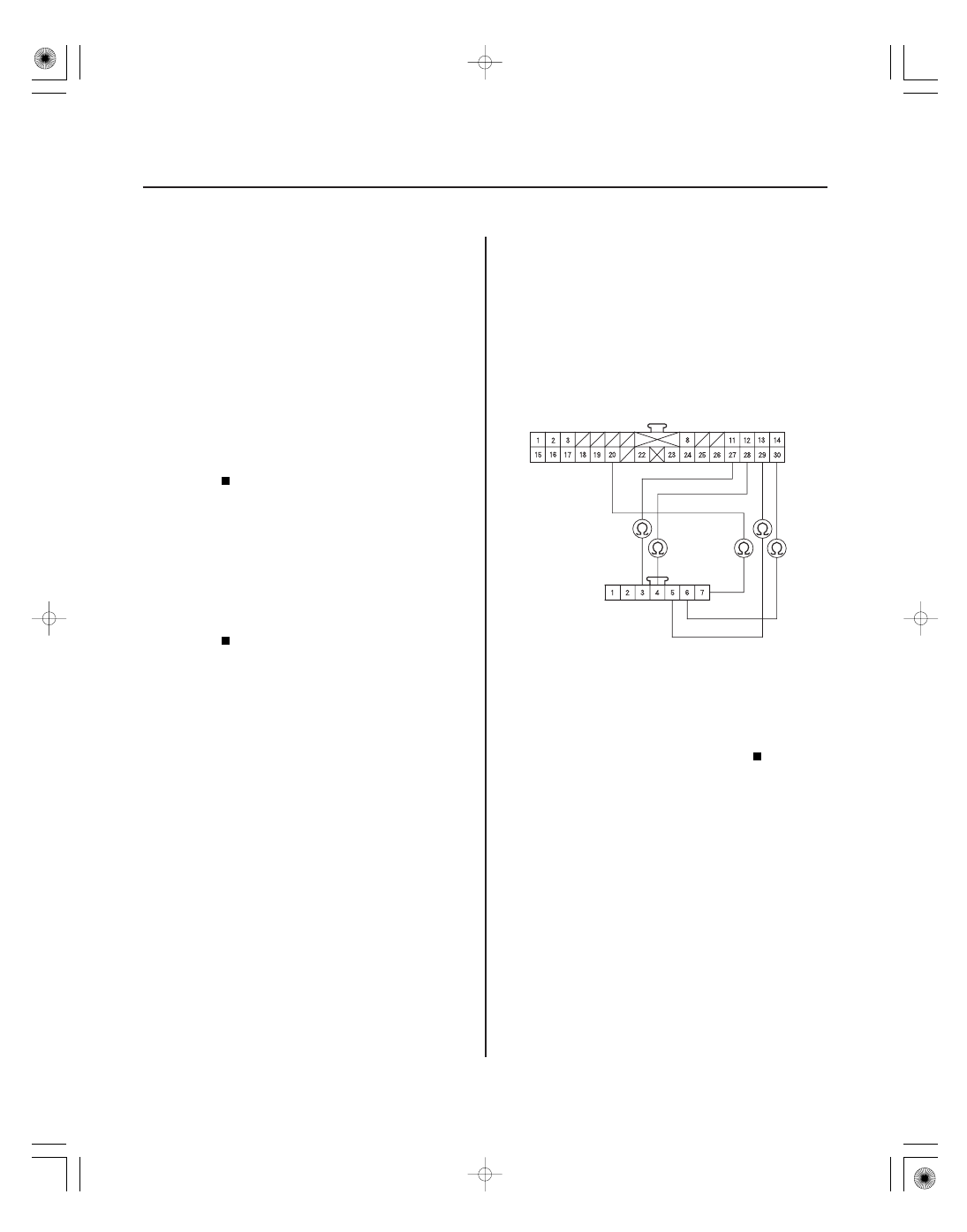

8. Check for continuity between the following

terminals of the HVAC control unit 30P connector
and the mode control motor 7P connector.
30P:

7P:

No. 20

No. 7

No. 27

No. 3

No. 28

No. 4

No. 29

No. 5

No. 30

No. 6

Go to step 9.

Repair open in the wires between the HVAC

control unit and the mode control motor.

Wire side of female terminals

Wire side of female terminals

Is DT C B1239 or 4 indicated?

Is the mode contr ol motor OK ?

Is ther e continuity?

*02

*03

YES

NO

YES

NO

YES

NO

21-31

HVAC CONTROL UNIT 30P CONNECTOR

YEL/GRN

RED/BLK

WHT/BLU

RED/BLU

RED/
YEL

HVAC CONTROL UNIT 30P CONNECTOR

YEL/GRN

RED/BLK

WHT/BLU

RED/BLU

RED/
YEL

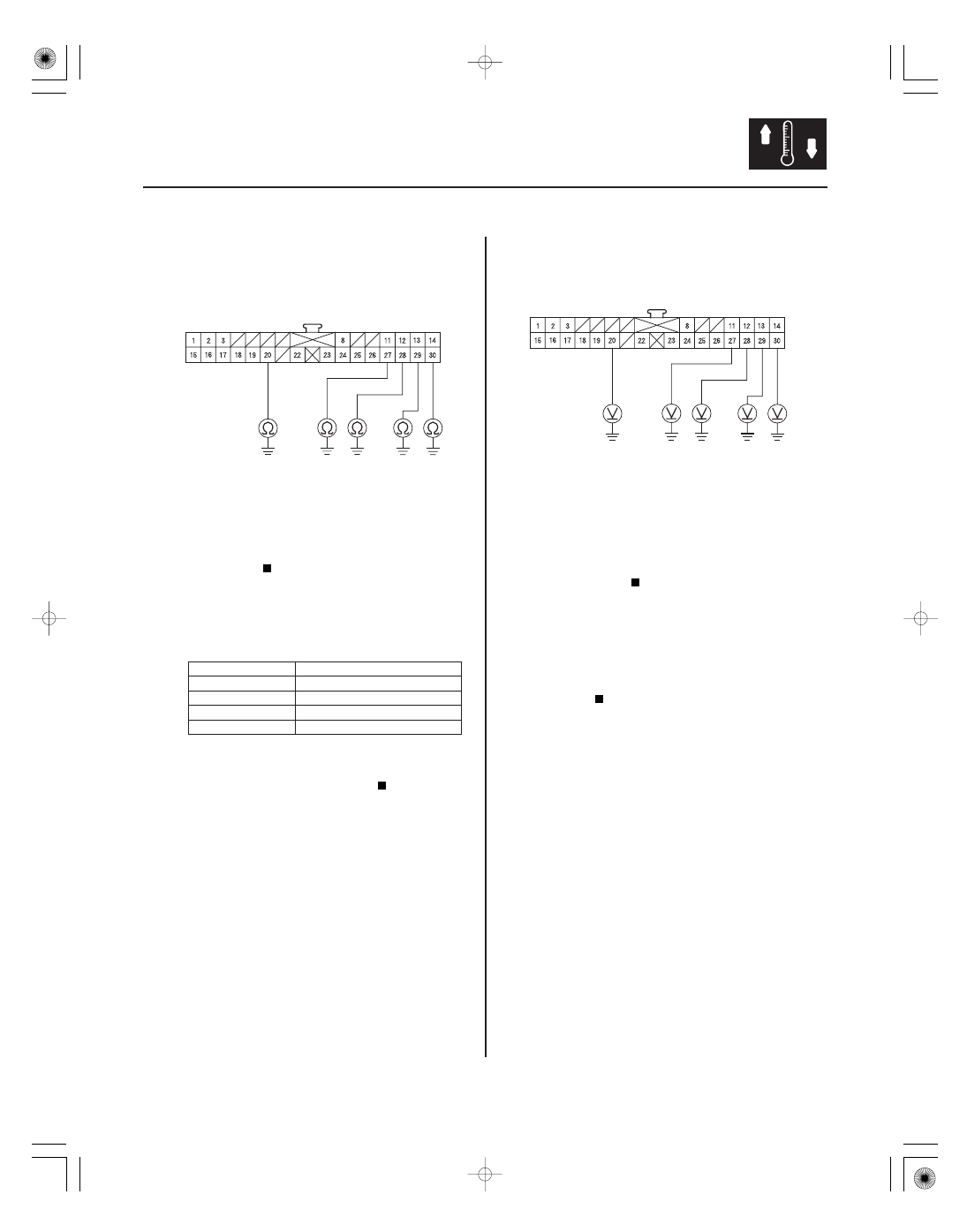

9. Check for continuity between body ground and the

HVAC control unit 30P connector No. 20, 27, 28, 29,
and 30 terminals individually.

Repair short to body ground in the wires

between the HVAC control unit and the mode
control motor.

Go to step 10.

10. Check for continuity between the HVAC control unit

connector terminals as follows.

From terminal

To terminals

20

27, 28, 29, 30

27

28, 29, 30

28

29, 30

29

30

Repair the short in the wires.

Go to step 11.

11. Turn the ignition switch ON (II), and check the same

terminals for voltage to body ground.

Repair short to power in the wires between

the HVAC control unit and the mode control motor.
This short may also damage the HVAC control unit.
Repair the short to power before replacing the
HVAC control unit.

Check for loose wires or poor connections at

the HVAC control unit 30P connector and at the
mode control motor 7P connector. If the
connections are good, substitute a known-good
HVAC control unit, and recheck. If the symptom/
indication goes away, replace the original HVAC
control unit.

Wire side of female terminals

Wire side of female terminals

Is ther e continuity?

Is ther e continuity between any of the ter minals?

Is ther e any voltage?
