Honda Ridgeline. Manual - part 368





01

02

SJC8A00J46127037901KBAT00

For Some Models (Driver’s seat)

20-110

Seats

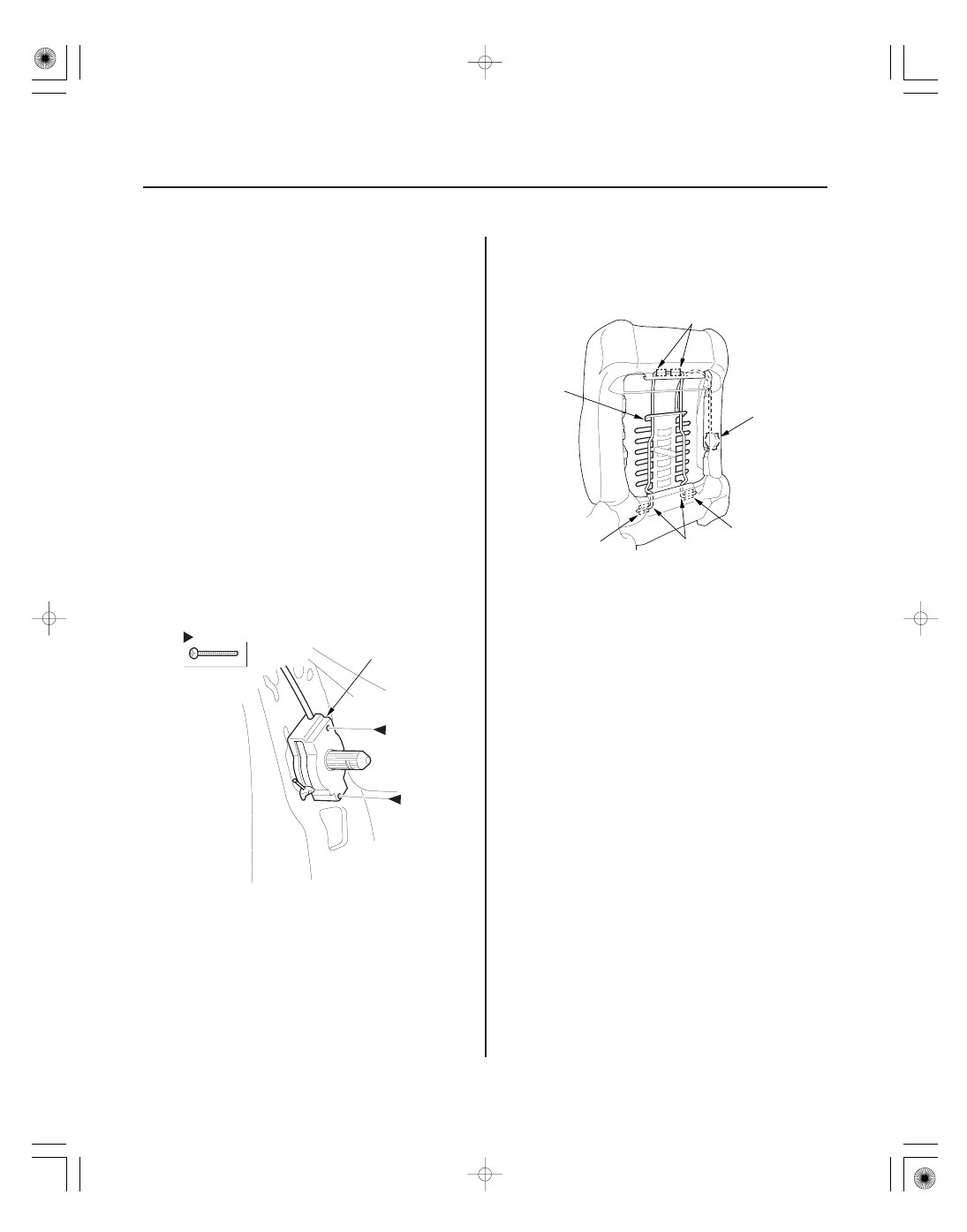

Front Seat Lumbar Support Replacement

Fastener Locations

: Screw, 2

A

A

D

E

B

C

D

SRS components are located in this area. Review the
SRS component locations (see page 24-14) and the
precautions and procedures (see page 24-16) before
doing repairs or service.

NOTE:

• When prying with a flat-tip screwdriver, wrap it with

protective tape to prevent damage.

• Take care not to bend the cable.
• Take care not to tear the seams or damage the seat

covers.

• Put on gloves to protect your hands.

1. Remove these items:

• Lumbar support knob (see step 4 on page 20-111)
• Back panel (see step 5 on page 20-112)

2. Release the hook strips on the inside of the seat-

back (see step 6 on page 20-112).

3. Remove the screws securing the lumbar support

actuator (A).

4. Remove the metal clamps (A) and release the wire

(B) of the lumber support (C) from the retainers (D),
then remove the lumbar support and lumbar
support actuator (E) as an assembly.

5. Install the lumbar support in the reverse order of

removal, and note these items:

• To prevent wrinkles when installing a seat-back

cover, make sure the material is stretched evenly
over the pad before securing the hook strips.

• Replace the back panel clips with new ones.
• Replace the metal clips with new ones.

01

SJC8A00J46127053950KBAT00

Special Tools Required

20-111

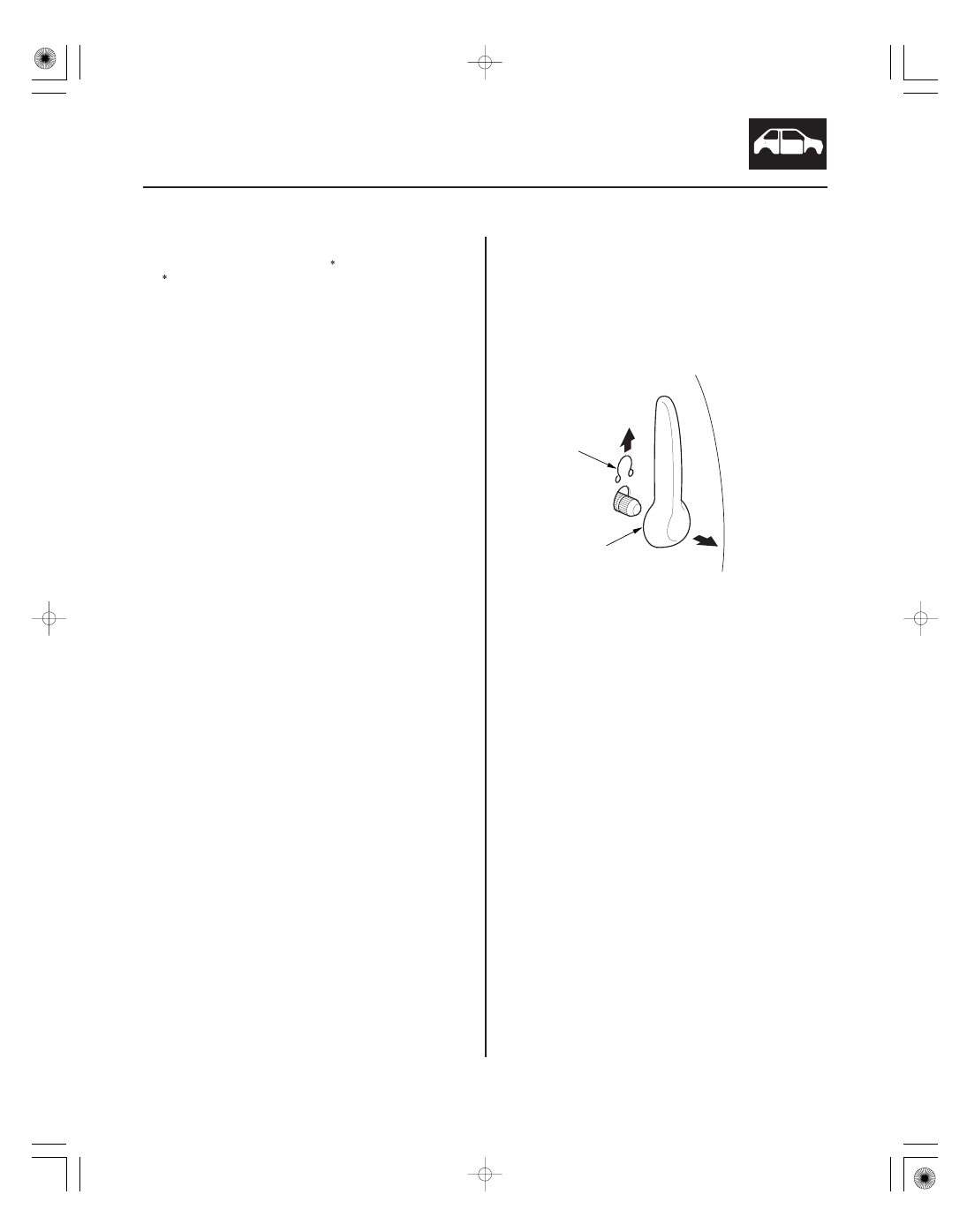

Front Seat-back Cover Replacement

A

B

KTC trim tool set SOJATP2014

Available through the American Honda Tool and
Equipment Program; call 888-424-6857

SRS components are located in this area. Review the
SRS component locations (see page 24-14) and the
precautions and procedures (see page 24-16) before
doing repairs or service.

NOTE:

• Seats with a side airbag have a ‘‘SIDE AIRBAG’’ label

on the seat-back. Because the component parts (seat-
back cover, cushion, etc.) of seats with and without
airbags are different, make sure you install only the
correct replacement parts.

• Do not repair any tears or frayed spots of the seat-

back cover. If necessary, replace the seat-back cover.

• Take care not to tear the seams or damage the seat

covers.

• On the passenger’s seat, do not touch the OPDS

sensor in the seat-back pad, and keep it away from oil.
Oil can corrode the sensor causing it to fail.

• Put on gloves to protect your hands.
• Use the appropriate tool from the KTC trim tool set to

avoid damage when prying components.

1. Remove the front seat (see page 20-97).

2. Remove the seat-back (see page 20-99).

3. Remove the head restraint.

4. If equipped, remove the clip (A), then remove the

lumbar support handle (B).

(cont’d)

02

03

04

05

Driver’s seat-back

Passenger’s seat-back

20-112

Seats

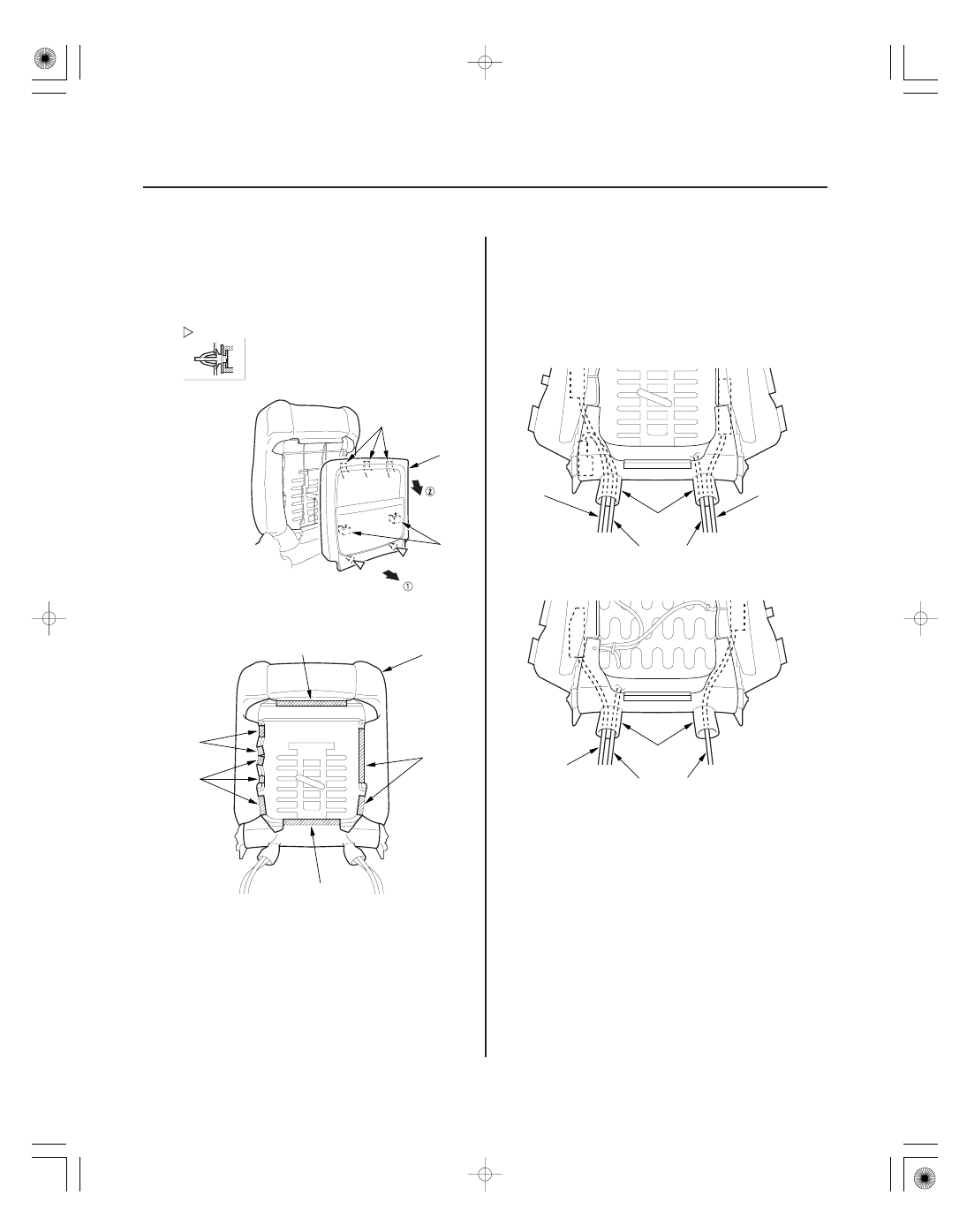

Front Seat-back Cover Replacement (cont’d)

Fastener Locations

: Clip, 2

C

B

A

A

A

A

A

A

B

C

B

A

D

F

F

E

C

B

5. Detach the clips and hooks (A) by pulling the

bottom of the back panel (B) back, then gently pull
down the panel to release the hooks (C) from the
seat-back frame, and remove the panel.

6. Release the hook strips (A), then loosen the seat-

back cover (B).

7. Pull the recline motor subharness (A) (some driver’s

seats), seat-back heater harness (B) (some driver’s
seats), side airbag harness (C), lumbar support
motor harness (D) (some driver’s seats), and the
OPDS/ODS harness (E) (passenger’s seat) out
through the harness guides (F).

06

07

08

09

20-113

A

D

C

A

A

B

B

B

C

A

A

A

B

C

A

A

B

A

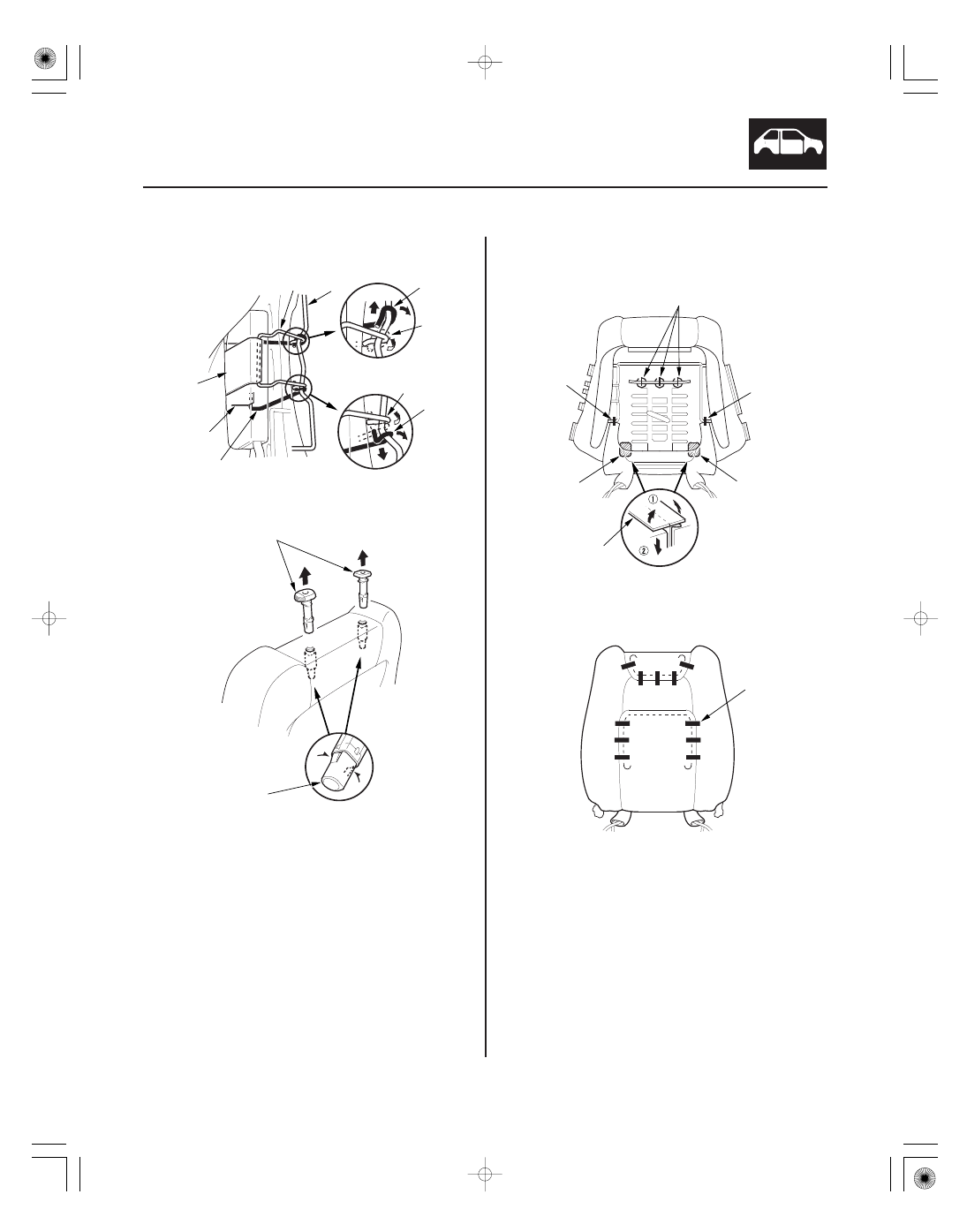

8. Release the front hook (A) and rear hook (B) of the

reinforcing cloth (C) from seat-back frame (D).

9. Pinch the tabs on the ends of the head restraint

guides (A), and remove them from the seat-back.

10. From the back of the seat-back, pass both lower

retainers (A) through the slots in the seat-back pad,
and release the clips (B) and inside springs (C).

11. Pull back the edge of the seat-back cover all the

way around, and release the clips (A), then remove
the seat-back cover.

(cont’d)
