15

*01

17

20-66

Interior Trim

Trim Removal/Installation - Pillar Areas (cont’d)

Fastener Locations

: Screw, 2

A

B

B

B

Fastener Locations

: Clip, 1

D

: Clip, 1

E

(White)

(Black)

A

B

C

D

E

F

G

Fastener Locations

: Bolt, 3

A

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)

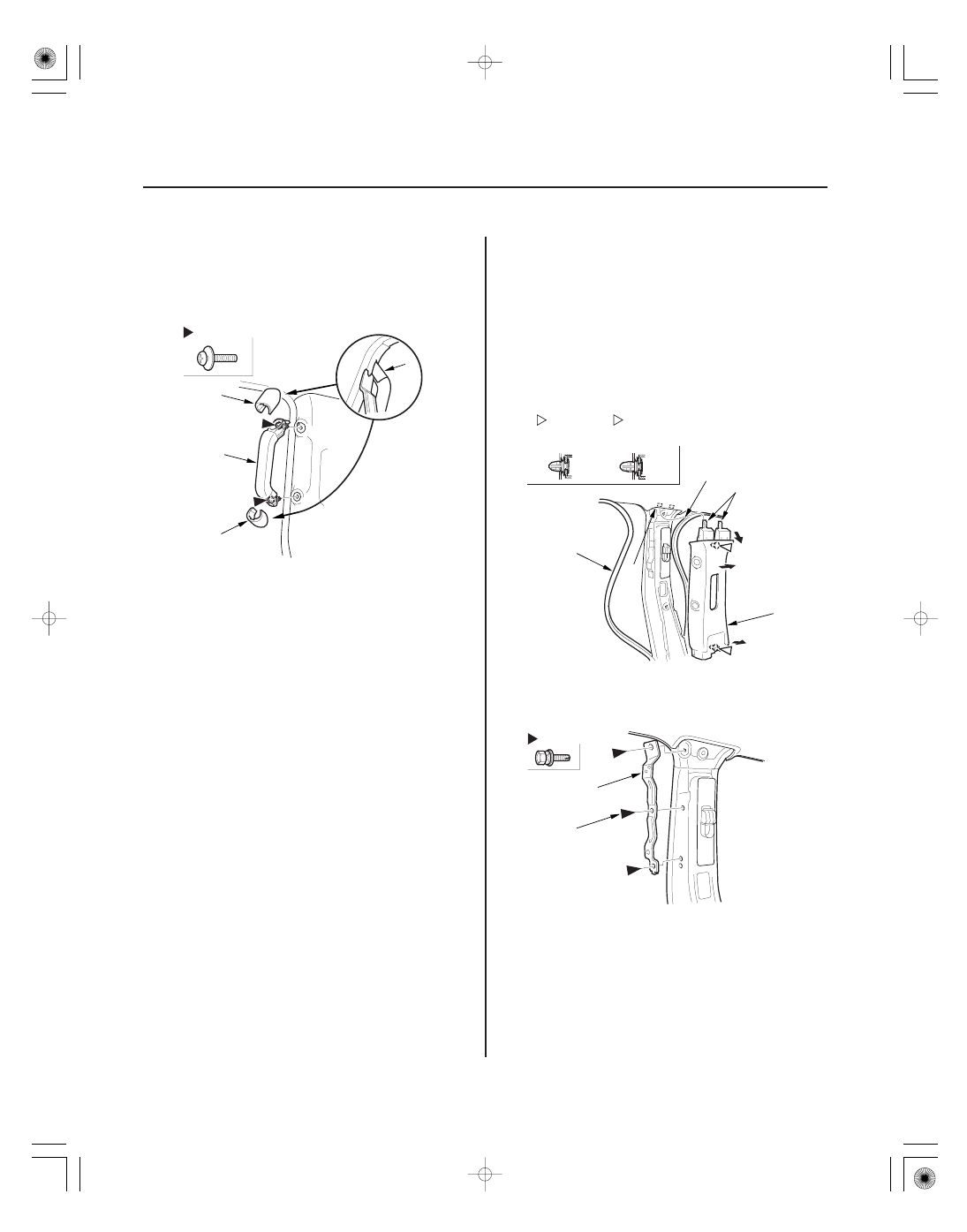

3. Remove the grab handle (A).

–1 Using a trim tool, remove the caps (B).
–2 Remove the screws.

4. Remove the front seat belt upper anchor bolt (see

step 7 on page 24-4).

5. Remove the B-pillar upper trim (A).

–1 Pull out the front door opening trim (B) and

rear door opening trim (C) as needed.

–2 Pull the bottom of the trim back to detach the

lower clip (D).

–3 Pull the top of the trim out to detach the clip (E).
–4 Lower the trim to release the upper two hooks

(F) from the body, and disengage the top of the
trim from the edge of the headliner (G).

6. Remove the bolts, then remove the grab handle

bracket (A).

Replace.

Replace.

18

19

20

20-67

A

D

E

C

B

B

F

G

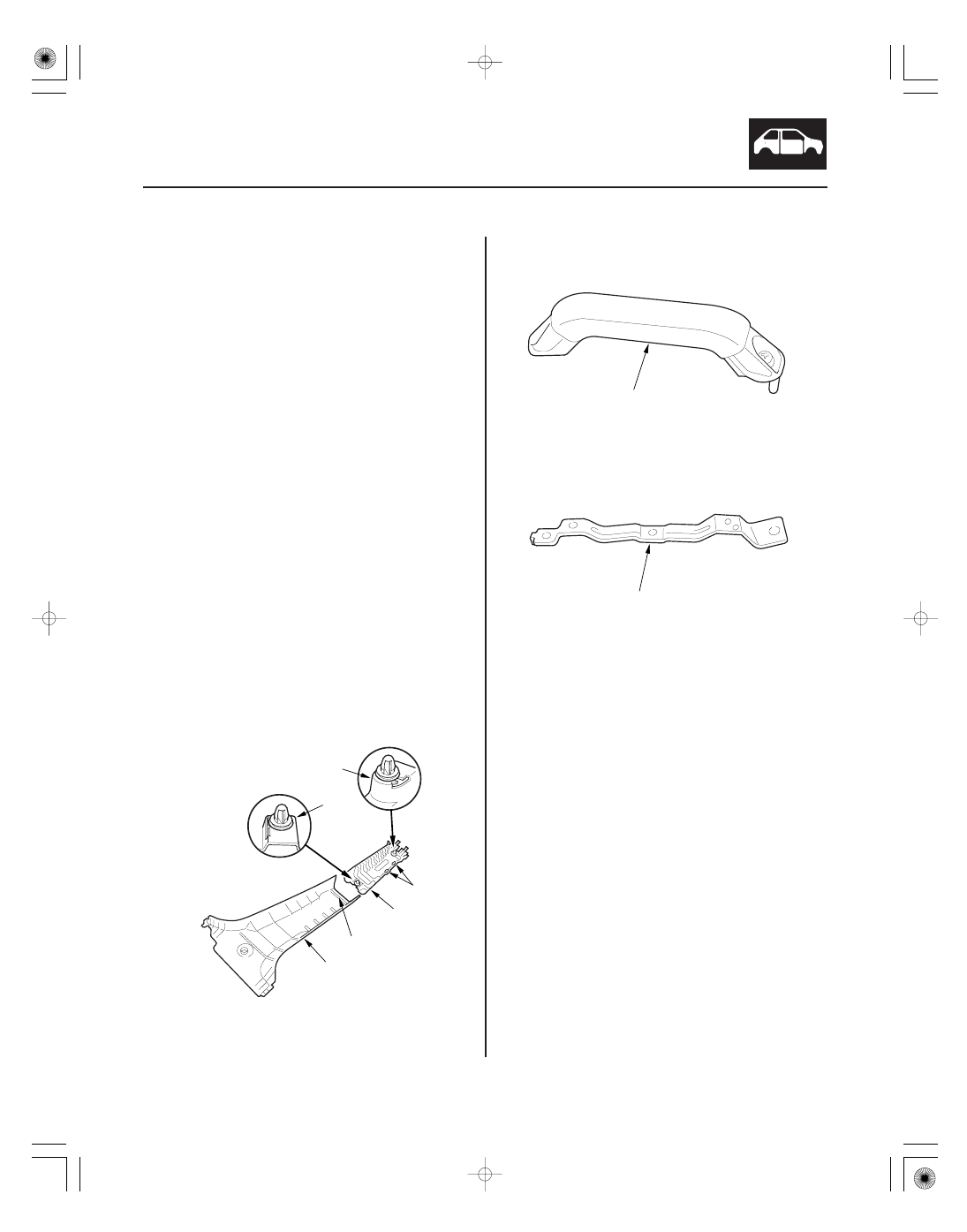

7. Install the trim in the reverse order of removal, and

note these items:

• Check if the clips are damaged or stress-

whitened, and if necessary, replace them with
new ones.

• If the side curtain airbag has deployed, replace

the B-pillar upper trim with a new one.

• To prevent the side curtain airbags from

deploying improperly and possibly causing
injury, inspect removed pieces and replace them
if they have any of these types of damage:
– Any cracks, deformations, or stress-whitened

areas in the B-pillar upper trim (A)

– Any cracks, or stress-whitenings in the clip

seating surfaces (B)

– Any cracks or deformations in the B-pillar

lower trim (C), and any breakages in the part
(D) that fits into the B-pillar upper trim

– Any damage around the grab handle holes (E)

in the B-pillar upper trim

– Any deformations in the grab handle (F)
– Any deformations in the grab handle bracket

(G)

• Make sure the top of the trim overlaps with the

headliner correctly (see page 24-173).

• Make sure the trim hooks are installed into the

holes in the body securely.

• Push the clips into place securely.
• Apply medium strength type liquid thread lock to

the front seat belt upper and lower anchor bolts
before installation.

• Before installing the anchor bolts, make sure

there are no twists or kinks in the seat belt.

21

22

SJC8A00J26273400000KDAT03

Special Tools Required

C-Pillar Trim

20-68

Interior Trim

Trim Removal/Installation - Pillar Areas (cont’d)

Fastener Locations

: Clip, 2

B

: Clip, 6

D

(Black)

A

B

C

D

E

F

D

D

D

D

D

C

B

Fastener Location

: Clip, 1

A

B

E

F

G

H

I

E

C

F

C

D

KTC trim tool set SOJATP2014

Available through the American Honda Tool and
Equipment Program; call 888-424-6857

SRS components are located in this area. Review the
SRS component locations (see page 24-14) and the
precautions and procedures (see page 24-16) before
doing repairs or service.

NOTE:

• Put on gloves to protect your hands.
• Take care not to bend or scratch the trim and panels.
• Use the appropriate tool from the KTC trim tool set to

avoid damage when prying components.

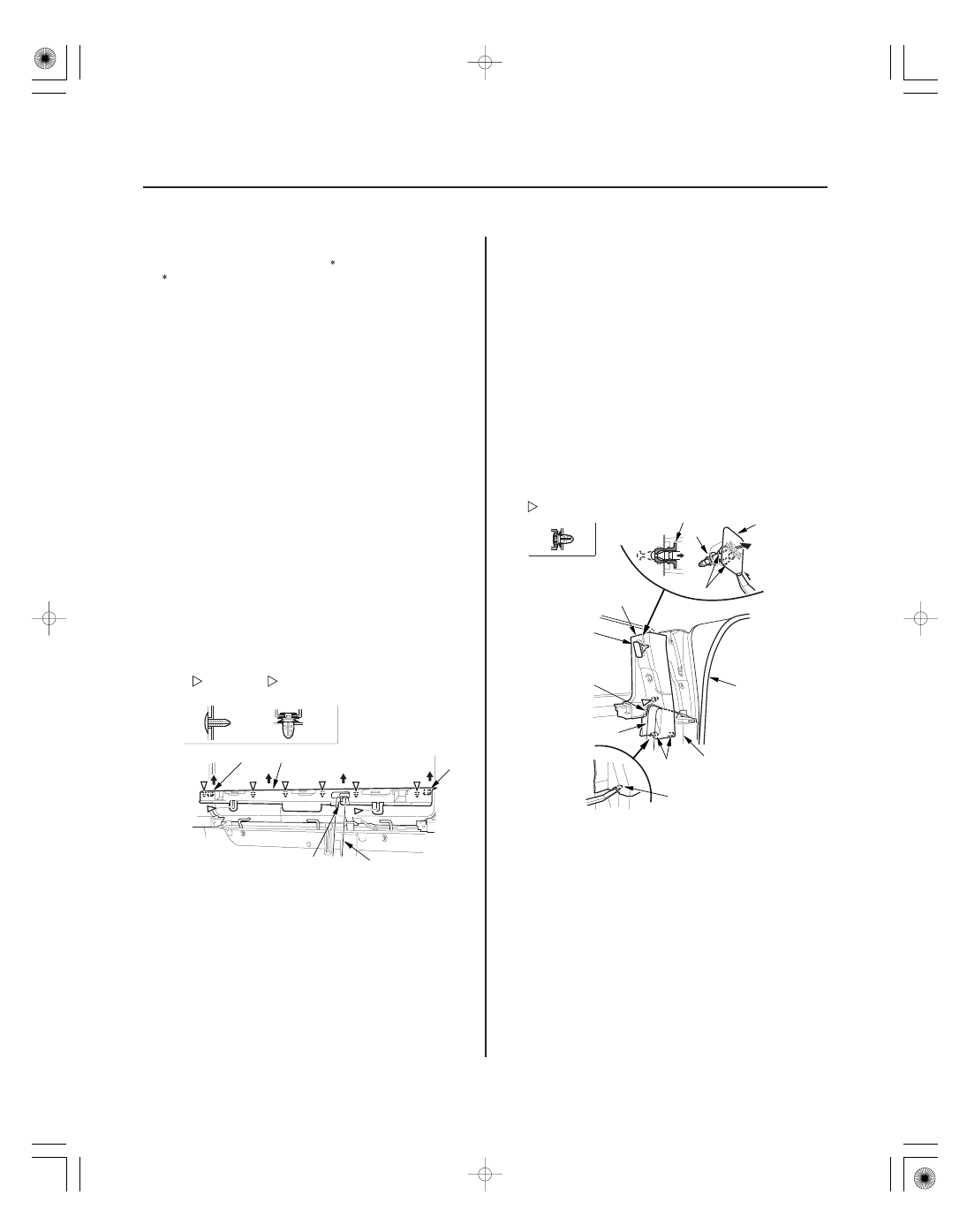

1. Remove the rear seat-back (see page 20-119).

2. Remove the rear trim panel (A).

–1 Remove the clips (B).
–2 Detach the hooks (C) from the C-p illar trim on

both sides.

–3 Pull the panel up to detach the clips (D).
–4 Pull the rear center seat belt (E) out through the

slit (F) in the panel.

3. Remove the rear seat belt upper anchor bolt (see

step 3 on page 24-7).

4. Remove the C-pillar trim (A).

–1 Pull out the rear door opening trim (B) as

needed.

–2 Pry the C-pillar cap (C) out while releasing the

hooks (D) until it is stopped by the grommet (E).

–3 Using a trim tool, release the hooks (F) from

the rear seat side trim (G).

–4 Pull out the trim to detach the clip.
–5 Pull the rear seat belt (H) out through the slit (I)

in the trim.

–6 Release the hooks on the grommet and pull the

cap out. Discard the cap and grommet.

Replace.

Replace.

Replace.

Replace.

23

01

SJC8A00J26273449891KBAT00

Special Tools Required

20-69

20-69

Rear Panel Insulator Replacement

A

B

C

Fastener Locations

: Clip, 3

A

B

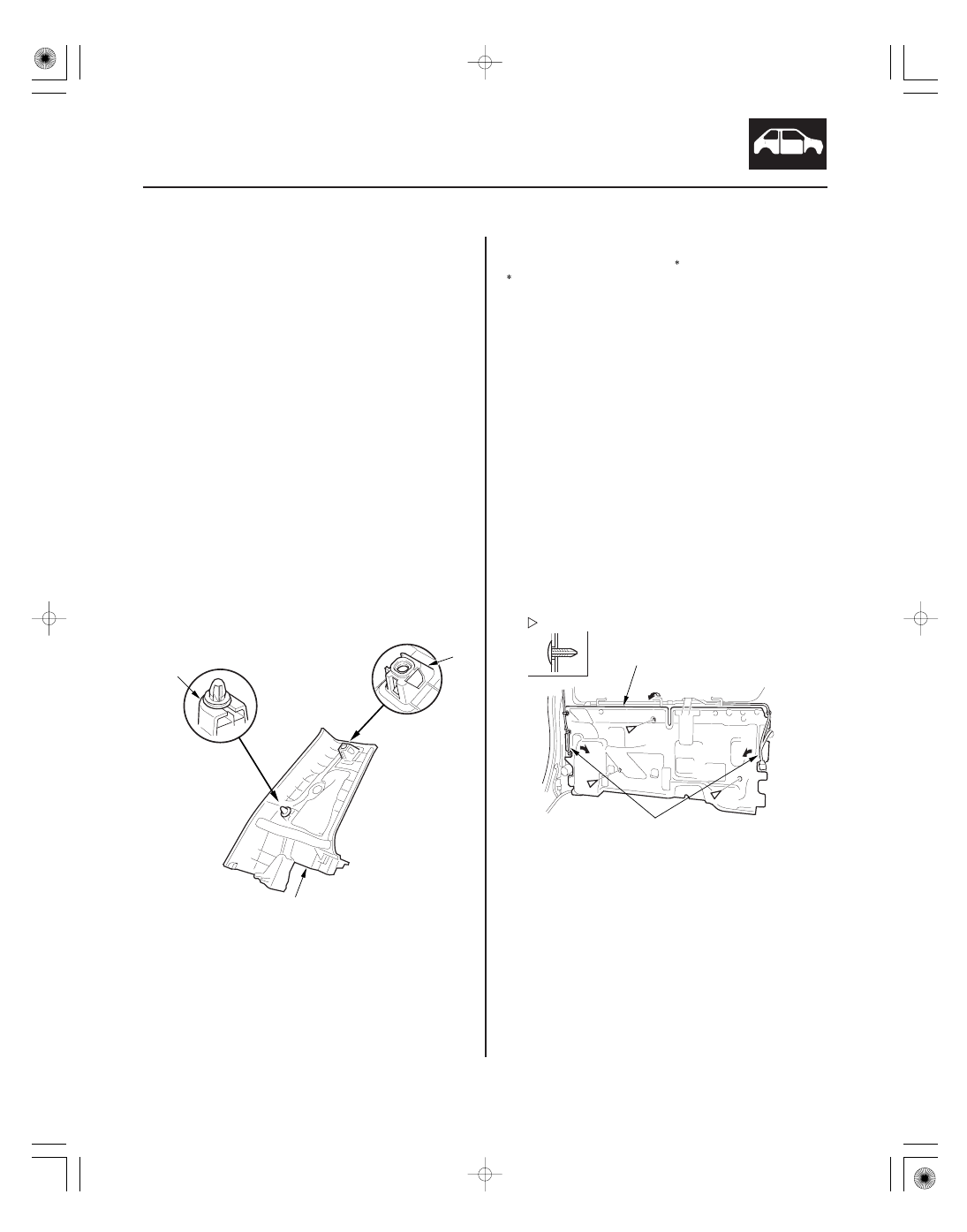

5. Install the trim in the reverse order of removal, and

note these items:

• Check if the clip is damaged or stress-whitened,

and if necessary, replace it with new one.

• Do not reuse the C-pillar cap and grommet;

always replace them.

• If the side curtain airbag has deployed, replace

the C-pillar trim with a new one.

• To prevent the side curtain airbags from

deploying improperly and possibly causing
injury, inspect removed pieces and replace them
if they are damaged:
– Any cracks, or press-whitened areas in the C-

pillar trim (A)

– Any cracks, or stress-whitenings in the clip

seating surfaces (B)

– Any cracks, or press-whitenings in the

grommet seating surface (C)

• Make sure the top of the trim overlaps with the

headliner correctly (see page 24-173).

• Push the clip and hooks into place securely.
• Apply medium strength type liquid thread lock to

the rear seat belt upper anchor bolts before
installation.

• Before installing the anchor bolt, make sure there

are no twists or kinks in the seat belt.

KTC trim tool set SOJATP2014

Available through the American Honda Tool and
Equipment Program; call 888-424-6857

NOTE:

• Put on gloves to protect your hands.
• Take care not to bend or scratch the trim and panels.
• Use the appropriate tool from the KTC trim tool set to

avoid damage when prying components.

1. Remove these items:

• Rear seat assembly (see page 20-117)
• C-pillar trim, both sides (see page 20-68)
• Rear seat belt lower anchor, both sides (see step

2 on page 24-7)

• Rear seat side trim, both sides (see step 9 on

page 20-62)

• Subwoofer, for some models (see page 23-60)

2. Remove the clips, and release the rear panel

insulator (A) from the wire harnesses (B) on both
sides, then remove the insulator.

3. Install the insulator in the reverse order of removal,

and note these items:

• Check if the clips are damaged or stress-

whitened, and if necessary, replace them with
new ones.

• Make sure there are no pinch the wire harnesses.
