Honda Ridgeline. Manual - part 349





06

*02

08

Adhesive tape:

Thickness 0.8 mm (0.03 in.)
Width 4 mm (0.16 in.)

Molding rubber adhesive tape:

Thickness 0.16 mm (0.006 in.)
Width 3 mm (0.12 in.)

20-34

Glass

Windshield Replacement (cont’d)

: Apply primer here.

A

A

A

B

C

D

E

A

A

C

C

A

F

G

H

D

E

E

C

D

D

B

D

G

H

Alignment dot location

G

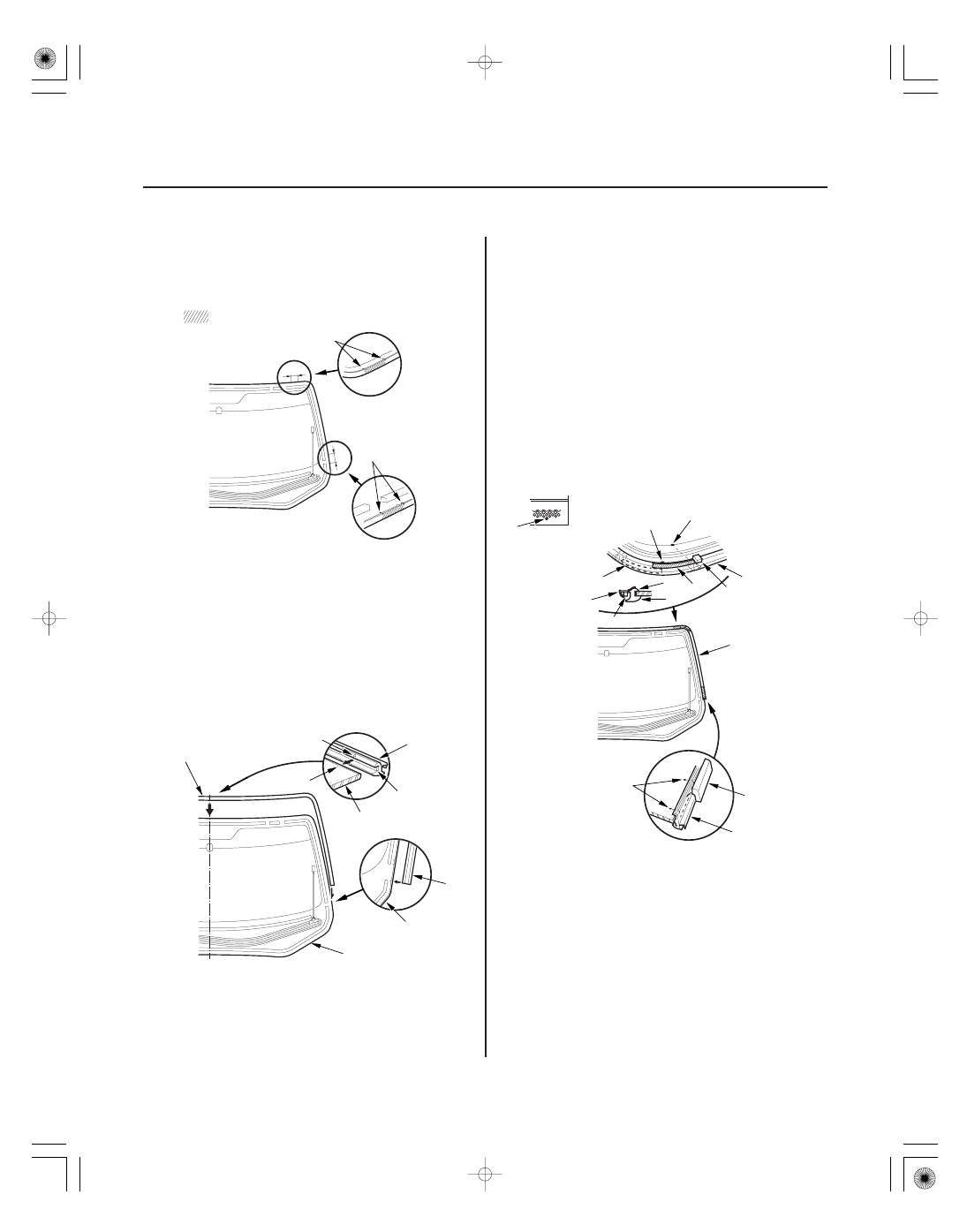

14. Apply primer to the edge of the windshield

between the alignment marks (A). Be careful not to
touch the windshield where adhesive will be
applied.

15. Attach the molding (A) with adhesive tape (B) to the

edge of the windshield (C):

• Be sure the alignment mark (D) of the molding

lines up with the alignment mark (E) of the
windshield.

• Be careful not to touch the windshield where

adhesive will be applied.

16. Attach the molding upper seals (A), molding lower

seals (B), and non woven fabric (C) to the inside
surface of the molding (D), and attach the molding
rubbers (E) with the adhesive tape to the inside
surface of the molding lip (F) as shown:

• Be sure the molding upper seal and molding side

seal line up with the alignment dots (G).

• Be sure the molding rubber lines up with the

alignment mark (H) of the molding.

• Be careful not to touch the windshield where

adhesive will be applied.

09

10

11

20-35

Fastener Locations

: Fastener, 2

A

A

B

C

D

E

E

A

B

12 mm
(0.47 in.)

Inside

E

C

12 mm
(0.47 in.)

Inside

A

Inside

A

D

: Apply glass primer here.

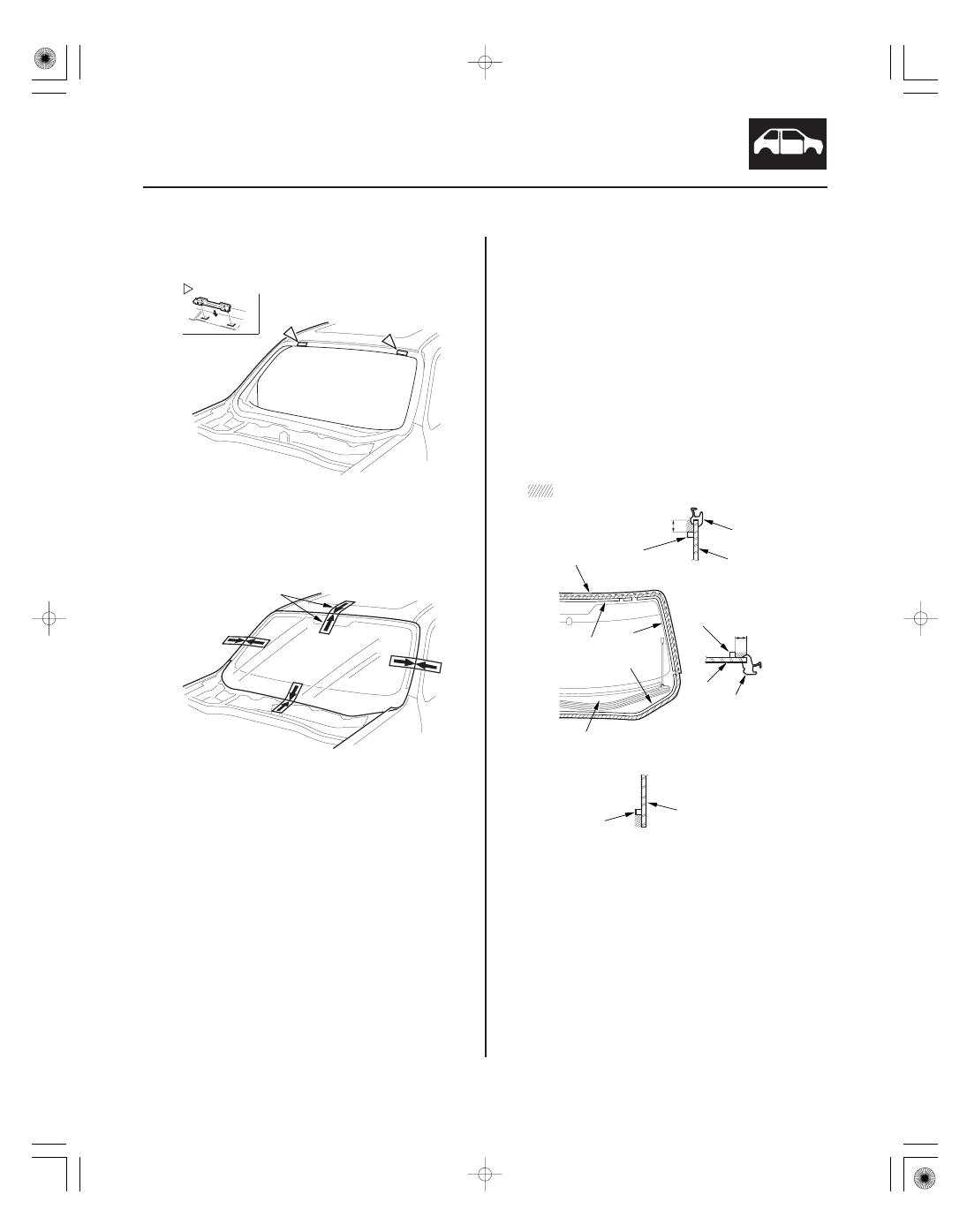

17. Install the fasteners to the body.

18. Set the windshield in the opening, and center it.

Make alignment marks (A) across the windshield
and body with a grease pencil at the four points
shown. Be careful not to touch the windshield
where adhesive will be applied.

19. With a sponge, apply a light coat of glass primer

around the edge of the windshield (A) between the
upper rubber dam (B), side rubber dams (C), lower
rubber dam (D), and molding (E) as shown, then
lightly wipe it off with gauze or cheesecloth:

• Apply glass primer to the molding.
• Do not apply body primer to the windshield, and

do not get the body and glass primer sponges
mixed up.

• Never touch the primed surfaces with your hands.

If you do, the adhesive may not bond to the
windshield properly, causing a leak after the
windshield is installed.

• Keep water, dust, and abrasive materials away

from the primed surfaces.

(cont’d)

12

13

14

20-36

Glass

Windshield Replacement (cont’d)

: Apply body primer to any exposed paint as shown.

20 mm
(0.79 in.)

20 mm
(0.79 in.)

20 mm
(0.79 in.)

13 mm (0.51 in.)

8 mm (0.31 in.)

A

2 mm
(0.08 in.)

13 mm
(0.51 in.)

8 mm
(0.31 in.)

2.5 mm
(0.098 in.)

A

B

E

A

1.5 mm
(0.059 in.)

F

A

B

C

Inside

1.5 mm
(0.059 in.)

A

D

Inside

B

F

Inside

A

F

C

D

E

B

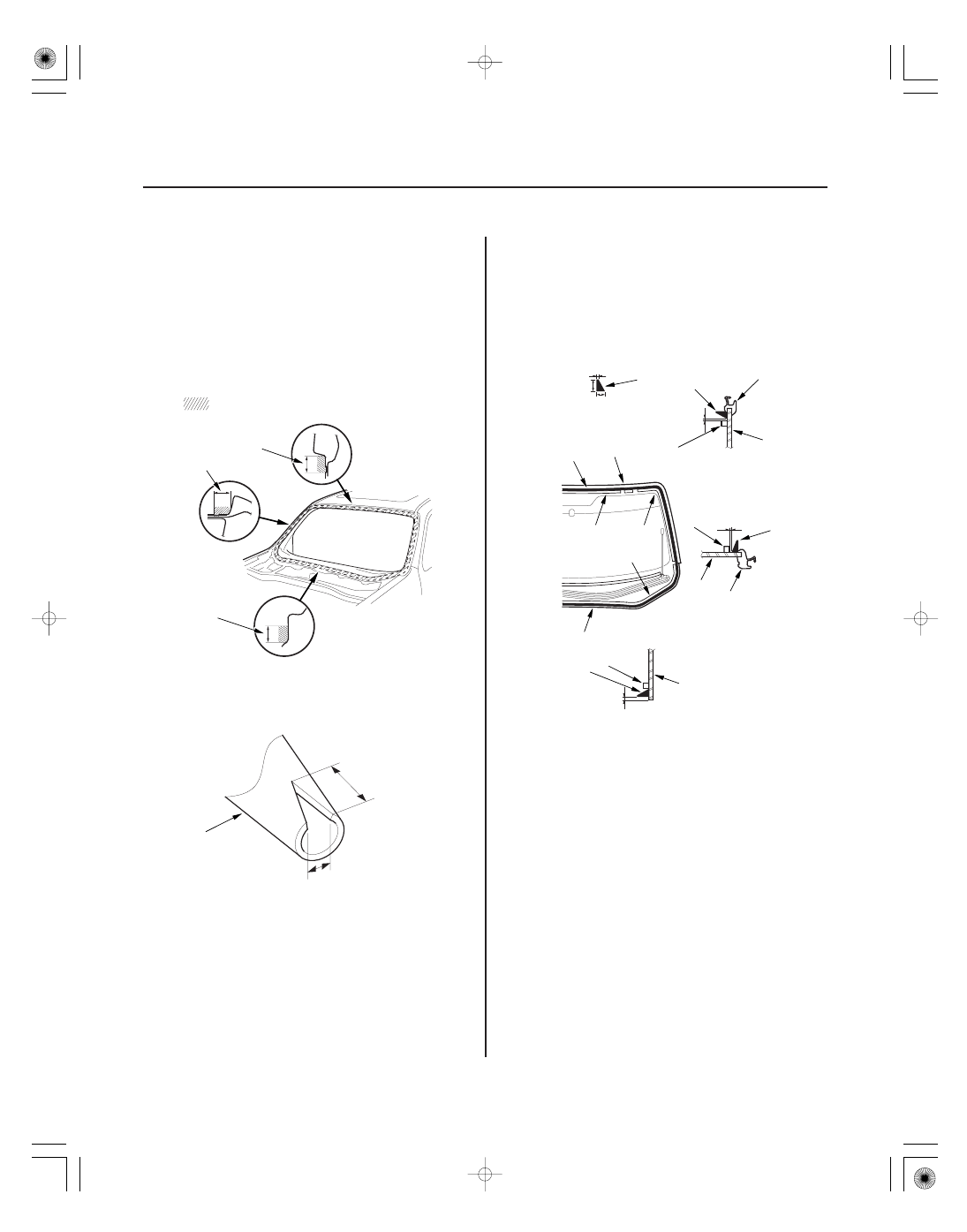

20. With a sponge, carefully apply a light coat of body

primer to any exposed paint around the flange
where new adhesive will be applied. Let the primer
dry for at least 10 minutes:

• Do not apply body primer to any remaining

original adhesive on the flange.

• Be careful not to mix up the body and glass

primer sponges.

• Never touch the primed surface with your hands.

21. Cut a ‘‘V’’ in the end of the nozzle (A) on the

adhesive cartridge as shown.

22. Put the cartridge in a caulking gun, and run a bead

of adhesive (A) around the edge of the windshield
(B) between the upper rubber dam (C), side rubber
dams (D), lower rubber dam (E), and molding (F) as
shown. Apply the adhesive within 30 minutes after
applying the glass primer. Make a slightly thicker
bead at each corner.

01

SJC8A00J54400050461KBAT00

20-37

20-37

Rear Window Replacement

A

C

B

D

23. Use suction cups to hold the windshield over the

opening, align it with the alignment marks made in
step 18, and set it down on the adhesive. Lightly
push on the windshield until its edges are fully
seated on the adhesive all the way around.

NOTE: Do not open or close the doors for about an
hour until the adhesive is dry.

24. Scrape or wipe any excess adhesive off with a

putty knife or towel. To remove adhesive from a
painted surface or the windshield, wipe with a soft
shop towel dampened with isopropyl alcohol.

25. After the adhesive has dried, spray water over the

windshield and check for leaks. Mark leaking areas,
and let the windshield dry, then seal with sealant:

• Let the vehicle stand for at least 4 hours after

windshield installation. If the vehicle has to be
used within the first 4 hours, it must be driven
slowly.

• Keep the windshield dry for the first hour after

installation.

26. Reinstall all removed parts. Install the rearview

mirror after the adhesive has dried thoroughly.
Advise the customer not to do the following things
for 2 to 3 days:

• Slam the doors with all the windows rolled up.
• Twist the body excessively (such as when going

in and out of driveways at an angle or driving
over rough, uneven roads).

NOTE:

• Put on gloves to protect your hands.
• Use seat covers to avoid damaging any surface.

1. Remove these items:

• Rear seat assembly (see page 20-117)
• C-pillar trim, both sides (see page 20-68)
• Rear seat belt lower anchor, both sides (see step

2 on page 24-7)

• Rear seat side trim, both sides (see step 9 on

page 20-62)

• Subwoofer, for some models (see page 23-60)
• Rear panel insulator (see page 20-69)
• Rear window middle glass regulator (see page

20-41)

2. Pull down the rear portion of the headliner as

needed (see page 20-70).

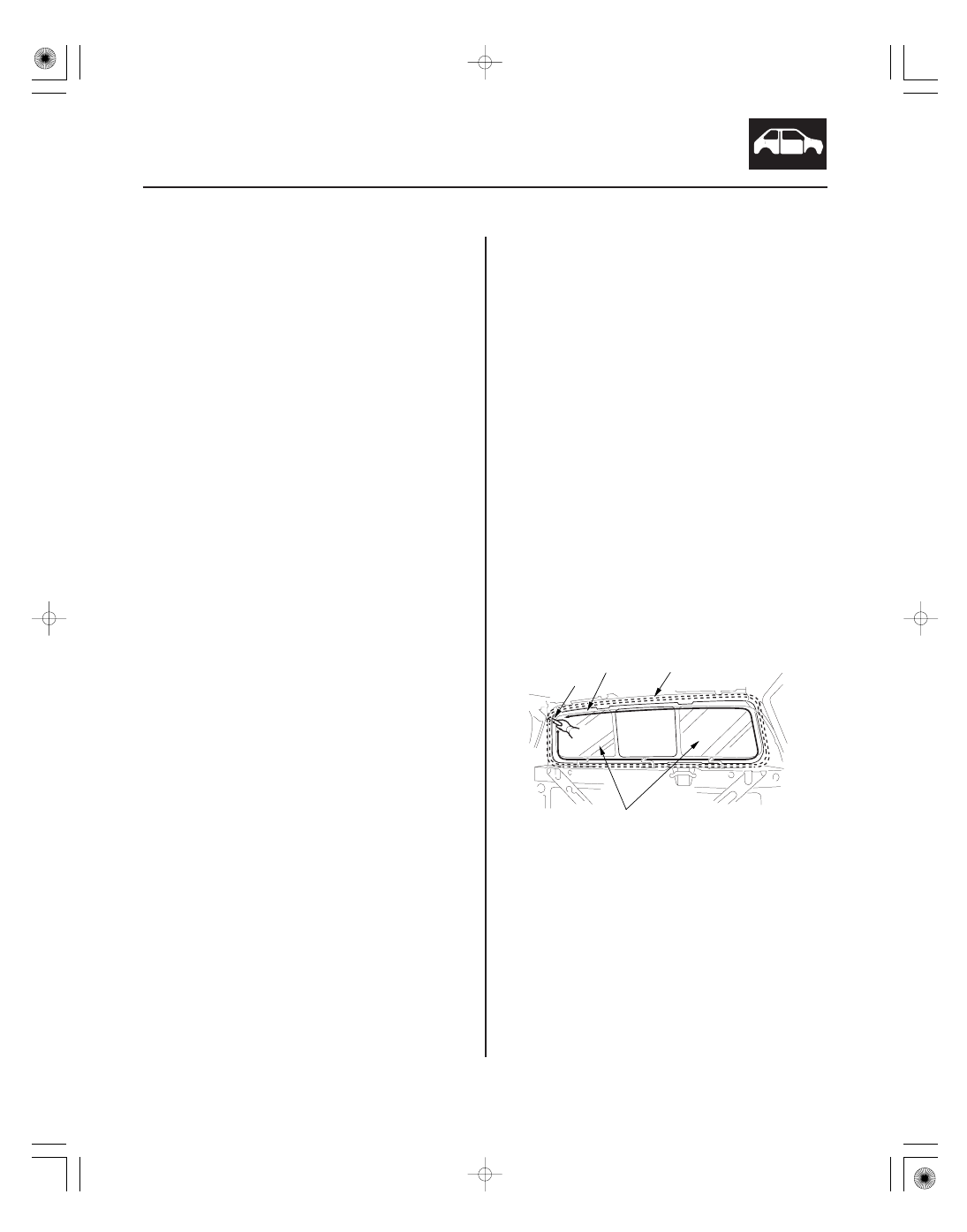

3. From inside the vehicle, use a utility knife (A) to cut

through the adhesive (B) all the way around:

• If the rear window (C) will be reinstalled, take

care not to damage the molding (D).

• Apply protective tape along the edge of the entire

rear window opening flange.

4. Carefully remove the rear window. Check the

molding for damage, and replace the rear window
if necessary.

(cont’d)
