Honda Ridgeline. Manual - part 347





*01

*02

SJC8A00J34300000000DAAT00

20-26

Mirrors

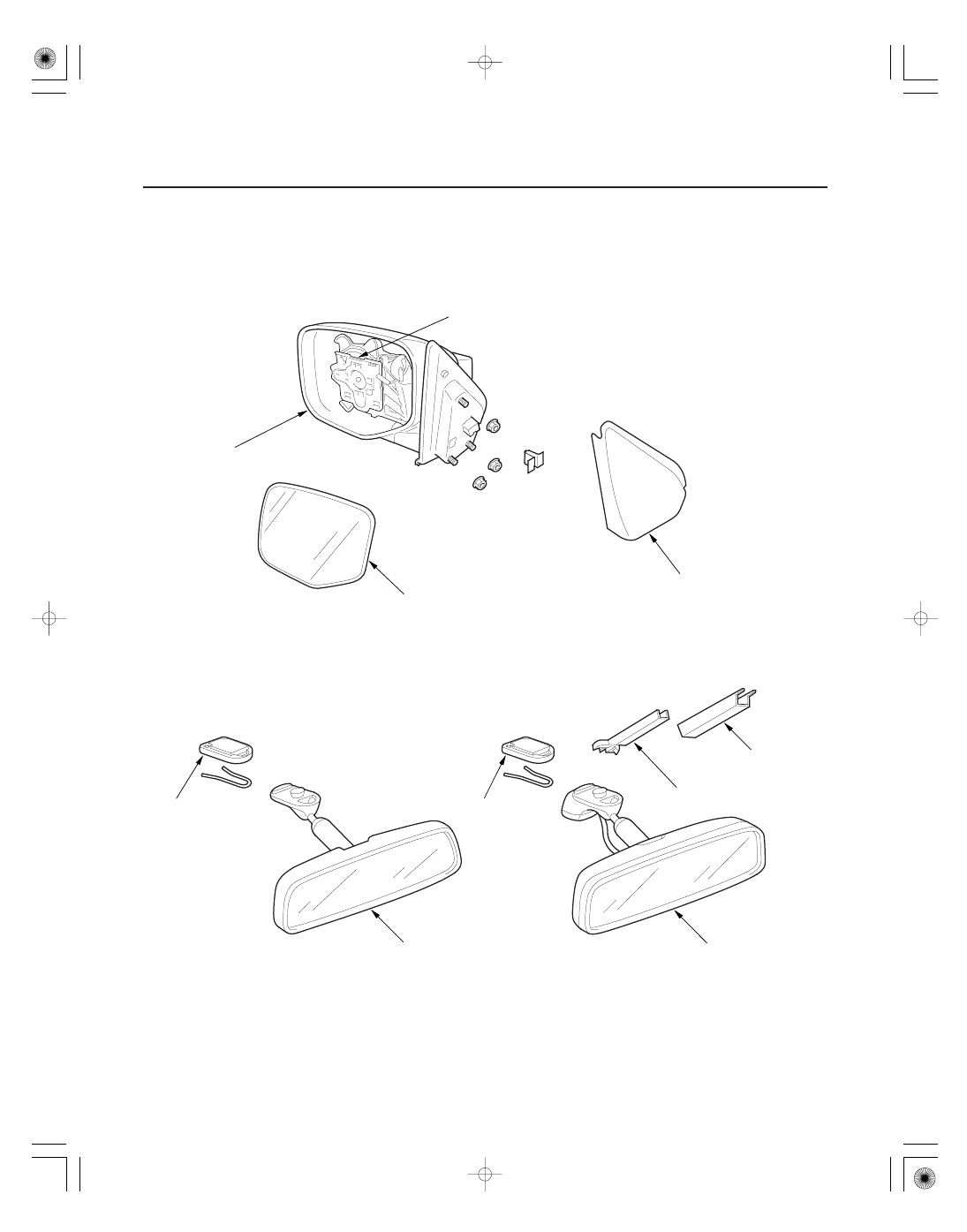

Component Location Index

POWER MIRROR ACTUATOR

POWER MIRROR

MIRROR MOUNT COVER

MIRROR HOLDER

MOUNT

REARVIEW MIRROR

REARVIEW MIRROR

MIRROR
HARNESS
UPPER COVER

MIRROR HARNESS
LOWER COVER

MOUNT

Without Compass

With Compass

Replacement, page 22-297

Replacement, page 20-27

Replacement, page 20-28

Replacement, page 20-29

Replacement, page 20-29

01

02

03

SJC8A00J34300044051KBAT00

20-27

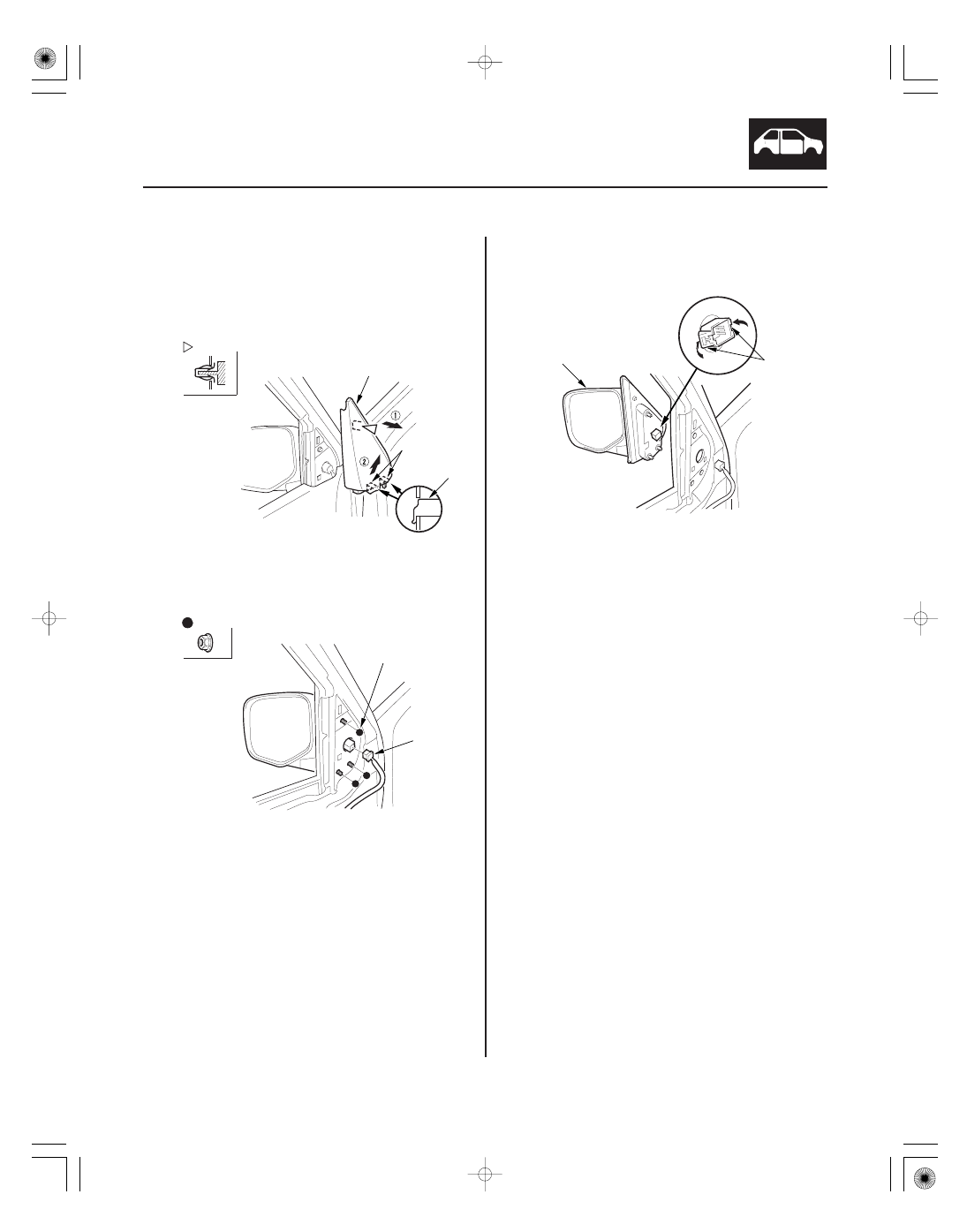

Power Mirror Replacement

Fastener Location

: Clip, 1

A

B

A

Fastener Locations

: Nut, 3

5 x 0.8 mm
5 N·m
(0.5 kgf·m,
4 lbf·ft)

A

A

B

1. Lower the door glass fully.

2. With your hand, carefully release the clip, lift the

cover upward to release the hooks (A), and remove
the cover (B) in the sequence shown.

3. Remove the front door panel (see page 20-7).

4. Disconnect the connector (A).

5. While holding the mirror, remove the nuts securing

the mirror.

6. While holding the mirror, push in on the connector

clips (A), then push out to remove the mirror (B).
Take care not to scratch the door.

7. Install the mirror in the reverse order of removal,

and note these items:

• Make sure the connector is plugged in properly.
• When reinstalling the door panel, make sure the

plastic cover is installed properly and sealed
around its outside perimeter to seal out water.

01

02

SJC8A00J34300044021KBAT00

20-28

Mirrors

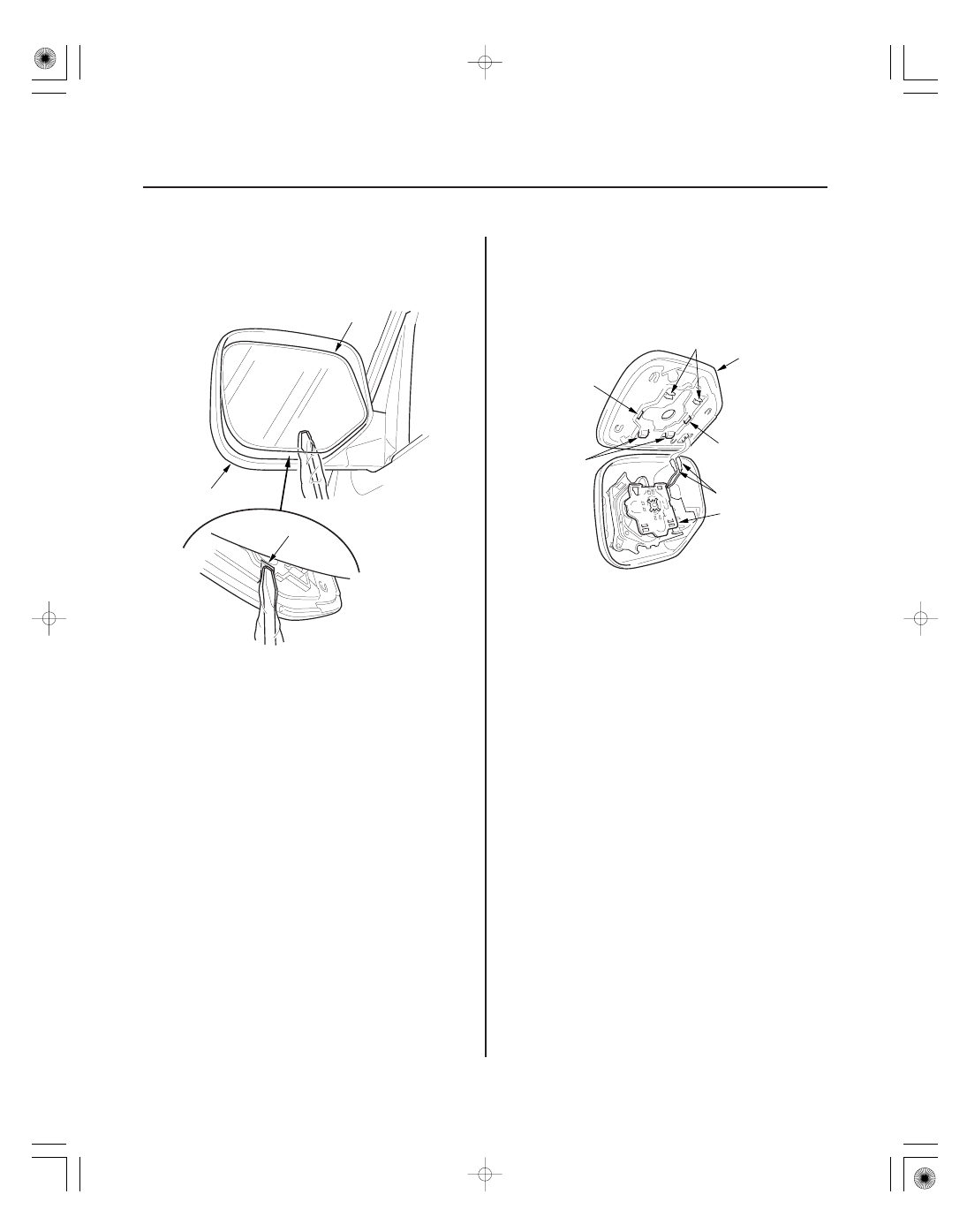

Mirror Holder Replacement

A

B

C

C

D

E

A

B

A

A

NOTE: Put on gloves to protect your hands.

1. Carefully push on the top edge of the mirror holder

(A) by hand.

2. Put a shop towel in the opening between the lower

edge of the mirror holder and the mirror housing
(B) to prevent scratches. Insert a flat-tip screwdriver
wrapped with protective tape through the slot (C) at
the bottom of the mirror holder.

3. Twist the screwdriver to release the clips (A) from

the actuator (B). Carefully pull out the bottom edge
of the mirror holder (C), then separate the mirror
holder from the actuator by releasing the hooks (D).
Disconnect the mirror defogger connectors (E) from
the heater pad terminals.

4. Reconnect the mirror defogger connectors.

5. Reattach the hooks of the mirror holder to the

actuator, then position the mirror holder on the
actuator. Carefully push on the clip portions of the
mirror holder until the mirror holder locks into
place.

6. Check the operation of the actuator.

01

02

03

04

SJC8A00J34300034651KBAT20

20-29

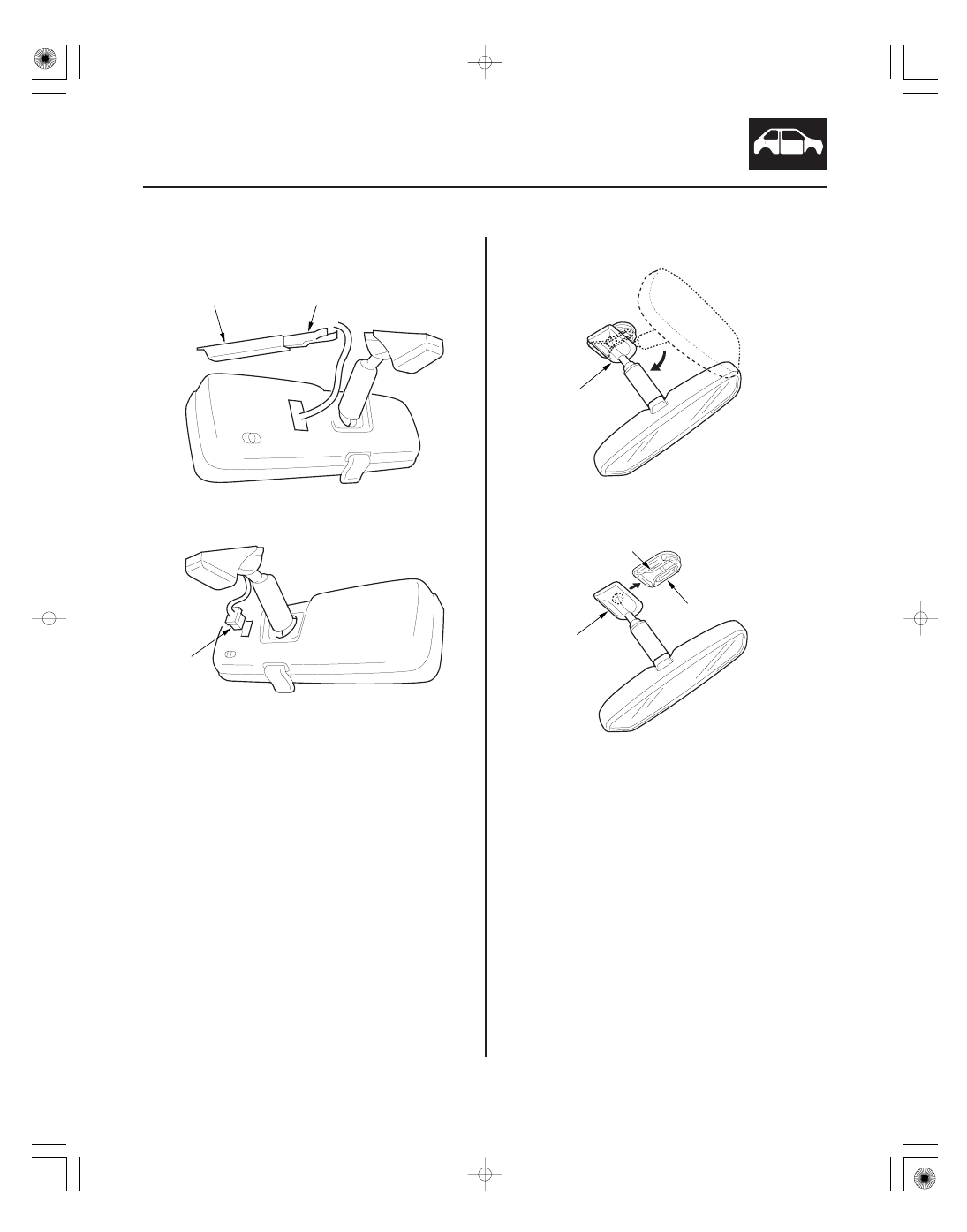

Rearview Mirror Replacement

B

A

A

A

A

B

C

1. With compass: Slide the mirror harness upper

cover (A) forward, then remove the mirror harness
lower cover (B).

2. With compass: Disconnect the connector (A).

3. Turn the rearview mirror base (A) 90 °.

4. Slide the rearview mirror (A) down toward the

bottom of the windshield to detach it from the
spring (B) in the mount (C).

5. If necessary, remove the spring from the mount.

6. Install the rearview mirror in the reverse order of

removal.
