Honda Ridgeline. Manual - part 346





01

SJC8A00J16166221551KBAT02

20-22

Doors

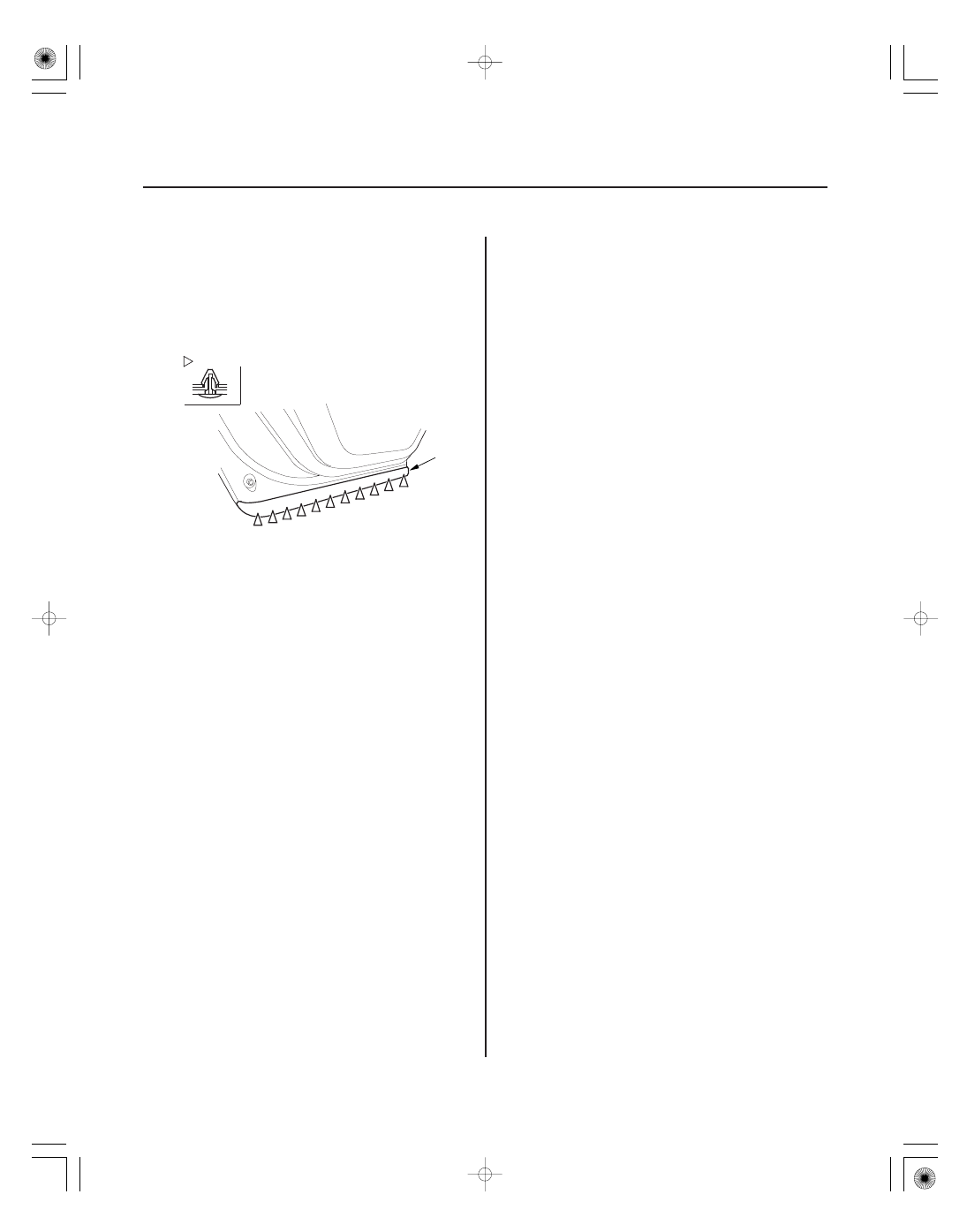

Rear Door Side Sill Seal Replacement

Fastener Locations

: Clip, 11

A

NOTE:

• Take care not to scratch the door.
• Use a clip remover to remove the clips.

1. Detach the clips, then remove the door side sill seal

(A).

2. Install the side sill seal in the reverse order of

removal, and note these items:

• Check if the clips are damaged or stress-

whitened, and if necessary, replace them with
new ones.

• Push the clips into place securely.

01

02

03

04

SJC8A00J54400020371MBAT10

Front door

Rear door

20-23

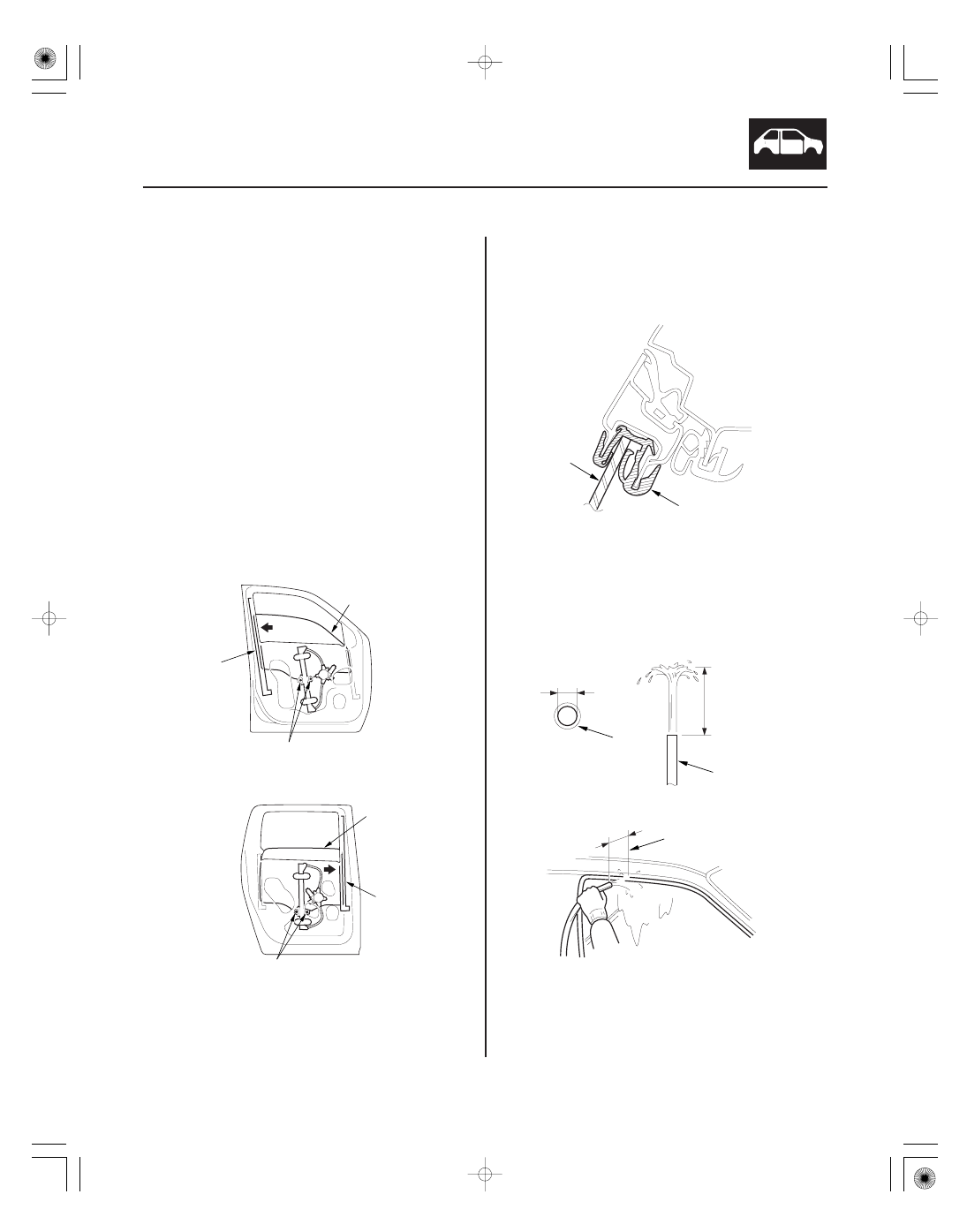

Front and Rear Door Glass Adjustment

C

A

B
6 x 1.0 mm
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

A

C

B
6 x 1.0 mm
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

A

B

12 mm (1/2 in.)

0.5 m (18 in.)

300 mm (12 in.)

B

A

C

NOTE:

• Check the weatherstrips and glass run channel for

damage or deterioration, and replace them if
necessary.

• Wipe the run channel clean with a shop towel.
• Lubricate the run channel with Shin-Etsu silicone

grease P/N 08798-9013.

1. Place the vehicle on a firm, level surface.

2. Remove these items:

• Door panel:

– Front door (see page 20-7)
– Rear door (see page 20-14)

• Plastic cover:

– Front door (see step 2 on page 20-11)
– Rear door (see step 2 on page 20-19)

3. Carefully move the glass (A) until you can see the

glass mounting bolts (B), then loosen them.

4. Push the glass against the channel (C), then tighten

the glass mounting bolts.

5. Check that the glass moves smoothly.

6. Raise the glass fully, and check for gaps. Check that

the glass (A) contacts the glass run channel (B)
evenly.

7. Check for water leaks. Run water over the roof and

on the sealing area as shown, and note these items:

• Use a 12 mm (1/2 in.) diameter hose (A).
• Adjust the rate of water flow as shown (B).
• Do not use a nozzle.
• Hold the hose about 300 mm (12 in.) away from

the door.

8. Attach the plastic cover making sure it is sealed

around its outside perimeter to seal out water, then
install the door panel.

9. Test-drive, and check for wind noise and rattles.

01

02

SJC8A00J16126700000MBAT00

Front door

Rear door

20-24

Doors

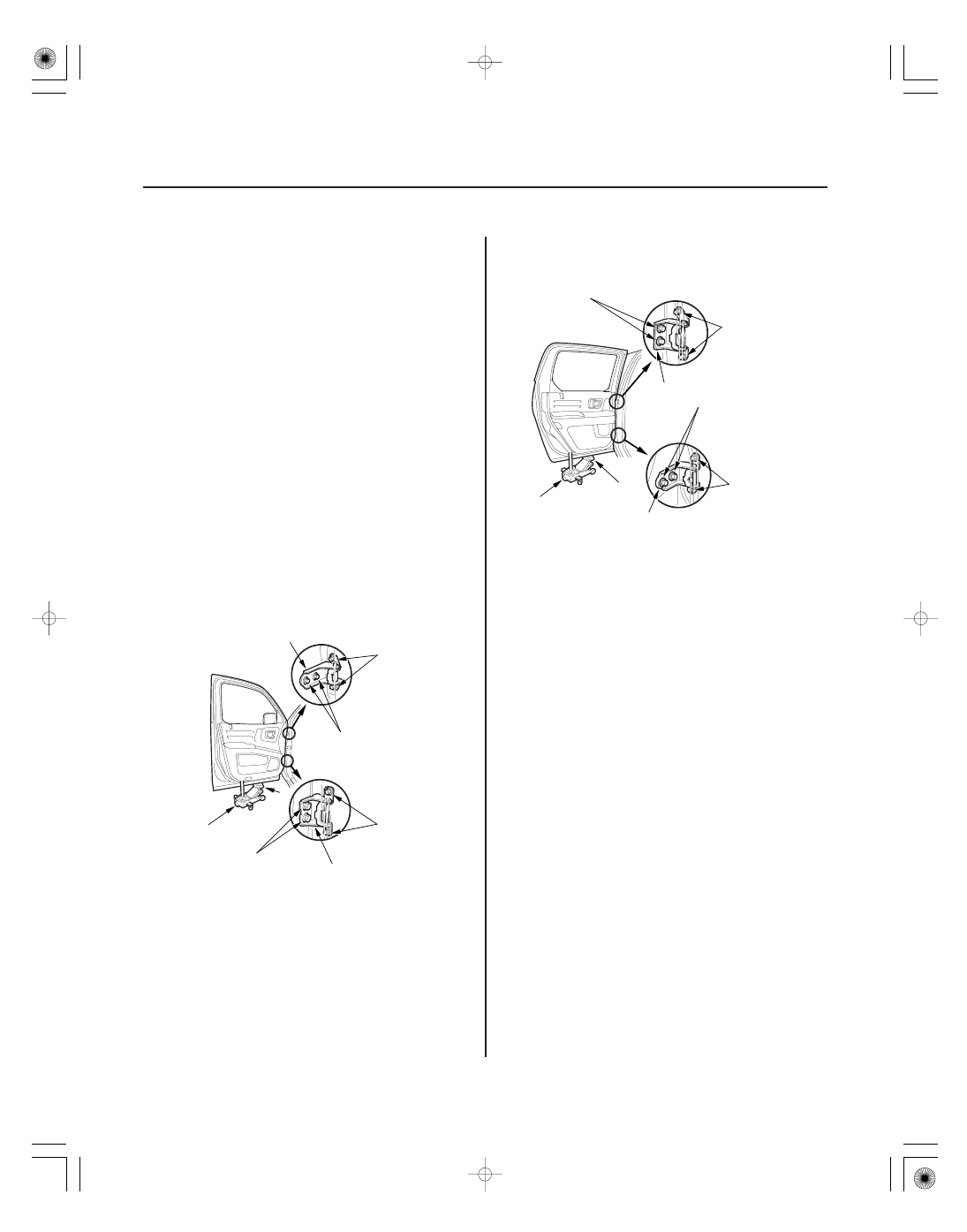

Front and Rear Door Position Adjustment

B

C

A

A

D
8 x 1.25 mm
29 N·m
(3.0 kgf·m,
22 lbf·ft)

F
8 x 1.25 mm
29 N·m
(3.0 kgf·m,
22 lbf·ft)

D
8 x 1.25 mm
29 N·m
(3.0 kgf·m, 22 lbf·ft)

F
8 x 1.25 mm
29 N·m
(3.0 kgf·m,
22 lbf·ft)

A

B

C

A

F
8 x 1.25 mm
29 N·m
(3.0 kgf·m,
22 lbf·ft)

E
8 x 1.25 mm
29 N·m (3.0 kgf·m, 22 lbf·ft)

F
8 x 1.25 mm
29 N·m
(3.0 kgf·m,
22 lbf·ft)

E
8 x 1.25 mm
29 N·m (3.0 kgf·m,
22 lbf·ft)

NOTE: Check for a flush fit with the body, then check for
equal gaps between the front, rear, and bottom door
edges and the body. Check that the door and body
edges are parallel. Before adjusting, replace the
mounting bolts.

1. Place the vehicle on a firm, level surface when

adjusting the doors.

2. Adjust at the hinges (A):

• Pad a floor jack (B) with shop towels (C), then use

the jack to support the door to prevent damage to
the door while adjusting it.

• On the front door: Remove the front inner fender

(see page 20-178) and front fender fairing
(see page 20-180). Loosen the hinge mounting
bolts (D) slightly, and move the door backward or
forward, up or down as necessary to equalize the
gaps.

• On the rear door: Loosen the hinge mounting

bolts (E) slightly, and move the door backward or
forward, up or down as necessary to equalize the
gaps.

3. If necessary, replace the door mounting bolts with

the adjusting bolts (P/N 90102-SFA-305) made
specifically for door adjustment, then adjust at the
door: Loosen the door mounting bolts (F) slightly,
and move the door up or down as necessary to
equalize the gaps, and in or out until it’s flush with
the body.

03

01

SJC8A00J16126721701MBAT00

20-25

20-25

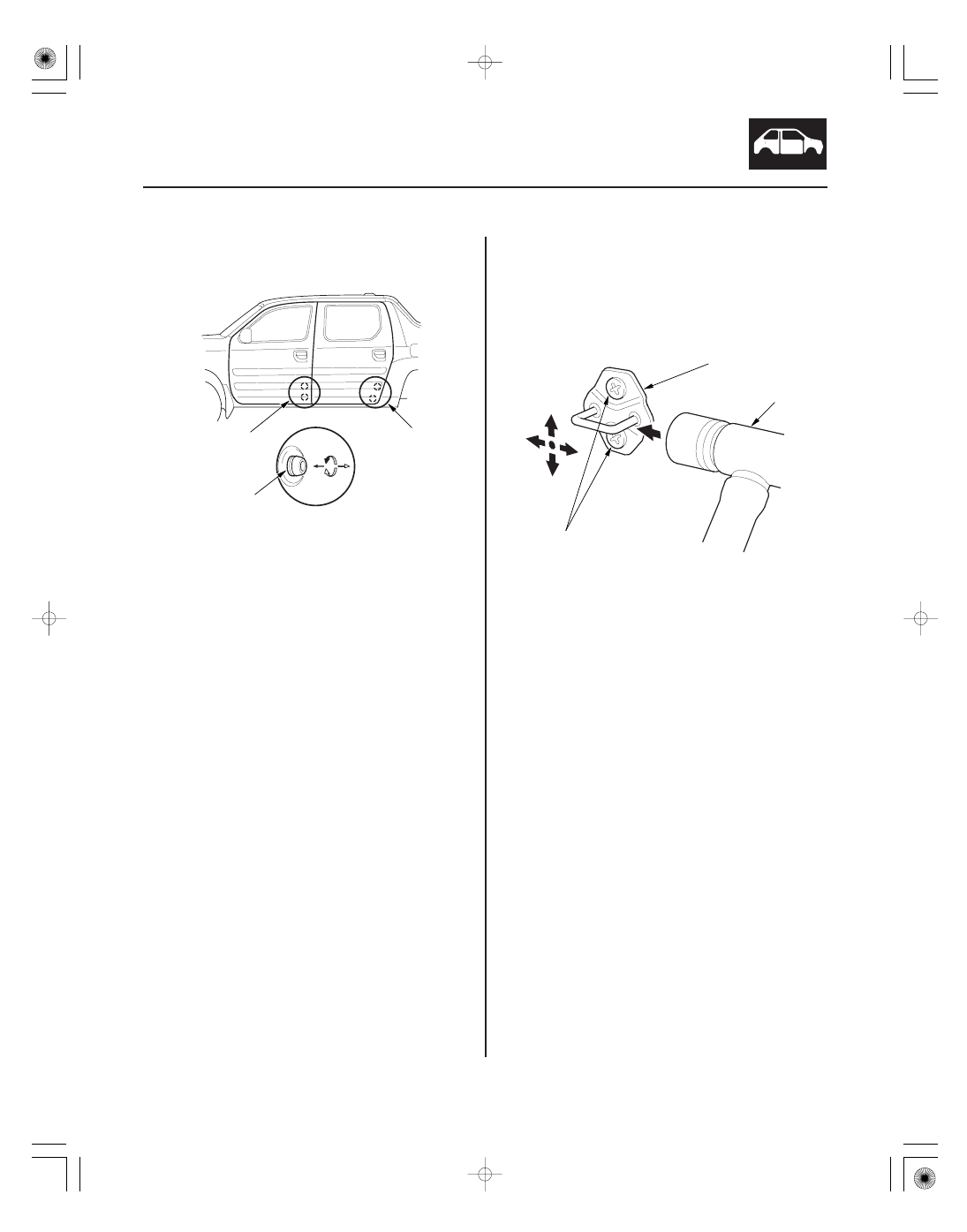

Front and Rear Door Striker
Adjustment

A

A

A

A

A

A

B
8 x 1.25 mm
18 N·m (1.8 kgf·m, 13 lbf·ft)

A

C

4. Check that the door and body edges are parallel. If

necessary, adjust the door cushions (A) to make the
rear of the doors flush with the body.

5. Apply touch-up paint to the hinge mounting bolts,

and around the hinges.

6. Check for water leaks (see step 7 on page 20-23).

Make sure the door latches securely without slamming
it. If necessary, adjust the striker (A): The striker can be
adjusted slightly up or down, and in or out.

1. Loosen the screws (B).

2. Wrap the striker with a shop towel, then adjust the

striker by tapping it with a plastic hammer (C). Do
not tap the striker too hard.

3. Lightly tighten the screws.

4. Hold the outer handle out, and push the door

against the body to be sure the striker allows a
flush fit. If the door latches properly, tighten the
screws and recheck.
