20-6

Doors

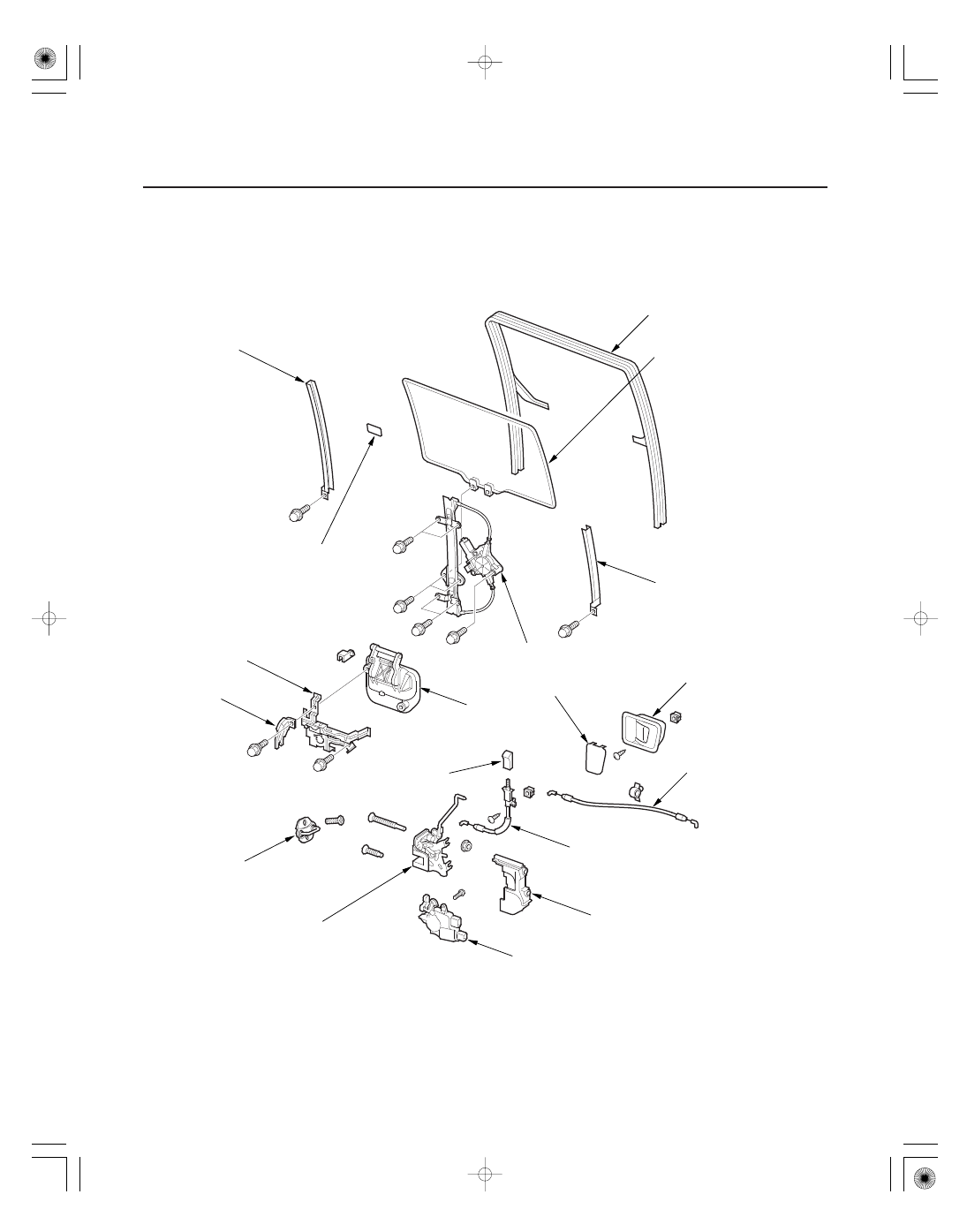

Component Location Index - Rear Door (cont’d)

CENTER LOWER
CHANNEL

OUTER HANDLE
PROTECTOR

STRIKER

LATCH

POWER DOOR LOCK
ACTUATOR

LATCH PROTECTOR

LOCK CABLE

INNER HANDLE CABLE

INNER HANDLE

LOCK KNOB

OUTER HANDLE

COVER

REGULATOR

REAR LOWER
CHANNEL

GLASS

GLASS RUN CHANNEL

ROD PROTECTOR

ULEV STICKER

Adjustment,

page 20-25

Replacement,

page 20-17

Replacement,

page 20-16

Replacement, page 20-19

Replacement, page 20-19
Adjustment, page 20-23

Replacement,

page 20-177

01

02

03

04

SJC8A00J16126721401KDAT10

Special Tools Required

20-7

Front Door Panel Removal/Installation

A

D

B

C

Fastener Locations

: Screw, 2

A

B

A

B

Fastener Locations

: Screw, 3

B

: Clip, 8

C

A

D

B

C

B

B

C

C

C

C

C

C

C

Fastener Location

: Screw, 1

A

• KTC trim tool set SOJATP2014
• Trim pad remover, Snap-on A 177A or equivalent,

commercially available

Available through the American Honda Tool and
Equipment Program; call 888-424-6857

NOTE:

• Use the appropriate tool from the KTC trim tool set to

avoid damage when prying components.

• Take care not to scratch the door and related parts.

1. Lower the glass fully.

2. Remove the mirror mount cover (see step 2 on

page 20-27).

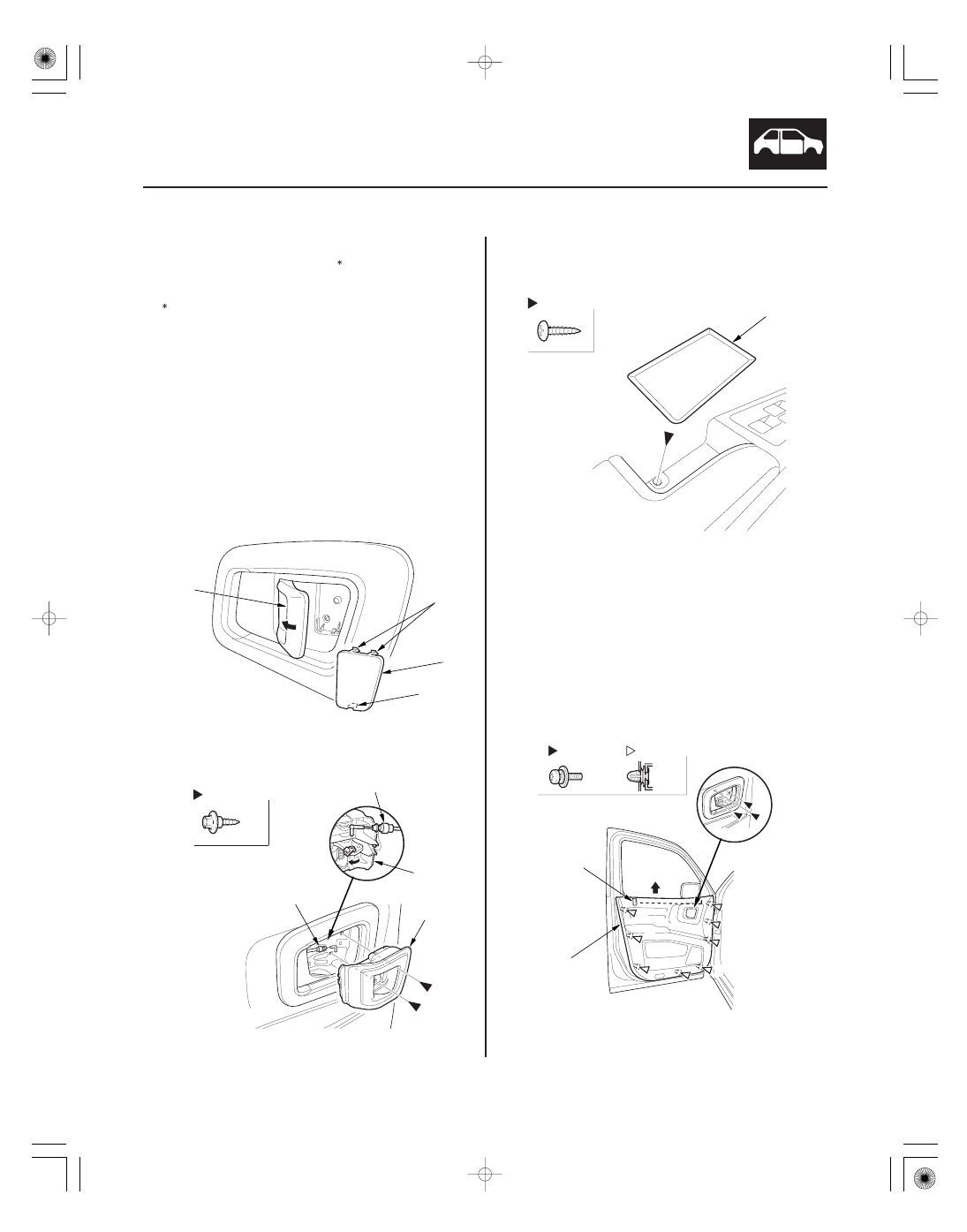

3. Pull back the inner handle knob (A). Using a trim

tool, push on the lower hook (B) and pivot the cover
(C) on the upper hooks (D), then remove the cover.

4. Remove the screws, then remove the inner handle

(A), and disconnect the inner handle cable (B).

5. Remove the screw from under the pull pocket lid

(A).

6. Remove the door panel (A) with as little bending as

possible to avoid creasing or breaking it.

–1 Remove the screws (B).
–2 Use a commercially available trim pad

remover to detach the clips (C).

–3 Starting at the rear, pull the door panel upward,

then release the lock knob (D).

NOTE: To avoid damaging components inside
the door, do not use excessive force when
lifting up on the panel.

(cont’d)

05

01

02

SJC8A00J16126721301KBAT00

20-8

20-8

Doors

Front Door Panel Removal/
Installation (cont’d)

Front Door Outer Handle
Replacement

A

B

C

D

A

B

C

A

B

A

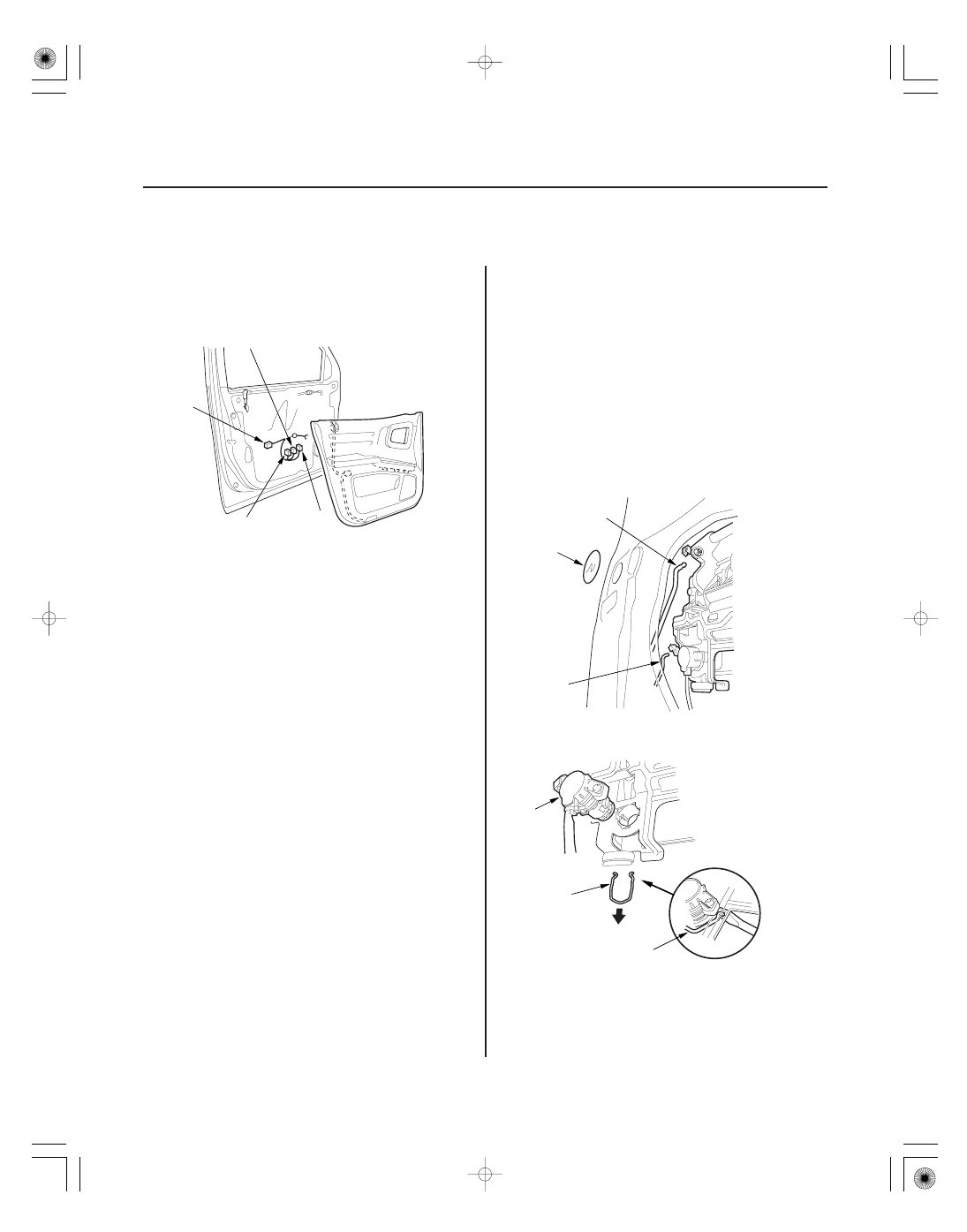

7. Disconnect the courtesy light subharness

connector (A), power mirror switch connector (B)
(driver’s), power window switch connector (C), and
power rear window switch connector (D) (driver’s).

8. Install the door panel in the reverse order of

removal, and note these items:

• Check if the clips are damaged or stress-

whitened, and if necessary, replace them with
new ones.

• Make sure the connectors are plugged in

properly, and the rod is connected securely.

• Push the clips into place securely.
• When reinstalling the door panel, make sure the

plastic cover is installed properly and sealed
around its outside perimeter to seal out water.

NOTE: Put on gloves to protect your hands.

1. Raise the glass fully.

2. Remove these items:

• Door panel (see page 20-7)
• Plastic cover, as necessary (see step 2 on page

20-11)

• Center lower channel (see step 3 on page 20-10)

(driver’s side only)

3. Remove the maintenance seal (A) from the rear of

the door, then disconnect the outer handle rod (B)
and cylinder rod (C) (driver’s).

4. Driver’s: Release the retainer clip (A) with a hook-

shaped tool, then remove the lock cylinder (B).

03

04

05

20-9

A

B

C

B

Fastener Locations

: Bolt, 2

A

B

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)

A

B

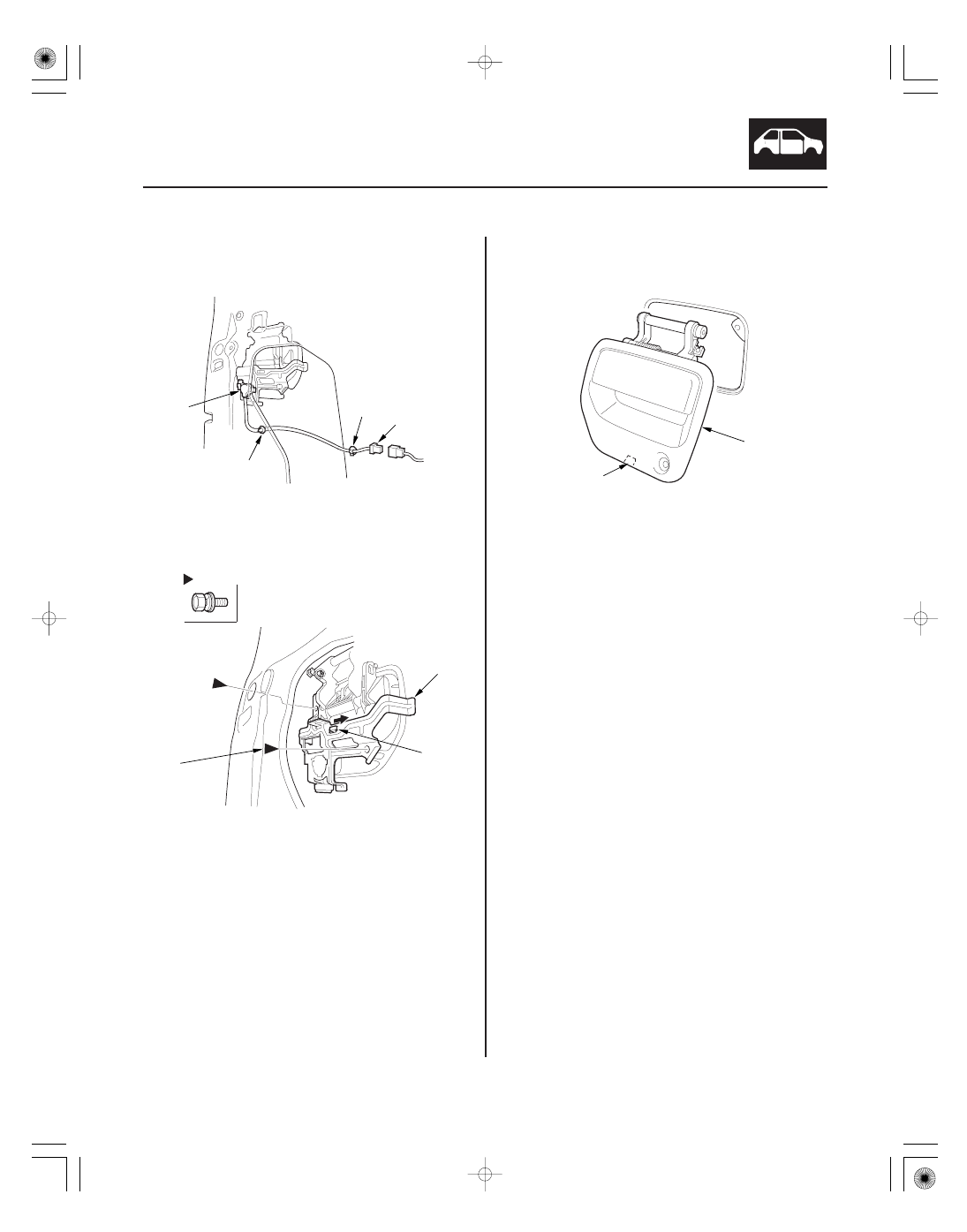

5. With cylinder switch: Disconnect the cylinder

switch connector (A), and detach the harness clips
(B), then remove the cylinder switch (C).

6. Remove the bolts, and slide the outer handle

protector (A) to release the hook (B), then remove
the outer handle protector.

7. Release the hook (A), then pull the outer handle (B)

out of the door panel. Take care not to scratch the
door.

8. Install the handle in the reverse order of removal,

and note these items:

• Make sure the cylinder switch harness is routed

properly.

• Make sure the cylinder switch connector is

plugged in properly, and each rod is connected
securely.

• Install the lock cylinder retaining clip on the

handle, then install the lock cylinder. Be sure the
clip is fully seated in the slot on the lock cylinder.

• Make sure the door key cylinder/door locks

operate properly.

• Make sure the door handle works properly.
• When installing the lock cylinder, leave the outer

door handle bolts loose so the inner protector
does not interfere with the lock cylinder, then
tighten the handle bolts.

• When reinstalling the door panel, make sure the

plastic cover is installed properly and sealed
around its outside perimeter to seal out water.
