How to Retrieve DTCs

How to Clear DTCs

19-41

A

A

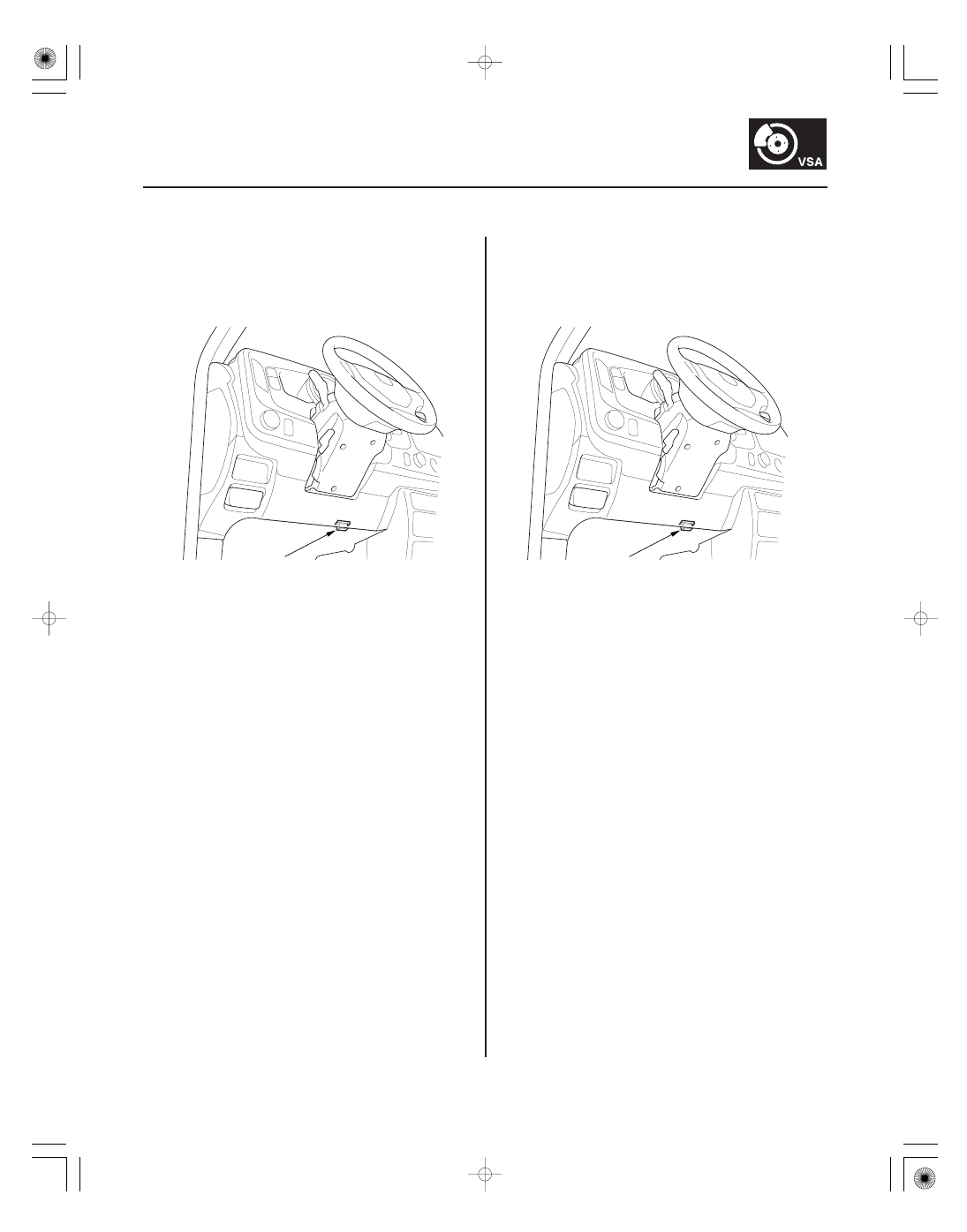

1. With the ignition switch OFF, connect the HDS to

the data link connector (DLC) (A) located behind the
driver’s dashboard lower cover.

2. Turn the ignition switch ON (II), and follow the

prompts on the HDS to display the DTC(s) on the
screen. After determining the DTC, refer to the DTC
troubleshooting.

NOTE: See the HDS Help menu for specific
instructions.

1. With the ignition switch OFF, connect the HDS to

the data link connector (DLC) (A) located behind the
driver’s dashboard lower cover.

2. Turn the ignition switch ON (II), and clear the

DTC(s) by following the screen prompts on the HDS.

NOTE: See the HDS Help menu for specific
instructions.

SJC8A00D52100000000GAAT00

DTC

Detection Item

ABS

Indicator

Brake

System

Indicator

VSA

Indicator

VSA

Activation

Indicator

Note

19-42

VSA System Components

DTC Troubleshooting Index

11

Right-front wheel sensor (open/short to body ground/
short to power)

ON

ON or OFF

ON

ON

(see page 19-59)

12

Right-front wheel sensor (electrical noise/intermittent
interruption)

ON

ON or OFF

ON

ON

(see page 19-61)

13

Left-front wheel sensor (open/short to body ground/
short to power)

ON

ON or OFF

ON

ON

(see page 19-59)

14

Left-front wheel sensor (electrical noise/intermittent
interruption)

ON

ON or OFF

ON

ON

(see page 19-61)

15

Right-rear wheel sensor (open/short to body ground/
short to power)

ON

ON or OFF

ON

ON

(see page 19-59)

16

Right-rear wheel sensor (electrical noise/intermittent
interruption)

ON

ON or OFF

ON

ON

(see page 19-61)

17

Left-rear wheel sensor (open/short to body ground/
short to power)

ON

ON or OFF

ON

ON

(see page 19-59)

18

Left-rear wheel sensor (electrical noise/intermittent
interruption)

ON

ON or OFF

ON

ON

(see page 19-61)

21

Difference in wheel speed

ON

OFF

ON

ON

(see page 19-62)

22

Current flow into wheel sensor input amplifier

OFF

ON

ON

ON

(see page 19-63)

25

Yaw rate sensor (sensor unit)

OFF

OFF

ON

ON

(see page 19-64)

26

Lateral acceleration sensor (sensor unit)

OFF

OFF

ON

ON

(see page 19-65)

27

Steering angle sensor (hardware)

OFF

OFF

ON

ON

(see page 19-65)

31

ABS solenoid

ON

ON

ON

ON

(see page 19-66)

32

ABS solenoid

ON

ON

ON

ON

(see page 19-66)

33

ABS solenoid

ON

ON

ON

ON

(see page 19-66)

34

ABS solenoid

ON

ON

ON

ON

(see page 19-66)

35

ABS solenoid

ON

ON

ON

ON

(see page 19-66)

36

ABS solenoid

ON

ON

ON

ON

(see page 19-66)

37

ABS solenoid

ON

ON

ON

ON

(see page 19-66)

38

ABS solenoid

ON

ON

ON

ON

(see page 19-66)

45

VSA solenoid

ON

ON

ON

ON

(see page 19-66)

46

VSA solenoid

ON

ON

ON

ON

(see page 19-66)

47

VSA solenoid

ON

ON

ON

ON

(see page 19-66)

48

VSA solenoid

ON

ON

ON

ON

(see page 19-66)

51

Motor Locked

ON

OFF

ON

ON

(see page 19-67)

52

Motor stuck OFF

ON

OFF

ON

ON

(see page 19-67)

53

Motor stuck ON

ON

OFF

ON

ON

(see page 19-69)

54

Valve relay

ON

OFF

ON

(see page 19-70)

61

IG1 voltage low

ON

OFF

ON

ON

(see page 19-72)

62

IG1 voltage high

ON

ON

ON

ON

(see page 19-73)

65

VSA pressure sensor (hardware)

ON

OFF

ON

ON

(see page 19-73)

66

VSA pressure sensor (software)

ON

OFF

ON

ON

(see page 19-74)

67

Brake pedal position switch (hardware)

OFF

OFF

ON

ON

(see page 19-75)

68

Brake pedal position switch (software)

OFF

OFF

ON

ON

(see page 19-76)

72

Steering angle sensor

OFF

OFF

ON

ON

(see page 19-78)

73

Yaw rate sensor (power supply)

OFF

OFF

ON

ON

(see page 19-78)

74

Yaw rate sensor (software)

OFF

OFF

ON

ON

(see page 19-79)

75

Lateral acceleration sensor (joint failure)

OFF

OFF

ON

ON

(see page 19-79)

76

Lateral acceleration sensor (software)

OFF

OFF

ON

ON

(see page 19-80)

81

Central Processing Unit (CPU)

ON

OFF

ON

ON

(see page 19-81)

84

Steering angle sensor No center point writing

OFF

OFF

ON

ON

(see page 19-81)

91

F-CAN communication

OFF

OFF

ON

ON

(see page 19-82)

92

F-CAN system

OFF

OFF

ON

ON

(see page 19-84)

97

VSA system

OFF

OFF

ON

ON

(see page 19-84)

: Brake system indicator turns ON when 3 or more wheels fail.

SJC8A00D52100000000HBAT00

Symptom

Diagnostic procedure

Also check for

19-43

Symptom Troubleshooting Index

ABS indicator does not come on

Symptom Troubleshooting (see page 19-85)

ABS indicator does not go off, and no
DTCs are stored

Symptom Troubleshooting (see page 19-85)

Brake system indicator does not come on

Symptom Troubleshooting (see page 19-86)

Brake system indicator does not go off,
and no DTCs are stored

Symptom Troubleshooting (see page 19-87)

VSA indicator does not come on

Symptom Troubleshooting (see page 19-88)

VSA indicator does not go off, and no
DTCs are stored

Symptom Troubleshooting (see page 19-88)

VSA activation indicator does not come on
at start-up (bulb check)

Symptom Troubleshooting (see page 19-89)

VSA activation indicator does not go off,
and no DTCs are stored

Symptom Troubleshooting (see page 19-90)

―――

―――

―――

―――

―――

―――

―――

―――

―――

―――

―――

―――

―――

―――

―――

01

SJC8A00D52100000000CAAT00

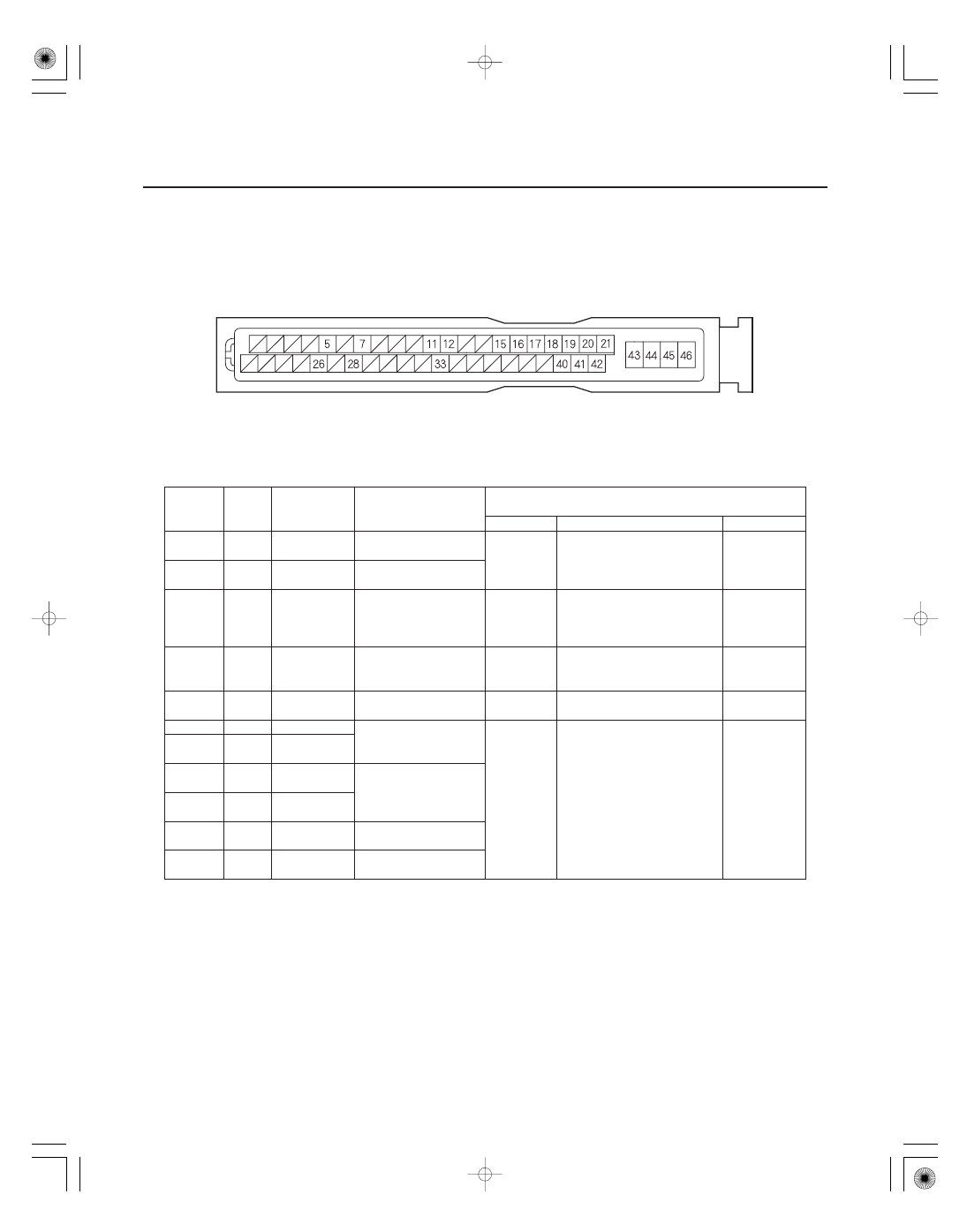

VSA Modulator-Control Unit Inputs and Outputs

Terminal

number

Wire

color

Terminal

sign

Description

Measurement (Disconnect the VSA

modulator-control unit 46P connector)

Terminal

Conditions

Voltage

19-44

VSA System Components

System Description

5

GRY/

RED

RRP

Sends right-rear
wheel speed

7

GRY/

YEL

RLP

Sends left-rear wheel
speed

11

YEL/

BLK

S-GND

Ground for yaw rate-
lateral acceleration
sensor and steering
angle sensor

12

RED

CAN-L

F-CAN
communication
circuit

15

LT

BLU

K-LINE

Communicates with
HDS

16

BLU

FR-GND

Detects right-front
wheel sensor signal

17

GRN/

BLK

FR

B

18

BLU/

YEL

RR-GND

Detects right-rear
wheel sensor signal

19

GRN/

YEL

RR

B

20

YEL/

RED

RL

B

Detects left-rear
wheel sensor signal

21

BRN/

WHT

FL-GND

Detects left-front
wheel sensor signal

Wire side of female terminals
