19-33

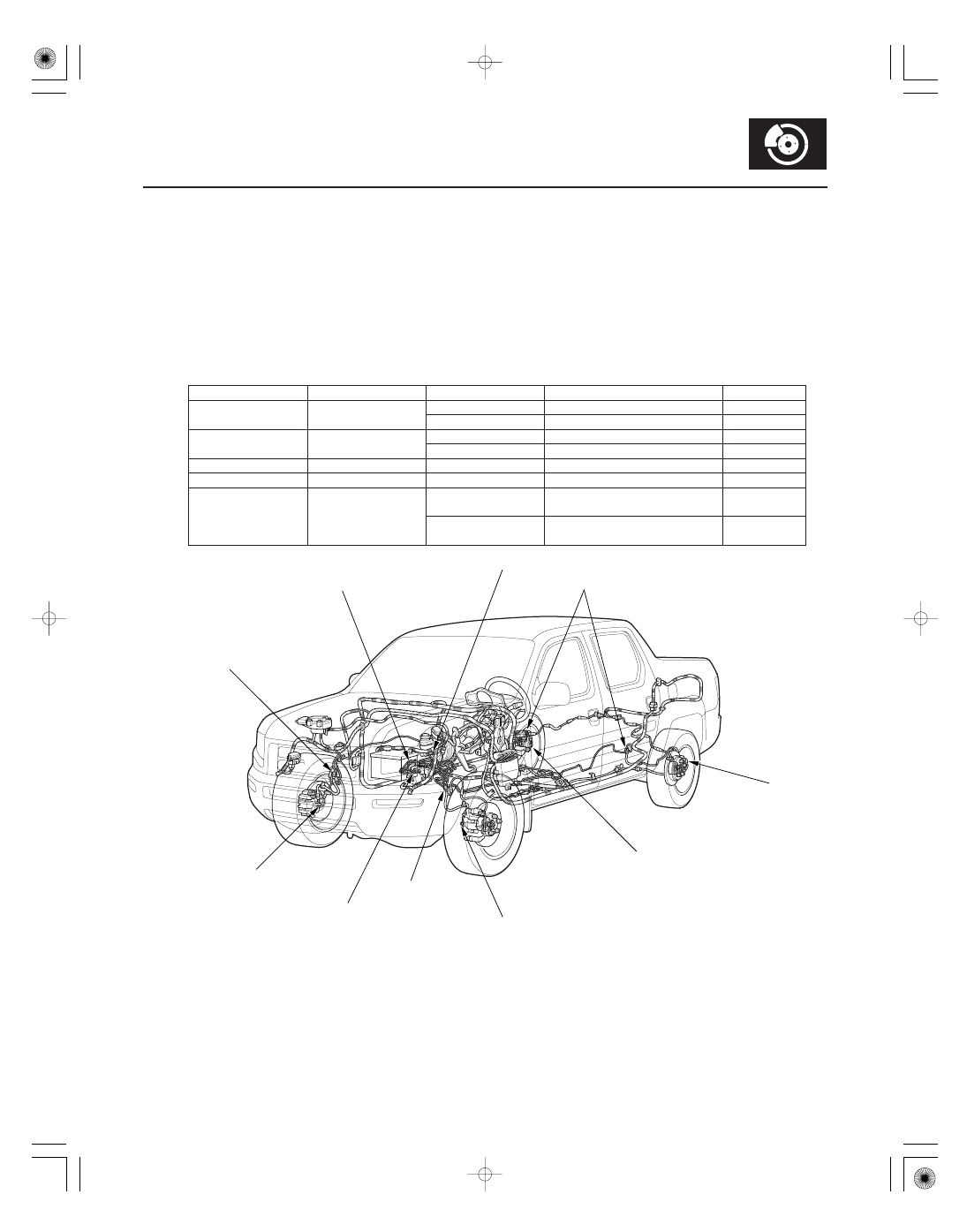

Brake Hose and Line Inspection

A

B

C

D

E

A

E

C

C

B

1. Inspect the brake hoses for damage, deterioration, leaks, interference, and twisting.

2. Check the brake lines for damage, rusting, and leaks. Also check for bent brake lines.

3. Check for leaks at hose and line joints and connections, and retighten if necessary.

4. Check the master cylinder and VSA modulator-control unit for damage and leaks.

NOTE: Replace the brake hose clip whenever the brake hose is serviced.

A

Front brake caliper

Brake hose

34 N·m (3.5 kgf·m, 25 lbf·ft)

Banjo bolt

Bleed screw

9.0 N·m (0.9 kgf·m, 7.0 lbf·ft)

B

Rear brake caliper

Brake hose

34 N·m (3.5 kgf·m, 25 lbf·ft)

Banjo bolt

Bleed screw

9.0 N·m (0.9 kgf·m, 6.5 lbf·ft)

C

Brake hose

Brake line

15 N·m (1.5 kgf·m, 11 lbf·ft)

Flare nut

D

Master cylinder

Brake line

35 N·m (3.6 kgf·m, 26 lbf·ft)

Flare nut

E

VSA modulator-
control unit

Brake line
(14 mm nut)

30 N·m (3.1 kgf·m, 22 lbf·ft)

Flare nut

Brake line
(10 mm nut)

15 N·m (1.5 kgf·m, 11 lbf·ft)

Flare nut

01

02

03

04

SJC8A00D14300014751KBAT00

19-34

Conventional Brake Components

Brake Hose Replacement

A

B

C

A

B

C

C
10 x 1.0 mm
34 N·m
(3.5 kgf·m,
25 lbf·ft)

B
8 x 1.25 mm
22 N·m
(2.2 kgf·m,
16 lbf·ft)

A

D

D
10 x 1.0 mm
15 N·m
(1.5 kgf·m,
11 lbf·ft)

A

B

C

NOTE:

• Before reassembling, check that all parts are free of

dirt and other foreign particles.

• Replace parts with new ones whenever specified to

do so.

• Do not spill brake fluid on the vehicle; it may damage

the paint; if brake fluid gets on the paint, wash it off
immediately with water.

• To prevent the brake fluid from flowing, plug and

cover the hose ends and joints with a shop towel or
equivalent material.

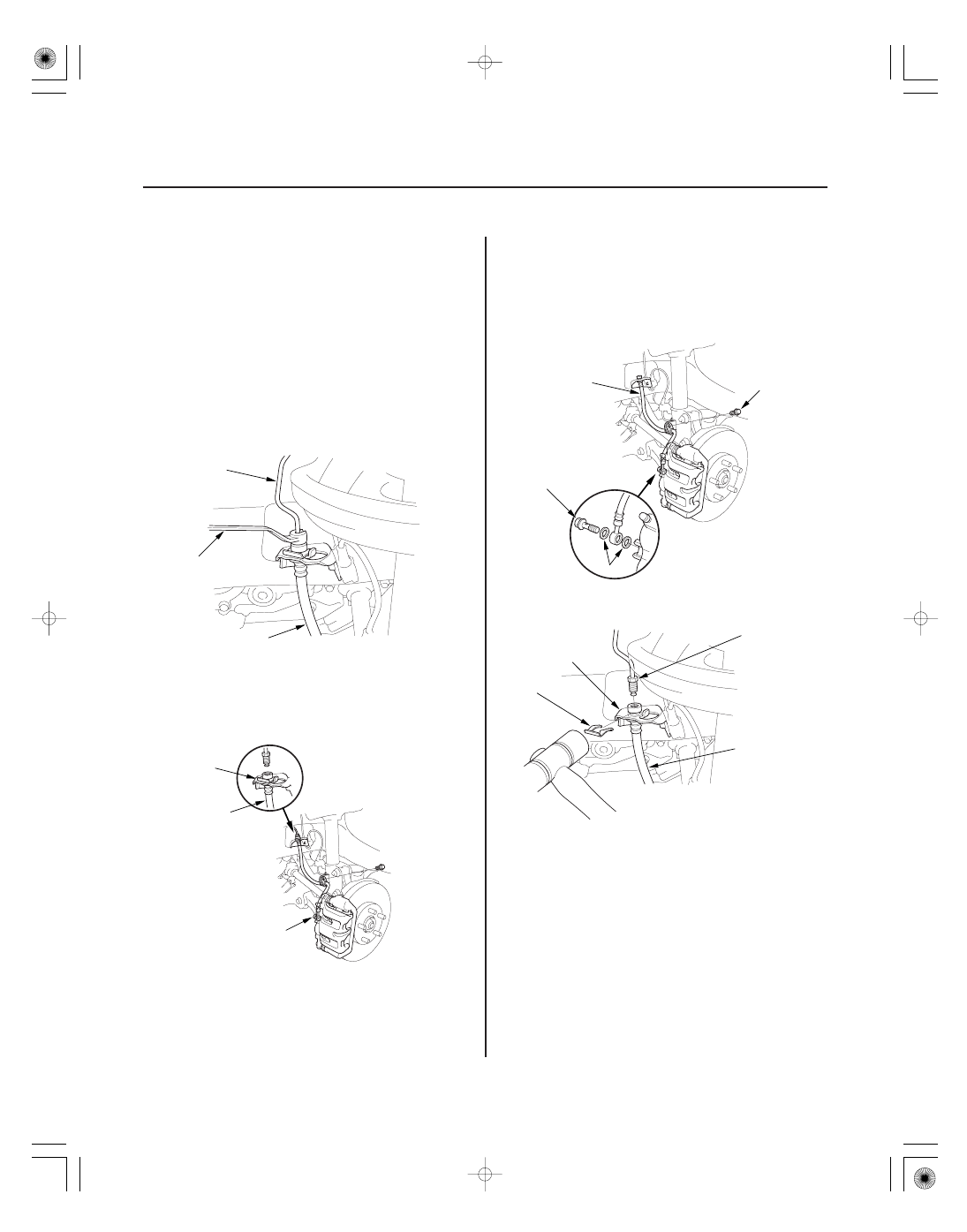

1. Replace the brake hose (A) if the hose is twisted,

cracked, or leaking.

2. Disconnect the brake hose from the brake line (B)

using a 10 mm flare-nut wrench (C).

3. Remove and discard the brake hose clip (A) from

the brake hose (B).

4. Remove the banjo bolt (C), and disconnect the

brake hose from the caliper.

5. Remove the brake hose from the damper bracket.

6. Install the brake hose (A) on the damper bracket

with flange bolt (B) first, then connect the brake
hose to the caliper with the banjo bolt (C) and new
sealing washers (D).

7. Install the brake hose (A) on the upper brake hose

bracket (B) with a new brake hose clip (C).

8. Connect the brake line (D) to the brake hose.

9. After installing the brake hose, bleed the brake

system (see page 19-9).

10. Do the following check:

• Check the brake hose and line joint for leaks, and

tighten if necessary.

• Check the brake hoses for interference and

twisting.

01

SJC8A00D00060845111KBAT00

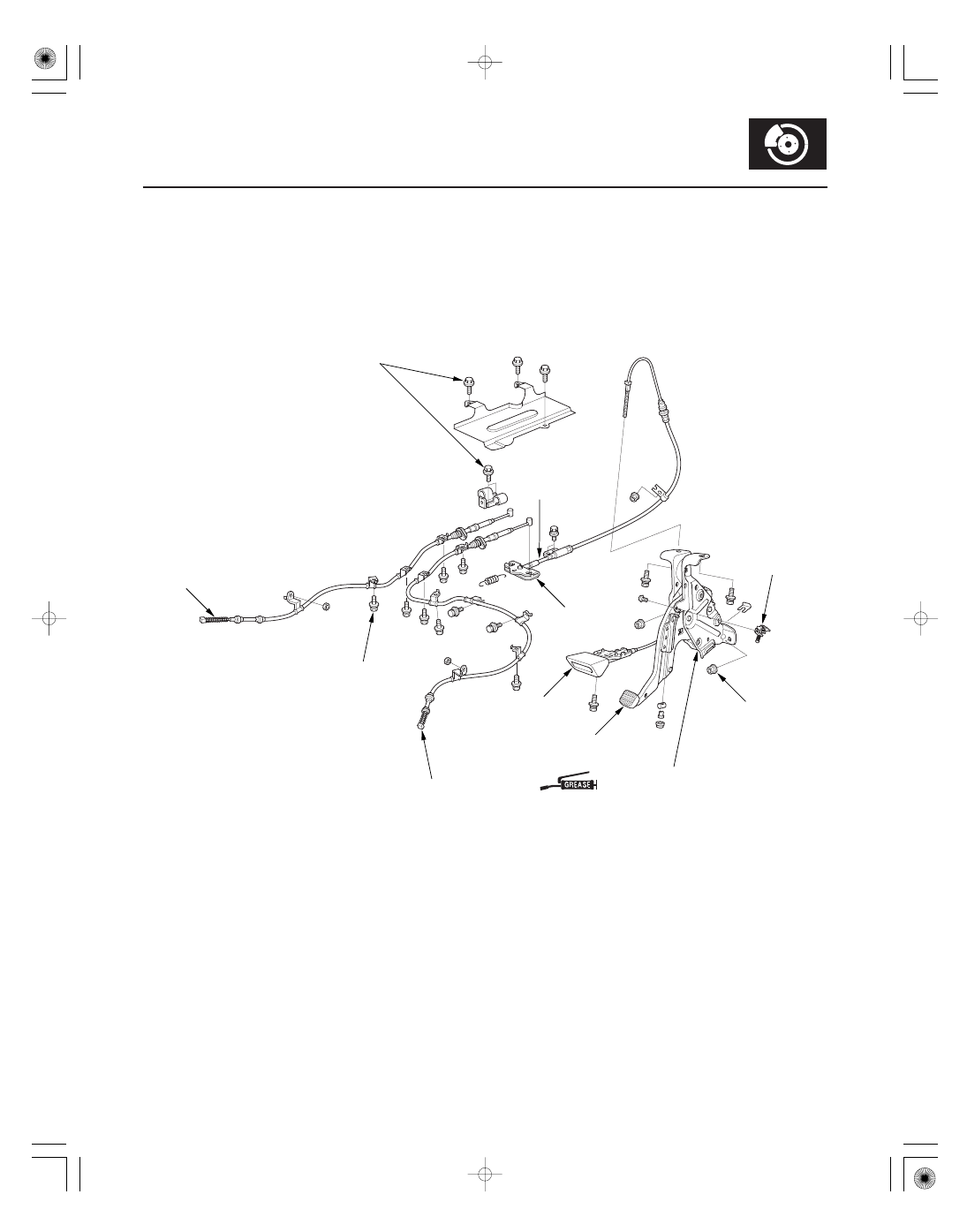

Exploded View

19-35

Parking Brake Cable Replacement

8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)

PARKING BRAKE
CABLE A

EQUALIZER

8 x 1.25 mm
22 N·m
(2.2 kgf·m,
16 lbf·ft)

PARKING
BRAKE SWITCH

FLANGE NUT
8 x 1.25 mm
22 N·m
(2.2 kgf·m,
16 lbf·ft)

PARKING BRAKE
PEDAL ASSEMBLY

PARKING BRAKE PEDAL

PARKING BRAKE
RELEASE LEVER

RIGHT PARKING
BRAKE CABLE

LEFT PARKING
BRAKE CABLE

Multipurpose
(Sliding surface)

(cont’d)

Check for faulty
movement.

Check for smooth
operation.

Check for faulty
movement.

Check for faulty
movement.

02

19-36

Conventional Brake Components

Parking Brake Cable Replacement (cont’d)

B

C

A

NOTE: The parking brake cable must not be bent or
distorted. This will lead to stiff operation and premature
cable failure. Refer to the Exploded View as needed
during this procedure.

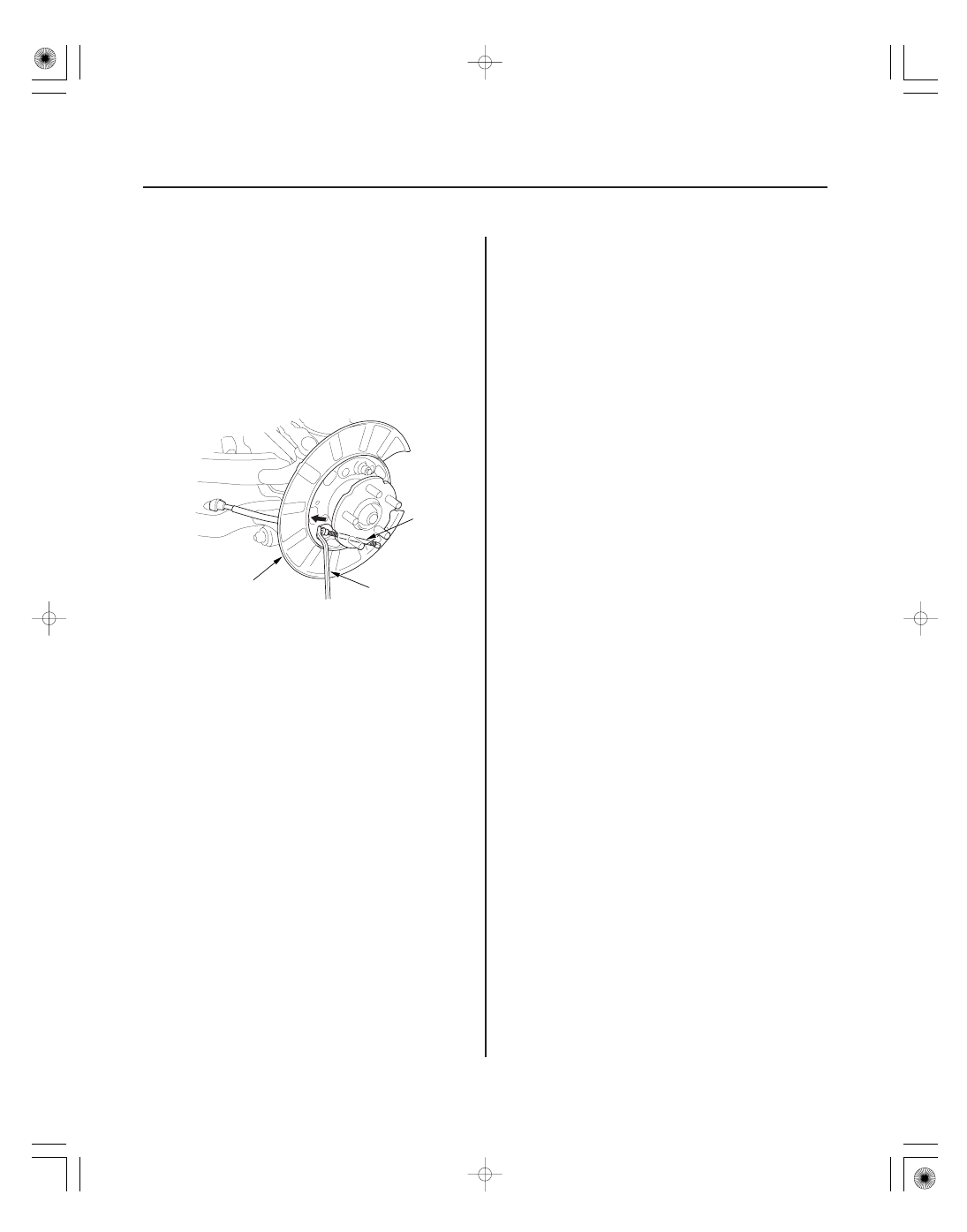

1. Remove the parking brake shoes, and disconnect

the parking brake cable from the brake shoe
(see page 19-28).

2. Remove the parking brake cable (A) from the

backing plate (B) using a 12 mm offset wrench (C).

3. Install the parking brake cable in the reverse order

of removal, and adjust the parking brake (see page
19-7). Apply the parking brake firmly ten times,
then adjust it again.
