Honda Ridgeline. Manual - part 315





01

02

SJC8A00B54175159627KBAT00

Front

Rear

18-85

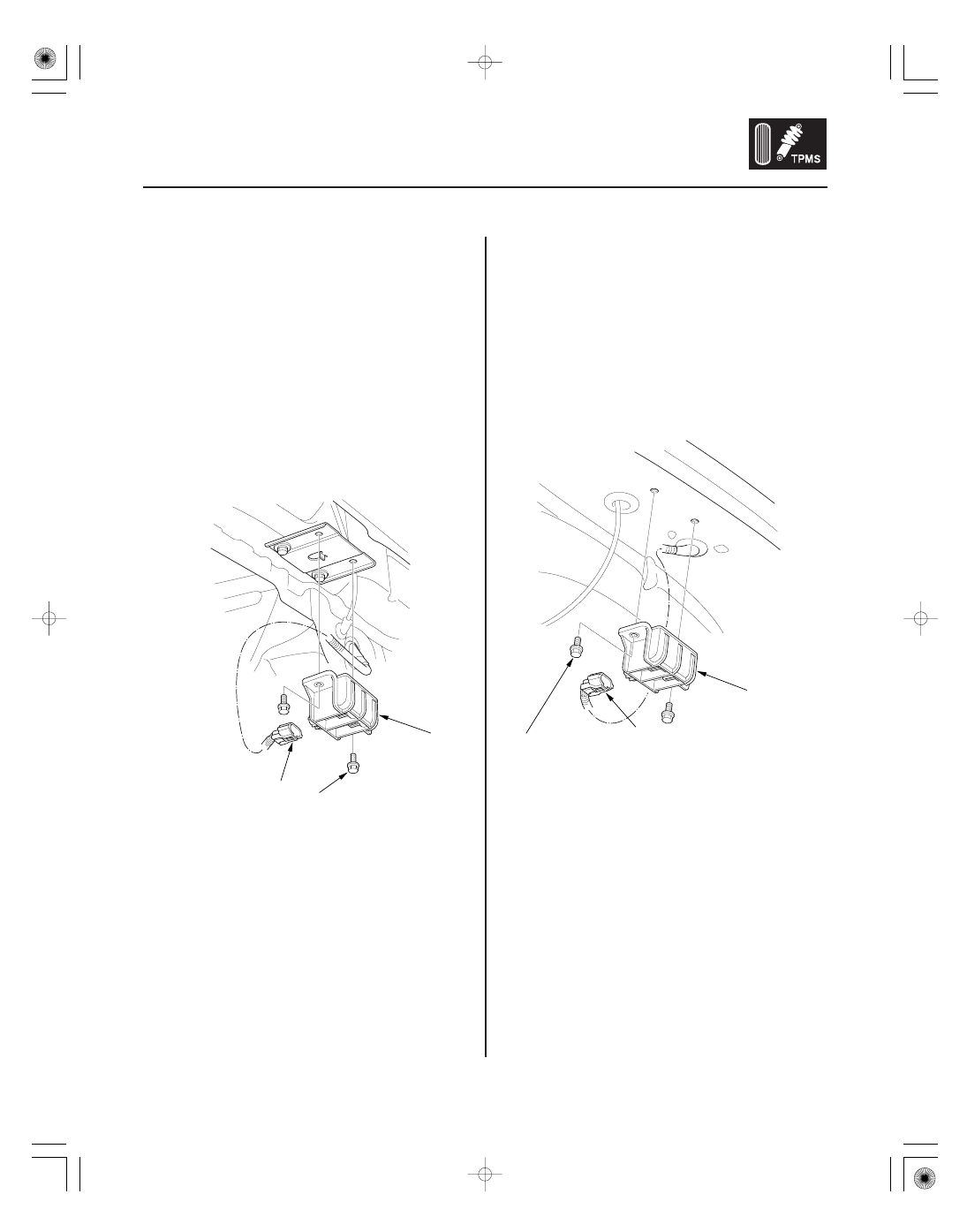

Initiator Replacement

6 x 1.0 mm
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

B

A

6 x 1.0 mm
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

A

B

NOTE: Make sure the initiator mounting bracket is not
bent or twisted as this may affect its communication
with the TPMS control unit and the tire pressure sensor.

1. Make sure the ignition switch is OFF.

2. Raise the front of the vehicle, and support it with

safety stands in the proper locations (see page
1-10).

3. Remove the front wheel.

4. Remove the front inner fender (see page 20-178).

5. Disconnect the initiator connector (A).

6. Remove the initiator (B) from the inner side of the

wheel well.

7. Install the initiator in the reverse order of removal.

1. Make sure the ignition switch is OFF.

2. Raise the rear of the vehicle, and support it with

safety stands in the proper locations (see page
1-10).

3. Remove the rear wheel.

4. Remove the rear inner fender (see page 20-181).

5. Disconnect the initiator connector (A).

6. Remove the initiator (B) from the inner side of the

wheel well.

7. Install the initiator in the reverse order of removal.

01

02

03

SJC8A00B54175159634KBAT00

Removal

18-86

TPMS

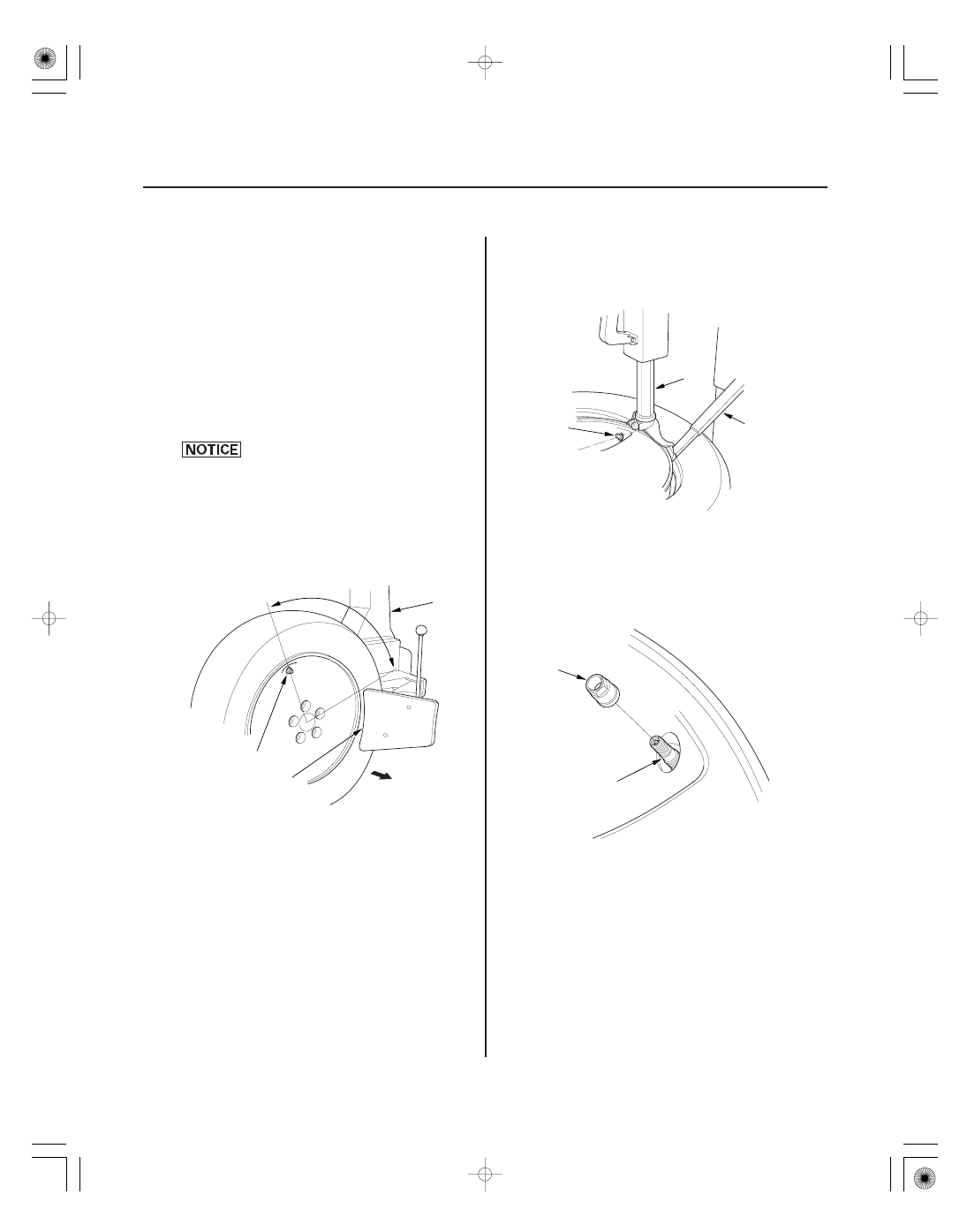

Tire Pressure Sensor Replacement

A

C

B

OUTSIDE

A

B

C

A

B

90 °

1. Raise the vehicle, and support it with safety stands

in the proper locations (see page 1-10).

2. Remove the wheel with the faulty sensor.

3. Remove the tire valve cap and the valve core, and

let the tire deflate.

4. Remove any balance weights, and then break the

bead loose from the wheel with a commercially
available tire changer (A).

Note these items to avoid damaging the tire
pressure sensor:

• Do the outside of the wheel first.
• Position the wheel as shown so the valve

stem (B) is 90 degrees from the bead
breaker (C) as shown.

• Do not position the bead breaker of the tire

changer too close to the rim.

5. Position the wheel so the tire machine (A) and tire

iron (B) are next to the valve stem (C) and will move
away from it when the machine starts. Then
remove the tire from the wheel.

6. Remove and discard the valve stem nut (A), then

remove the tire pressure sensor and valve stem (B)
from the wheel.

NOTE: Use a new nut and a new valve stem on
reassembly.

04

05

06

Installation

18-87

C

B

D

A

Aluminum wheel

Steel wheel

A

B

C

B

A

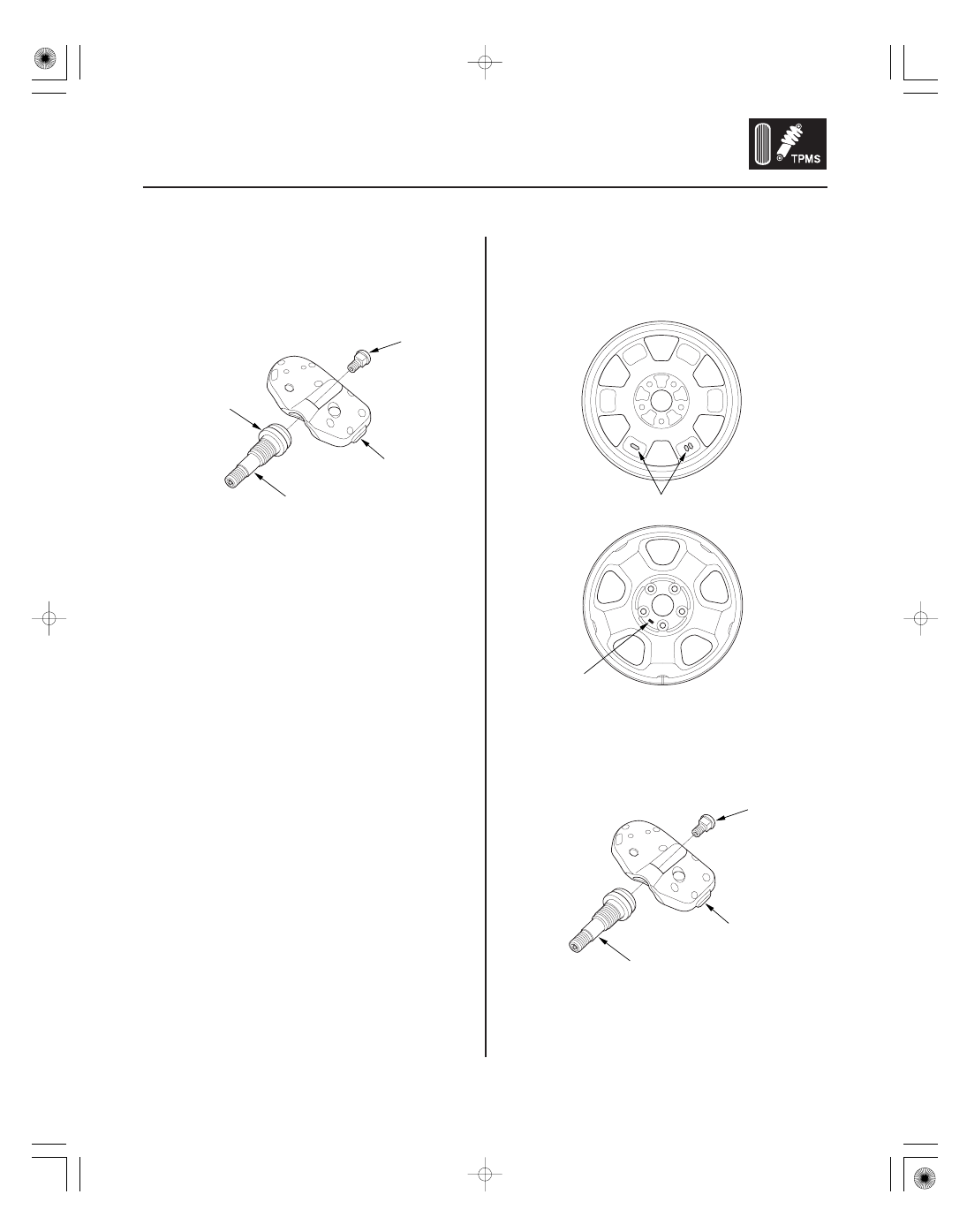

7. Remove and discard the valve stem (A), and the

screw (B) from the tire pressure sensor (C).

NOTE: The valve stem grommet (D) might stay in
the wheel; make sure you remove it.

NOTE: Use only wheels that have counterweights (A) or
a ‘‘SJC’’ stamp (B) on them.

1. Assemble the new valve stem (A), new screw (B),

and the sensor-transmitter (C).

NOTE: Always use a new valve stem and new
screw.

(cont’d)

07

08

18-88

TPMS

Tire Pressure Sensor Replacement (cont’d)

C
4 N·m
(0.4 kgf·m, 3 lbf·ft)

WHEEL CENTER

OUTSIDE

A

B

D

E

A

B

C

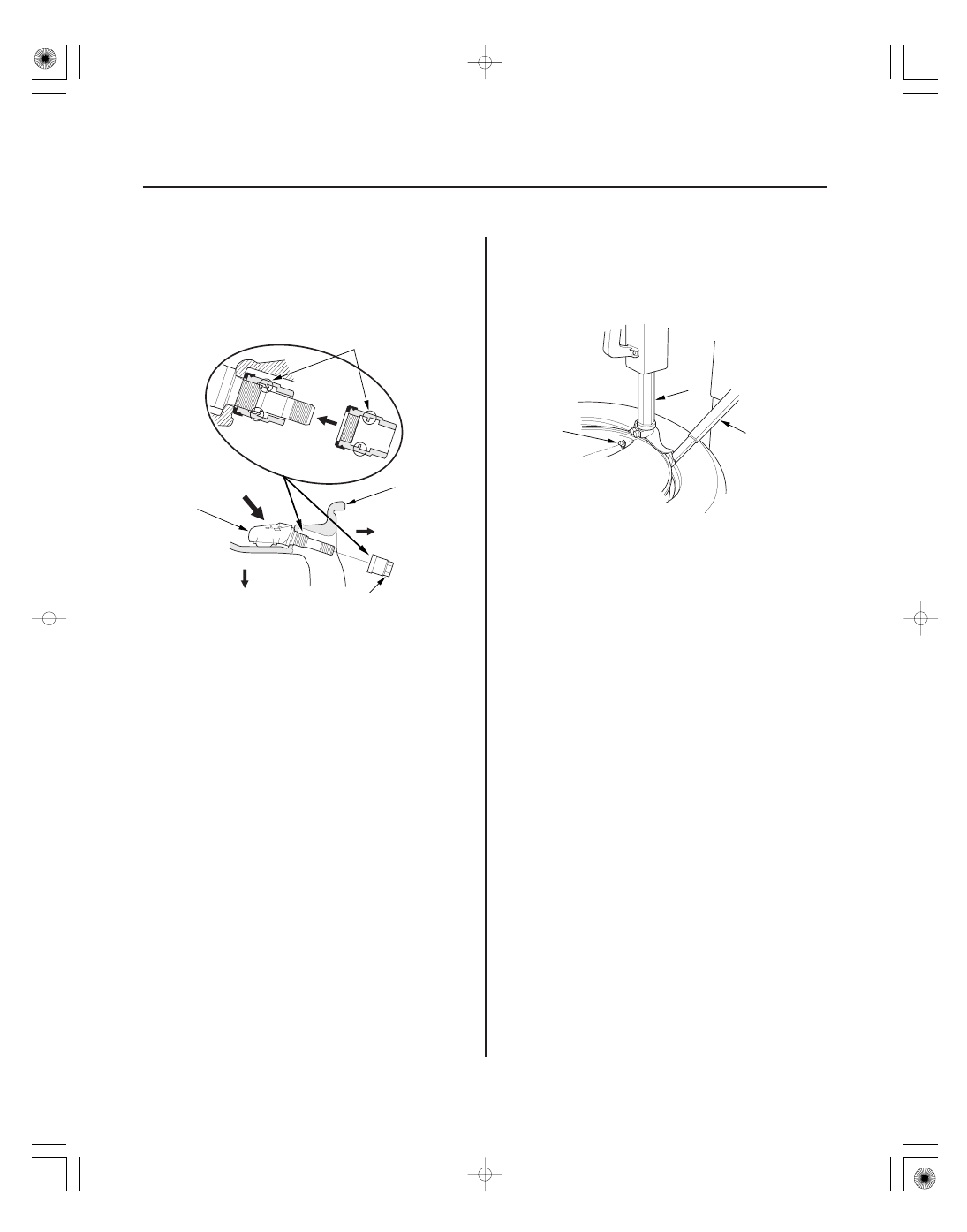

2. Before installing the tire pressure sensor, clean the

mating surfaces on the sensor and the wheel.

3. Install the tire pressure sensor (A) to the wheel (B),

and tighten the valve nut (C) finger tight. Make sure
the pressure sensor is resting on the wheel.

4. Tighten the valve nut to the specified torque while

holding the tire pressure sensor toward (D) the
wheel. You may hear a snap or pop as you tighten
the nut. This is normal.

NOTE:

• Do not reuse any nut that has been tightened,

even one time, to the specified torque, as it is
deformed inside (E).

• Do not use air or electric impact tools to tighten a

valve stem nut.

• Tightening the nut above the specified torque

can damage the nut.

• Make sure that there is no space between the

sensor and the wheel.

5. Lube the tire bead, and position the wheel so the

tire machine (A) and tire iron (B) are next to the
valve stem (C) and will move away from it when
the machine starts. Then install the tire onto the
wheel.

6. Inflate the tire to 300 kPa (3.1 kgf/cm , 44 psi) to seat

the tire bead to the rim, then adjust the tire
pressure to 220 kPa (2.2 kgf/cm , 32 psi), and install
the valve stem cap.

NOTE: Make sure the tire bead is seated on both
sides of the rim uniformly.

7. Check and adjust the wheel balance, then install the

wheels on the vehicle. Torque the wheels to
specifications.

8. Remove the jack stands, and lower the jack.

9. Connect the HDS and memorize the pressure

sensor ID(s) (see page 18-51).
