Honda Ridgeline. Manual - part 304





02

SJC8A00B44100019102MEAT00

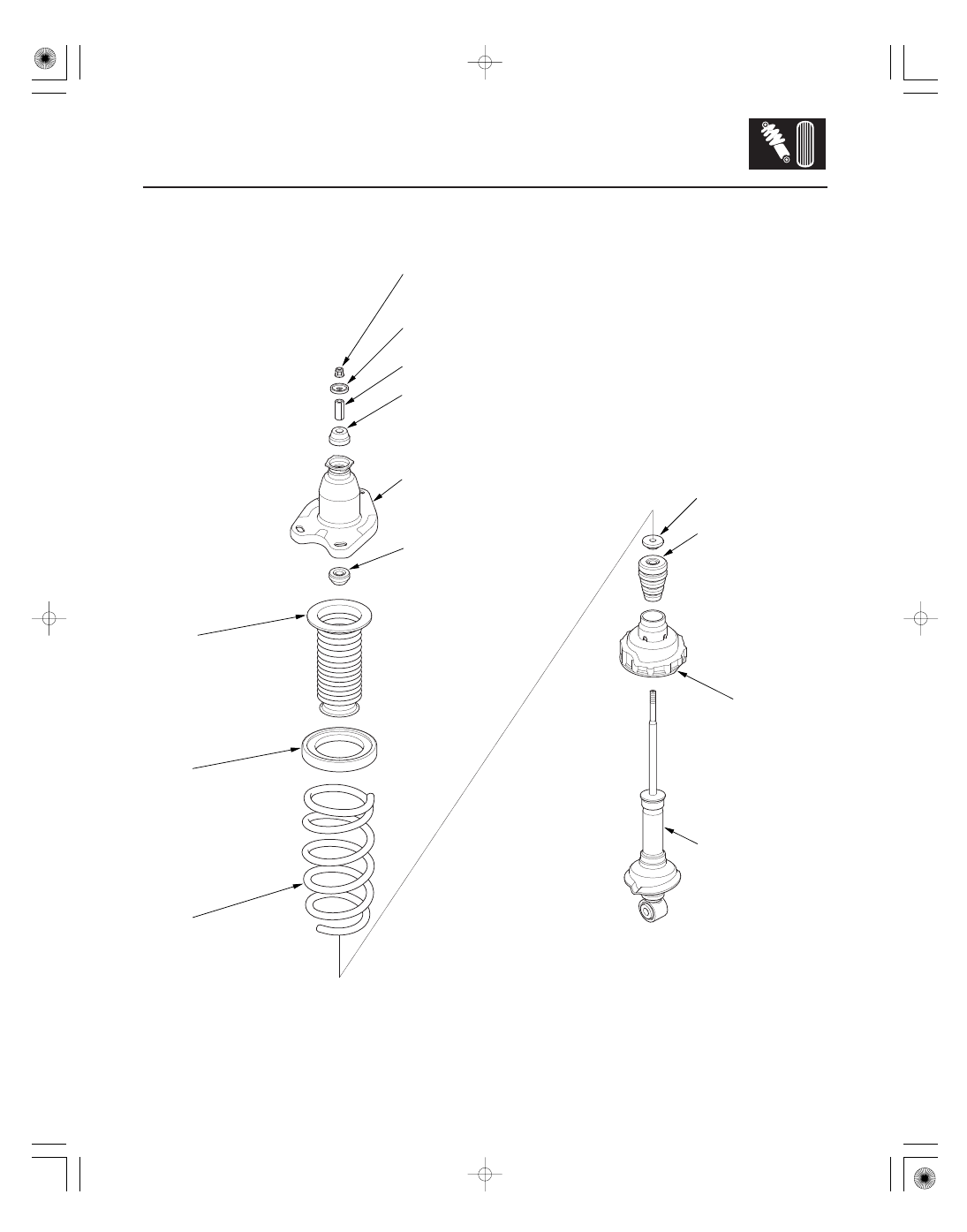

Exploded View

18-41

Damper/Spring Disassembly, Inspection, and Reassembly

SELF-LOCKING NUT
10 x 1.25 mm
29 N·m (3.0 kgf·m, 22 lbf·ft)

DAMPER MOUNTING WASHER

DAMPER MOUNTING COLLAR

RUBBER BUSHING

DAMPER MOUNTING BASE

RUBBER BUSHING

DUST COVER

SPRING MOUNTING
CUSHION

DAMPER SPRING

DAMPER UNIT

BUMP STOP PLATE

BUMP STOP

LOWER SEAT COVER

(cont’d)

Replace.

Check for bending and damage.

Check for weakness and damage.

Check for deformation.

Check for weakness and damage.

Check for bending
and damage.

Check for deterioration
and damage.

Check for weakened
compression and damage.

Check for oil leaks,
gas leaks, and
smooth operation.

Check for weakness
and damage.

03

04

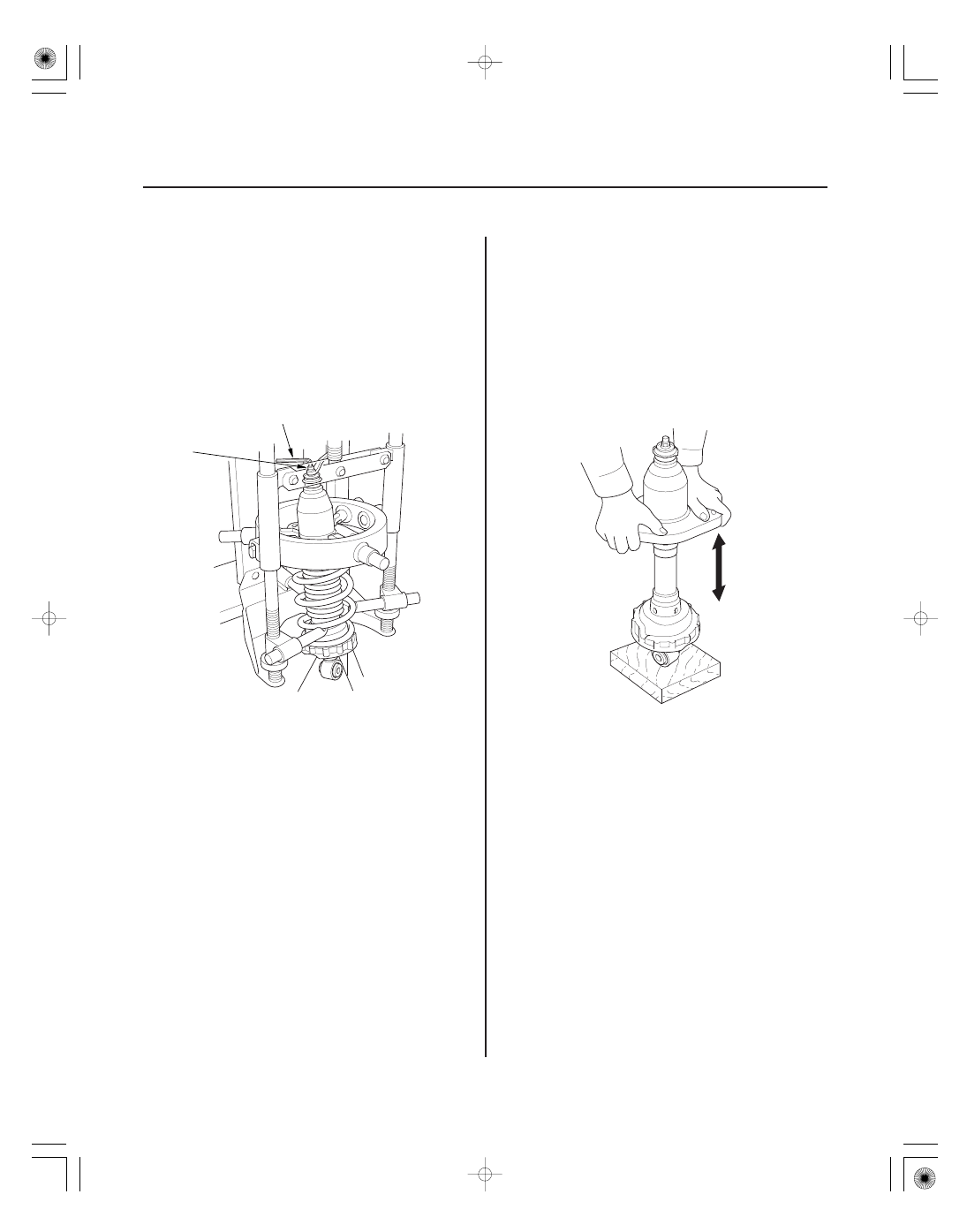

Disassembly

Inspection

18-42

Rear Suspension

Damper/Spring Disassembly, Inspection, and Reassembly (cont’d)

A
10 x 1.25 mm

B

NOTE: When compressing the damper spring, use a
commercially available strut spring compressor
(Branick MST-580A or Model 7200, or equivalent)
according to the manufacturer’s instructions.

1. Compress the damper spring, then remove the

self-locking nut (A) while holding the damper shaft
with a hex wrench (B). Do not compress the spring
more than necessary to remove the nut.

2. Release the pressure from the strut spring

compressor, then disassemble the damper as
shown in the Exploded View.

1. Reassemble all the parts, except for the dust cover,

the bump stop, the spring mounting cushion, and
the spring.

2. Compress the damper assembly by hand, and

check for smooth operation through a full stroke,
both compression and extension. The damper
should extend smoothly and constantly when
compression is released. If it does not, the gas is
leaking and the damper should be replaced.

3. Check for oil leaks, abnormal noises, and binding

during these tests.

05

01

07

±

±

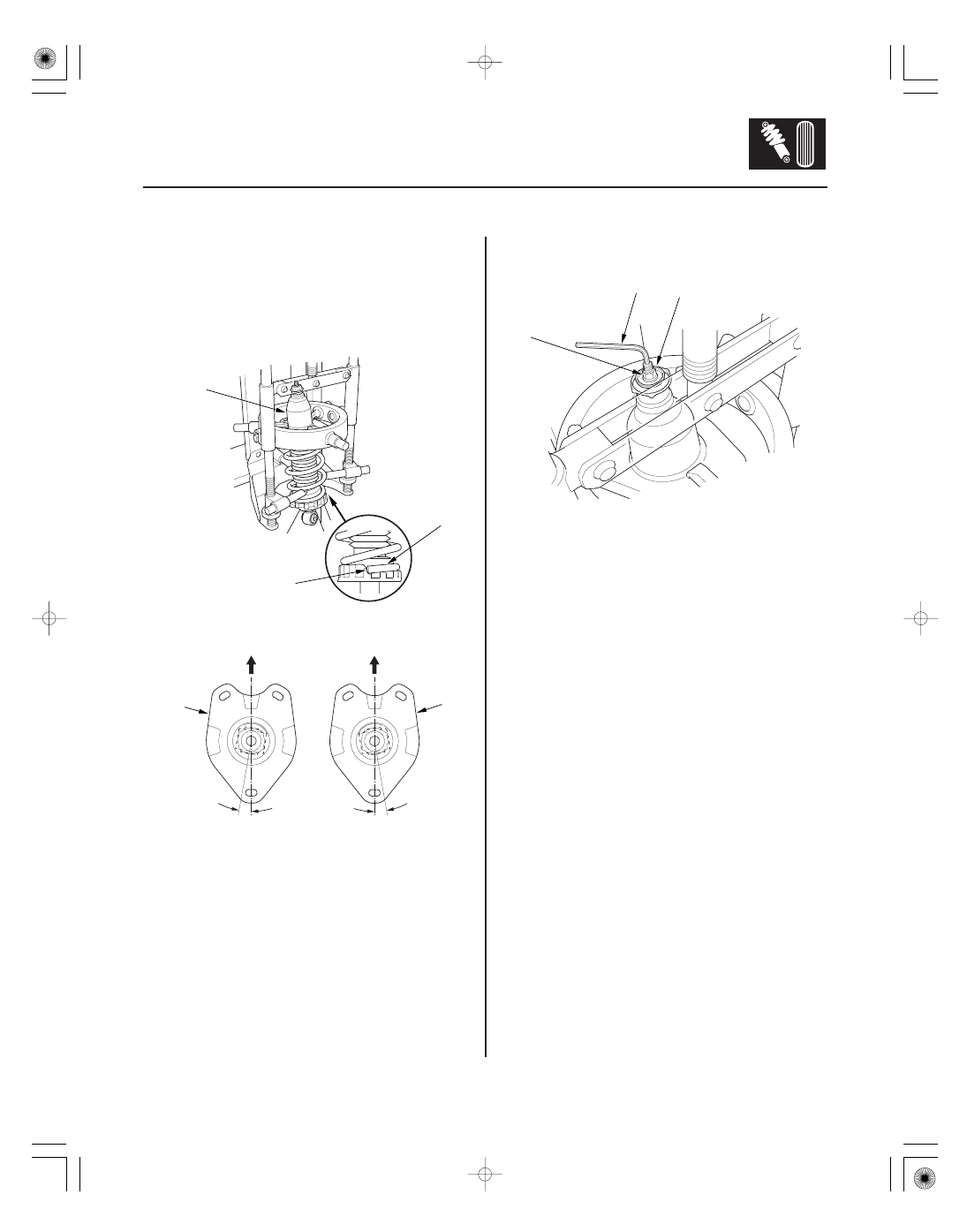

Reassembly

18-43

A

B

C

FRONT

FRONT

10 °

3 °

10 °

3 °

D

D

Left:

Right:

B
10 x 1.25 mm
29 N·m
(3.0 kgf·m, 22 lbf·ft)

C

A

1. Compress the damper spring.

2. Install all parts except the damper mounting

washer and self-locking nut onto the damper unit
(A) by referring to the Exploded View.

3. Align the bottom of the spring (B) and the stepped

part of the lower spring seat (C), and align the
damper mounting base (D) as shown.

4. Install the damper mounting washer (A) and

loosely install a new self-locking nut (B).

5. Hold the damper shaft using a hex wrench (C), and

tighten the self-locking nut to the specified torque
value.

SJC8A000000000J1801ZAAT03
