SJC8A000000000J1801ZCAT00

Suspension

Front and Rear Suspension

Front Suspension

Rear Suspension

.....

.....

TPMS (Tire Pressure Monitoring System)

. 18-45

................................................................

........................................

.........................................................

...........................

...........................................

............................................

......................................................

................................................................

........................................

.........................................................

...........................

...........................................

............................................

......................................................

Special Tools

. 18-2

Component Location Index

. 18-3

Wheel Alignment

. 18-5

Wheel Bearing End Play Inspection

. 18-8

Wheel Runout Inspection

. 18-9

Wheel Bolt Replacement

. 18-10

Ball Joint Removal

. 18-11

...............

......................................

...............................

..........................

........................................

.................

...................................

...............

......................................

...............................

..........................

........................................

.................

...................................

Knuckle/Hub/Wheel Bearing Replacement

. 18-13

Ball Joint Boot Replacement

. 18-18

Lower Arm Removal/Installation

. 18-19

Stabilizer Link Removal/Installation

. 18-20

Stabilizer Bar Replacement

. 18-21

Damper/Spring Removal and Installation

. 18-23

Damper/Spring Disassembly,

Inspection, and Reassembly

. 18-25

...............

...............................

............................
............................

.............................

..........................

........................................

.................

...................................

...............

...............................

............................
............................

.............................

..........................

........................................

.................

...................................

Knuckle/Hub/Wheel Bearing Replacement

. 18-28

Upper Arm Removal/Installation

. 18-34

Lower Arm A Removal/Installation

. 18-35

Lower Arm B Removal/Installation

. 18-36

Trailing Arm Removal/Installation

. 18-37

Stabilizer Link Removal/Installation

. 18-39

Stabilizer Bar Replacement

. 18-39

Damper/Spring Removal and Installation

. 18-40

Damper/Spring Disassembly,

Inspection, and Reassembly

. 18-41

01

01

01

01

01

01

01

01

01

SJC8A000000000J1801PAAT00

Ref. No.

Tool Number

Description

Qty

18-2

Front and Rear Suspension

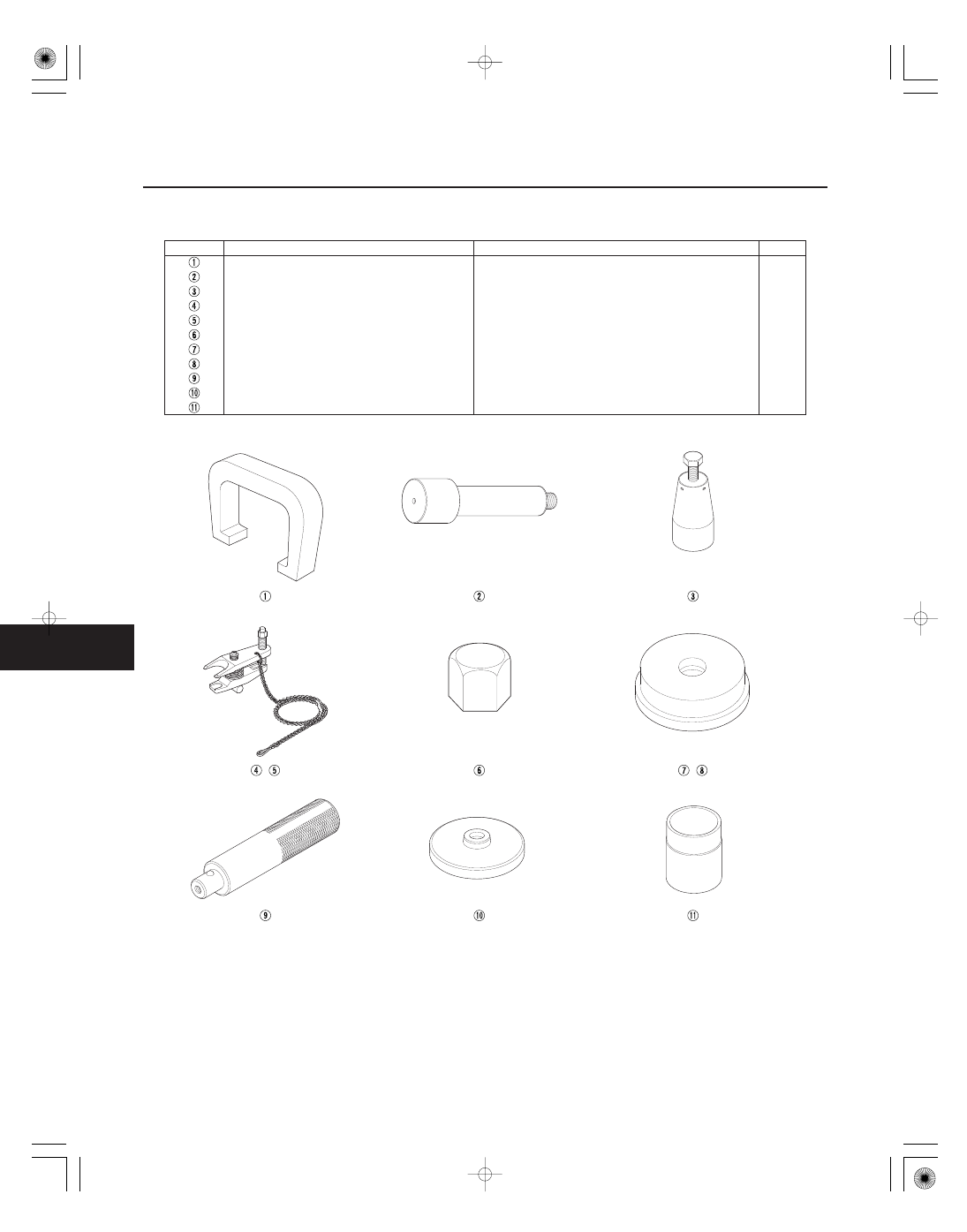

Special Tools

07AAC-SJCA120

Ball Joint Puller

1

07GAF-SD40100

Hub Dis/Assembly Tool

1

07GAG-SD40700

Ball Joint Boot Clip Guide

1

07MAC-SL0A102

Ball Joint Remover, 32 mm

1

07MAC-SL0A202

Ball Joint Remover, 28 mm

1

071AF-S3VA000

Ball Joint Thread Protector, 14 mm

1

07746-0010500

Attachment, 62 x 68 mm

1

07746-0010600

Attachment, 72 x 75 mm

1

07749-0010000

Driver

1

07948-SB00101

Attachment, 96 mm

1

07965-SD90100

Support Base

1

,

,

*01

SJC8A00B20200000000DAAT00

Front Suspension

18-3

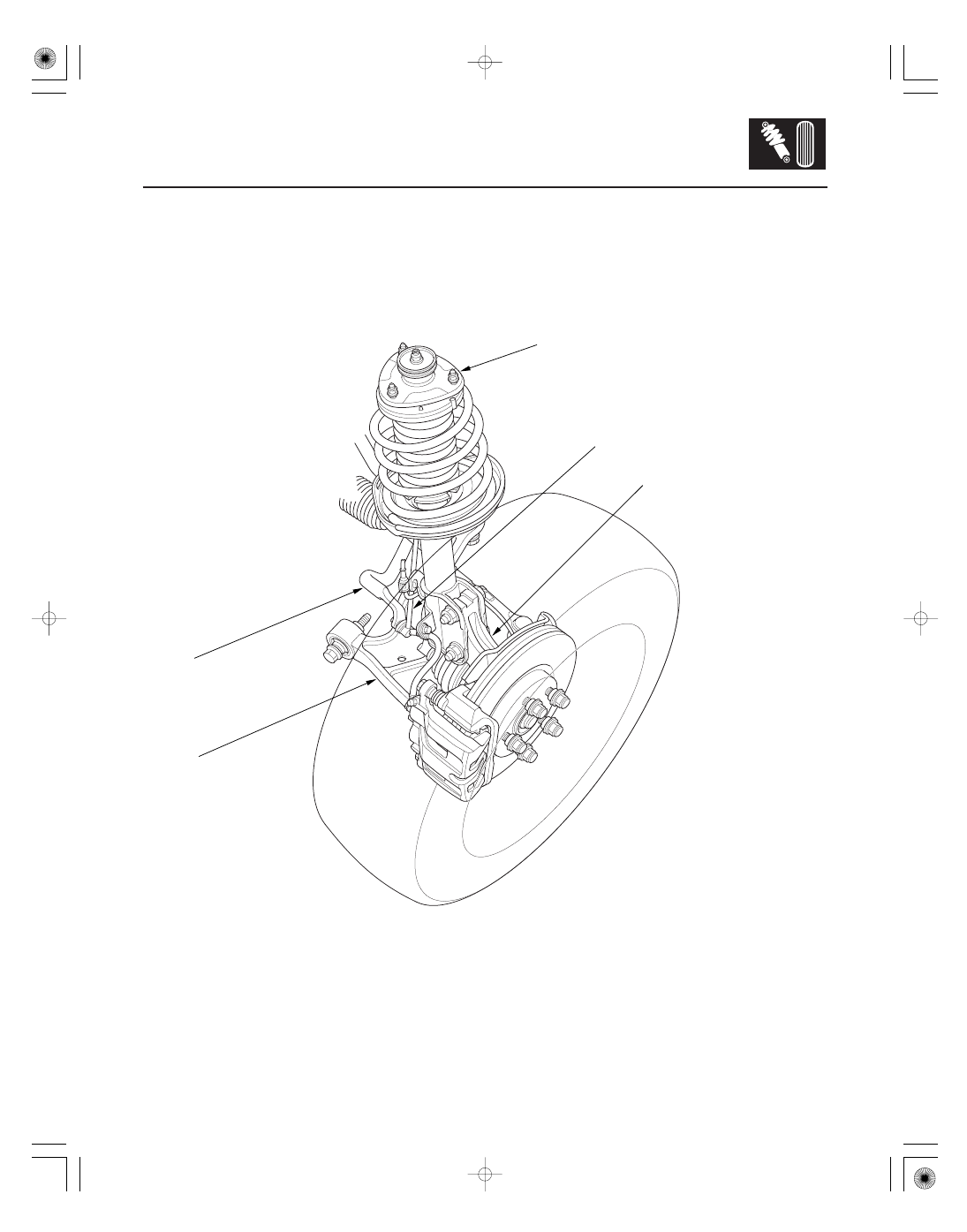

Component Location Index

DAMPER/SPRING

KNUCKLE/
HUB/WHEEL BEARING
(MAGNETIC ENCODER)

STABILIZER LINK

STABILIZER BAR

LOWER ARM

Removal and Installation, page 18-23
Disassembly/Inspection and Reassembly,

page 18-25

Replacement, page 18-13

Removal/Installation, page 18-20

Replacement, page 18-21

Removal/Installation,

page 18-19

*01

SJC8A00B44100000000DAAT00

Rear Suspension

18-4

Front and Rear Suspension

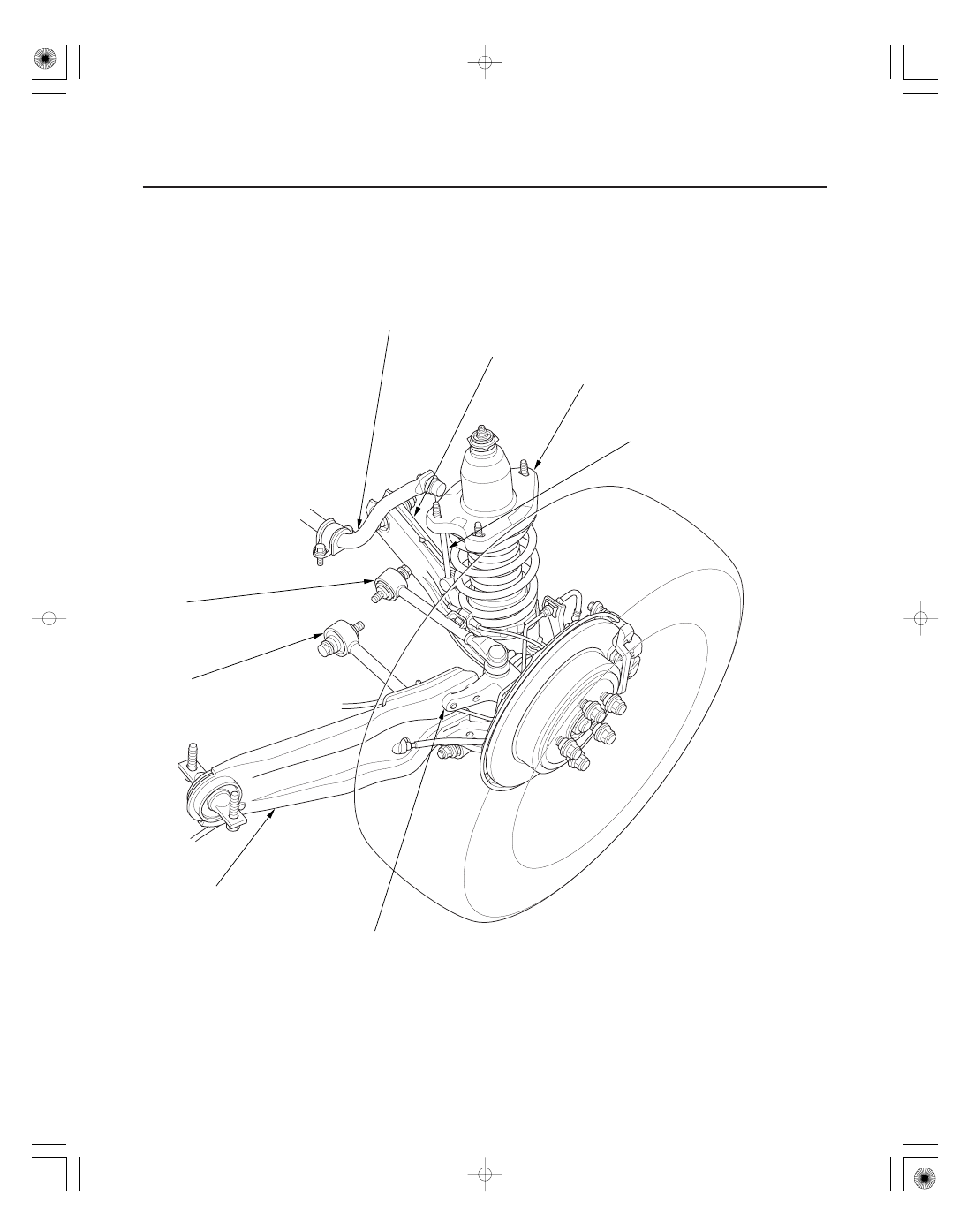

Component Location Index (cont’d)

LOWER ARM A

TRAILING ARM

KNUCKLE/
HUB/WHEEL BEARING
(MAGNETIC ENCODER)

UPPER ARM

DAMPER/SPRING

STABILIZER BAR

LOWER ARM B

STABILIZER LINK

Removal/Installation,

page 18-35

Removal/Installation, page 18-37

Replacement, page 18-28

Removal/Installation,

page 18-34

Removal and Installation, page 18-40
Disassembly, Inspection and Reassembly,

page 18-41

Replacement, page 18-39

Removal/Installation, page 18-36

Removal/Installation,

page 18-39
