Rear Driveshaft Removal (cont’d)

A

B

07AAD-S9VA000

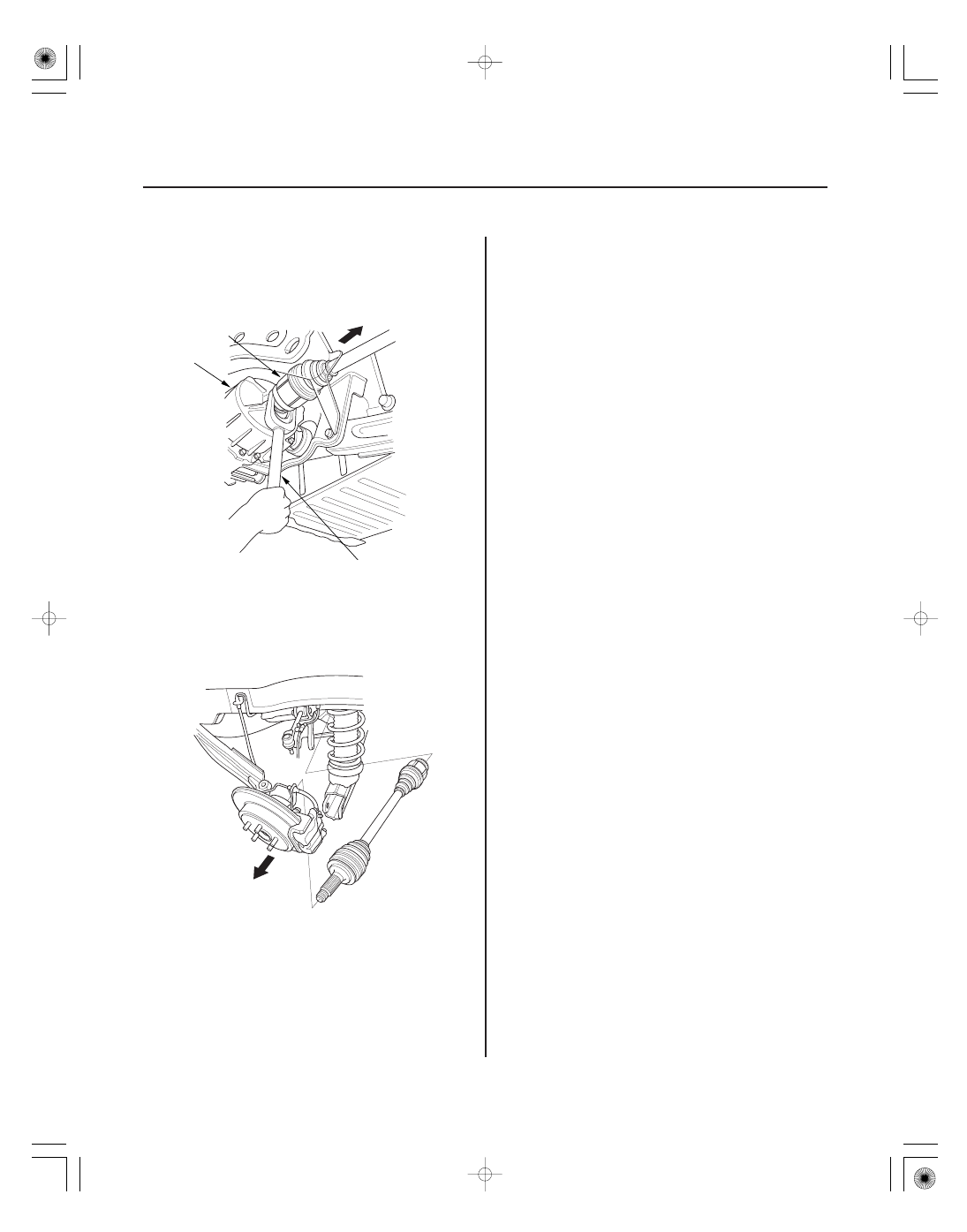

11. Using the special tool, pry out the inboard joint (A)

from the differential (B).

NOTE: This is a prying tool; do not strike it with a
hammer.

12. Remove the rear driveshaft.

NOTE: When removing the outboard joint, the
knuckle is supported with a floor jack. Make sure
not to over extend the brake hose.

01

02

03

04

SJC8A00E16266500000LCAT00

Special Tools Required

Locking tab type

Double loop type

Inboard Joint Side

16-27

Rear Driveshaft Disassembly

A

B

D

C

E

E

D

B

C

A

F

A

C

D

B

E

Threaded adapter, 24 x 1.5 mm 07XAC-001020A

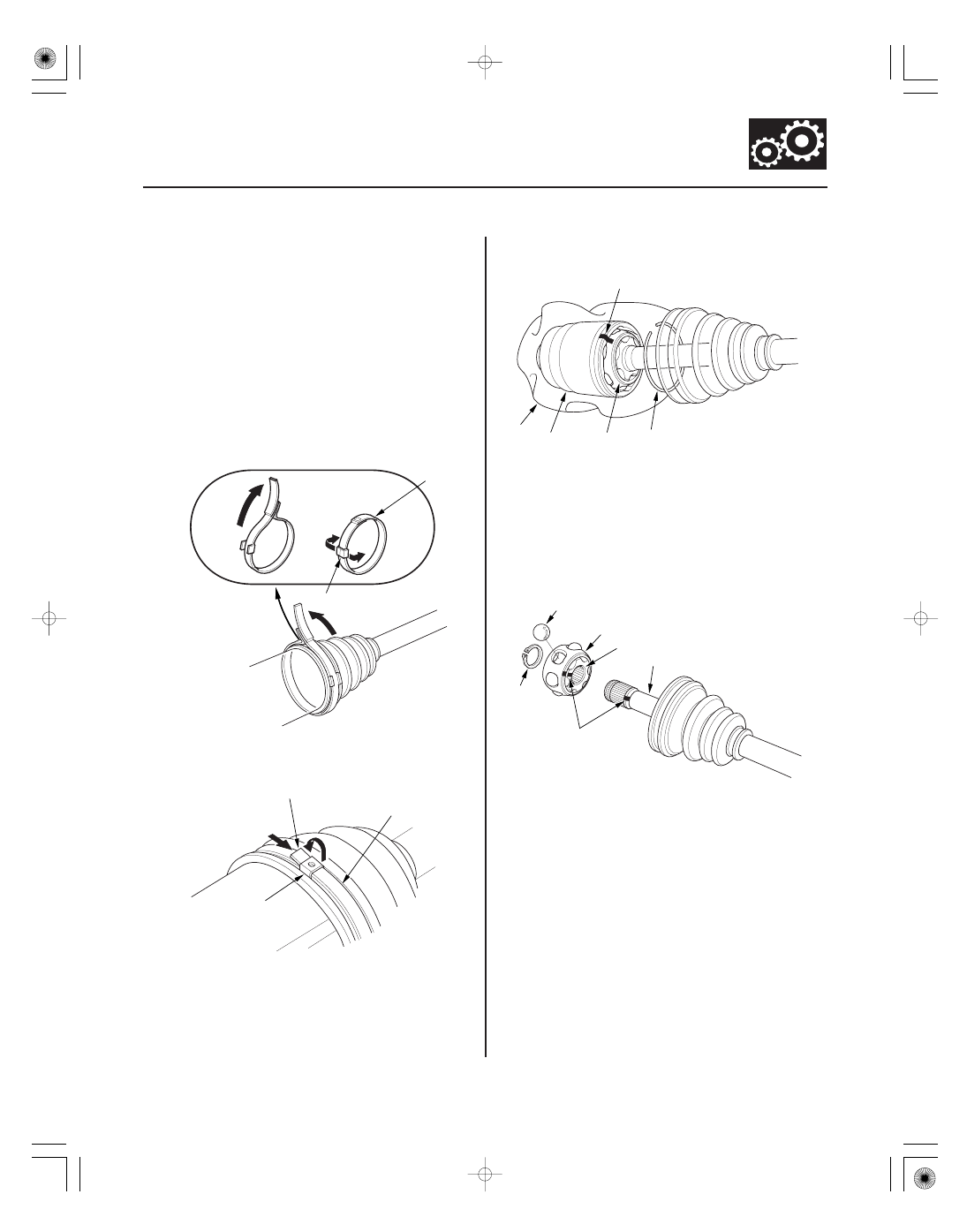

1. Remove the boot bands. Be careful not to damage

the boot.

• If the boot band is a locking tab type (A), pry up

the locking tab (B) with a screwdriver, and lift up
the end of the band.

• If the boot band is a double loop type (C), lift up

the band end (D), and push it into the clip (E).

2. Remove the circlip (A).

3. Make a mark (B) on the bearing retainer (C) and

inboard joint (D) to identify the locations of ball
bearings and grooves in the inboard joint. Then
remove the inboard joint on the shop towel (E). Be
careful not to drop the ball bearings when
separating them from the inboard joint.

4. Remove the snap ring (A).

5. Make a mark (B) on the bearing retainer (C), the

bearing race (D), and driveshaft (E) to identify the
position of the bearing retainer and the bearing
race on the shaft.

6. Remove the bearing race and the steel ball

bearings (F).

(cont’d)

05

06

07

Outboard Joint Side

Locking tab type

Double loop type

16-28

Driveline/Axle

Rear Driveshaft Disassembly (cont’d)

A

B

C

D

A

B

D

C

E

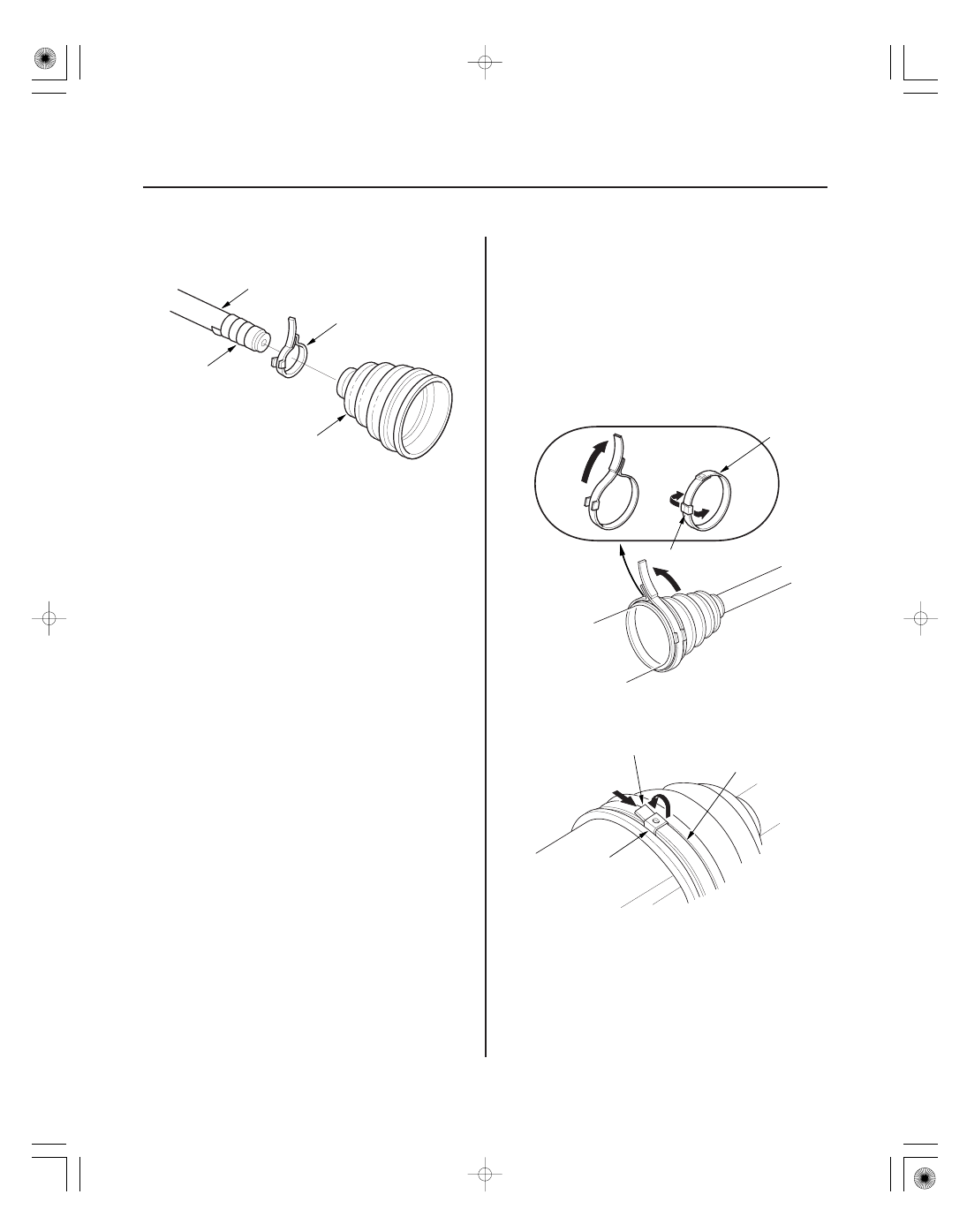

7. Wrap the splines on the driveshaft (A) with vinyl

tape (B) to prevent damage to the boot.

8. Remove the inboard boot (C) and locking tab type

boot band (D). Be careful not to damage the boot.

9. Remove the vinyl tape.

1. Remove the boot bands. Be careful not to damage

the boot.

• If the boot band is a locking tab type (A), pry up

the locking tab (B) with a screwdriver, and lift up
the end of the band.

• If the boot band is a double loop type (C), lift up

the band end (D), and push it into the clip (E).

08

09

10

11

16-29

A

B

A

C

07XAC-001020A

B

A

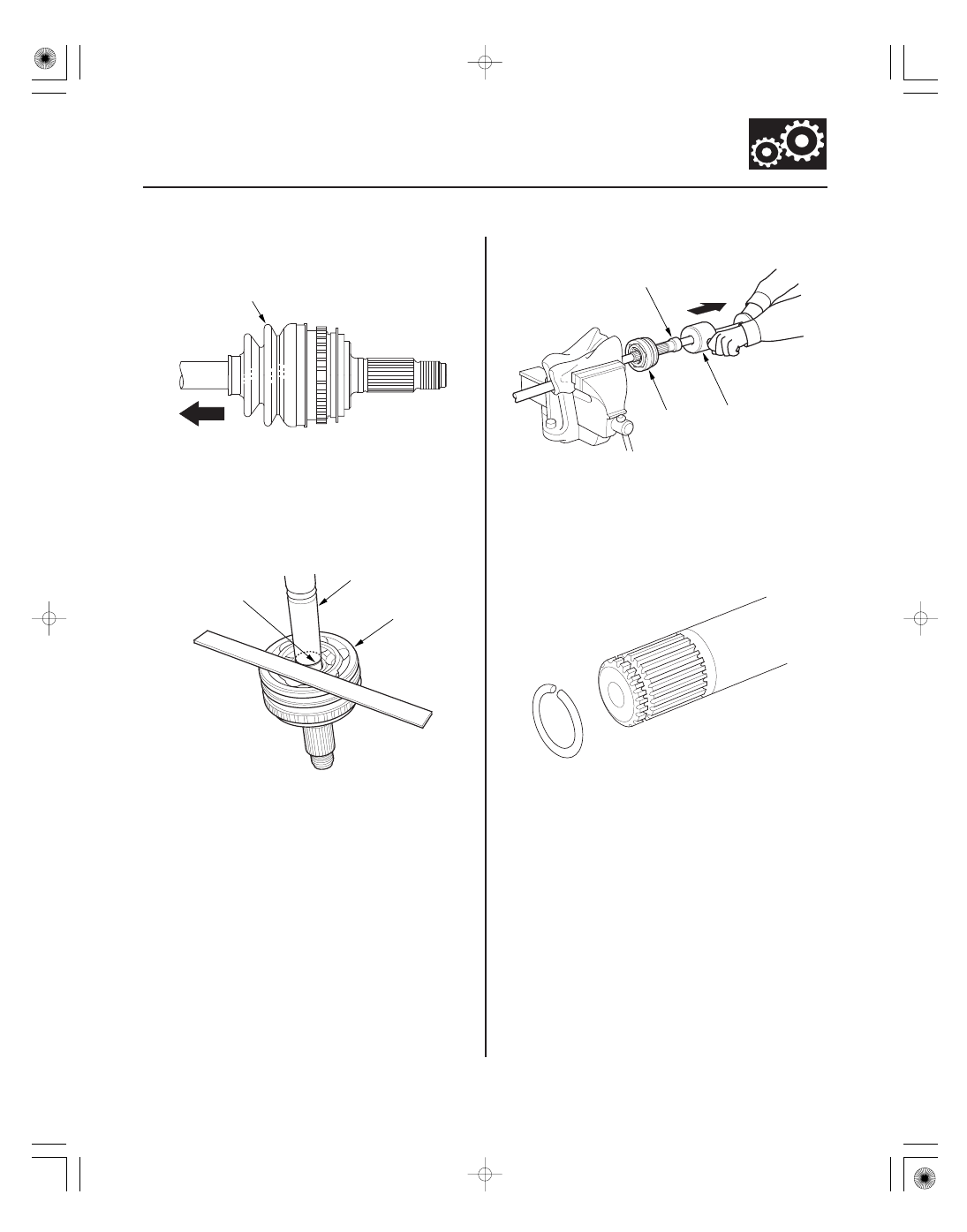

2. Slide the outboard boot (A) to the inboard joint side.

Be careful not to damage the boot.

3. Wipe off the grease to expose the driveshaft and

the outboard joint inner race.

4. Make a mark (A) on the driveshaft (B) at the same

position of the outboard joint end (C).

5. Carefully clamp the driveshaft in a vise.

6. Remove the outboard joint (A) using the special

tool and a commercially available 5/8’’ x 18 UNF
slide hammer (B).

7. Remove the driveshaft from the vise.

8. Remove the circlip from the driveshaft.
