Honda Ridgeline. Manual - part 274





02

03

04

05

Special Tools Required

16-22

Driveline/Axle

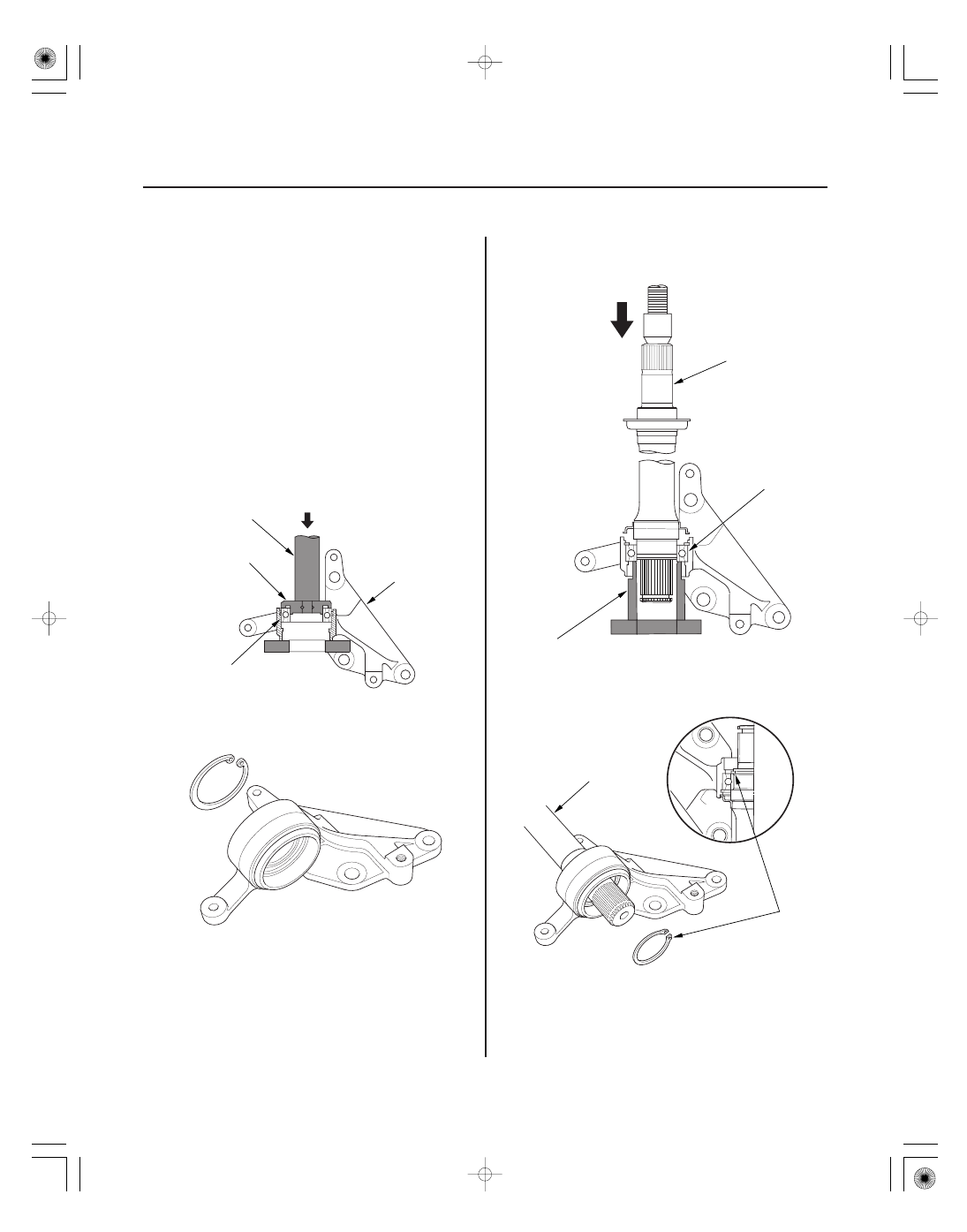

Intermediate Shaft Reassembly (cont’d)

PRESS

07749-0010000

A

B

07JAD-PH80101

B

A

PRESS

07947-4630100

A

B

• Driver 07749-0010000
• Support base attachment 07LAF-SM40300
• Support base 07965-SD90100
• Oil seal driver attachment 07JAD-PH80101
• Fork seal driver, 39.2 x 49.5 x 15 mm 07947-4630100

NOTE: Refer to the Exploded View as needed during
this procedure.

1. Clean the disassembled parts with solvent, and dry

them with compressed air. Do not wash the rubber
parts with solvent.

2. Press the intermediate shaft bearing (A) into the

bearing support (B) using the special tools and a
press.

3. Install, then seat the internal snap ring in the

groove of the bearing support.

4. Press the intermediate shaft (A) into the shaft

bearing (B) using the special tool and a press.

5. Install, then seat the external snap ring (A) in the

groove of the intermediate shaft (B).

06

07

08

16-23

07LAF-SM40300

07965-SD90100

PRESS

07947-4630100

B

8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)

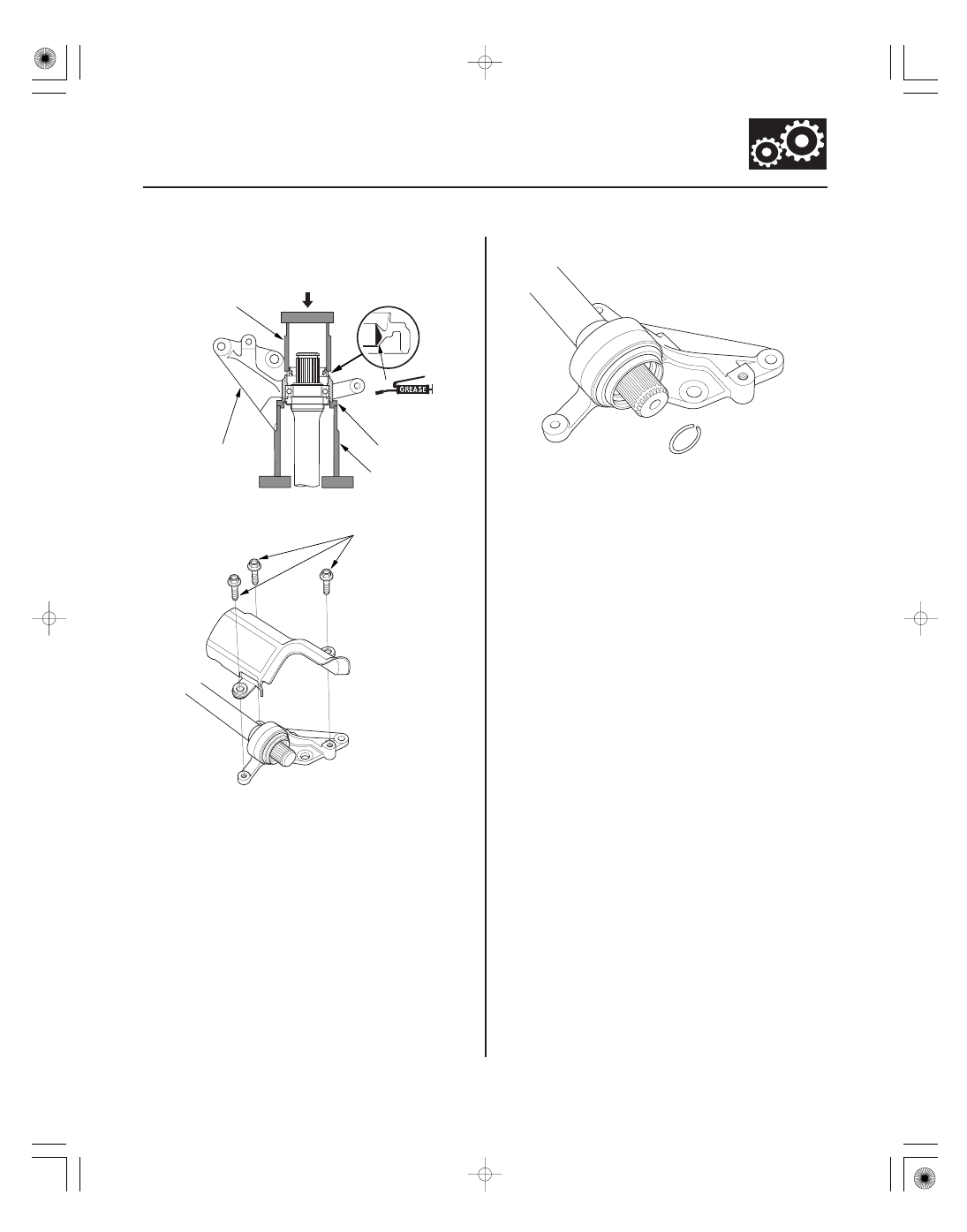

6. Install the outer seal (A) into the bearing support (B)

using the special tools and a press.

7. Install the heat shield onto the bearing support.

8. Install the set ring.

Pack the interior
of the outer seal.

01

SJC8A00E16236500000KCAT01

01

02

SJC8A00E16266500000KAAT02

Special Tools Required

16-24

16-24

Driveline/Axle

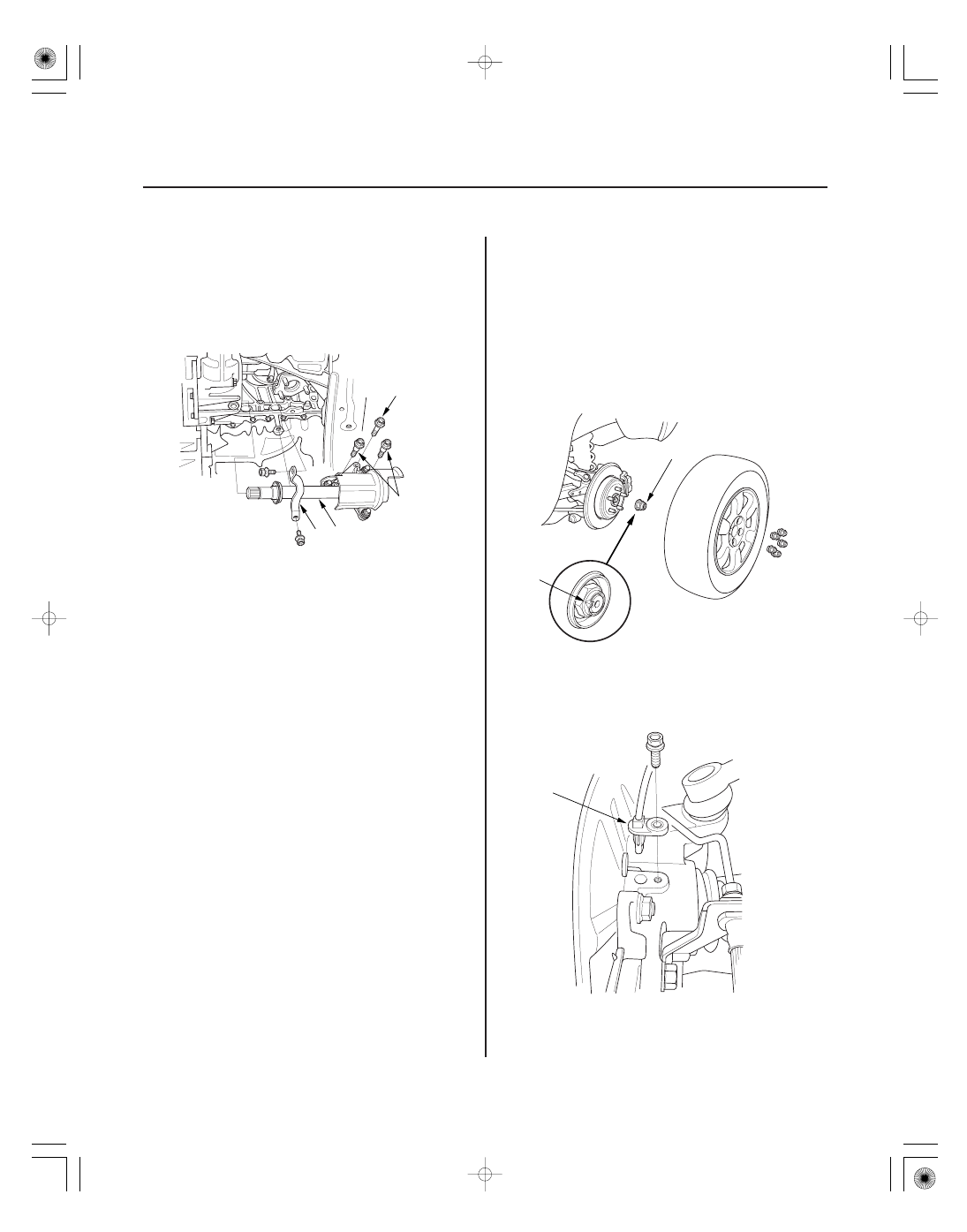

Intermediate Shaft Installation

Rear Driveshaft Removal

D

A

B
39 N·m
(4.0 kgf·m,
29 lbf·ft)

C
39 N·m
(4.0 kgf·m,
29 lbf·ft)

A

B

A

1. Use solvent or brake cleaner to thoroughly clean

the areas where the intermediate shaft (A) contacts
the transmission (differential) and dry with
compressed air. Insert the intermediate shaft
assembly into the differential. Hold the
intermediate shaft horizontally to prevent damage
to the differential oil seal.

2. Install the flange bolt (B), two dowel bolts (C), and

exhaust pipe bracket (D).

3. Install the exhaust pipe A (see step 33 on page

14-234).

4. Install the subframe stiffener (see step 34 on page

14-234).

5. Install the right driveshaft (see page 16-17).

6. Refill the transmission with the recommended fluid

(see step 5 on page 14-210).

• Driveshaft remover 07AAD-S9VA000
• Ball joint remover, 28 mm 07MAC-SL0A202

1. Raise the rear of the vehicle, and support it with

safety stands in the proper locations (see page
1-10).

2. Drain the differential fluid (see page 15-47).

3. Remove the wheel nuts and rear wheels.

4. Lift up the locking tab (A) on the spindle nut (B),

then remove and discard the nut.

5. Remove the VSA rear wheel sensor (A).

01

04

05

06

16-25

A

B

C

07MAC-SL0A202

A

B

C

A

B

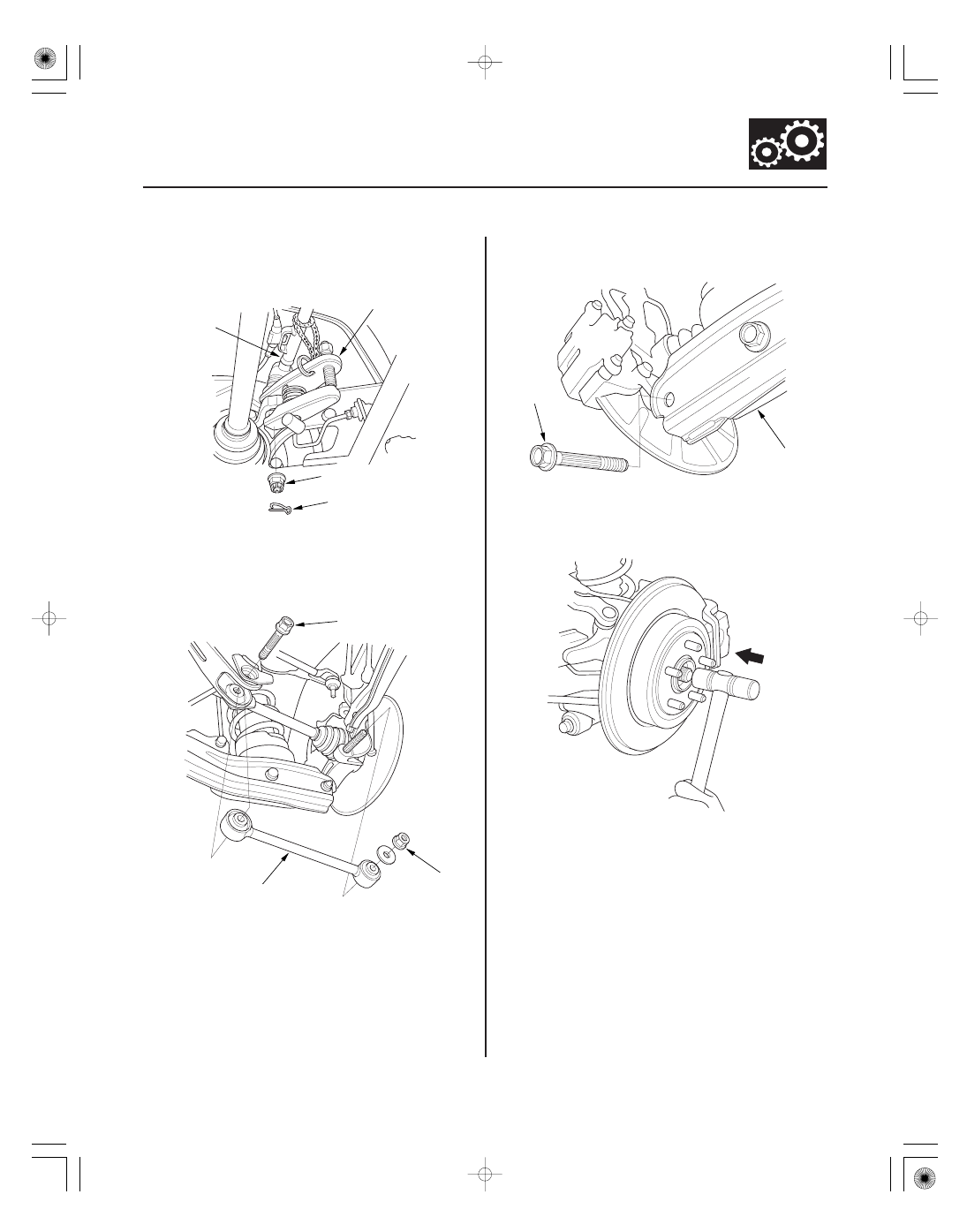

6. Remove the lock pin (A) from the upper arm ball

joint castle nut (B), and remove the nut (see page
18-34).

7. Separate the ball joint from the upper arm (C) with

the special tool (see page 18-11).

8. Remove the special self-locking nut (B), washer and

frange bolt (C), then remove the lower arm A.

9. Remove the flange bolt (A) and separate the

knuckle from the lower arm B.

10. Pull the knuckle outward, and disconnect the rear

driveshaft outboard joint from the rear wheel hub
using a plastic hammer.

(cont’d)
