Rear Differential

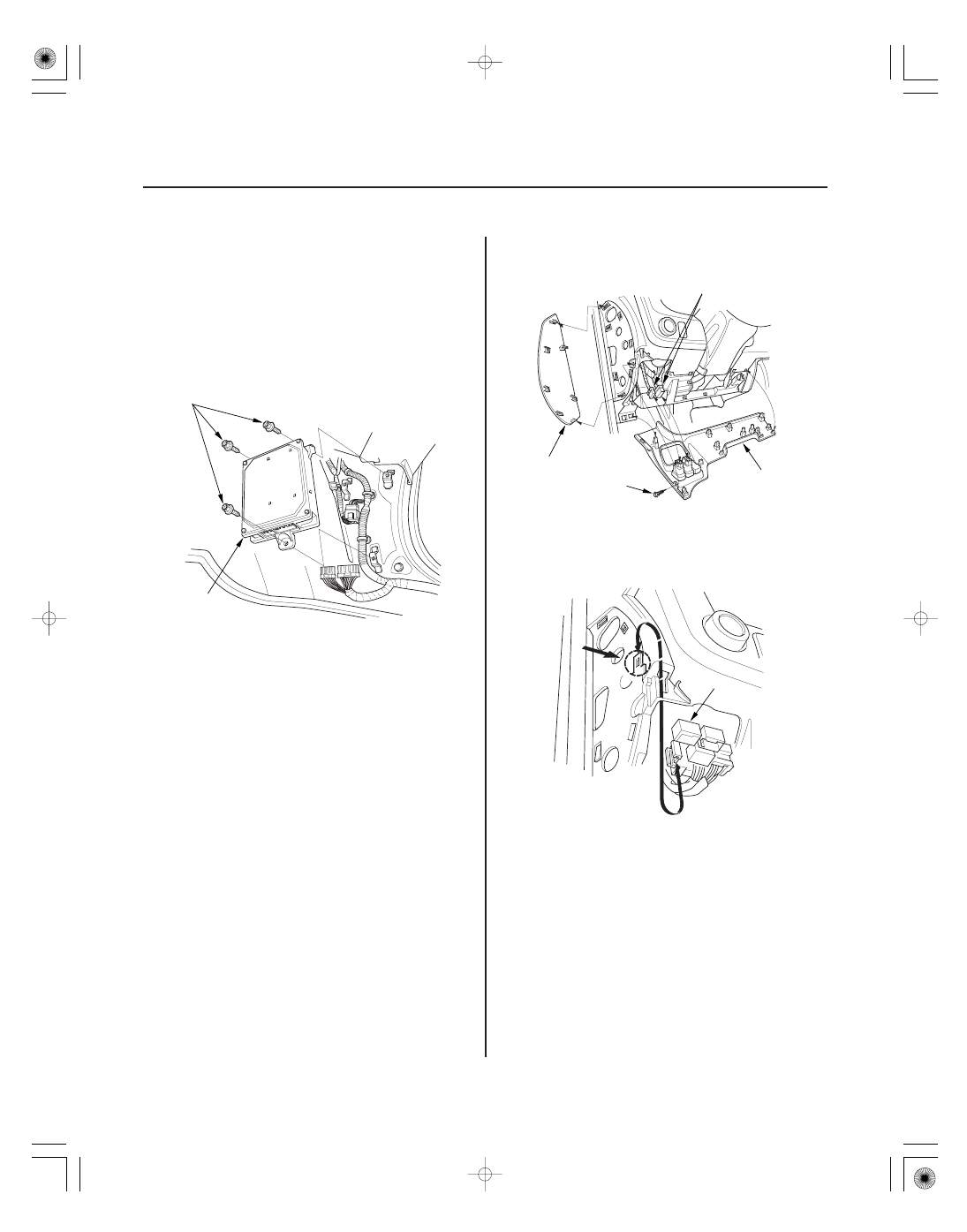

VTM-4 Control Unit Replacement

VTM-4 Relay Replacement

B

A
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

A

B

C

D

A

NOTE: The VTM-4 control unit must be initialized
(see page 15-5) after replacement, otherwise the 4WD
system will not function.

1.

2. Remove the three bolts (A) from the VTM-4 control

unit (B).

3. Disconnect the VTM-4 control unit connectors.

4. Install the VTM-4 control unit in the reverse order of

removal.

1. Remove the instrument side panel (A) and the

screw (B).

2. Remove the instrument under panel (C) and the

connectors (D).

3. Remove the VTM-4 relay (A).

4. Install the VTM-4 relay in the reverse order of

removal.

Remove the right side kick panel (see page 20-60).

01

SJC8A00E44300019595KBAT00

15-51

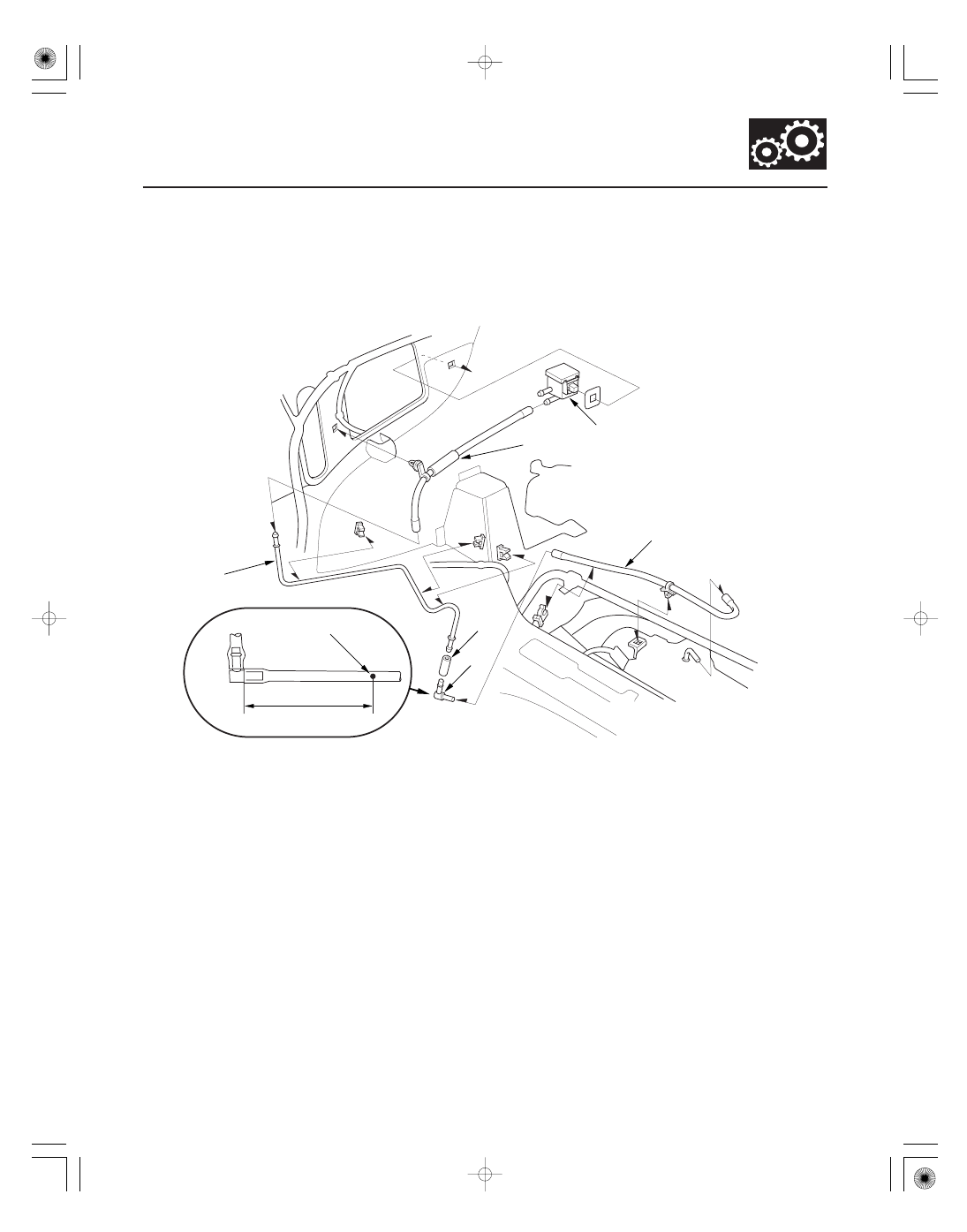

Rear Differential Breather, Line, and Hose Replacement

110 mm (4.33 in.)

WHITE MARK

A

B

C

D

E

F

1. Remove the left side bed panel (see page 20-162).

2. Remove the bed floor panel (see page 20-163).

3. Remove the breather (A) and the line (C), then remove the hoses (B, D, F).

4. Connect and install the breather (A) and the hose (B).

5. Clamp the line (C) into place, then connect it to the upper hose (B).

6. Connect the breather joint (E) to the line (C) with the short hose (D).

7. Connect the joint to the lower hose (F), then connect the hose to the differential.

8. Make sure that all the hoses are properly routed, clipped into place, and not pinched.

01

SJC8A00E44300019625KBAT00

15-52

Rear Differential

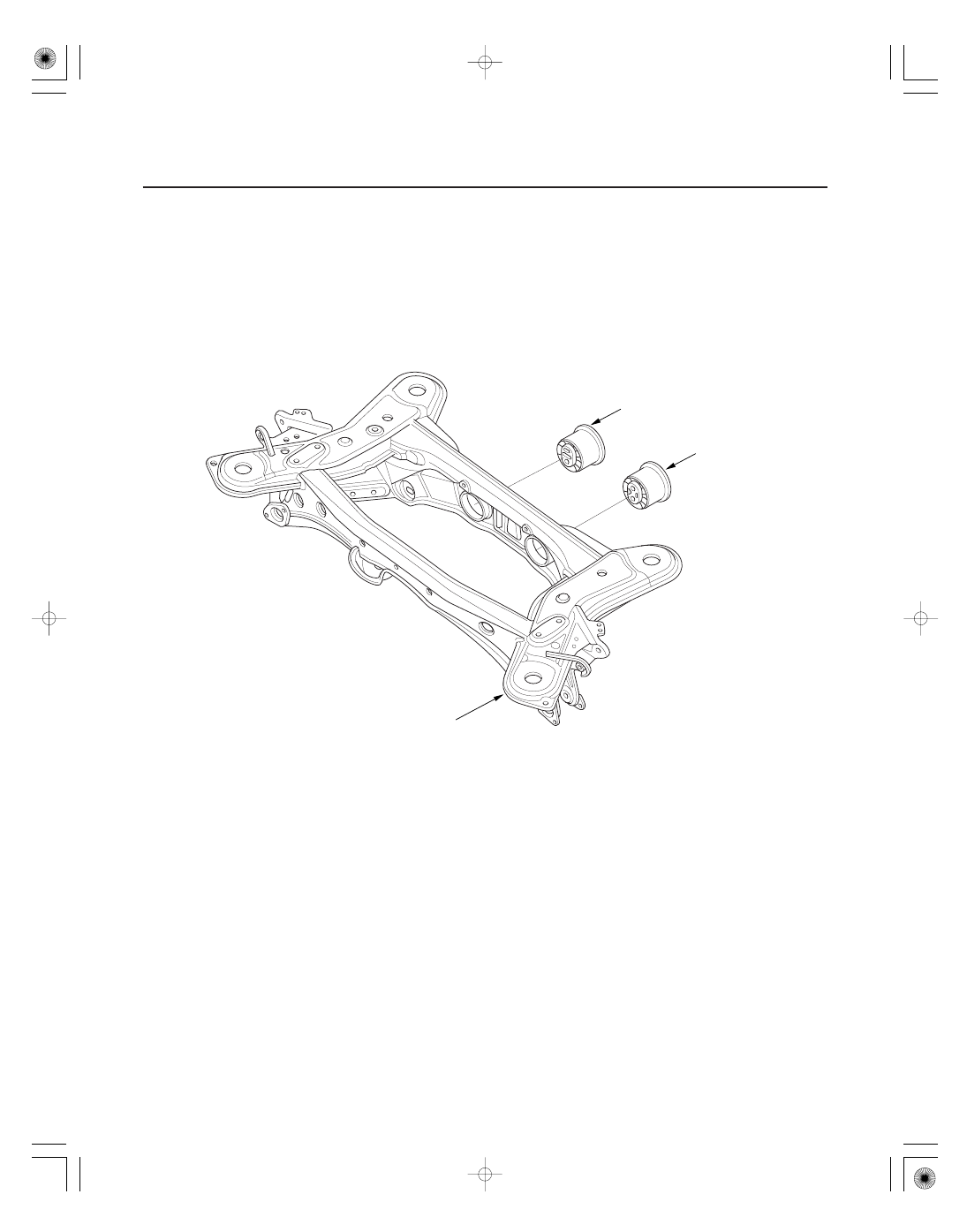

Rear Differential Mount Replacement

REAR DIFFERENTIAL
MOUNT B RUBBER
INSULATER

REAR DIFFERENTIAL
MOUNT C RUBBER
INSULATER

REAR SUBFRAME

Press.

Press.

*01

SJC8A00E44300000000KAAT00

Exploded View

15-53

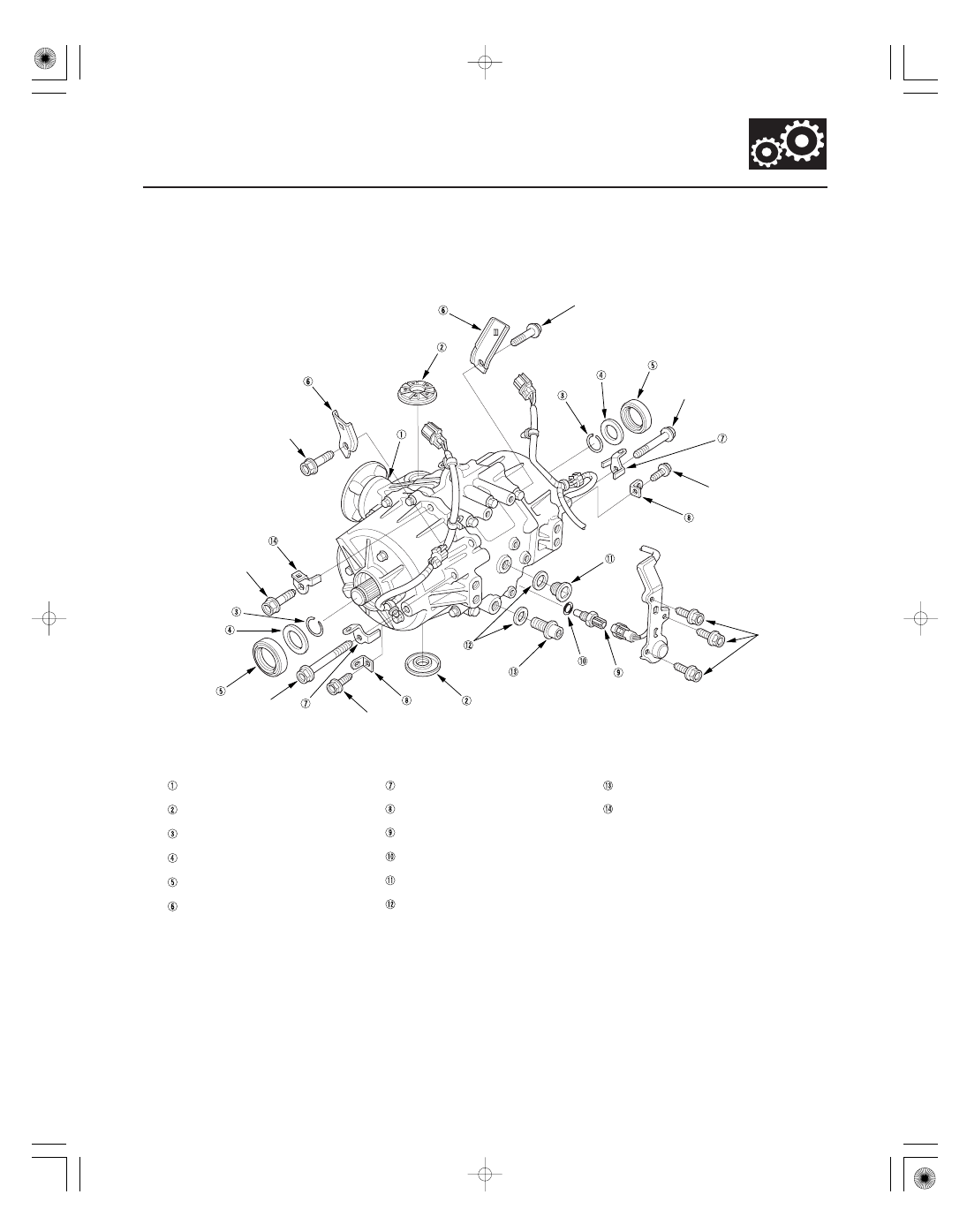

Rear Differential Removal

A: 27 N·m (2.8 kgf·m, 20 lbf·ft)
B: 12 N·m (1.2 kgf·m, 8.7 lbf·ft)

REAR DIFFERENTIAL CARRIER
ASSEMBLY
REAR DIFFERENTIAL MOUNT A
RUBBER INSULATER
SET RING

THRUST WASHER

HALF SHAFT OUTER SEAL

REAR DIFFERENTIAL HARNESS
BRACKET A

REAR DIFFERENTIAL CABLE
BRACKET C
REAR DIFFERENTIAL CABLE
BRACKET F
DIFFERENTIAL OIL TEMPERATURE
SENSOR

SEALING WASHER

DRAIN PLUG
47 N·m (4.8 kgf·m, 35 lbf·ft)
REAR DIFFERENTIAL HARNESS
BRACKET B

B

A

B

B

A

A

A

A

O-RING

FILLER PLUG
47 N·m (4.8 kgf·m, 35 lbf·ft)

(cont’d)

Replace.

Replace.

Replace.

Replace.

Replace.
