Honda Ridgeline. Manual - part 238





01

02

03

SJC8A00E10411300000MKAT00

Secondary Shaft Cutaway View

14-337

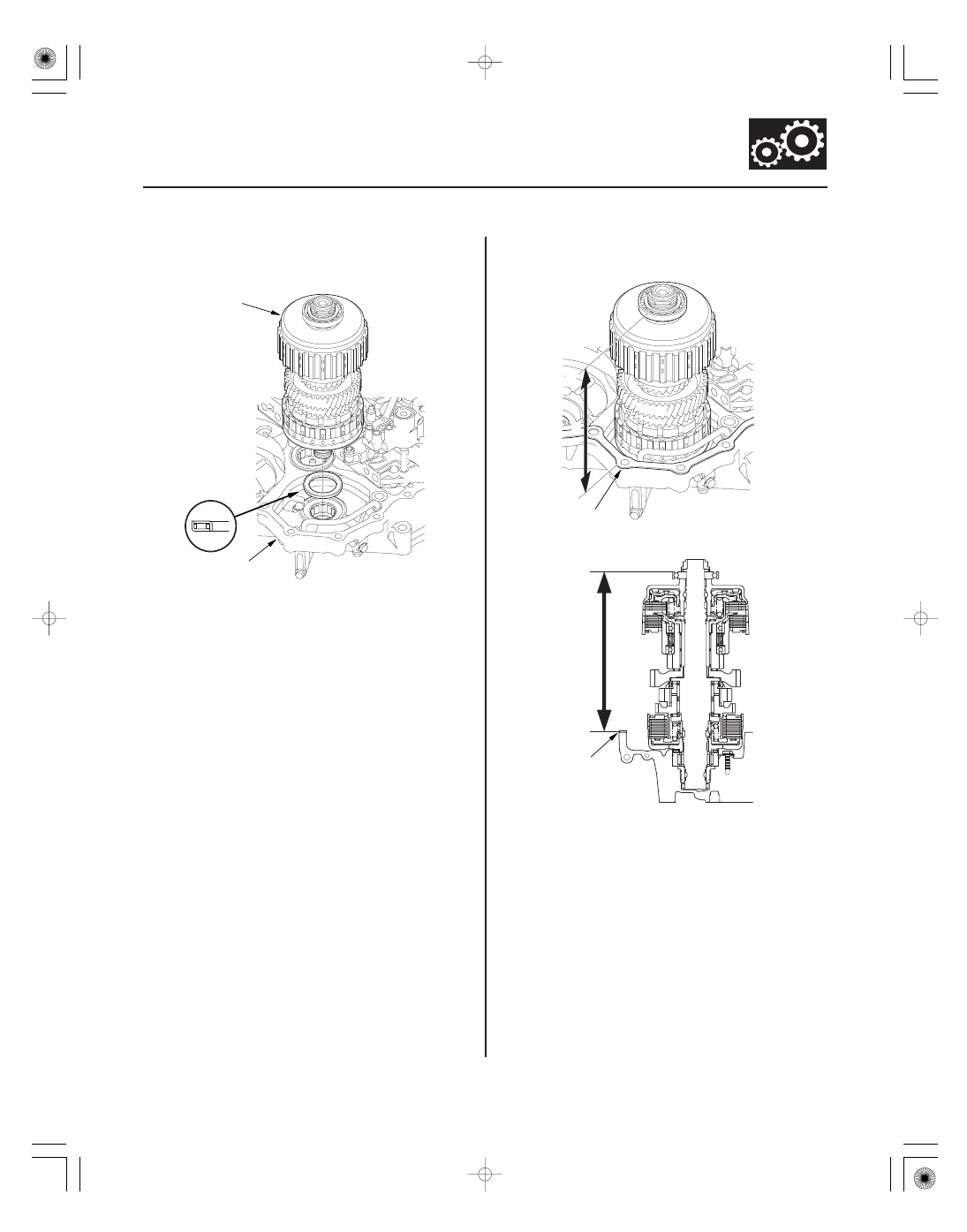

Secondary Shaft Installation Height Inspection/Adjustment

A

B

C

A

B

C

D

A

B

C

D

1. Install the thrust needle bearing (A) in the torque

converter housing (B) in the direction shown, and
install the secondary shaft assembly (C).

2. Install the new gasket (A) on the torque converter

housing.

3. Measure the height (B) of the secondary shaft

installation between the surface (C) of the gasket
and the top of the ball bearing outer race (D), then
note the measurement.

(cont’d)

04

Formula:
65 mm Thrust Shim Thickness
= Secondary Shaft Installation Height Standard

Measurement

Secondary Shaft Installation Height
Standard:
228.04

228.13 mm (8.9779

8.9815 in.)

THRUST SHIM, 65 mm

No.

Part Number

Thickness

14-338

Shafts and Clutches

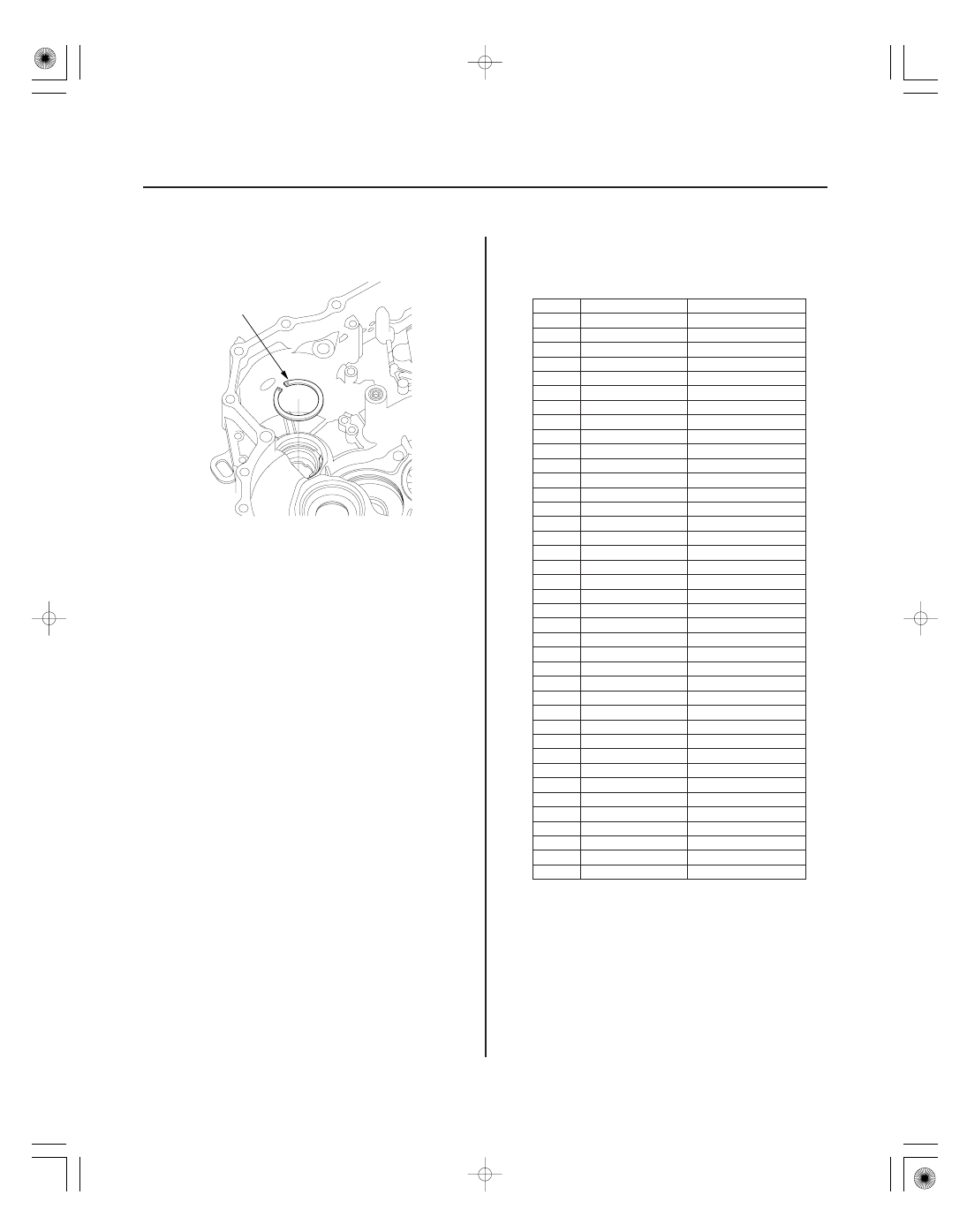

Secondary Shaft Installation Height Inspection/Adjustment (cont’d)

A

4. Remove the 65 mm thrust shim (A) from the

transmission housing, and measure its thickness.

5. Calculate the thickness of the 65 mm thrust shim

using the formula.

6. Select the 65 mm thrust shim from the following

table.

0A

90460-RDK-000

0.80 mm (0.031 in.)

A

90461-RDK-010

0.84 mm (0.033 in.)

B

90462-RDK-010

0.88 mm (0.035 in.)

C

90463-RDK-010

0.92 mm (0.036 in.)

D

90464-RDK-010

0.96 mm (0.038 in.)

E

90465-RDK-010

1.00 mm (0.039 in.)

F

90466-RDK-010

1.04 mm (0.041 in.)

G

90467-RDK-010

1.08 mm (0.043 in.)

H

90468-RDK-010

1.12 mm (0.044 in.)

I

90469-RDK-010

1.16 mm (0.046 in.)

J

90470-RDK-010

1.20 mm (0.047 in.)

K

90471-RDK-010

1.24 mm (0.049 in.)

L

90472-RDK-010

1.28 mm (0.050 in.)

M

90473-RDK-010

1.32 mm (0.052 in.)

N

90474-RDK-010

1.36 mm (0.054 in.)

O

90475-RDK-010

1.40 mm (0.055 in.)

P

90476-RDK-010

1.44 mm (0.057 in.)

Q

90477-RDK-010

1.48 mm (0.058 in.)

R

90478-RDK-010

1.52 mm (0.060 in.)

S

90479-RDK-010

1.56 mm (0.061 in.)

T

90480-RDK-010

1.60 mm (0.063 in.)

U

90481-RDK-000

1.64 mm (0.065 in.)

V

90482-RDK-000

1.68 mm (0.066 in.)

W

90483-RDK-000

1.72 mm (0.068 in.)

X

90484-RDK-000

1.76 mm (0.069 in.)

Y

90485-RDK-000

1.80 mm (0.071 in.)

Z

90486-RDK-000

1.84 mm (0.072 in.)

AA

90487-RDK-000

1.88 mm (0.074 in.)

AB

90488-RDK-000

1.92 mm (0.076 in.)

AC

90489-RDK-000

1.96 mm (0.077 in.)

AD

90490-RDK-000

2.00 mm (0.079 in.)

AE

90491-RDK-000

2.04 mm (0.080 in.)

AF

90492-RDK-000

2.08 mm (0.082 in.)

AG

90493-RDK-000

2.12 mm (0.083 in.)

AH

90494-RDK-000

2.16 mm (0.085 in.)

AI

90495-RDK-000

2.20 mm (0.087 in.)

AJ

90496-RDK-000

2.24 mm (0.088 in.)

AK

90497-RDK-000

2.28 mm (0.090 in.)

AL

90498-RDK-000

2.32 mm (0.091 in.)

7. Install the thrust shim in the transmission housing.

*01

SJC8A00E10412400000MEAT00

14-339

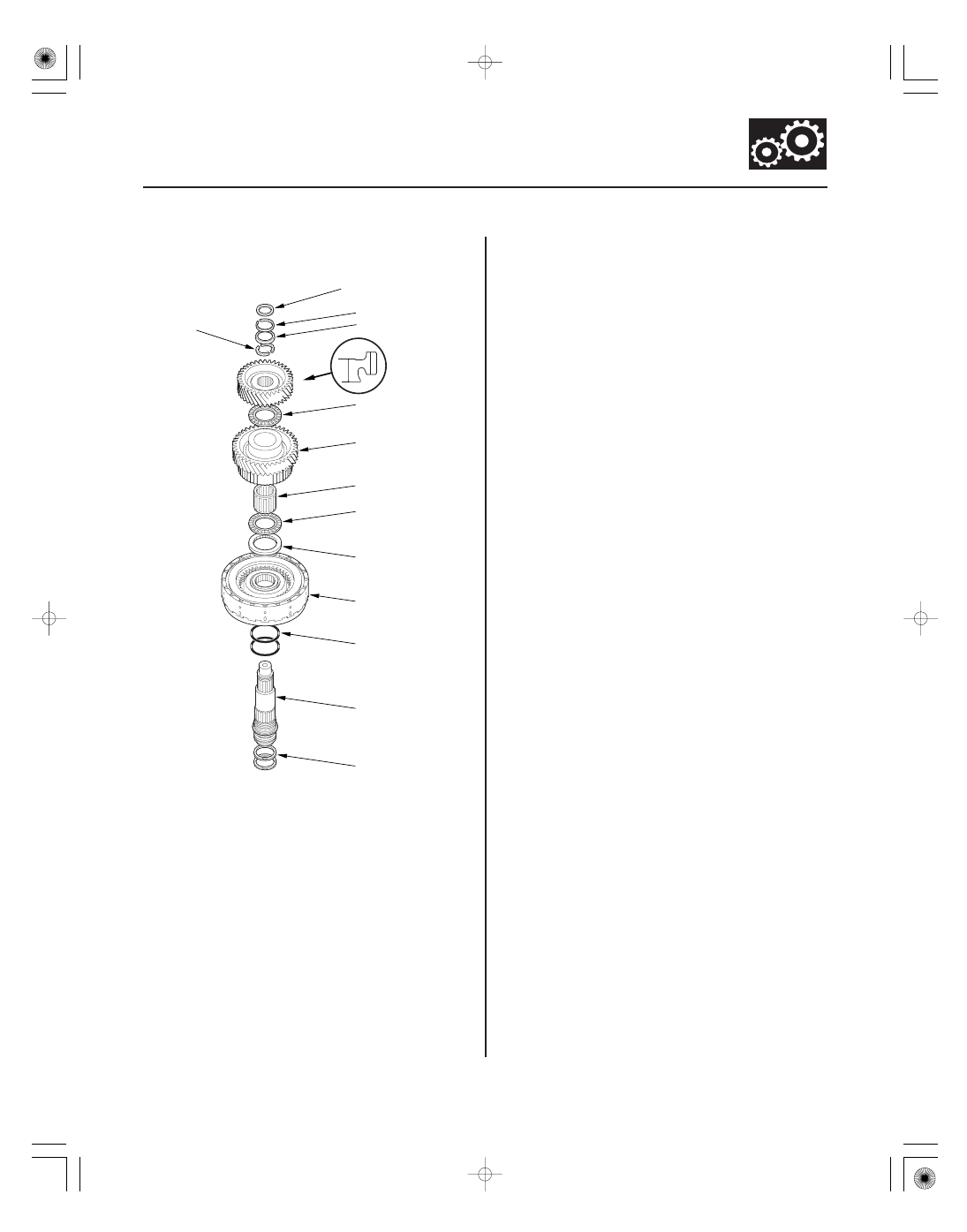

Intermediary Shaft Disassembly, Inspection, and Reassembly

WASHER, 26.5 mm

SNAP RING
COTTER RETAINER

4TH GEAR

THRUST NEEDLE
BEARING

3RD GEAR

NEEDLE BEARING

THRUST NEEDLE
BEARING

SPLING WASHER,
53 mm

3RD CLUTCH

O-RINGS

INTERMEDIARY
SHAFT

SEALING RINGS,
35 mm

COTTERS,
19.8 mm

1. Remove the 26.5 mm washer, the snap ring, the

cotter retainer, and the cotters from the third shaft.

2. Remove the intermediary shaft 4th gear using a

press (see page 14-340), and disassemble the shaft
and gears.

3. Inspect the bearings for galling and rough

movement.

4. Check the shaft bearing surfaces for scoring and

excessive wear, and check the shaft splines for
excessive wear and damage.

5. Check the sealing rings for excessive wear and

damage.

6. Check the 3rd gear axial clearance (see page

14-341), and the intermediary shaft installation
height (see page 14-343).

7. Before installing the O-rings, wrap the shaft splines

with tape to prevent damage to the O-rings.

8. Lubricate all parts with ATF, and reassemble the

shaft and gears.

9. Install the press-fitted 4th gear with the driver

(40 mm I.D.) and a press (see page 14-340) in the
direction shown.

Selective part

Selective part

Replace.

01

SJC8A00E10412435131KAAT01

02

SJC8A00E10412435131KCAT02

Special Tools Required

14-340

14-340

Shafts and Clutches

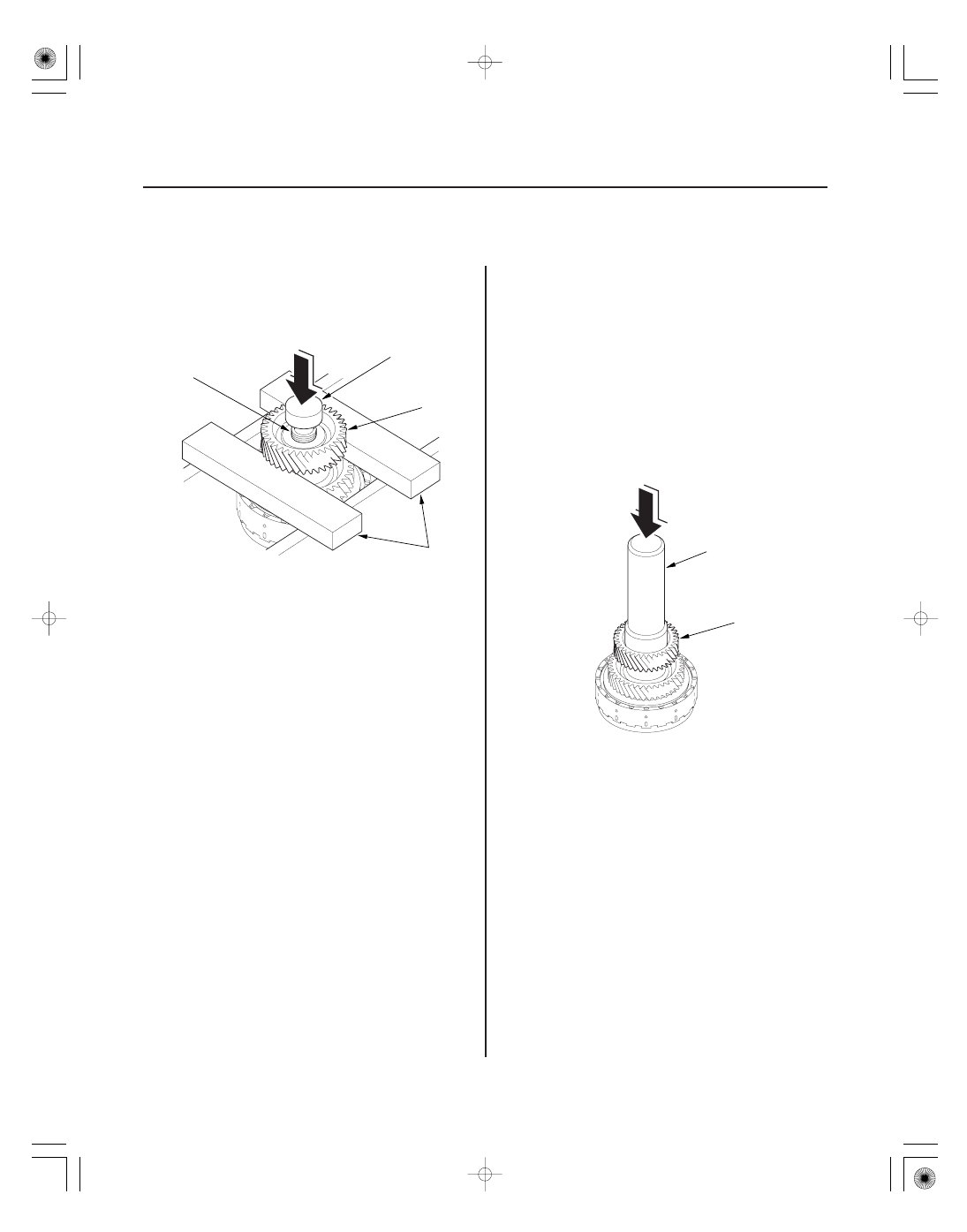

Intermediary Shaft 4th Gear
Removal

Intermediary Shaft 4th Gear
Installation

B

A

C

D

07746-0030100

A

1. Place the 4th gear (A) on the press bases (B), and

place a shaft protector (C) between the
intermediary shaft (D) and a press to prevent
damaging the intermediary shaft.

2. Press the intermediary shaft out of the press-fitted

4th gear, and remove the intermediary shaft while
holding the underside the intermediary shaft. The
intermediary shaft falls down when pressing the
intermediary shaft out of the press-fitted gear.

3. Remove the remaining parts from the intermediary

shaft.

Driver, 40 mm I.D. 07746-0030100

1. Wrap the shaft splines with tape, and install new

O-rings in the 3rd clutch O-ring grooves, then
remove the tape.

2. Install the 3rd clutch, 53 mm splined washer, the

thrust needle bearing, the needle bearing, the 3rd
gear, the thrust needle bearing on the intermediary
shaft.

3. Install the 4th gear (A) with the driver (40 mm I.D.),

and a press.

4. Install the 19.8 mm cotters, cotter retainer, and

snap ring.

5. Install the 26.5 mm washer on the top of the

intermediary shaft.
