Honda Ridgeline. Manual - part 219





01

02

03

SJC8A00E10411412281KBAT00

14-261

Shift Cable Replacement

A

B

C

D

A

B

A

B

C

D

E

1. Raise the vehicle on a lift, and make sure it is

supported securely (see page 1-10).

2. Remove the driver’s dashboard lower cover

(see page 20-83).

3. Remove the steering column covers (see page

17-24), and lower the steering column.

4. Shift the transmission into the R position.

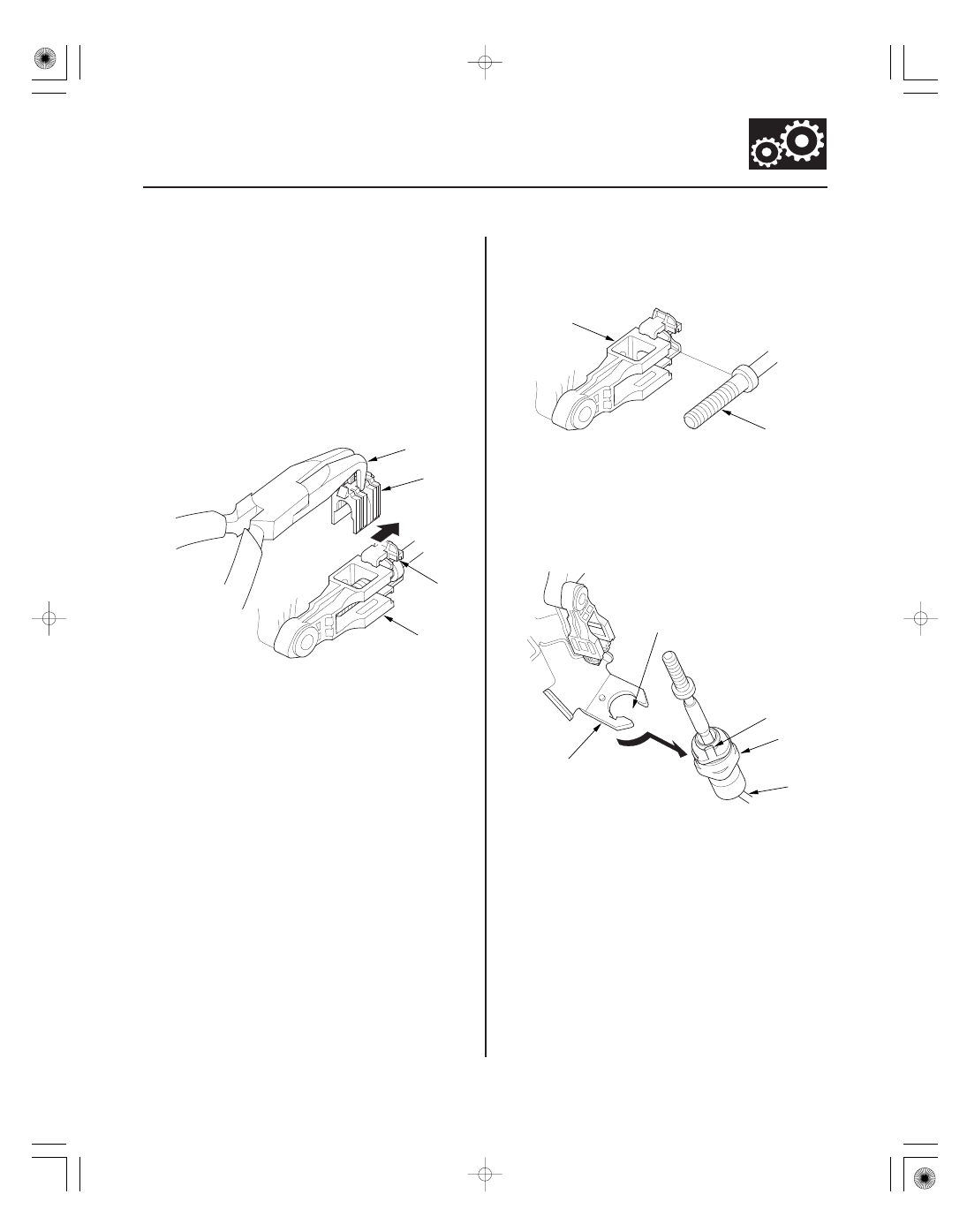

5. Slide the lock tab (A) on the shift cable end holder

(B) toward the shift cable socket holder.

6. Grasp the shift cable lock (C) in the middle with

angle-jaw needle-nose pliers (D), and remove it
from the shift cable end and the shift cable end
holder. Do not pry the shift cable lock with a
screwdriver, it may damage the shift cable end
holder.

7. Separate the shift cable end (A) from the shift cable

end holder (B).

8. Rotate the socket holder (A) on the shift cable (B) a

quarter turn; the tab (C) on the socket holder will be
in the opening (D) of the socket holder bracket (E).
Then slide the holder to remove the shift cable
from the socket holder bracket.

9. Make sure you have the anti-theft codes for the

audio system and the navigation system (if
equipped).

10. Disconnect the negative cable from the battery,

then disconnect the positive cable.

11. Remove the battery hold-down bracket, and

remove the battery and the battery tray.

(cont’d)

04

05

14-262

Automatic Transmission

Shift Cable Replacement (cont’d)

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)

A

B

C

D

E

A

B

6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

12. Remove the intake manifold cover, the intake air

duct, the resonator, and the air cleaner housing.

13. Remove the battery base and the battery base

bracket.

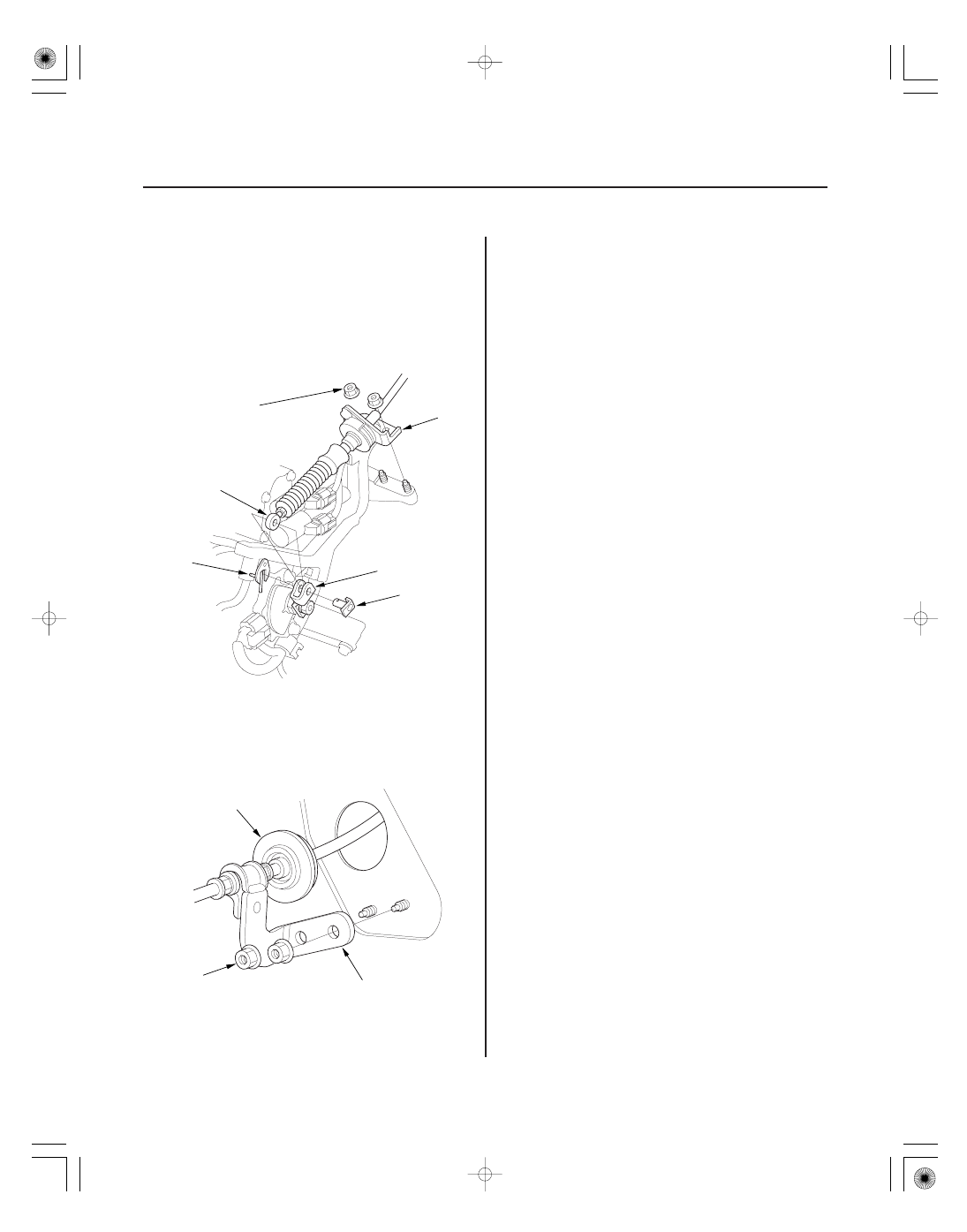

14. Remove the nuts securing the shift cable bracket

(A).

15. Remove the spring clip/washer (B) and the control

pin (C), then separate the shift cable end (D) from
the control lever (E).

16. Remove the nuts securing the shift cable bracket

(A).

17. Remove the shift cable grommet (B), and pull out

the shift cable.

18. Insert a new shift cable through the grommet hole,

and install the grommet in its hole. Do not bend the
shift cable excessively.

19. Secure the shift cable bracket with the nuts.

20. Attach the shift cable end to the control lever, then

insert the control pin into the control lever hole
through the shift cable end, and secure the control
pin with the spring clip/washer.

21. Secure the shift cable bracket with the nuts on the

transmission housing.

22. Verify that the transmission is in the R position at

the control lever on the transmission range switch.

07

08

09

10

14-263

A

B

C

A

B

C

A

B

C

D

F

G

E

H

I

J

A

B

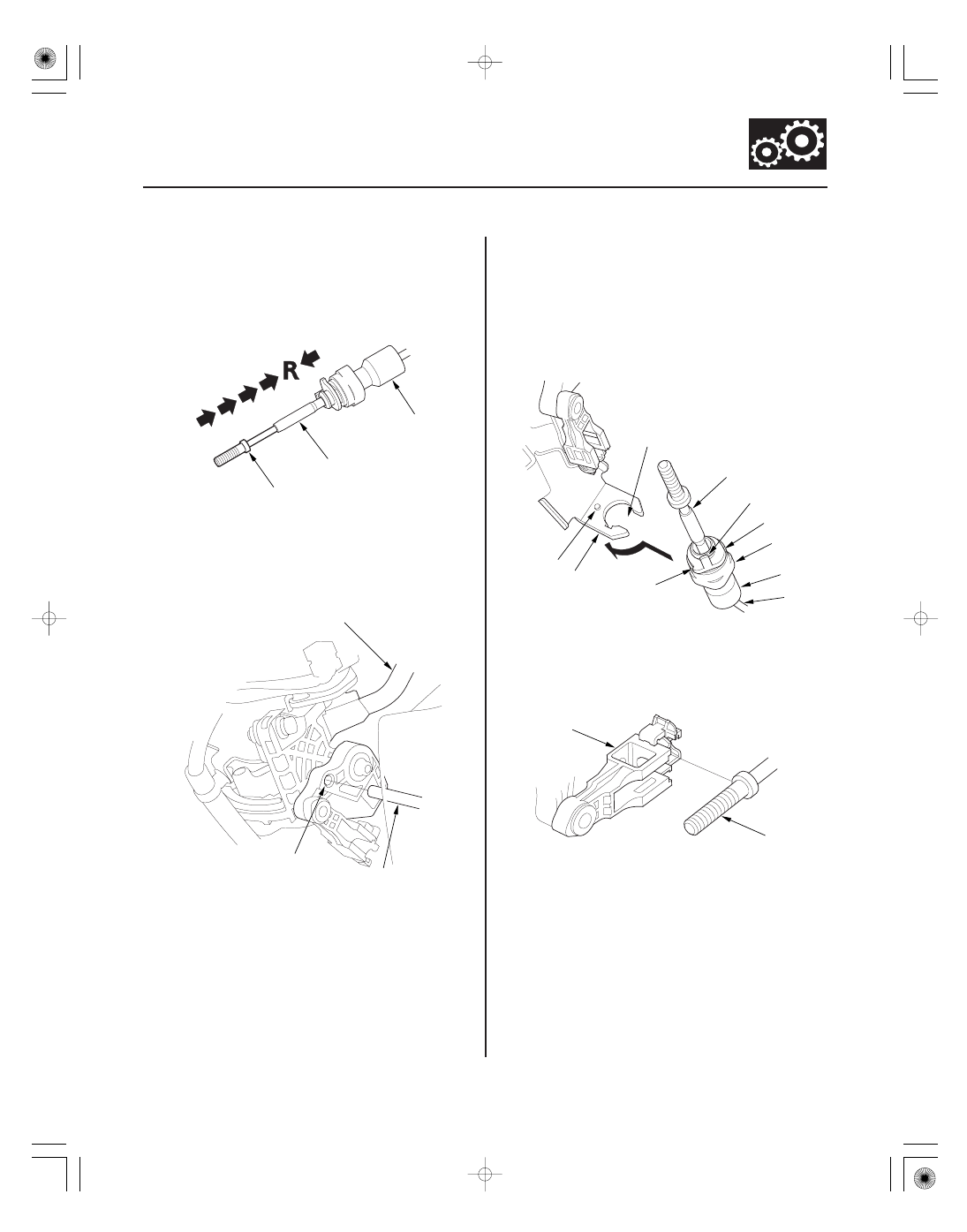

23. If necessary, push the shift cable (A) until it stops,

then release it. Pull the shift cable back one step so
that the shift position is in R. Do not hold the shift
cable guide (B) and the damper (C) to adjust the
shift cable.

24. Place the shift lever in R, then insert a 6.0 mm

(0.24 in.) pin (A) through the positioning hole (B) on
the shift lever link, and into the positioning hole on
the shift lever bracket. The shift lever (C) is secured
in the R position.

25. Rotate the socket holder (A) on the shift cable (B) to

place the tab (C) on the holder opposite to the
opening (D) in the socket holder bracket (E). Align
the holder with the opening (F) in the bracket, then
slide the holder into the bracket. Rotate the holder a
quarter turn until the holder lock (G) stops at the
projection (H) to secure the shift cable. Do not
install the shift cable by twisting the shift cable
guide (I) and the damper (J).

26. Install the shift cable end (A) in the shift cable end

holder (B). Keep the shift cable end and end holder
free of grease.

(cont’d)

11

14-264

Automatic Transmission

Shift Cable Replacement (cont’d)

A

B

C

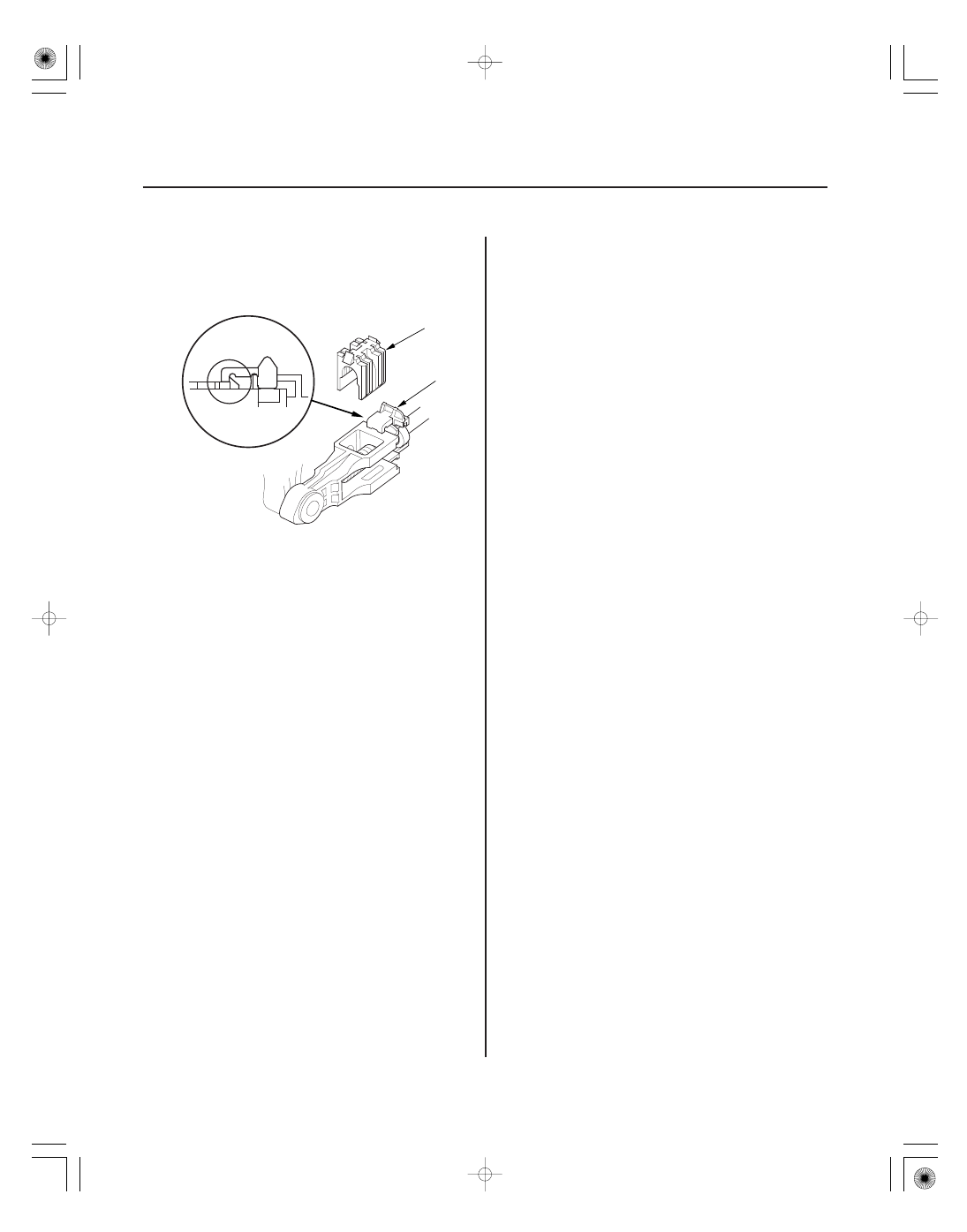

27. Install the new shift cable lock (A) to secure the shift

cable end and shift cable end holder, then slide the
lock tab (B) toward the shift lever link until it stops
to lock the joint (C).

28. Remove the 6.0 mm (0.24 in.) pin that was installed

to hold the shift lever.

29. Install the battery base bracket and the battery base.

30. Install the air cleaner housing, the resonator, the

intake air duct, and the intake manifold cover.

31. Install the battery tray, the battery, and the battery

hold-down bracket, then connect the battery cables.

32. Move the shift lever to each position, and check

that the A/T gear position indicator follows the
transmission range switch.

33. Raise the vehicle on a lift, and allow all the wheels

to rotate freely.

34. Start the engine, and check the shift lever operation

in all gears.

35. Push the shift lock release, and verify that the shift

lever releases.

36. Install the steering column covers (see page 17-26).

37. Install the driver’s dashboard lower cover

(see page 20-83).

38. Enter the anti-theft codes for the audio system and

the navigation system (if equipped). Set the clock
(on vehicles without navigation).

39. Do the power window control unit reset procedure

(see page 22-209).
