Honda Ridgeline. Manual - part 207





01

02

03

04

SJC8A00E10474500000KAAT00

14-213

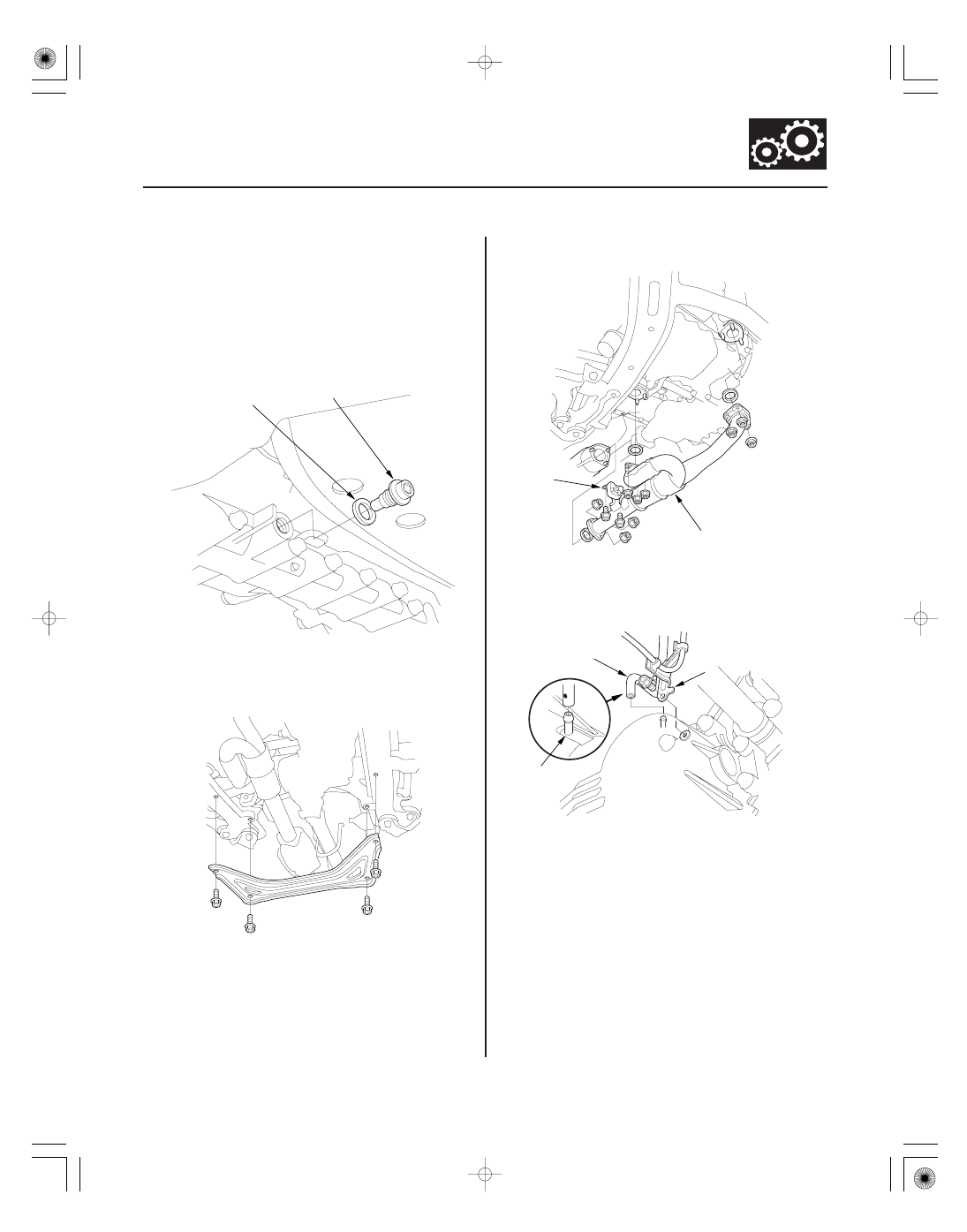

Transfer Assembly Removal

A
18 x 1.5 mm
49 N·m
(5.0 kgf·m, 36 lbf·ft)

B

A

B

A

B

C

1. Raise the vehicle on a lift, and make sure it is

supported securely (see page 1-10).

2. Shift the transmission into the N position.

3. Remove the drain plug (A), and drain the automatic

transmission fluid (ATF).

4. Reinstall the drain plug with a new sealing washer

(B).

5. Remove the front subframe stiffener.

6. Remove exhaust pipe A and its mount (B).

7. Remove the bolt securing the transfer breather

hose bracket (A), and disconnect the breather hose
(B) from the breather pipe (C) on the transfer
assembly.

(cont’d)

05

06

14-214

Automatic Transmission

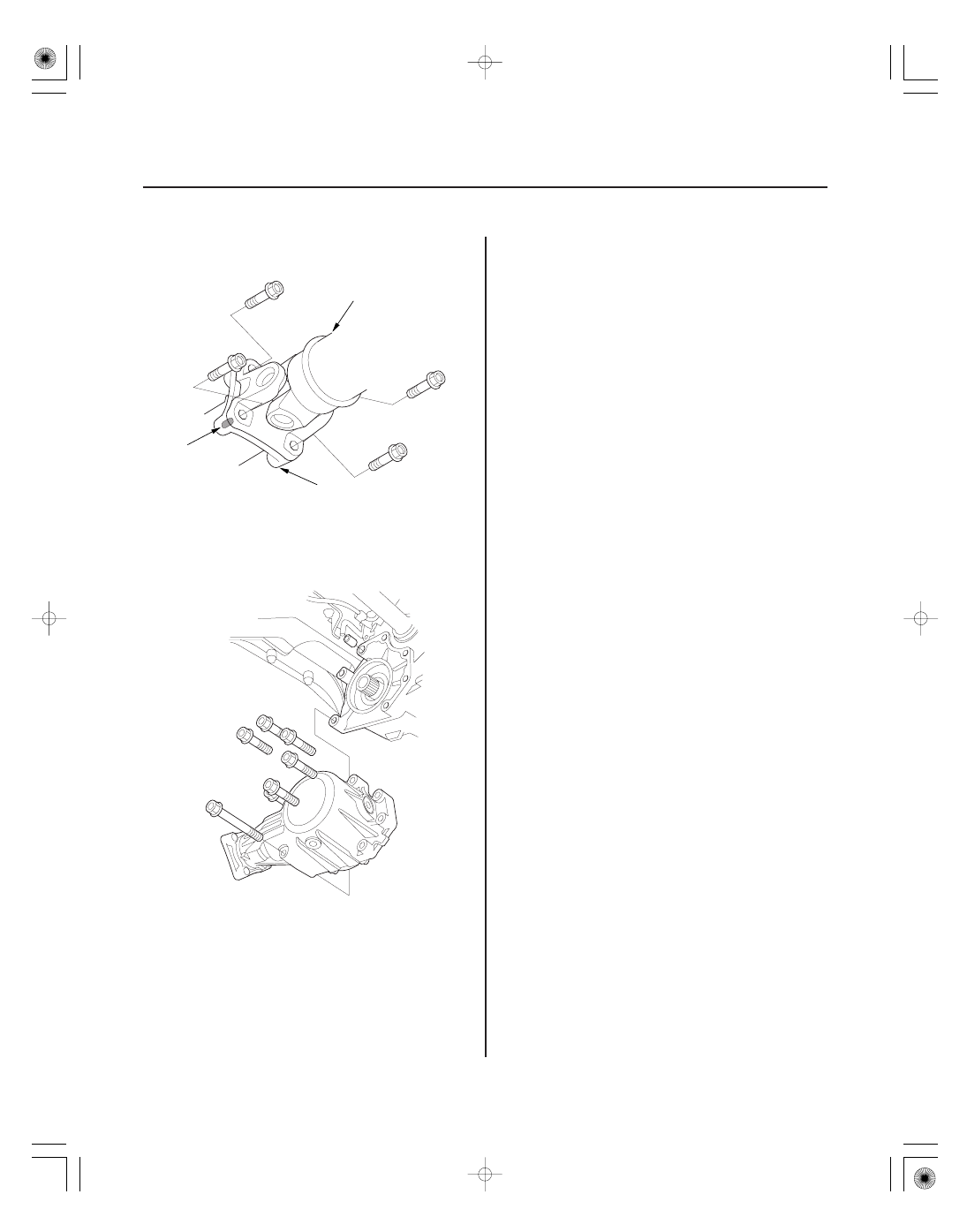

Transfer Assembly Removal (cont’d)

B

C

A

8. Make a reference mark (A) across the propeller

shaft (B) and the transfer companion flange (C).

9. Separate the propeller shaft from the transfer

companion flange.

10. Remove the transfer assembly from the

transmission.

01

02

03

SJC8A00E10474500000KCAT10

14-215

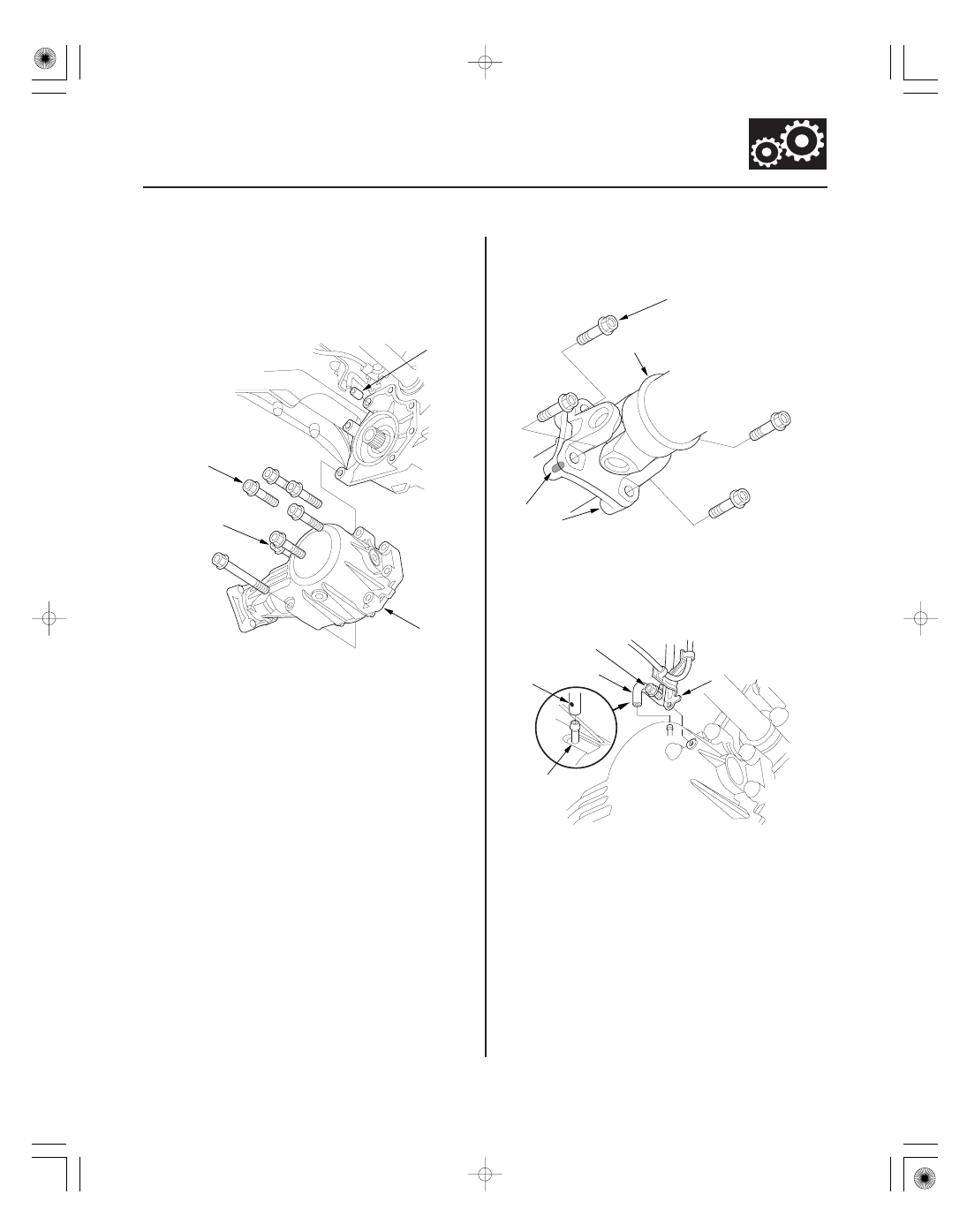

Transfer Assembly Installation

A

B

C

10 x 1.25 mm
51 N·m
(5.2 kgf·m, 38 lbf·ft)

10 x 1.25 mm
72 N·m
(7.3 kgf·m, 53 lbf·ft)

A

C

B

A

B

C

D

6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

1. Clean the areas where the transfer assembly

contacts the transmission with solvent or
carburetor cleaner, and dry with compressed air.
Then apply transmission fluid to the contact area.

2. Install the dowel pin (A) in the transmission.

3. Insert the one 10 x 1.25 mm bolt (length: 105 mm)

(B) in the rear upper of the transfer housing, then
install the transfer assembly (C) on the
transmission.

4. Install the propeller shaft (A) to the transfer

companion flange (B) by aligning the reference
mark (C).

5. Secure the transfer breather hose bracket (A) on

the transfer assembly with the bolt, and install the
breather hose (B) over the breather pipe (C) with
the dot (D) on the hose facing out.

(cont’d)

*01

05

14-216

Automatic Transmission

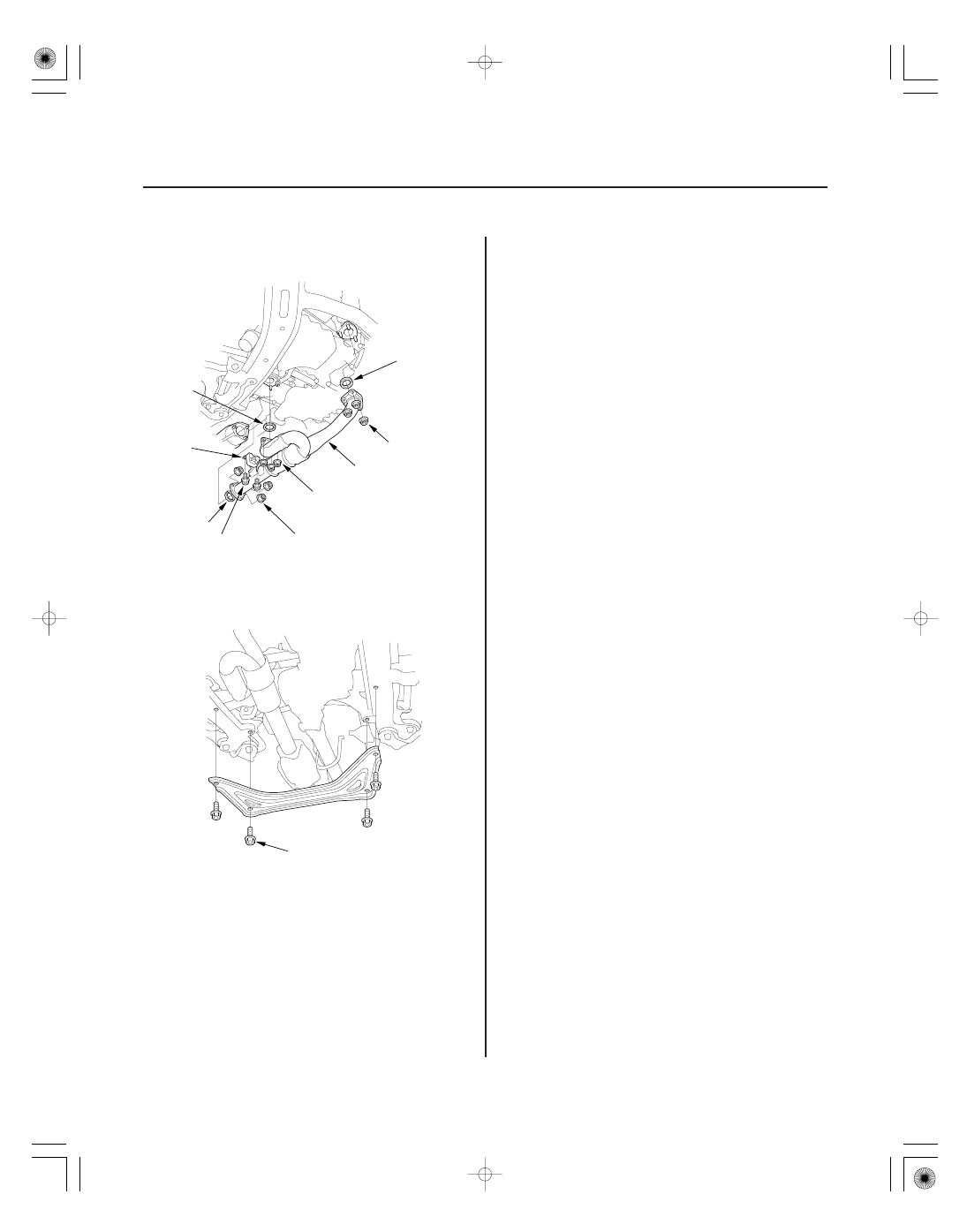

Transfer Assembly Installation (cont’d)

8 x 1.25 mm
22 N·m
(2.2 kgf·m,
16 lbf·ft)

B

C

C

10 x 1.25 mm
54 N·m
(5.5 kgf·m,
40 lbf·ft)

10 x 1.25 mm
33 N·m
(3.4 kgf·m, 25 lbf·ft)

A

10 x 1.25 mm
54 N·m
(5.5 kgf·m, 40 lbf·ft)

D

10 x 1.25 mm
54 N·m (5.5 kgf·m, 40 lbf·ft)

6. Install exhaust pipe A with the new self-locking

nuts, its mount (B), and new gaskets (C) (D).

7. Install the front subframe stiffener with new

mounting bolts.

8. Refill the transfer assembly with transfer fluid

(hypoid gear oil), if necessary (see page 14-211).

9. Refill the transmission with ATF (see step 5 on page

14-210).

Replace.

Replace.

Replace.

Replace.
