Honda Ridgeline. Manual - part 204





*01

16

14-201

A

B

A

C

D

E

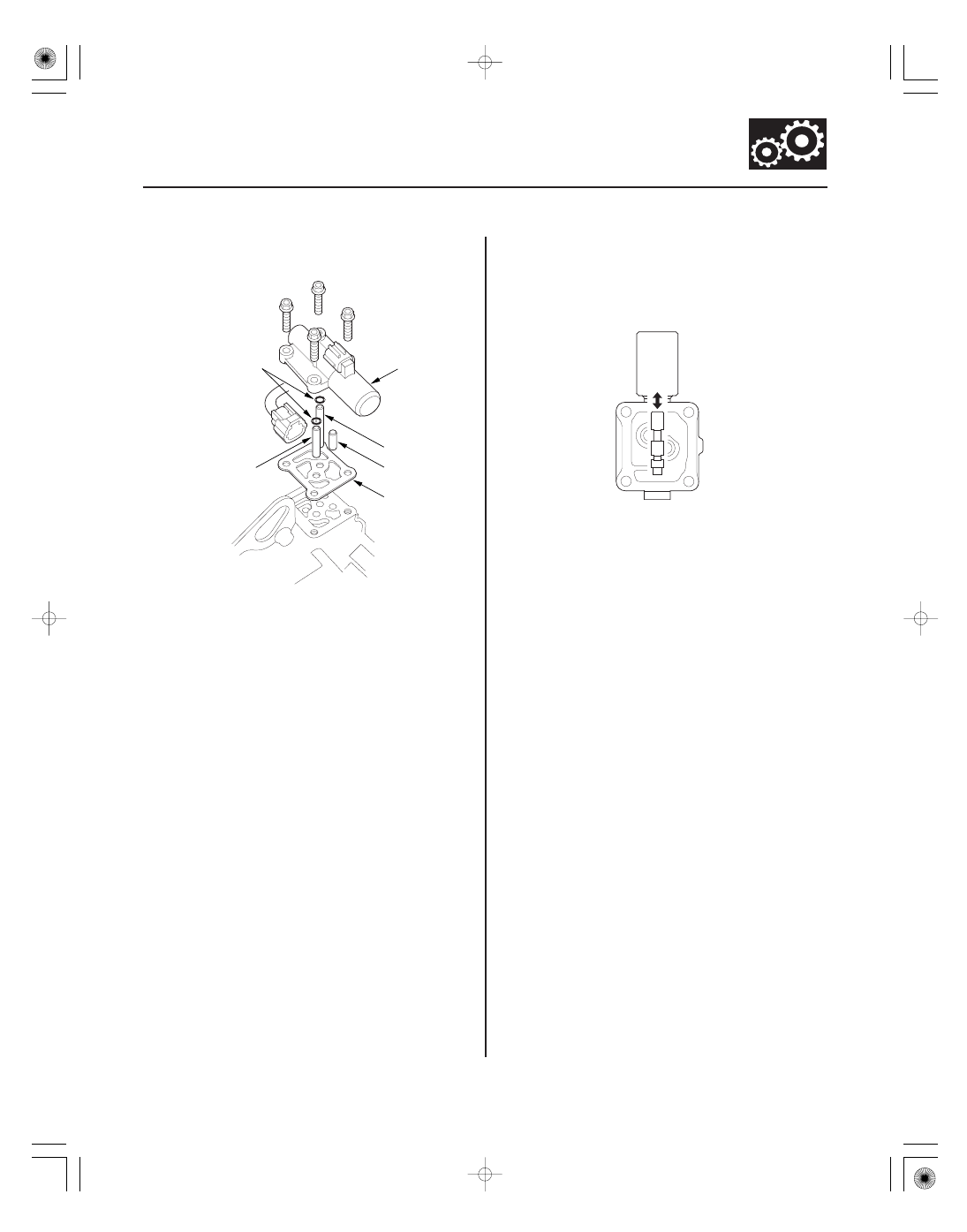

8. Remove A/T clutch pressure control solenoid

valve C.

9. Remove the ATF joint pipes (A), the O-rings (B), the

ATF pipe (D), and the gasket (E).

10. Check the fluid passage of the solenoid valve for

contamination.

11. Connect the negative battery terminal to A/T clutch

pressure control solenoid valve C connector
terminal No. 2, and connect the positive battery
terminal to connector terminal No. 1. Make sure
A/T clutch pressure control solenoid valve C moves.

12. Disconnect one of the battery terminals, and check

the valve movement at the fluid passage in valve
body mounting surface. If the valve binds or moves
sluggishly, or if the solenoid valve does not operate,
replace A/T clutch pressure control solenoid valve
C.

13. Clean the mounting surfaces and fluid passages of

the solenoid valve body and the transmission
housing.

(cont’d)

17

18

19

14-202

Automatic Transmission

A/T Clutch Pressure Control Solenoid Valve C Test (cont’d)

A

B

A

B

C

D

6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

A

B

C

D

E

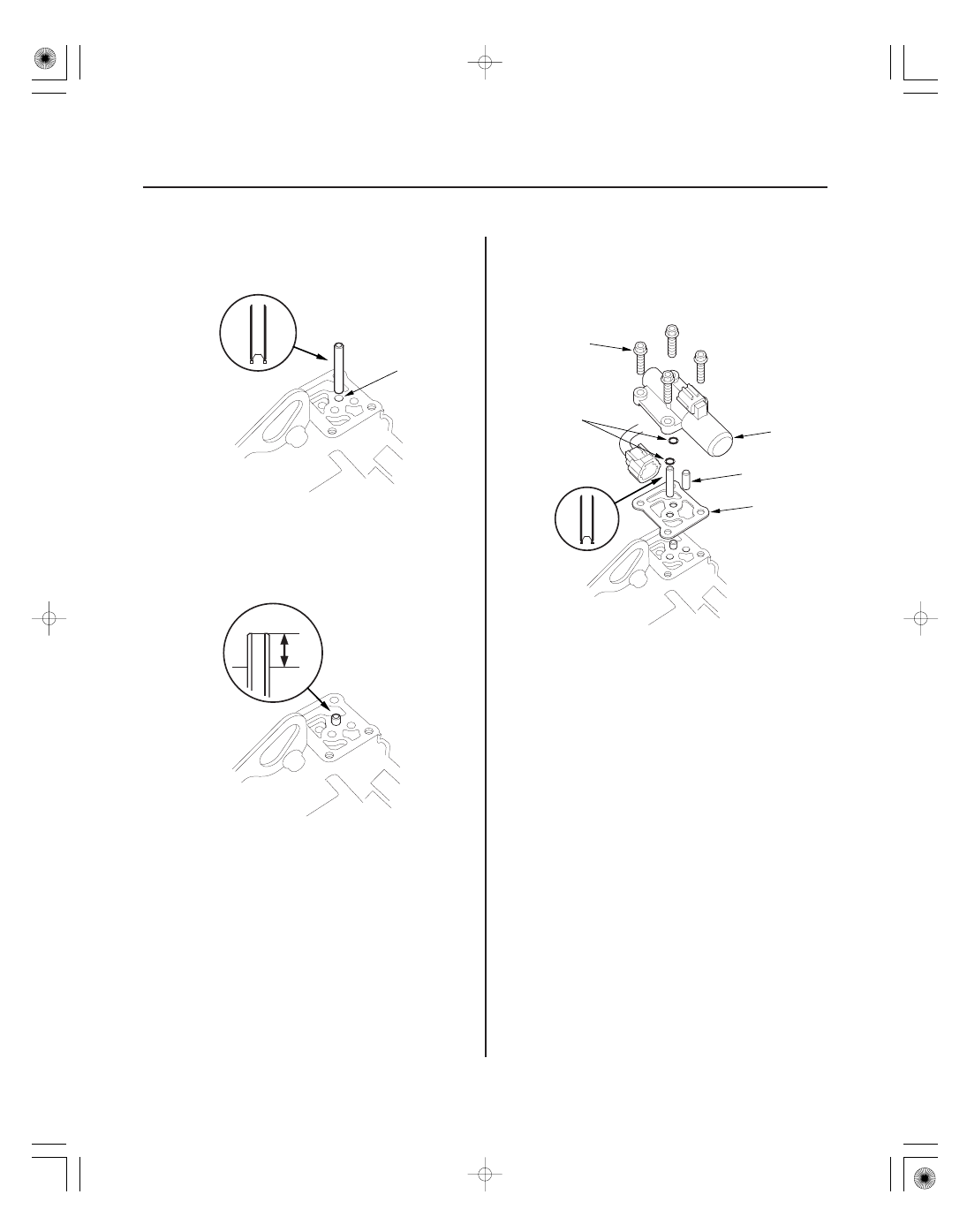

14. Install the 8 x 53 mm ATF joint pipe (A) with the

filter end into its mounting hole (B).

15. Check the height (A) of the 8 x 53 mm ATF joint

pipe (B) between the top (C) of the pipe and the
solenoid valve body mounting surface (D). The
height is about 7 mm (0.3 in.). If the height is over
7 mm (0.3 in.), push the pipe until it bottoms in the
accumulator body.

16. Install a new gasket (A) on the transmission

housing, and install the 8 x 34.5 mm ATF joint pipe
(B) with the filter end in the transmission housing
and 8 x 25.2 mm ATF pipe (D).

17. Install new O-rings (E) over the ATF joint pipes.

18. Install A/T clutch pressure control solenoid valve C.

19. Install the intake air duct and the intake manifold

cover.

*01

05

06

SJC8A00E10410612223KBAT10

14-203

A/T Clutch Pressure Control Solenoid Valve C Replacement

A

B

A

C

D

E

A

B

A

B

C

D

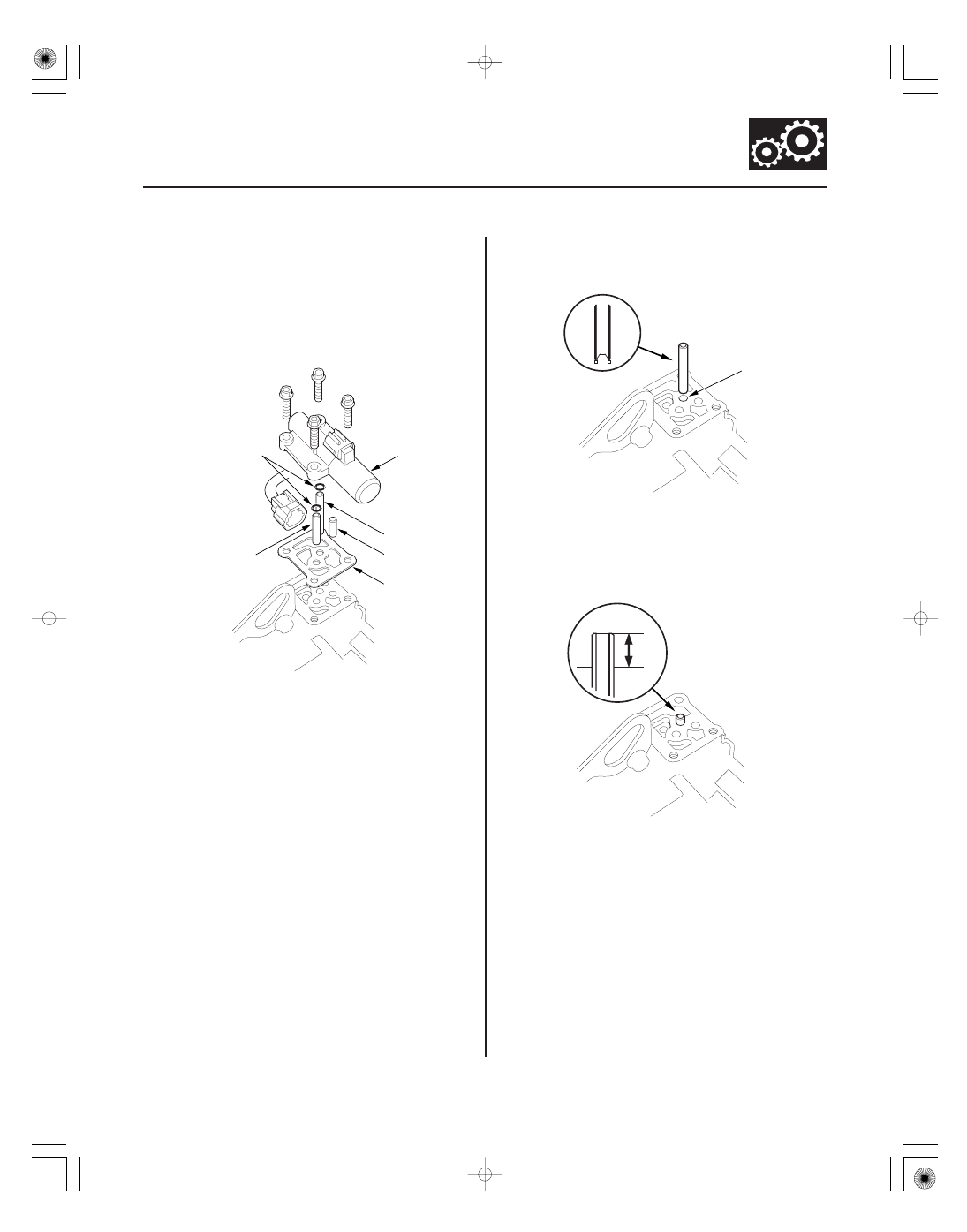

1. Remove the intake manifold cover and the intake

air duct.

2. Disconnect the A/T clutch pressure control solenoid

valve C connector.

3. Remove A/T clutch pressure control solenoid

valve C.

4. Remove the ATF joint pipes (A), the O-rings (B), the

ATF pipe (D), and the gasket (E).

5. Clean the mounting surfaces and fluid passages of

the solenoid valve body and the transmission
housing.

6. Install the 8 x 53 mm ATF joint pipe (A) with the

filter end into its mounting hole (B).

7. Check the height (A) of the 8 x 53 mm ATF joint

pipe (B) between the top (C) of the pipe and the
solenoid valve body mounting surface (D). The
height is about 7 mm (0.3 in.). If the height is over
7 mm (0.3 in.), push the pipe until it bottoms in the
accumulator body.

(cont’d)

07

14-204

Automatic Transmission

A/T Clutch Pressure Control Solenoid Valve C Replacement (cont’d)

6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

A

B

C

D

E

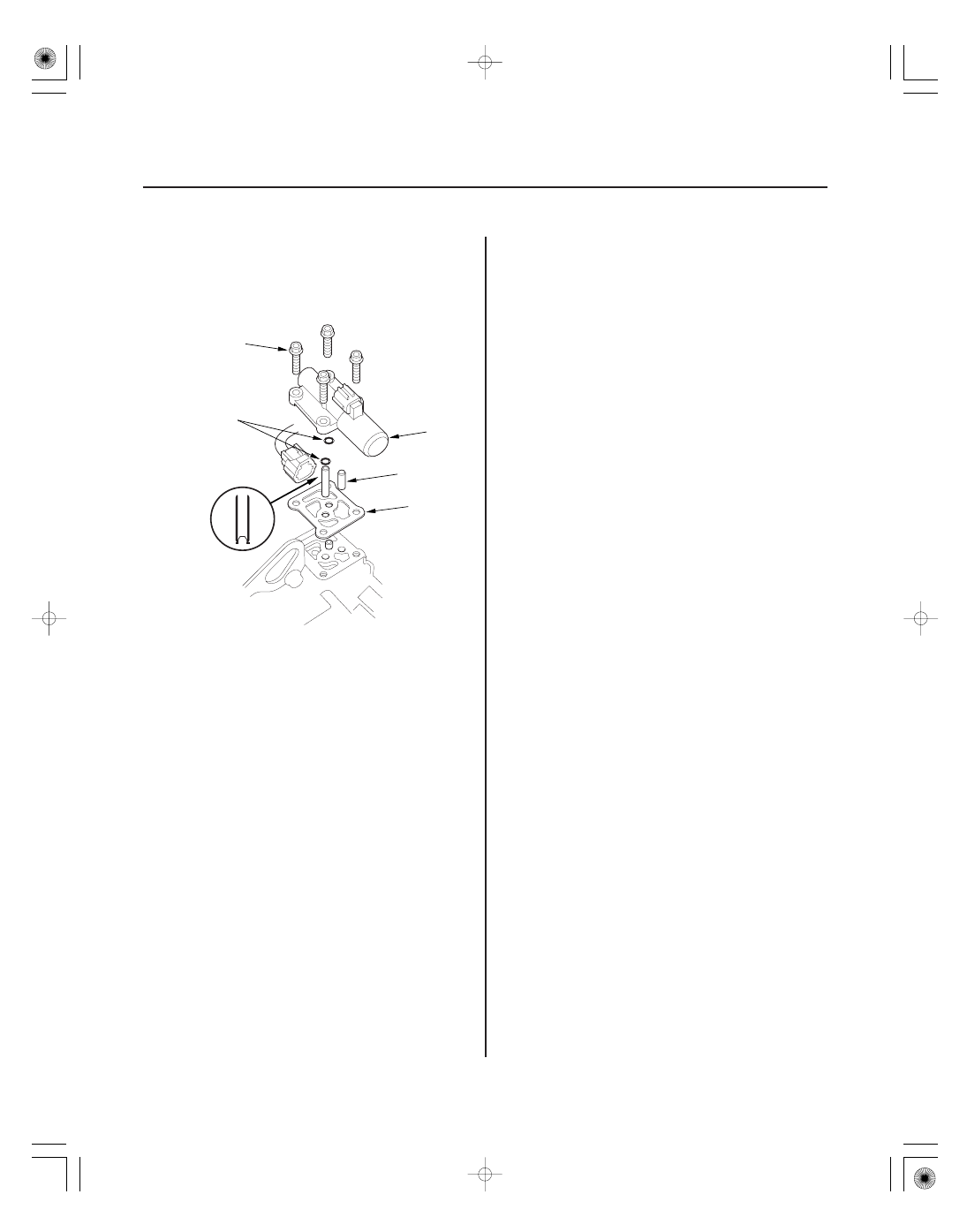

8. Install the new gasket (A) on the transmission

housing, and install the 8 x 34.5 mm ATF joint pipe
(B) with the filter end in the transmission housing
and 8 x 25.2 mm ATF pipe (D).

9. Install new O-rings (E) over the ATF joint pipes.

10. Install A/T clutch pressure control solenoid valve C.

11. Install the intake air duct and the intake manifold

cover.
