Honda Ridgeline. Manual - part 176





YES

NO

YES

NO

14-89

38. Update the PCM if it does not have the latest

software (see page 14-8), or substitute a known-
good PCM (see page 14-9).

39. Raise the vehicle on a lift, make sure it is supported

securely (see page 1-10), and allow all four wheels
to rotate freely.

40. Start the engine, disable the VSA by pressing the

VSA OFF button, run the vehicle in D hold the
vehicle speed reaches 30 mph (48 km/h), then slow
down and stop the wheels.

41. Turn the ignition switch to LOCK (0), and repeat the

test-drive in step 40.

42. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the transmission range switch and the
PCM. If the PCM was updated, substitute a known-
good PCM (see page 14-9), then go to step 39. If the
PCM was substituted, go to step 1.

If Temporary DTC or DTC P0706 is not

indicated, or if any other Temporary DTCs or DTCs
are indicated, go to step 43.

43. Monitor the OBD STATUS for P0706 in the DTCs

MENU with the HDS.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs were indicated on step
42, go to the indicated DTCs troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the transmission
range switch and the PCM. If the PCM was updated,
substitute a known-good PCM (see page 14-9), then
go to step 39. If the PCM was substituted, go to step
1. If the screen indicates NOT COMPLETED, go to
step 39.

Is DT C P07 06 indicated?

Does the scr een indicate PASSED?

SJC8A00K77100090711FAAT00

DTC P0711:

YES

NO

YES

NO

YES

NO

YES

NO

YES

NO

YES

NO

14-90

Automatic Transmission

DTC Troubleshooting (cont’d)

Problem in ATF Temperature

Sensor Circuit

NOTE:

• Before you troubleshoot, record all freeze data and

any on-board snapshot, and review General
Troubleshooting Information (see page 14-4).

• This code is caused by an electrical circuit problem

and cannot be caused by a mechanical problem in the
transmission.

1. Check the ATF TEMP SENSOR in the DATA LIST

with the HDS.

Record the ATF temperature. Leave the

engine off for at least 30 minutes, then go to step 2.

Record the ATF temperature. Test the stall

speed RPM (see page 14-183) three times. Go to
step 2 after stall speed testing.

2. Check the ATF TEMP SENSOR in the DATA LIST

with the HDS.

Leave the engine off for at least 30 minutes,

then go to step 3.

Replace the ATF temperature sensor

(see page 14-208), then go to step 5.

3. Check the ECT SENSOR in the DATA LIST with the

HDS.

Go to step 4.

Leave the engine off until the ECT sensor

equals the ambient-air temperature, then go to
step 4.

4. Check the ATF TEMP SENSOR in the DATA LIST

with the HDS.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the ATF temperature sensor and the PCM.

Go to step 5.

5. Replace the ATF temperature sensor (see page

14-208).

6. Reconnect all connectors.

7. Turn the ignition switch to ON (II).

8. Clear the DTC with the HDS.

9. Start the engine, and warm it up to normal

operating temperature (the radiator fan comes on).

10. Turn the ignition switch to LOCK (0), and allow the

engine coolant temperature to cool to the ambient
air temperature.

11. Start the engine, and warm it up to normal

operating temperature (the radiator fan comes on).
Wait for at least 20 seconds, then drive the vehicle
at speeds over 19 mph (31 km/h) for at least
5 minutes.

12. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the ATF temperature sensor and the
PCM, then go to step 1.

If Temporary DTC or DTC P0711 is not

indicated, or if any other Temporary DTCs are
indicated, go to step 11.

13. Monitor the OBD STATUS for P0711 in the DTCs

MENU with the HDS.

Troubleshooting is complete. If any other

Temporary DTC or DTCs were indicated on step 10,
go to the indicated DTCs troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the ATF
temperature sensor and the PCM, then go to step 1.
If the screen indicates NOT COMPLETED, go to step
9.

Does the AT F temper atur e exceed the ambient air
temper atur e?

Did the AT F temper atur e change?

Does the ECT SENSOR r ead about the same as
the ambient air temper atur e?

Does the AT F temper atur e r ead about the same as
the ECT SENSOR?

Is DT C P07 11 indicated?

Does the scr een indicate PASSED?

01

SJC8A00K77100090712FAAT00

DTC P0712:

YES

NO

YES

NO

YES

NO

14-91

ATF TEMPERATURE
SENSOR CONNECTOR

ATFT (BLU/YEL)

Short in ATF Temperature Sensor

Circuit

NOTE:

• Before you troubleshoot, record all freeze data and

any on-board snapshot, and review General
Troubleshooting Information (see page 14-4).

• This code is caused by an electrical circuit problem

and cannot be caused by a mechanical problem in the
transmission.

1. Check the ATF TEMP SENSOR voltage in the DATA

LIST with the HDS.

Go to step 2.

Intermittent failure, the system is OK at this

time. Check for an intermittent short in the ATFT
wire between the ATF temperature sensor and the
PCM.

2. Disconnect the ATF temperature sensor connector

at the transmission end cover.

3. Check the ATF TEMP SENSOR voltage with the

HDS.

Go to step 4.

Go to step 8.

4. Turn the ignition switch to LOCK (0).

5. Jump the SCS line with the HDS.

6. Disconnect PCM connector C (44P).

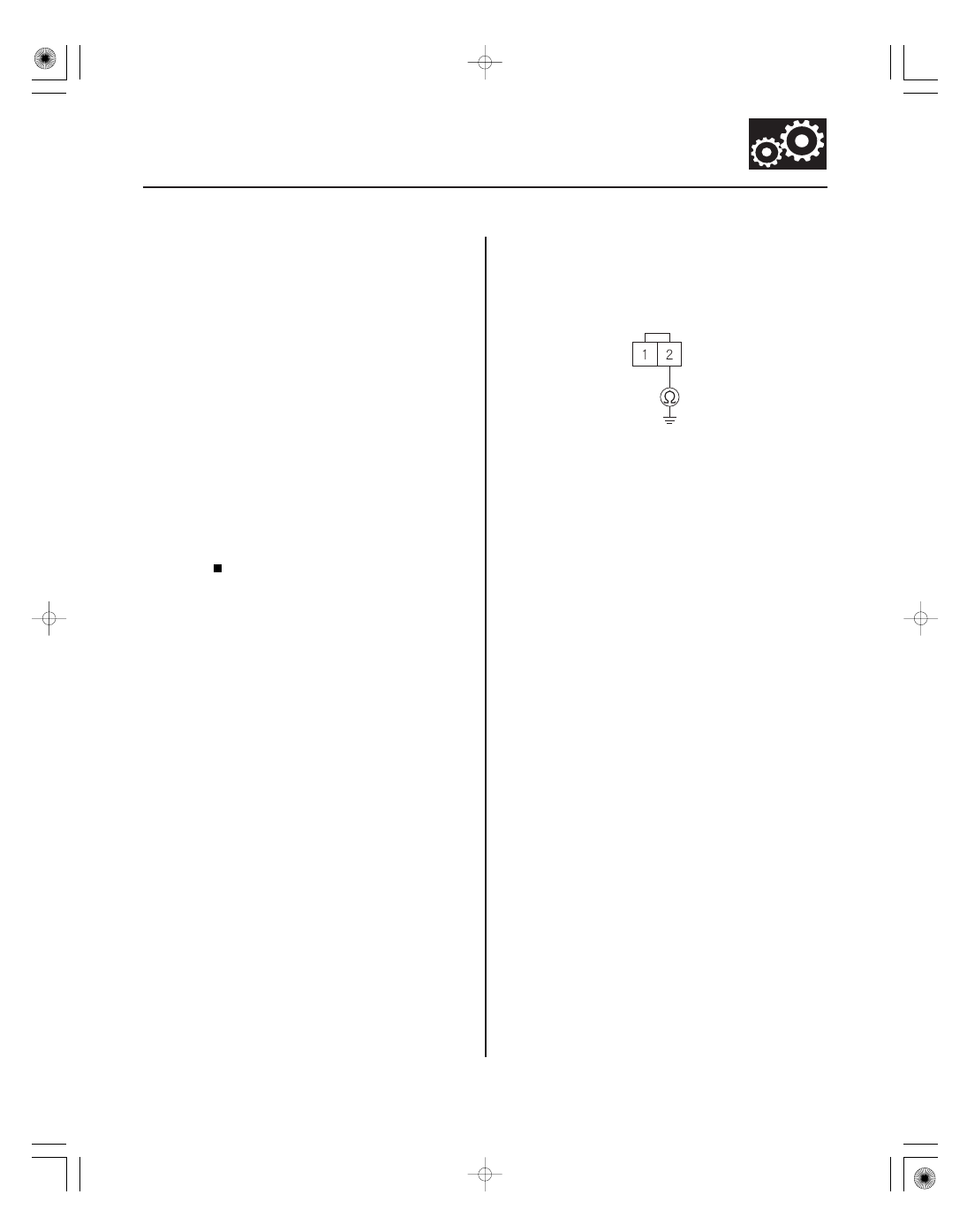

7. Check for continuity between ATF temperature

sensor connector terminal No. 2 and body ground.

Repair a short to ground in the wire between

PCM connector terminal C28 and the ATF
temperature sensor connector No. 2 terminal, then
go to step 9.

Go to step 13.

(cont’d)

Wire side of female terminals

Is the AT F T EMP SENSOR voltage 0.07 V or
less?

Is the AT F T EMP SENSOR voltage 0.07 V or
less?

Is ther e continuity?

YES

NO

YES

NO

YES

NO

YES

NO

14-92

Automatic Transmission

DTC Troubleshooting (cont’d)

8. Replace the ATF temperature sensor (see page

14-208).

9. Reconnect all connectors.

10. Turn the ignition switch to ON (II).

11. Clear the DTC with the HDS.

12. Start the engine in P, and let it run for at least

20 seconds.

13. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the ATF temperature sensor and the
PCM, then go to step 1.

Go to step 14.

14. Monitor the OBD STATUS for P0712 in the DTCs

MENU with the HDS.

Troubleshooting is complete. If any other

Temporary DTC or DTCs were indicated on step 13,
go to the indicated DTCs troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the ATF
temperature sensor and the PCM, then go to step 1.
If the screen indicates NOT COMPLETED, go to step
12.

15. Update the PCM if it does not have the latest

software (see page 14-8), or substitute a known-
good PCM (see page 14-9).

16. Start the engine in P, and let it run for at least

20 seconds.

17. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the ATF temperature sensor and the
PCM. If the PCM was updated, substitute a known-
good PCM (see page 14-9), then go to step 16. If the
PCM was substituted, go to step 1.

If Temporary DTC or DTC P0712 is not

indicated, or if any other Temporary DTCs or DTCs
are indicated, go to step 18.

18. Monitor the OBD STATUS for P0712 in the DTCs

MENU with the HDS.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs were indicated on step
17, go to the indicated DTCs troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the ATF
temperature sensor and the PCM. If the PCM was
updated, substitute a known-good PCM (see page
14-9), then go to step 16. If the PCM was substituted,
go to step 1. If the screen indicates NOT
COMPLETED, go to step 16.

Is DT C P07 12 indicated?

Does the scr een indicate PASSED?

Is DT C P07 12 indicated?

Does the scr een indicate PASSED?
