Honda Ridgeline. Manual - part 154

Valve Body

Torque Converter Housing

Shafts and Clutches

A/T Differential

Transfer Output Shaft

Transfer Assembly

.....................................

...................

.................

................................

.................

.......................

.....................................

...................

.................

................................

.................

.......................

Valve Body Repair

. 14-305

Valve Body Valve Installation

. 14-306

Main Valve Body Disassembly,

Inspection, and Reassembly

. 14-307

ATF Pump Inspection

. 14-308

Secondary Valve Body Disassembly,

Inspection, and Reassembly

. 14-309

Regulator Valve Body Disassembly,

Inspection, and Reassembly

. 14-310

Accumulator Body Disassembly,

Inspection, and Reassembly

. 14-311

Shift Solenoid Valve, Torque Converter

Clutch Solenoid Valve
Removal and Installation

. 14-312

...........................................

.........

...........................................

...

...........................................

.........

...........................................

...

Mainshaft Bearing and Oil Seal

Replacement

. 14-313

Countershaft Bearing Replacement

. 14-314

Secondary Shaft Bearing Replacement

. 14-315

Intermediary Shaft Bearing

Replacement

. 14-317

Park Lever Shaft Bearing Replacement

. 14-318

.................

............

........................

....................

.........................

.............................

.......

....................

..................

..........................

.................

..................................................

..............................................

.............................

..........................

...................................

.......................................

...............................................

.....................

....................................

.................

............

........................

....................

.........................

.............................

.......

....................

..................

..........................

.................

..................................................

..............................................

.............................

..........................

...................................

.......................................

...............................................

.....................

....................................

Mainshaft Disassembly,

Inspection, and Reassembly

. 14-319

Mainshaft 4th Gear Replacement

. 14-320

Countershaft Disassembly

. 14-321

Countershaft Idler Gear and 4th Gear

Axial Clearance Inspection

. 14-323

Countershaft Reassembly

. 14-325

Secondary Shaft Disassembly

Secondary Shaft 1st Gear Axial

Clearance Inspection

. 14-330

1st Gear One-way Clutch Inspection

. 14-332

1st Clutch Hub Replacement

. 14-333

Secondary Shaft Reassembly

. 14-334

Secondary Shaft Installation Height

Inspection/Adjustment

. 14-337

Intermediary Shaft Disassembly,

Inspection, and Reassembly

. 14-339

Intermediary Shaft 4th Gear

Removal

. 14-340

Installation

. 14-340

Intermediary Shaft 3rd Gear Axial

Clearance Inspection

. 14-341

Intermediary Shaft Installation Height

Inspection/Adjustment

. 14-343

Clutch Disassembly

. 14-344

Clutch Inspection

. 14-349

Clutch Wave-plate Phase Difference

Inspection

. 14-350

Clutch Clearance Inspection

. 14-351

Clutch Reassembly

. 14-356

......................

...................................

........

...................

................................

...........................................

..........

......................

...................................

........

...................

................................

...........................................

..........

Component Location Index

. 14-373

Backlash Inspection

. 14-373

Differential Carrier, Final Driven Gear, and

Transfer Drive Gear Replacement

. 14-374

Carrier Bearing Replacement

. 14-374

Oil Seal Replacement

. 14-375

Carrier Bearing Outer Race

Replacement

. 14-376

Carrier Bearing Preload Inspection

. 14-378

......................

...........................................

................................

...........................................

..........................

......................

...........................................

................................

...........................................

..........................

Component Location Index

. 14-381

Transfer Output Shaft Bearing

Replacement

. 14-381

Oil Seal Replacement

. 14-382

Transmission Housing Bearing

Replacement

. 14-383

Transfer Output Shaft Installation Height

Inspection/Adjustment

. 14-384

...................................................

...............................................

...................................................

...............................................

Inspection

. 14-385

Disassembly

. 14-386

Transfer Hypoid Drive Gear Bearing

Replacement

ransfer Output Shaft (Hypoid Gear)

Bearing Removal/Installation

ransfer Housing Tapered Roller Bearing

Outer Race Replacement

ransfer Cover Tapered Roller Bearing

Outer Race Removal/Installation

ransfer Cover Oil Seal Replacement

Reassembly

.................

.................. 14-327

...........................................

............................................ 14-389

...............

................ 14-390

.......................

........................ 14-391

..........

........... 14-393

......

....... 14-394

................................................

................................................. 14-395

０１
０１

０１

ＳＪＣ８Ａ０００００００００Ｊ１４０１ＰＡＡＴ００

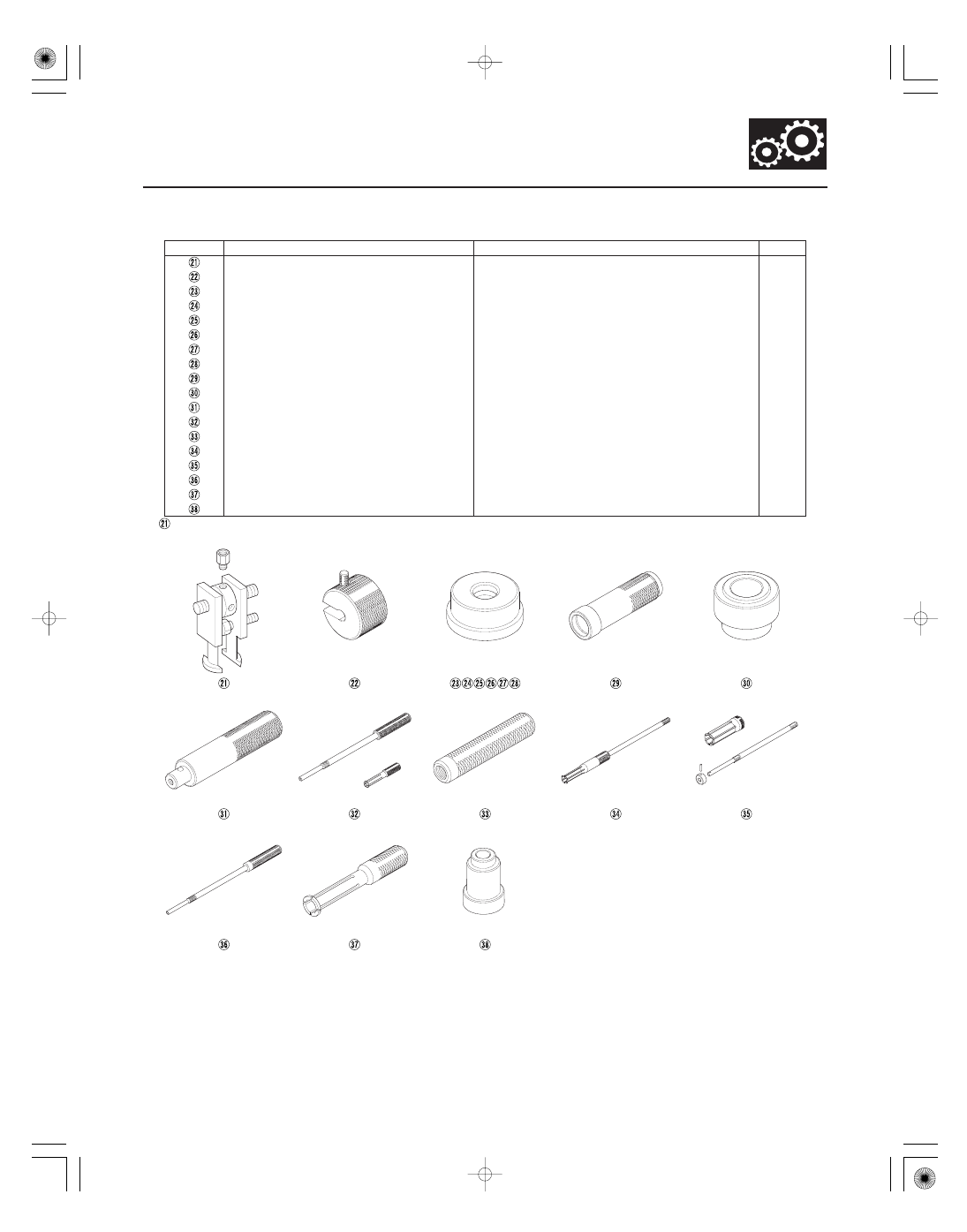

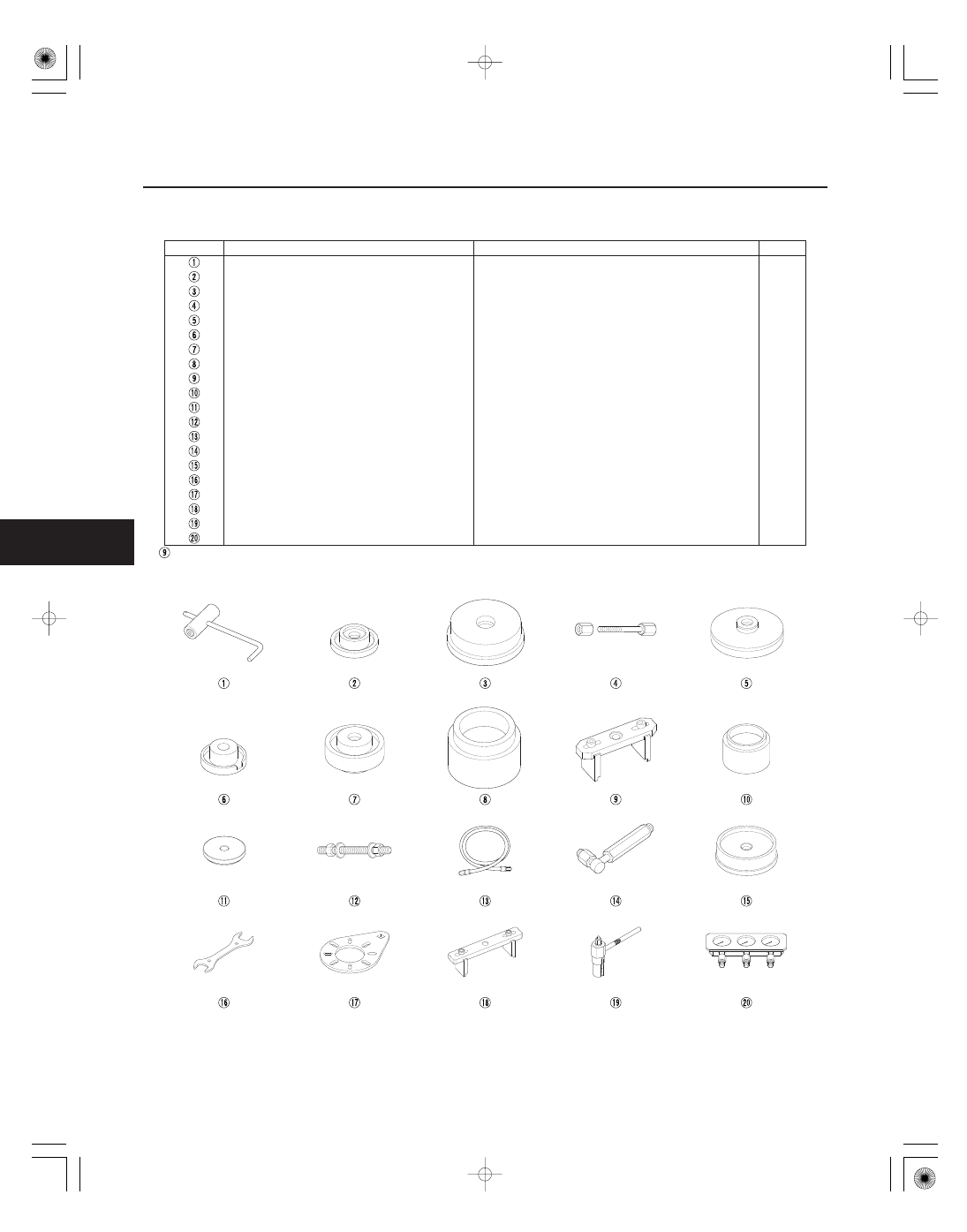

Ref. No.

Tool Number

Description

Qty

14-2

Automatic Transmission

Special Tools

07GAB-PF50101 or 07GAB-PF50100

Mainshaft Holder

07GAD-PG40100 or 07GAD-PG40101

Oil Seal Driver Attachment

07GAD-SD40101

Attachment, 78 x 90 mm

07GAE-PG40200 or 07GAE-PG4020A

Clutch Spring Compressor Bolt Assembly

07HAD-SG00100

Attachment, 83 mm

07JAD-PH80101

Oil Seal Driver Attachment

07JAD-SH30100

Attachment, 65 mm

07LAD-PW50601

Attachment, 40 x 50 mm

07LAE-PX40100

Clutch Spring Compressor Attachment

07MAD-PR90100

Attachment, 45 x 55 mm

07MAF-SP0011A

Tapered Bearing Race Installer

07MAF-SP0013A

Installer Shaft

07MAJ-PY4011A

A/T Pressure Hose, 2,210 mm

07MAJ-PY40120

A/T Pressure Hose Adapter

07NAD-PX40100

Attachment, 78 x 80 mm

07XAA-002010A

Wrench, 40 x 42 mm

07XAB-0010101

Companion Flange Holder

07ZAE-PRP0100

Clutch Compressor Attachment

070AJ-0020101

Preload Inspection Tool

07406-0020400 or 07406-0020401

A/T Clutch Pressure Gauge Set/Panel

: 07HAE-PL50101 may be used to substitute one of these tools.

−

０１
０１

０１

Ref. No.

Tool Number

Description

Qty

14-3

07736-A01000B or 07736-A01000A

Adjustable Bearing Puller, 25

40 mm

07741-0010201

Sliding Hammer Weight

07746-0010200

Attachment, 37 x 40 mm

07746-0010300

Attachment, 42 x 47 mm

07746-0010400

Attachment, 52 x 55 mm

07746-0010500

Attachment, 62 x 68 mm

07746-0010600

Attachment, 72 x 75 mm

07746-0010800

Attachment, 22 x 24 mm

07746-0030100

Driver, 40 mm I.D.

07746-0030300

Attachment, 30 mm I.D.

07749-0010000

Driver

07936-1660101

Bearing Remover Shaft Set, 12 mm

07936-3710100

Bearing Remover Shaft Handle

07936-3710600

Bearing Remover Shaft Set, 20 mm

07936-8890300

Bearing Remover Shaft Set, 30 mm

07936-GE00100

Bearing Remover Shaft, 10 mm

07936-GE00200

Bearing Remover Head, 10 mm

07947-6340500

Driver Attachment

: Must be used with commercially available 3/8 ’’-16 slide hammer.

０７

ＳＪＣ８Ａ００Ｋ７７１００００００００ＢＢＡＴ２０

How to Check for DTCs with the Honda
Diagnostic System (HDS)

Symptom Troubleshooting Versus DTC
Troubleshooting

14-4

Automatic Transmission

General Troubleshooting Information

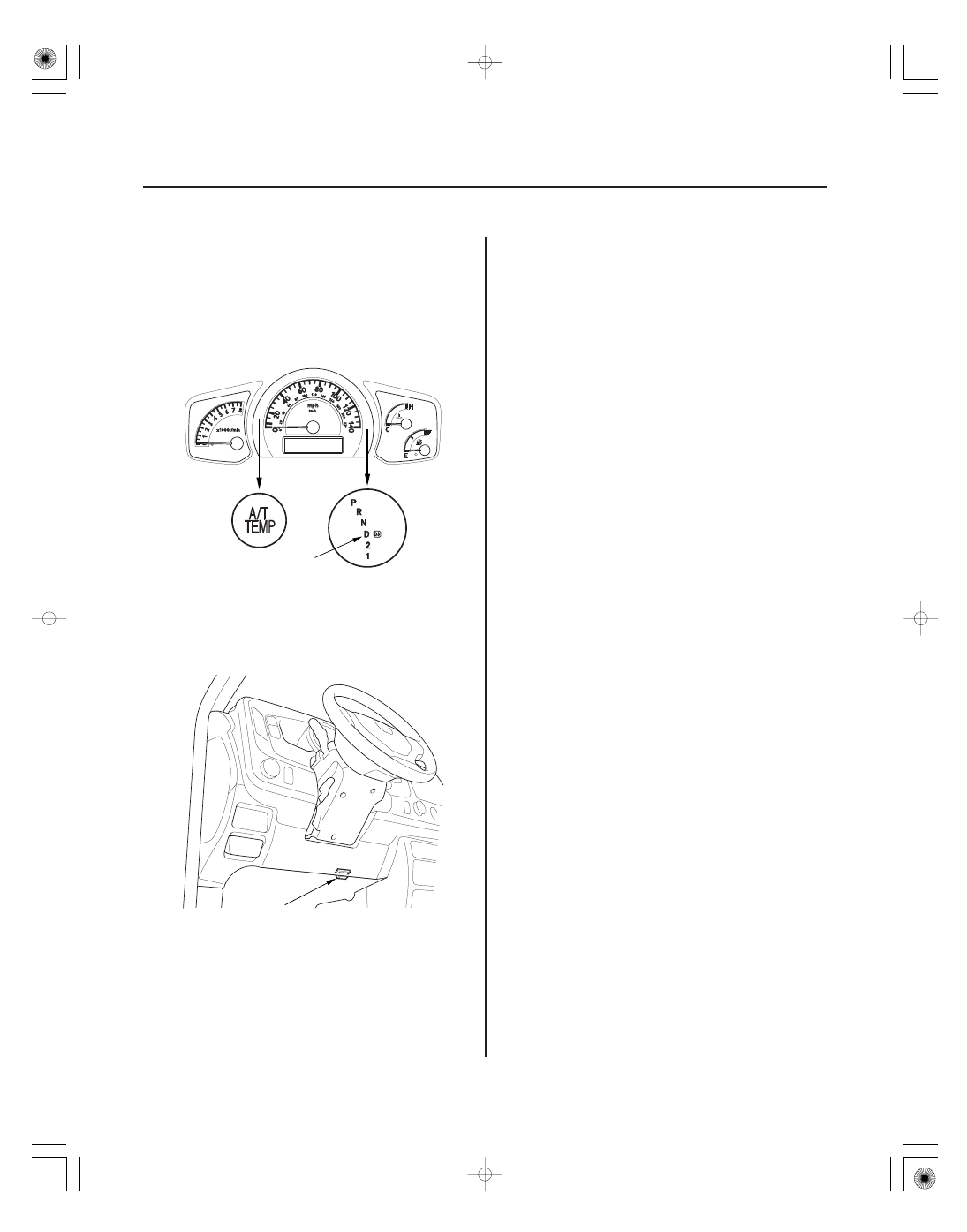

When the powertrain control module (PCM) senses an
abnormality in the input or output system, the D
indicator (A) in the gauge control module (B) will
usually blink.

When the Honda Diagnostic System (HDS) is connected
to the data link connector (DLC) (A) located behind the
driver’s dashboard lower cover, it will indicate the
diagnostic trouble code (DTC) when the ignition switch
is turned ON (II) and the appropriate menu is selected.

If the D indicator or malfunction indicator lamp (MIL)
has been reported on, or if a driveability problem is
suspected, do this:

1. Connect the HDS to the DLC. (See the HDS user’s

manual for specific instructions.)

2. Turn the ignition switch to ON (II), select A/T

system, and observe the DTC in the DTCs MENU on
the HDS screen.

NOTE: If the HDS does not communicate with the
PCM, troubleshoot the DLC circuit (see page
11-194).

3. Record the freeze data and on-board snapshots for

all fuel and emissions DTCs and A/T DTCs.

4. If there is a fuel and emissions DTC, first check the

fuel and emissions system as indicated by the DTC
(except for DTC P0700, which means there is one or
more A/T DTCs, and no problems were detected in
the fuel and emissions circuit of the PCM).

5. Clear the DTC and data.

6. Drive the vehicle for several minutes under the

same conditions as those indicated by the freeze
data, and then recheck for a DTC. If the A/T DTC
returns, go to the indicated DTC’s troubleshooting.
If the DTC does not return, there was an
intermittent problem within the circuit. Make sure
all pins and terminals in the circuit are tight.

Some symptoms will not trigger diagnostic trouble
codes (DTCs) or cause the D indicator to blink. If the
malfunction indicator lamp (MIL) was reported ON or
the D indicator has been blinking, check for DTCs. If the
vehicle has an abnormal symptom, and there are no
DTCs stored, do the symptom troubleshooting. Check
the list of probable cause(s) for the symptom, in the
sequence listed, until you find the problem.
