DTC P0461:

YES

11-276

Fuel Supply System

DTC Troubleshooting

Fuel Level Sensor (Fuel Gauge

Sending Unit) Range/Performance Problem

NOTE:

• Before you troubleshoot, record all freeze data and

any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

• Because it requires 162 miles (260 km) of driving

without refueling to complete this diagnosis, this DTC
P0461 cannot be duplicated during this
troubleshooting.

1. Test the fuel gauge sending unit (see page 11-302).

Check for poor connections or loose

terminals at the fuel gauge sending unit and the
gauge control module.

Replace the fuel gauge sending unit (see page

11-300), then go to step 2.

2. Turn the ignition switch ON (II).

3. Reset the PCM with the HDS.

4. Do the PCM idle learn procedure (see page 11-273).

5. Check for Temporary DTCs or DTCs with the HDS.

If DTC P0461 is indicated, check for poor

connections or loose terminals at the fuel gauge
sending unit and the gauge control module, then
go to step 1. If any other Temporary DTCs or DTCs
are indicated, go to the indicated DTC’s
troubleshooting.

Troubleshooting is complete.

Is the f uel gauge sending unit OK ?

Ar e any T empor ar y DT Cs or DT Cs indicated?

０１

ＳＪＣ８Ａ００Ｋ７７１０００９０４６２ＦＡＡＴ３０

−

DTC P0462:

YES

11-277

FUEL TANK UNIT 5P CONNECTOR

SIGNAL (YEL/BLK)

Fuel Level Sensor (Fuel Gauge

Sending Unit) Circuit Low Voltage

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS, and wait 5 seconds.

3. Check for Temporary DTCs or DTCs in the DTCs

MENU with the HDS.

Go to step 4.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the gauge control module and the fuel gauge
sending unit.

4. Turn the ignition switch OFF.

5. Remove the rear seat (see page 20-117).

6. Remove the access panel from the floor.

7. Disconnect the fuel tank unit 5P connector.

8. Turn the ignition switch ON (II).

9. Clear the DTC with the HDS, and wait 5 seconds.

10. Check for Temporary DTCs or DTCs in the DTCs

MENU with the HDS.

Replace the fuel gauge sending unit

(see page 11-300), then go to step 22.

Go to step 11.

11. Turn the ignition switch OFF.

12. Remove the gauge control module (see page

22-263).

13. Disconnect the gauge control module 14P

connector.

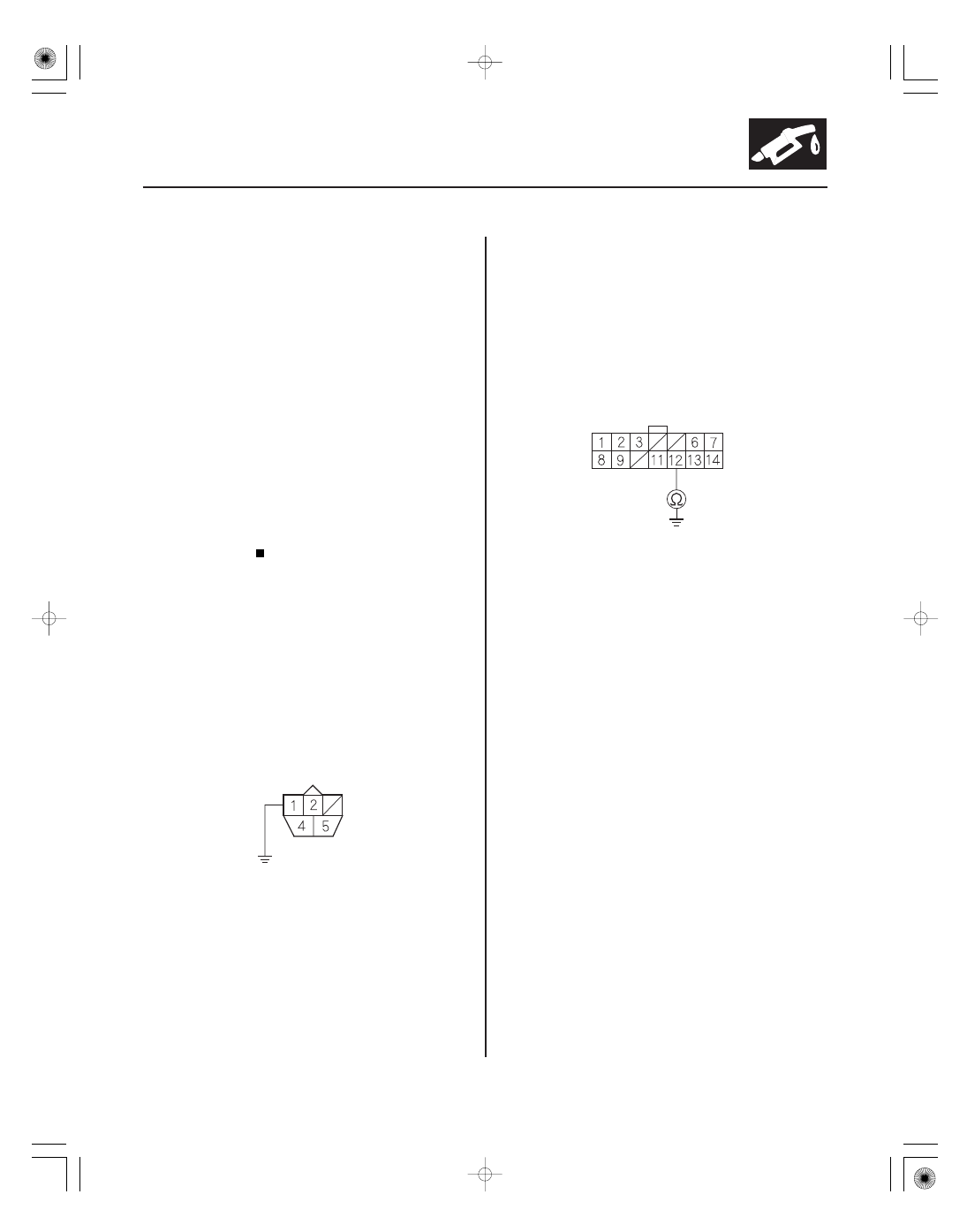

14. Check for continuity between fuel tank unit 5P

connector terminal No. 2 and body ground.

Repair short in the wire between the gauge

control module (signal line) and the fuel gauge
sending unit, then go to step 23.

Go to step 15.

15. Reconnect the gauge control module 14P connector.

16. Remove the fuel tank unit (see page 11-297).

17. Connect the fuel tank unit 5P connector.

18. Turn the ignition switch ON (II).

19. Clear the DTC with the HDS.

(cont’d)

Wire side of female terminals

Is DT C P0462 indicated?

Is DT C P0463 indicated?

Is ther e continuity?

＊０１

−

YES

11-278

Fuel Supply System

DTC Troubleshooting (cont’d)

1.2 in.
(30.1 mm)

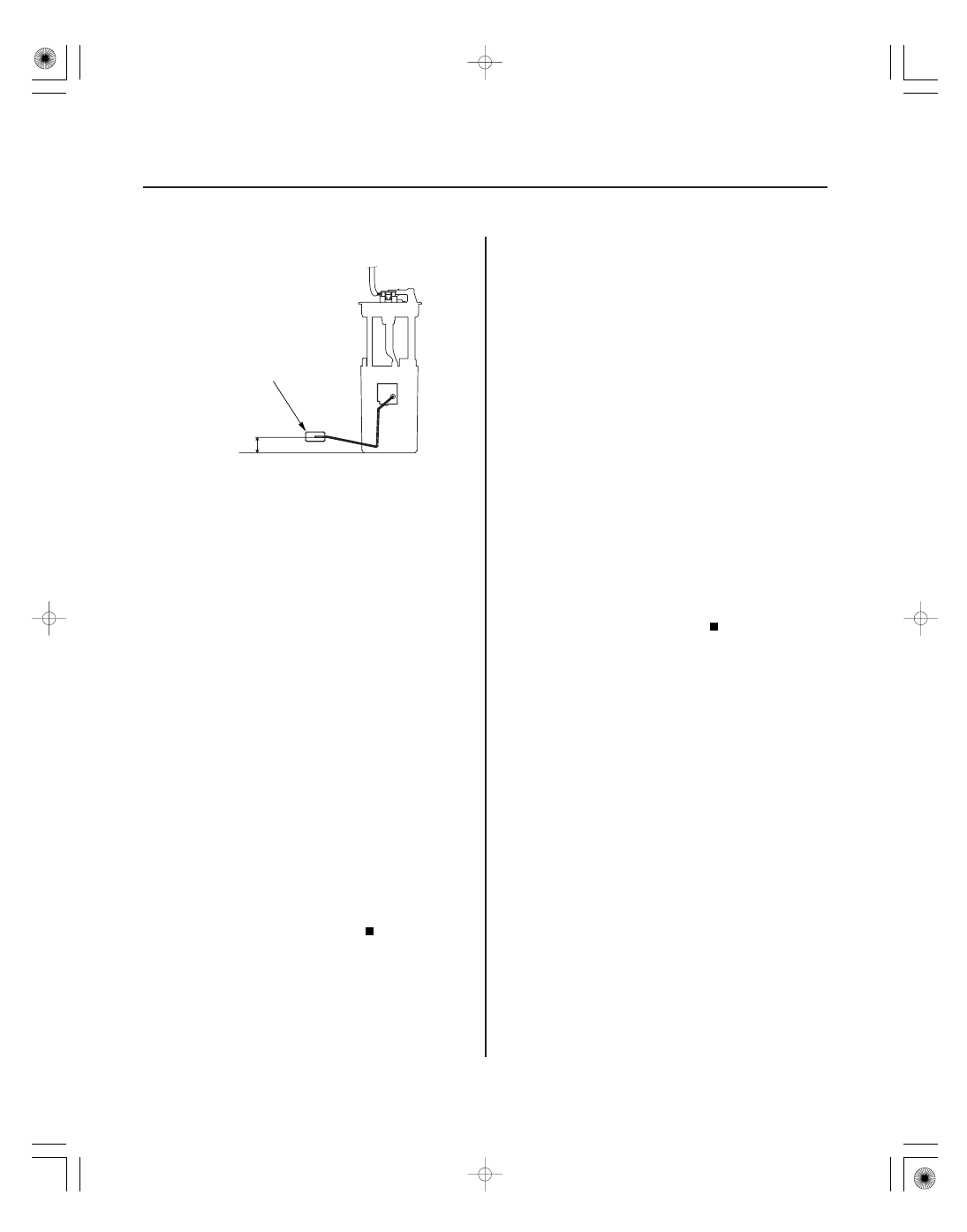

20. Set the float (A) to the E position.

21. Check the fuel gauge.

Go to step 33.

Replace the gauge control module (see page

22-263), then go to step 22.

22. Turn the ignition switch OFF.

23. Install the parts in the reverse order of removal.

24. Reconnect all connectors.

25. Turn the ignition switch ON (II).

26. Reset the PCM with the HDS.

27. Do the PCM idle learn procedure (see page 11-273).

28. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the fuel gauge sending unit and the
gauge control module, then go to step 1.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

29. Turn the ignition switch OFF.

30. Install the parts in the reverse order of removal.

31. Reconnect all connectors.

32. Turn the ignition switch ON (II).

33. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

34. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the fuel gauge sending unit and the
gauge control module. If the PCM was updated,
substitute a known-good PCM (see page 11-8), then
recheck. If the PCM was substituted, go to step 1.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

Does the f uel gauge move to the empty position?

Is DT C P0462 indicated?

０１

０２

ＳＪＣ８Ａ００Ｋ７７１０００９０４６３ＦＡＡＴ３０

−

DTC P0463:

YES

11-279

FUEL TANK UNIT 5P CONNECTOR

GND
(BLK/WHT)

JUMPER WIRE

GAUGE CONTROL MODULE 14P CONNECTOR

GND (BLK/WHT)

Fuel Level Sensor (Fuel Gauge

Sending Unit) Circuit High Voltage

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS, and wait 5 seconds.

3. Check for Temporary DTCs or DTCs in the DTCs

MENU with the HDS.

Go to step 4.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the gauge control module and the fuel gauge
sending unit.

4. Turn the ignition switch OFF.

5. Remove the rear seat (see page 20-117).

6. Remove the access panel from the floor.

7. Disconnect the fuel tank unit 5P connector.

8. Connect fuel tank unit 5P connector terminal No. 1

to body ground with a jumper wire.

9. Remove the gauge control module (see page

22-263).

10. Disconnect the gauge control module 14P

connector.

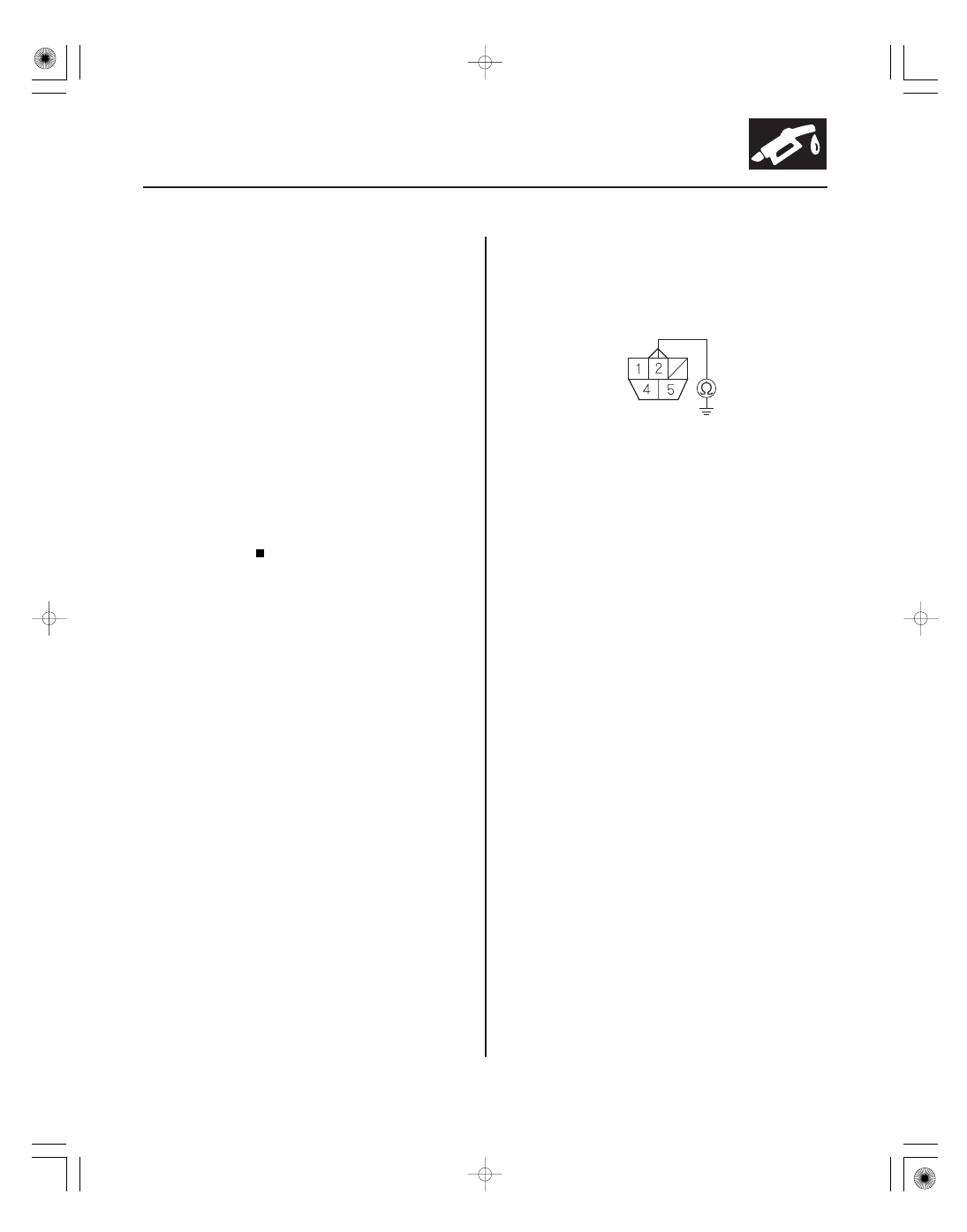

11. Check for continuity between gauge control

module 14P connector terminal No. 12 and body
ground.

Go to step 12.

Repair open in the wire between the gauge

control module (GND line) and the fuel gauge
sending unit, then go to step 24.

(cont’d)

Wire side of female terminals

Is DT C P0463 indicated?

Is ther e continuity?
