Honda Ridgeline. Manual - part 122

０２

−

YES

11-252

VTEC

DTC Troubleshooting (cont’d)

PCM CONNECTOR B (44P)

VTPSW
(BLU/WHT)

13. Check the VTEC oil pressure.

Replace the rocker arm oil pressure switch

(VTEC oil pressure switch) (see page 11-261), then
go to step 19.

Go to step 14.

14. Check the engine oil pressure (see page 8-6).

Replace the rocker arm oil control solenoid

(VTEC solenoid valve) (see page 11-261), then go to
step 19.

Repair the cause of the low oil pressure, and

replace the rocker arm oil control solenoid (VTEC
solenoid valve) (see page 11-261), then go to step
19.

15. Turn the ignition switch OFF.

16. Jump the SCS line with the HDS.

17. Disconnect PCM connector B (44P).

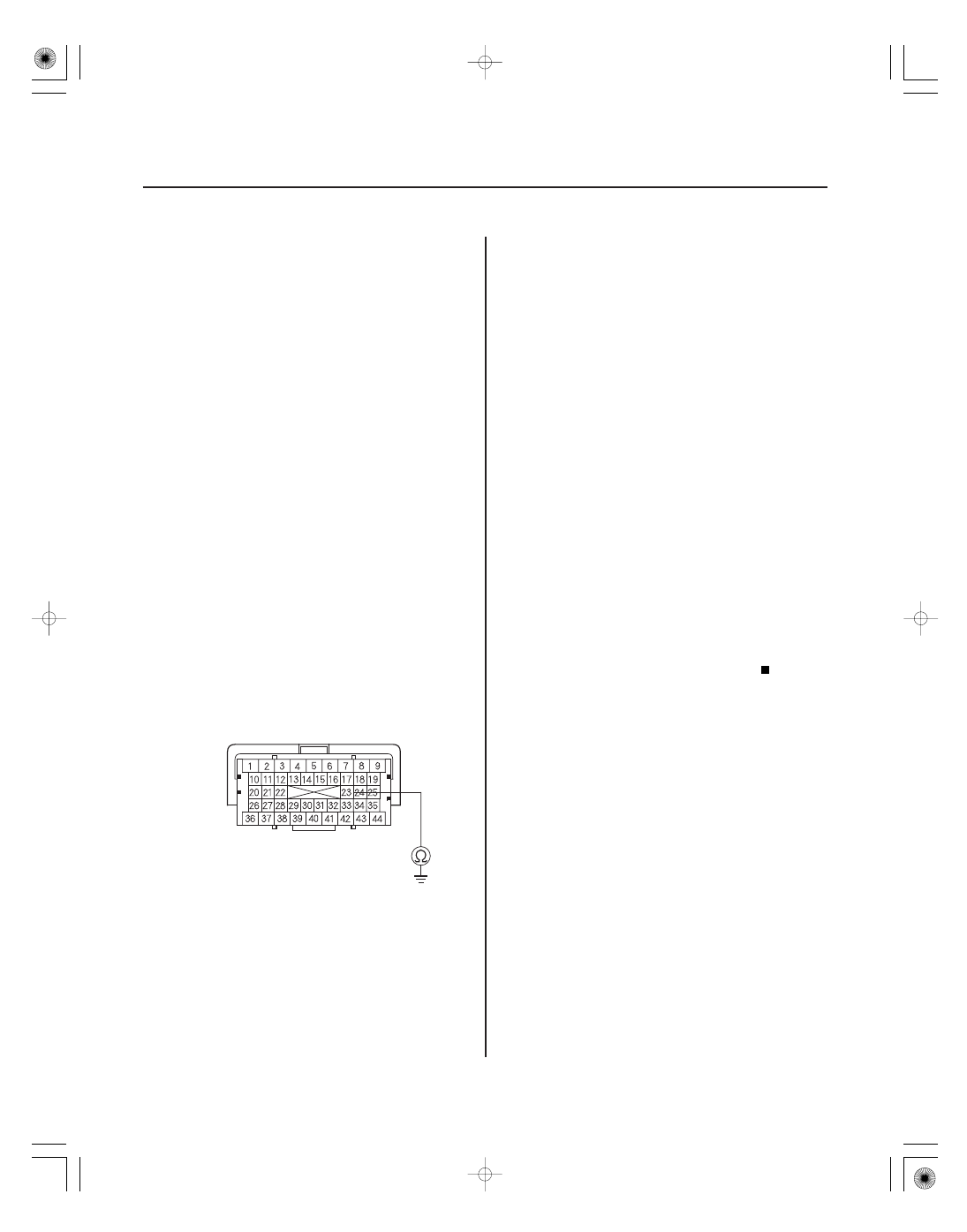

18. Check for continuity between PCM connector

terminal B23 and body ground.

Repair short in the wire between the PCM

(B23) and the rocker arm oil pressure switch (VTEC
oil pressure switch), then go to step 19.

Go to step 26.

19. Reconnect all connectors.

20. Turn the ignition switch ON (II).

21. Reset the PCM with the HDS.

22. Do the PCM idle learn procedure (see page 11-273).

23. Do the VTEC TEST in the INSPECTION MENU with

the HDS.

24. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the rocker arm oil pressure switch
(VTEC oil pressure switch) and the PCM, then go to
step 1.

Go to step 25.

25. Monitor the OBD STATUS for DTC P2646 in the

DTCs MENU with the HDS.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs were indicated in step 24,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the rocker arm oil
pressure switch (VTEC oil pressure switch) and the
PCM, then go to step 1. If the screen indicates NOT
COMPLETED, keep idling until a result comes on.

Terminal side of female terminals

Does the oil pr essur e incr ease to at least 392 kPa
( 4.0 kgf / cm , 56.9psi)?

Is the engine oil pr essur e OK ?

Is ther e continuity?

Is DT C P2646 indicated?

Does the scr een indicate PASSED?

−

YES

11-253

26. Reconnect all connectors.

27. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

28. Do the VTEC TEST in the INSPECTION MENU with

the HDS.

29. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the rocker arm oil pressure switch
(VTEC oil pressure switch) and the PCM. If the PCM
was updated, substitute a known-good PCM
(see page 11-8), then recheck. If the PCM was
substituted, go to step 1.

Go to step 30.

30. Monitor the OBD STATUS for DTC P2646 in the

DTCs MENU with the HDS.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs were indicated in step 29,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the rocker arm oil
pressure switch (VTEC oil pressure switch) and the
PCM. If the PCM was updated, substitute a known-
good PCM (see page 11-8), then recheck. If the PCM
was substituted, go to step 1. If the screen indicates
NOT COMPLETED, keep idling until a result comes
on.

Is DT C P2646 indicated?

Does the scr een indicate PASSED?

０１

０２

ＳＪＣ８Ａ００Ｋ７７１０００９２６４７ＦＡＡＴ３０

−

DTC P2647:

YES

11-254

VTEC

DTC Troubleshooting (cont’d)

ROCKER ARM OIL PRESSURE SWITCH
(VTEC OIL PRESSURE SWITCH) 2P CONNECTOR

VTPSW

GND

VTPSW
(BLU/WHT)

ROCKER ARM OIL PRESSURE SWITCH
(VTEC OIL PRESSURE SWITCH) 2P CONNECTOR

Rocker Arm Oil Pressure Switch

(VTEC Oil Pressure Switch) Circuit High
Voltage

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

1. Check the engine oil level.

Go to step 2.

Adjust the engine oil to the proper level, then

go to step 16.

2. Turn the ignition switch ON (II).

3. Clear the DTC with the HDS.

4. Do the VTEC TEST in the INSPECTION MENU with

the HDS.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the rocker arm oil pressure switch (VTEC oil
pressure switch) and the PCM.

Go to step 5.

5. Check the result of step 4.

• VTEC Switch Failure
• VTEC Switch Open
• VTEC Switch SIG Line Open
• VTEC Switch GND Line Open

Go to step 6.

Check for poor connections or loose terminals

at the rocker arm oil pressure switch (VTEC oil
pressure switch) and the PCM. If the connections
are OK, replace the rocker arm oil control solenoid
(VTEC solenoid valve) (see page 11-261), then go to
step 15.

6. Turn the ignition switch OFF.

7. Disconnect the rocker arm oil pressure switch

(VTEC oil pressure switch) 2P connector.

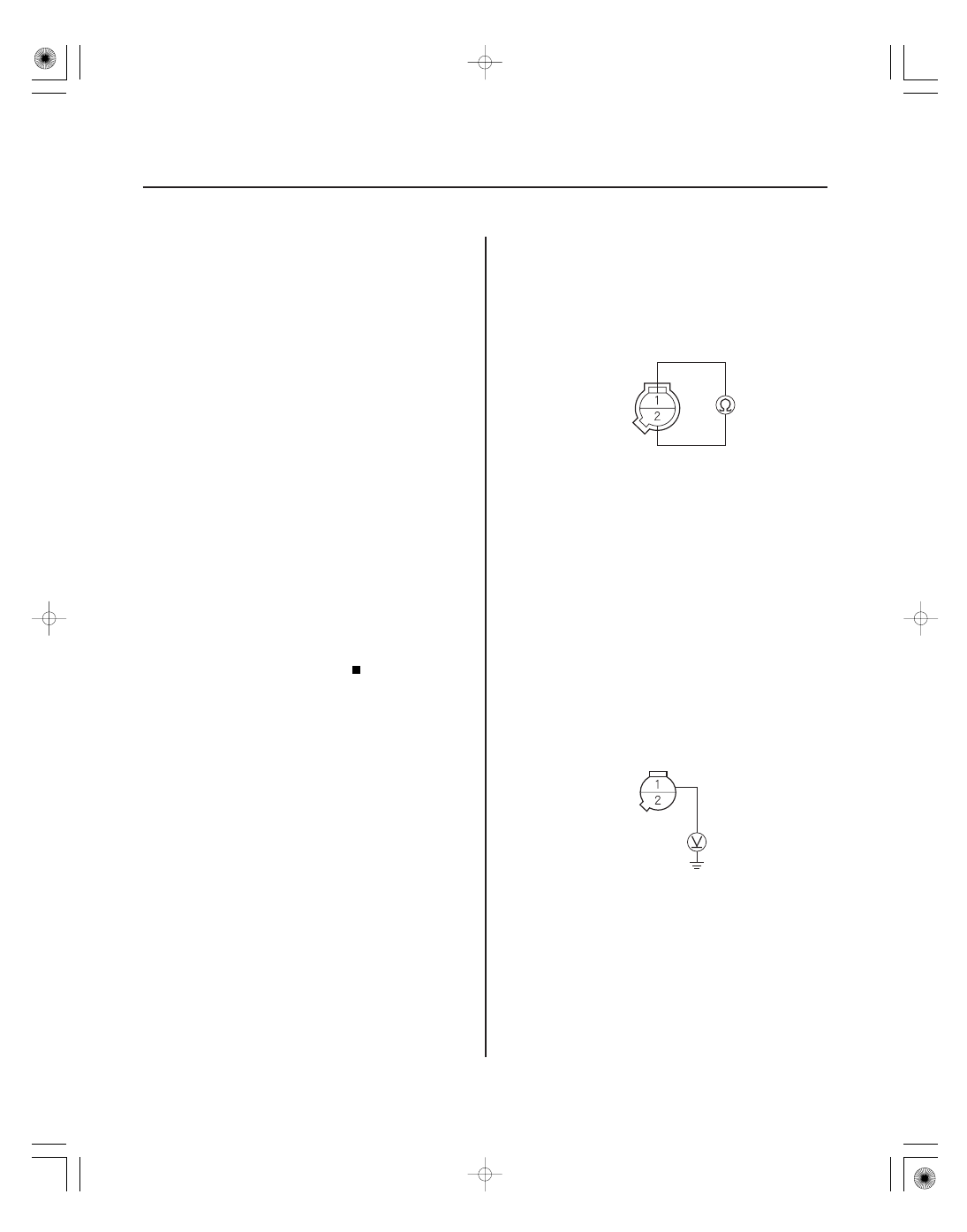

8. At the rocker arm oil pressure switch (VTEC oil

pressure switch) side, check for continuity between
rocker arm oil pressure switch (VTEC oil pressure
switch) 2P connector terminals No. 1 and No. 2.

Go to step 9.

Replace the rocker arm oil pressure switch

(VTEC oil pressure switch) (see page 11-261), then
go to step 15.

9. Turn the ignition switch ON (II).

10. Measure voltage between rocker arm oil pressure

switch (VTEC oil pressure switch) 2P connector
terminal No. 1 and body ground.

Repair open in the wire between the rocker

arm oil pressure switch (VTEC oil pressure switch)
and G101, then go to step 15.

Go to step 11.

Terminal side of male terminals

Wire side of female terminals

Is the level OK ?

Is the r esult OK ?

Is the test r esult any of the above?

Is ther e continuity?

Is ther e batter y voltage?

０３

−

YES

11-255

PCM CONNECTOR B (44P)

VTPSW
(BLU/WHT)

ROCKER ARM OIL PRESSURE SWITCH
(VTEC OIL PRESSURE SWITCH) 2P CONNECTOR

VTPSW
(BLU/WHT)

11. Turn the ignition switch OFF.

12. Jump the SCS line with the HDS.

13. Disconnect PCM connector B (44P).

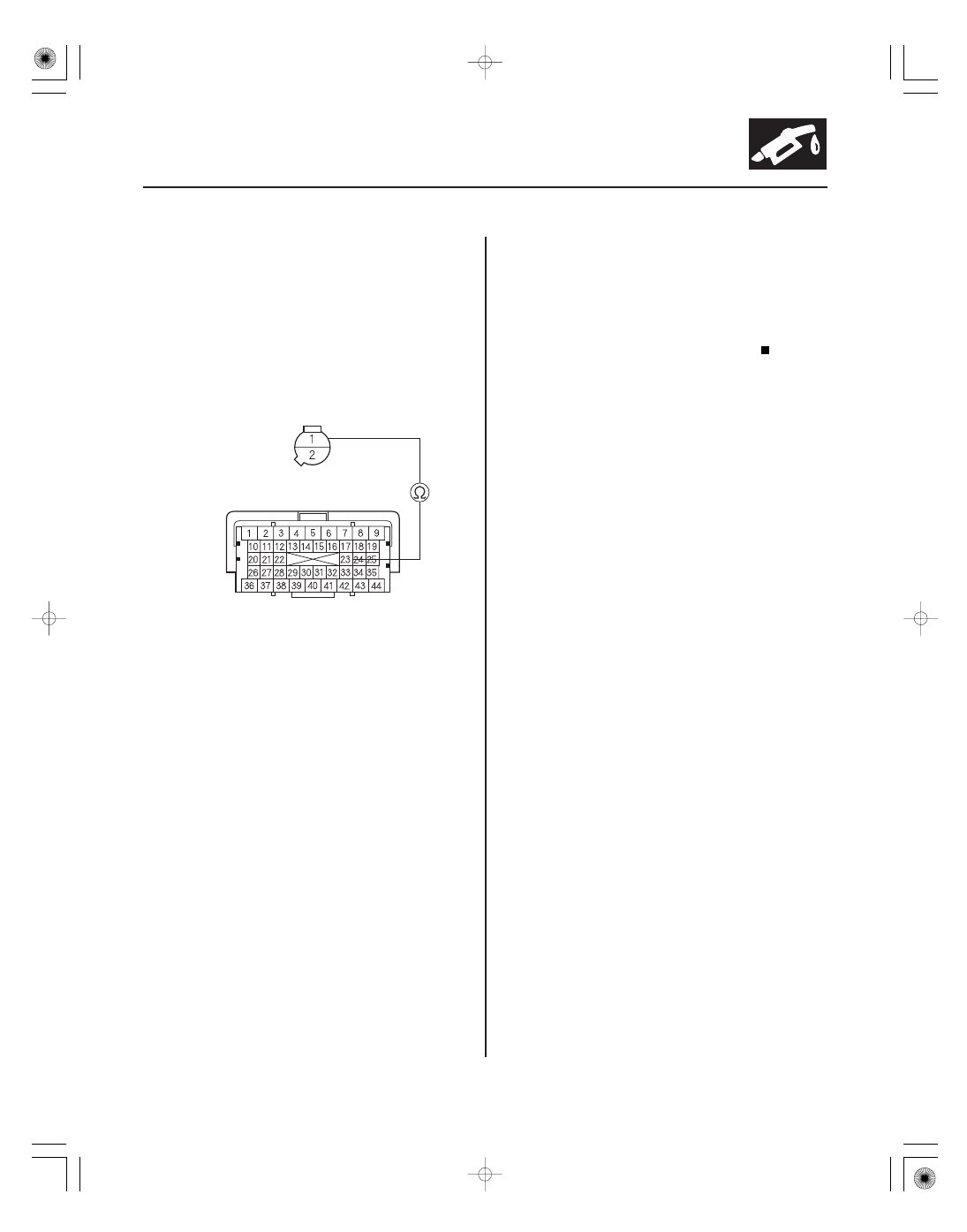

14. Check for continuity between PCM connector

terminal B23 and rocker arm oil pressure switch
(VTEC oil pressure switch) 2P connector terminal
No. 1.

Go to step 21.

Repair open in the wire between the PCM

(B23) and the rocker arm oil pressure switch (VTEC
oil pressure switch), then go to step 15.

15. Reconnect all connectors.

16. Turn the ignition switch ON (II).

17. Reset the PCM with the HDS.

18. Do the PCM idle learn procedure (see page 11-273).

19. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the rocker arm oil pressure switch
(VTEC oil pressure switch) and the PCM, then go to
step 1.

Go to step 20.

20. Monitor the OBD STATUS for DTC P2647 in the

DTCs MENU with the HDS.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs were indicated in step 19,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

21. Reconnect all connectors.

22. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

23. Do the VTEC TEST in the INSPECTION MENU with

the HDS.

24. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

Go to step 25.

(cont’d)

Wire side of female terminals

Terminal side of female terminals

Is ther e continuity?

Is DT C P2647 indicated?

Does the scr een indicate PASSED?

Is DT C P2647 indicated?
