Honda Ridgeline. Manual - part 119





01

02

SJC8A00K77100092128FAAT30

DTC P2128:

YES

NO

YES

NO

YES

NO

11-240

Electronic Throttle Control System

DTC Troubleshooting (cont’d)

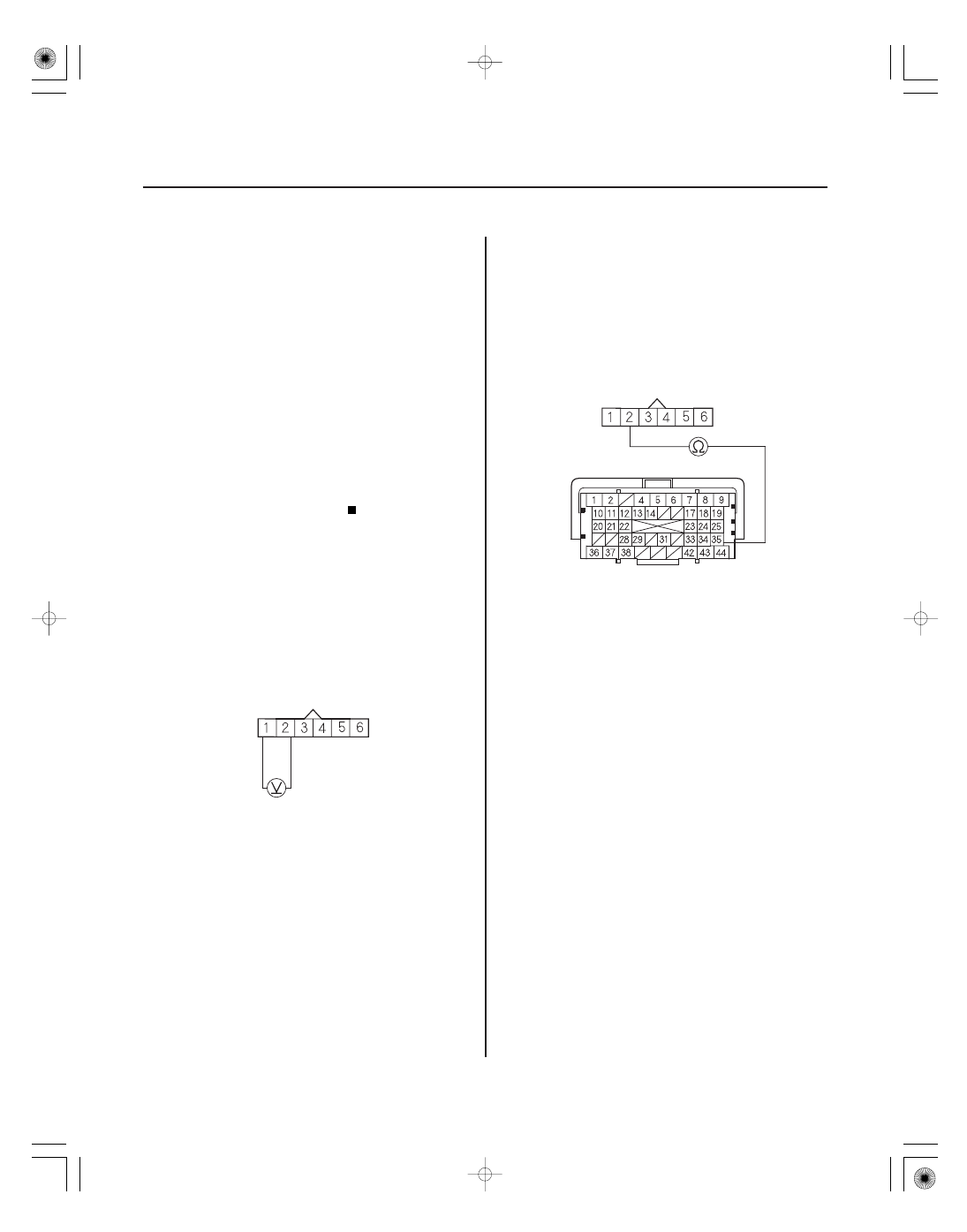

APP SENSOR A/B 6P CONNECTOR

VCC4 (WHT)

SG4 (RED)

PCM CONNECTOR A (44P)

APP SENSOR A/B 6P CONNECTOR

SG4 (RED)

SG4 (RED)

APP Sensor B (Throttle Position

Sensor E) Circuit High Voltage

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

1. Turn the ignition switch ON (II).

2. Check APP SENSOR B in the DATA LIST with the

HDS.

Go to step 3.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at APP sensor B and the PCM.

3. Turn the ignition switch OFF.

4. Disconnect APP sensor A/B 6P connector.

5. Turn the ignition switch ON (II).

6. Measure voltage between APP sensor A/B 6P

connector terminals No. 1 and No. 2.

Go to step 11.

Go to step 7.

7. Turn the ignition switch OFF.

8. Jump the SCS line with the HDS.

9. Disconnect PCM connector A (44P).

10. Check for continuity between PCM connector

terminal A35 and APP sensor A/B 6P connector
terminal No. 2.

Go to step 18.

Repair open in the wire between APP

sensor B and the PCM (A35), then go to step 13.

Wire side of female terminals

Wire side of
female terminals

Terminal side of female terminals

Is ther e about 4.0 V or mor e?

Is ther e about 5 V ?

Is ther e continuity?

YES

NO

YES

NO

11-241

11. Turn the ignition switch OFF.

12. Replace the APP sensor (see page 11-249).

13. Reconnect all connectors.

14. Turn the ignition switch ON (II).

15. Reset the PCM with the HDS.

16. Do the PCM idle learn procedure (see page 11-273).

17. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at APP sensor B and the PCM, then go to
step 1.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

18. Reconnect all connectors.

19. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

20. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at APP sensor B and the PCM. If the PCM
was updated, substitute a known-good PCM
(see page 11-8), then recheck. If the PCM was
substituted, go to step 1.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

Is DT C P2128 indicated?

Is DT C P2128 indicated?

01

SJC8A00K77100092135FAAT30

DTC P2135:

YES

NO

YES

NO

YES

NO

11-242

Electronic Throttle Control System

DTC Troubleshooting (cont’d)

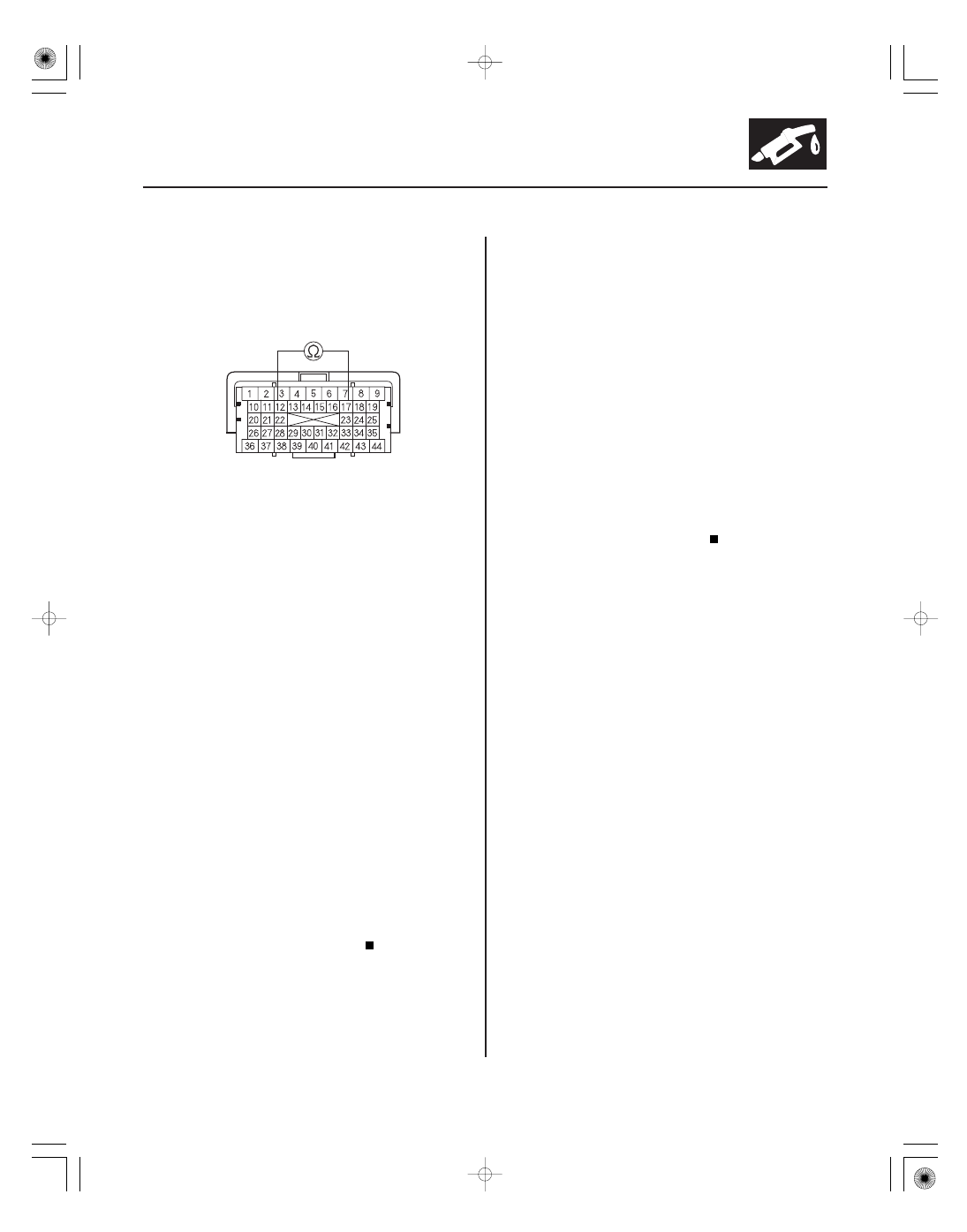

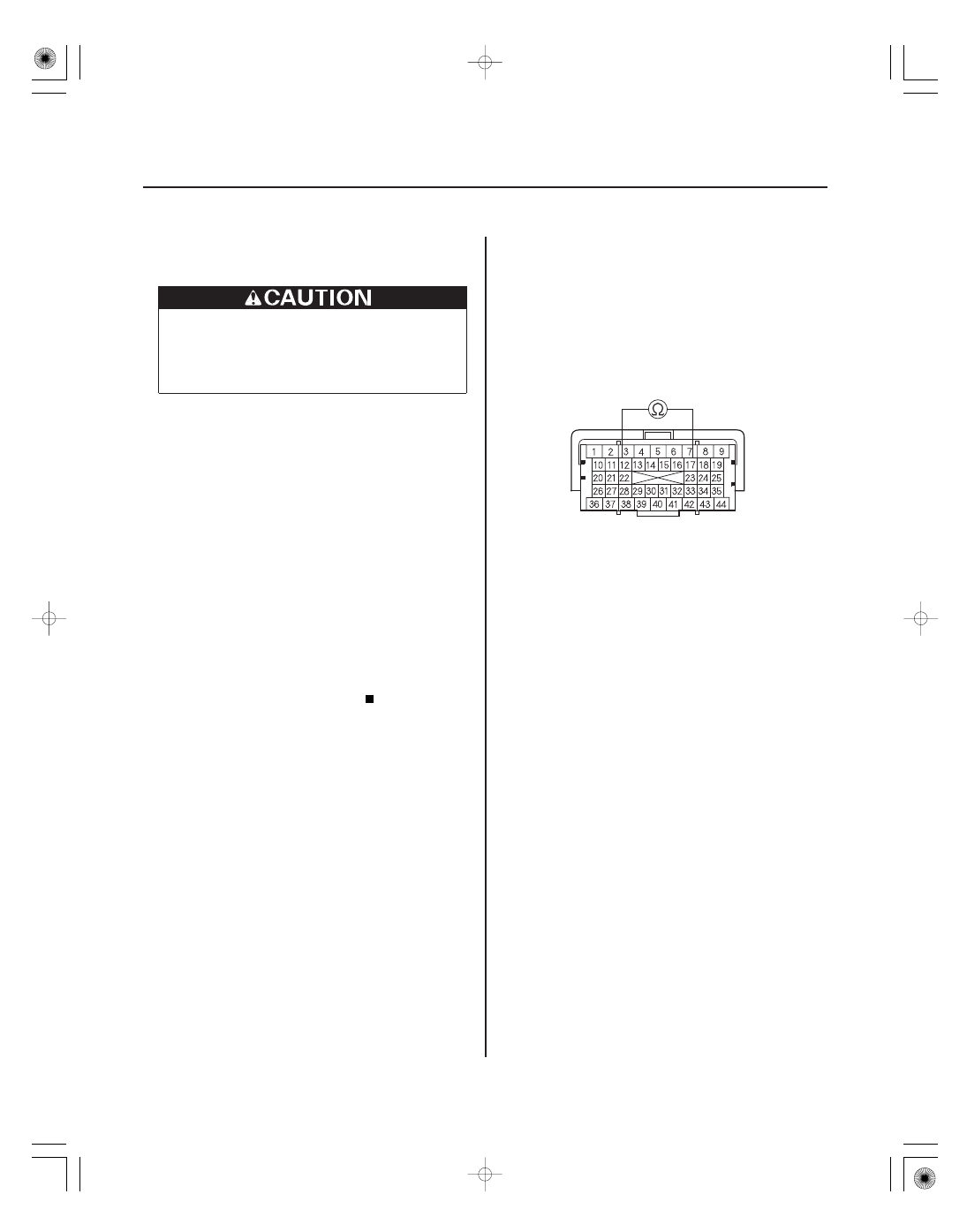

PCM CONNECTOR B (44P)

TPSA
(RED/BLK)

TPSB
(RED/BLU)

TP Sensor A/B Voltage Incorrect

Correlation

Do not insert your fingers into the installed throttle
body when you turn the ignition switch ON (II) or
while the ignition switch is ON (II). If you do, you
will seriously injure your fingers if the throttle valve
is activated.

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Do the ETCS TEST in the INSPECTION MENU with

the HDS.

4. Check for Temporary DTCs or DTCs with the HDS.

Go to step 5.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the throttle body and the PCM.

5. Turn the ignition switch OFF.

6. Disconnect the intake air duct from the throttle

body.

7. Turn the ignition switch ON (II).

8. Clear the DTC with the HDS.

9. Visually check the throttle valve operation.

Go to step 16.

Go to step 10.

10. Turn the ignition switch OFF.

11. Jump the SCS line with the HDS.

12. Disconnect PCM connector B (44P).

13. Check for continuity between PCM connector

terminals B12 and B17.

Go to step 14.

Go to step 23.

Terminal side of female terminals

Is DT C P2135 indicated?

Does the valve tempor ar ily move to the f ully
closed position?

Is ther e continuity?

02

YES

NO

YES

NO

YES

NO

11-243

PCM CONNECTOR B (44P)

TPSA
(RED/BLK)

TPSB
(RED/BLU)

14. Disconnect the throttle body 6P connector.

15. Check for continuity between PCM connector

terminals B12 and B17.

Repair short in the wire between the TPSA

line and the TPSB line, then go to step 18.

Go to step 16.

16. Turn the ignition switch OFF.

17. Replace the throttle body (see page 11-319).

18. Reconnect all connectors.

19. Turn the ignition switch ON (II).

20. Reset the PCM with the HDS.

21. Do the PCM idle learn procedure (see page 11-273).

22. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the throttle body and the PCM, then go
to step 1.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

23. Reconnect all connectors.

24. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

25. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the throttle body and the PCM. If the
PCM was updated, substitute a known-good PCM
(see page 11-8), then recheck. If the PCM was
substituted, go to step 1.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

Terminal side of female terminals

Is ther e continuity?

Is DT C P2135 indicated?

Is DT C P2135 indicated?
