Honda Ridgeline. Manual - part 110





01

SJC8A00A20326940001KBAT00

11-204

PGM-FI System

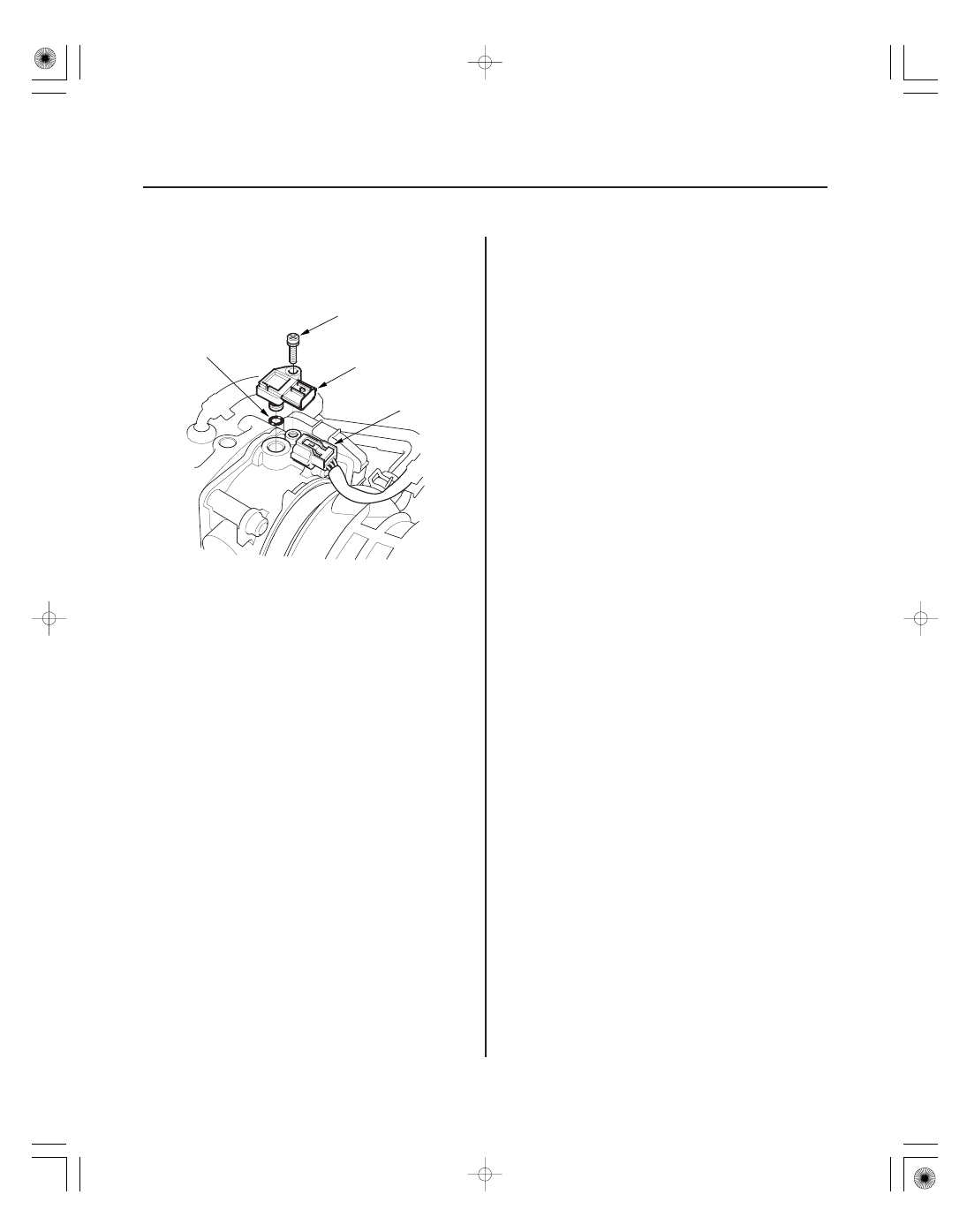

MAP Sensor Replacement

B
3.5 N·m
(0.35 kgf·m, 2.5 lbf·ft)

A

C

D

1. Remove the intake manifold cover (see step 1 on

page 9-3).

2. Disconnect the MAP sensor connector (A).

3. Remove the screw (B).

4. Remove the MAP sensor (C).

5. Install the parts in the reverse order of removal

with a new O-ring (D).

01

02

SJC8A00A20300047201KBAT00

Special Tools Required

11-205

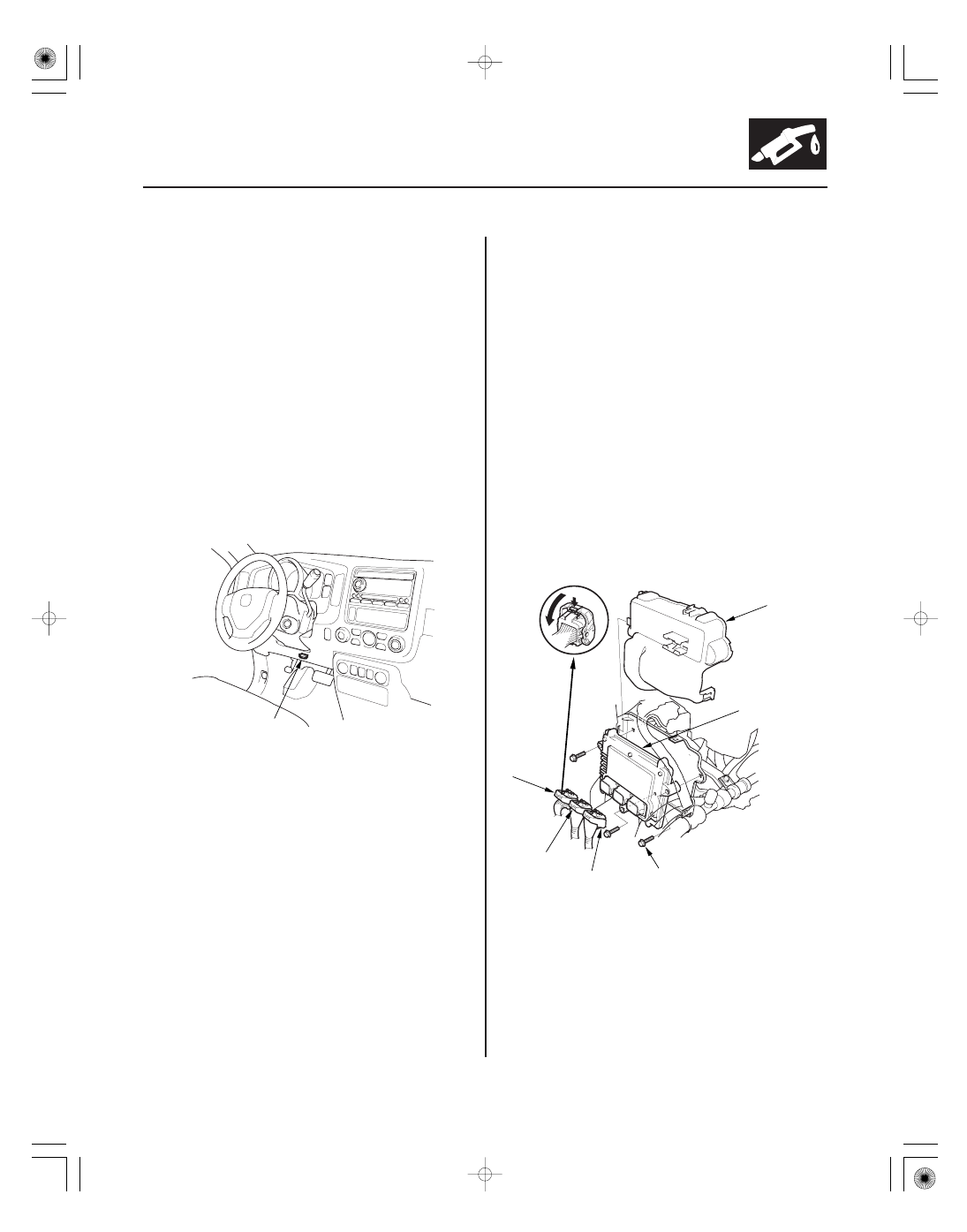

PCM Replacement

A

E
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

A

D

F

B

C

• Honda diagnostic system (HDS) tablet tester
• Honda interface module (HIM) and an iN workstation

with HDS and CM update software

• HDS pocket tester
• GNA-600 and an iN workstation with HDS and CM

update software

NOTE:

• Make sure the HDS is loaded with the latest software

version.

• If you are replacing the PCM after substituting a

known-good PCM, reinstall the original PCM, then do
this procedure.

• During the procedure, if any READ DATA, WRITE

DATA, or other data checks fail, note the failure, then
continue.

1. Connect the HDS to the data link connector (DLC)

(A) located under the driver’s side of the dashboard.

2. Turn the ignition switch ON (II).

3. Make sure the HDS communicates with the PCM

and other vehicle systems. If it doesn’t, go to the
DLC circuit troubleshooting (see page 11-194). If
you are returning from DLC circuit troubleshooting,
skip steps 4 through 9, 16 through 18, 21, and 22,
then do this after replacing the PCM:

• Replace the engine oil (see page 8-6) and the

engine oil filter (see page 8-7).

• Clean the throttle body (see page 11-314).

4. Select the PGM-FI system with the HDS.

5. Select the INSPECTION MENU with the HDS.

6. Select the ETCS TEST, then select the TP POSITION

CHECK, and follow the screen prompts.

NOTE: If the TP POSITION CHECK indicates FAILED,
continue with this procedure.

7. Select the REPLACE PCM MENU, then select READ

DATA and follow the screen prompts.

NOTE:

• Doing this step copies (READS) the engine oil life

data from the original PCM so you can later
download (WRITE) it into the new PCM.

• If READ DATA indicates FAILED, continue with

this procedure.

8. Turn the ignition switch OFF.

9. Jump the SCS line with the HDS.

10. Remove the cover (D).

11. Disconnect PCM connectors A, B, and C.

NOTE: PCM connectors A, B, and C have symbols
(A=

, B=

, C=

) embosed on them for

identification.

12. Remove the bolts (E), then remove the PCM (F).

(cont’d)

11-206

PGM-FI System

PCM Replacement (cont’d)

13. Install the parts in the reverse order of removal.

14. Turn the ignition switch ON (II).

15. Manually input the VIN to the PCM with the HDS.

NOTE: DTC P0630 ‘‘VIN Not Programmed or
Mismatch’’ may be stored because the VIN has not
been programmed into the PCM, ignore it, and
continue this procedure.

16. If the READ DATA (engine oil life) failed in step 7,

go to step 19. Otherwise, go to step 17.

17. Select the PGM-FI system with the HDS.

18. Select the REPLACE PCM MENU, then select WRITE

DATA and follow the screen prompts.

NOTE: If the WRITE DATA indicates FAILED,
continue this procedure.

19. Select IMMOBI system with the HDS.

20. Enter the immobilizer code with the PCM

replacement procedure in the HDS, it allows you to
start the engine.

21. If the TP POSITION CHECK failed in step 6, clean

the throttle body (see page 11-314), then go to step
22.

22. If the READ DATA failed in step 7 or the WRITE

DATA failed in step 18, replace the engine oil
(see page 8-6) and engine oil filter (see page 8-7),
then go to step 23.

23. Select PGM-FI system, and reset the PCM with the

HDS.

24. Update the PCM if it does not have the latest

software (see page 11-7).

25. Do the PCM idle learn procedure (see page 11-273).

26. Do the CKP pattern learn procedure (see page 11-4).

*01

SJC8A00A20324100000DAAT00

11-207

Electronic Throttle Control System

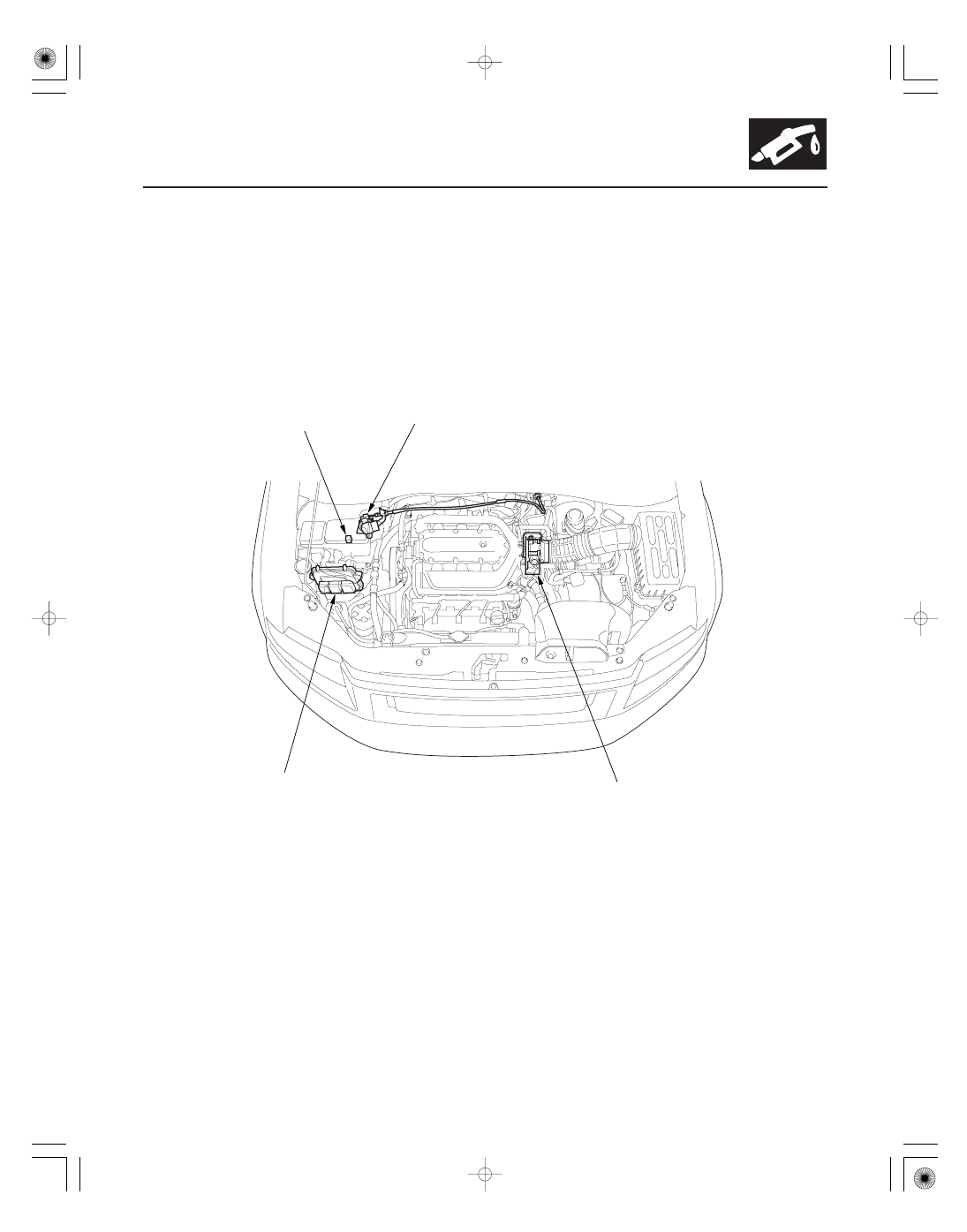

Component Location Index

THROTTLE ACTUATOR CONTROL MODULE
(Contains THROTTLE ACTUATOR and
THROTTLE POSITION (TP) SENSOR)

ELECTRONIC THROTTLE
CONTROL SYSTEM (ETCS)
CONTROL RELAY

ACCELERATOR PEDAL POSITION (APP) SENSOR

POWERTRAIN CONTROL MODULE (PCM)

Replacement, page 11-249
Signal Inspection, page 11-248

Update, page 11-7
Substitution, page 11-8
Replacement, page 11-205
