Honda Ridgeline. Manual - part 102





01

02

SJC8A00K77100092627FAAT30

DTC P2627:

DTC P2630:

YES

NO

YES

NO

YES

NO

11-172

PGM-FI System

DTC Troubleshooting (cont’d)

PCM CONNECTOR C (44P)

VLBLB1
(WHT)

VLBLB2
(WHT/RED)*

PCM CONNECTOR C (44P)

VLBLB1
(WHT)

VLBLB2
(WHT/RED)*

Rear A/F Sensor (Bank 1,

Sensor 1) LABEL Circuit Low Voltage

Front A/F Sensor (Bank 2,

Sensor 1) LABEL Circuit Low Voltage

NOTE:

• Before you troubleshoot, record all freeze data and

any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

• Information marked with an asterisk ( ) applies to the

front bank (Bank 2).

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle 2 minutes.

4. Check for Temporary DTCs or DTCs with the HDS.

Go to step 5.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the A/F sensor (Sensor 1) and the PCM.

5. Turn the ignition switch OFF.

6. Jump the SCS line with the HDS.

7. Disconnect PCM connector C (44P).

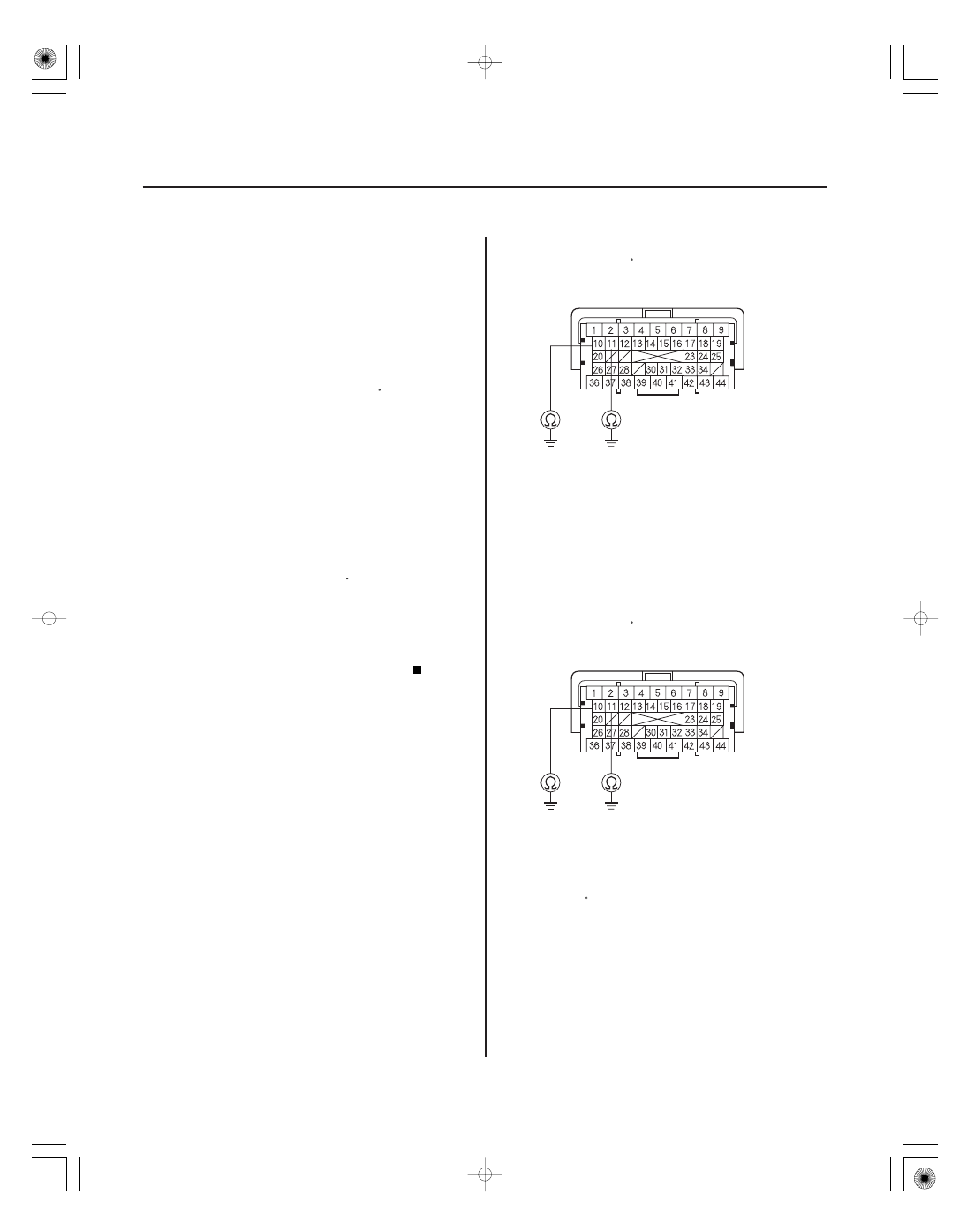

8. Check for continuity between PCM connector

terminal C10 (C11) and body ground.

Go to step 9.

Go to step 17.

9. Disconnect the A/F sensor (Sensor 1) 8P connector.

10. Check for continuity between PCM connector

terminal C10 (C11) and body ground.

Repair short in the wire between the PCM

(C10 (C11) ) and the A/F sensor (Sensor 1), then go
to step 12.

Go to step 11.

Terminal side of female terminals

Terminal side of female terminals

Is DT C P2627 and/ or P2630 indicated?

Is ther e continuity?

Is ther e continuity?

YES

NO

YES

NO

11-173

11. Replace the A/F sensor (Sensor 1) (see page

11-199).

12. Reconnect all connectors.

13. Turn the ignition switch ON (II).

14. Reset the PCM with the HDS.

15. Do the PCM idle learn procedure (see page 11-273).

16. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the A/F sensor (Sensor 1) and the PCM,
then go to step 1.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

17. Reconnect all connectors.

18. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

19. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the A/F sensor (Sensor 1) and the PCM.
If the PCM was updated, substitute a known-good
PCM (see page 11-8), then recheck. If the PCM was
substituted, go to step 1.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

Is DT C P2627 and/ or P2630 indicated?

Is DT C P2627 and/ or P2630 indicated?

01

02

SJC8A00K77100092628FAAT30

DTC P2628:

DTC P2631:

YES

NO

YES

NO

11-174

PGM-FI System

DTC Troubleshooting (cont’d)

VLBLB1 (WHT)

JUMPER WIRE

A/F SENSOR (SENSOR 1) 8P CONNECTOR

VLBLB2 (WHT/RED)*

PCM CONNECTOR C (44P)

VLBLB1
(WHT)

VLBLB2
(WHT/RED)*

Rear A/F Sensor (Bank 1,

Sensor 1) LABEL Circuit High Voltage

Front A/F Sensor (Bank 2,

Sensor 1) LABEL Circuit High Voltage

NOTE:

• Before you troubleshoot, record all freeze data and

any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

• Information marked with an asterisk ( ) applies to the

front bank (Bank 2).

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle 2 minutes.

4. Check for Temporary DTCs or DTCs with the HDS.

Go to step 5.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the A/F sensor (Sensor 1) and the PCM.

5. Turn the ignition switch OFF.

6. Jump the SCS line with the HDS.

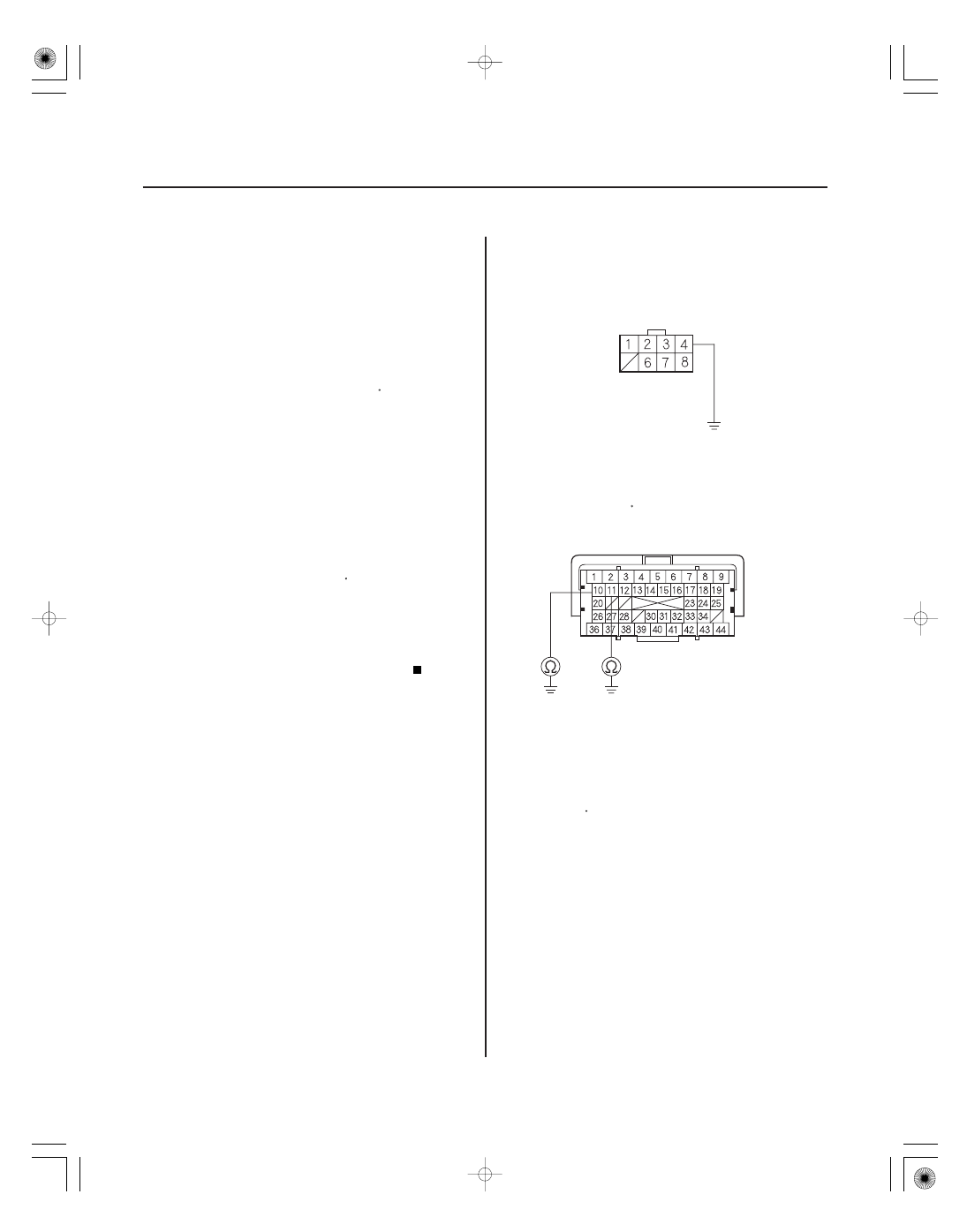

7. Disconnect the A/F sensor (Sensor 1) 8P connector.

8. Disconnect PCM connector C (44P).

9. Connect A/F sensor (Sensor 1) 8P connector

terminal No. 4 to body ground with a jumper wire.

10. Check for continuity between PCM connector

terminal C10 (C11) and body ground.

Go to step 11.

Repair open in the wire between the PCM

(C10 (C11) ) and the A/F sensor (Sensor 1), then go
to step 15.

Wire side of female terminals

Terminal side of female terminals

Is DT C P2628 and/ or P2631 indicated?

Is ther e continuity?

03

YES

NO

YES

NO

YES

NO

11-175

VLBLB1 (WHT)

A/F SENSOR (SENSOR 1) 8P CONNECTOR

VLBLB2 (WHT/RED)*

11. Remove the jumper wire from the A/F sensor

(Sensor 1) 8P connector, then reconnect PCM
connector C (44P).

12. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle 2 minutes.

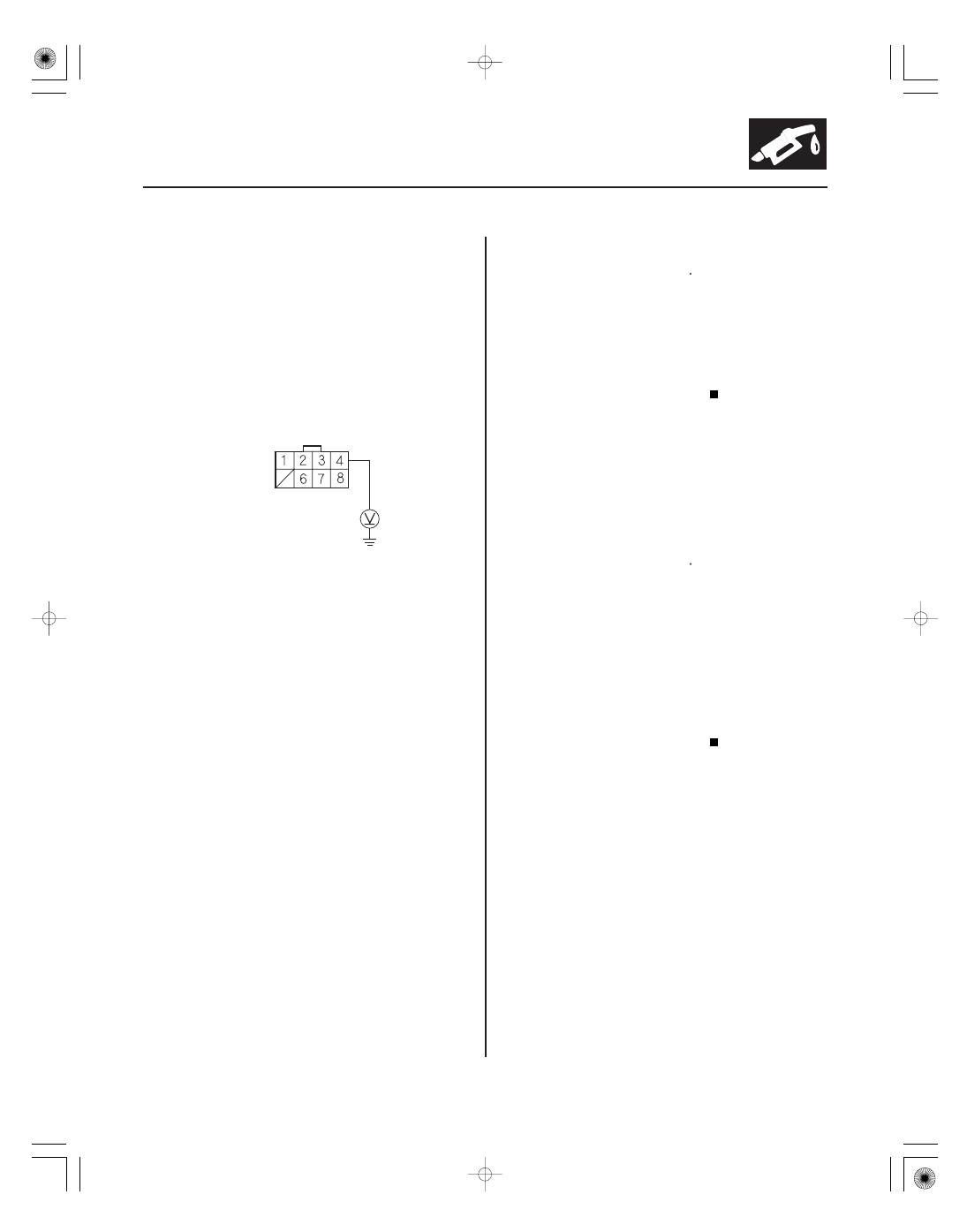

13. Measure voltage between A/F sensor (Sensor 1) 8P

connector terminal No. 4 and body ground.

Go to step 14.

Go to step 20.

14. Replace the A/F sensor (Sensor 1) (see page

11-199).

15. Reconnect all connectors.

16. Turn the ignition switch ON (II).

17. Reset the PCM with the HDS.

18. Do the PCM idle learn procedure (see page 11-273).

19. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the A/F sensor (Sensor 1) and the PCM,
then go to step 1.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

20. Turn the ignition switch OFF.

21. Reconnect all connectors.

22. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

23. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the A/F sensor (Sensor 1) and the PCM.
If the PCM was updated, substitute a known-good
PCM (see page 11-8), then recheck. If the PCM was
substituted, go to step 1.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

Wire side of female terminals

Is ther e about 5 V ?

Is DT C P2628 and/ or P2631 indicated?

Is DT C P2628 and/ or P2631 indicated?
