Honda Ridgeline. Manual - part 101

０１

ＳＪＣ８Ａ００Ｋ７７１０００９２２５２ＦＡＡＴ３０

−

DTC P2252:

DTC P2255:

YES

11-168

PGM-FI System

DTC Troubleshooting (cont’d)

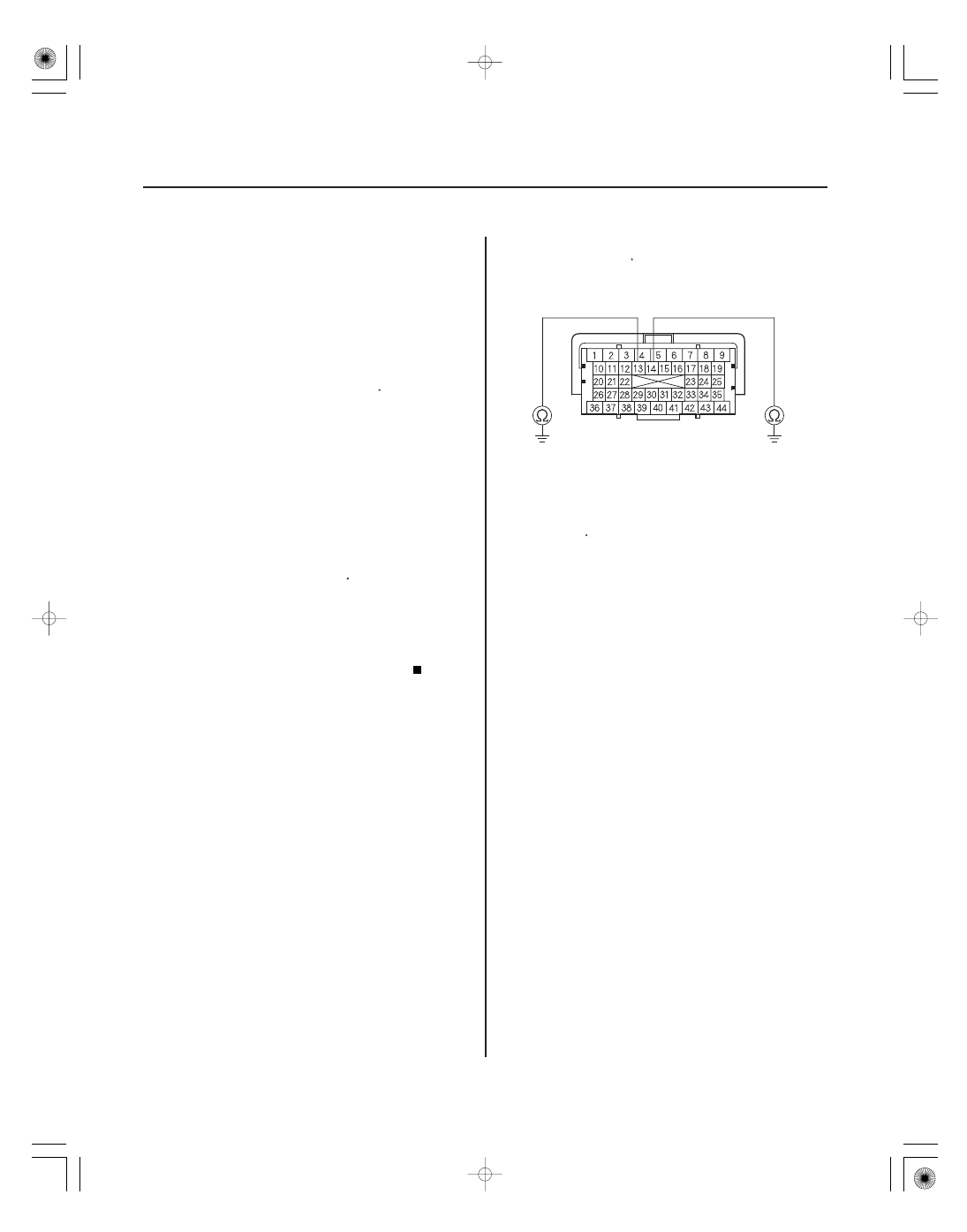

PCM CONNECTOR B (44P)

VSB2 (RED/BLU)*

VSB1 (BLU)

Rear A/F Sensor (Bank 1,

Sensor 1) VS Circuit Low Voltage

Front A/F Sensor (Bank 2,

Sensor 1) VS Circuit Low Voltage

NOTE:

• Before you troubleshoot, record all freeze data and

any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

• Information marked with an asterisk ( ) applies to the

front bank (Bank 2).

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle 2 minutes.

4. Check for Temporary DTCs or DTCs with the HDS.

Go to step 5.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the A/F sensor (Sensor 1) and the PCM.

5. Turn the ignition switch OFF.

6. Jump the SCS line with the HDS.

7. Disconnect the A/F sensor (Sensor 1) 8P connector.

8. Disconnect PCM connector B (44P).

9. Check for continuity between PCM connector

terminal B13 (B14) and body ground.

Repair short in the wire between the PCM

(B13 (B14) ) and the A/F sensor (Sensor 1), then go
to step 14.

Go to step 10.

10. Reconnect PCM connector B (44P).

11. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle 2 minutes.

Terminal side of female terminals

Is DT C P2252 and/ or P2255 indicated?

Is ther e continuity?

０２

−

YES

11-169

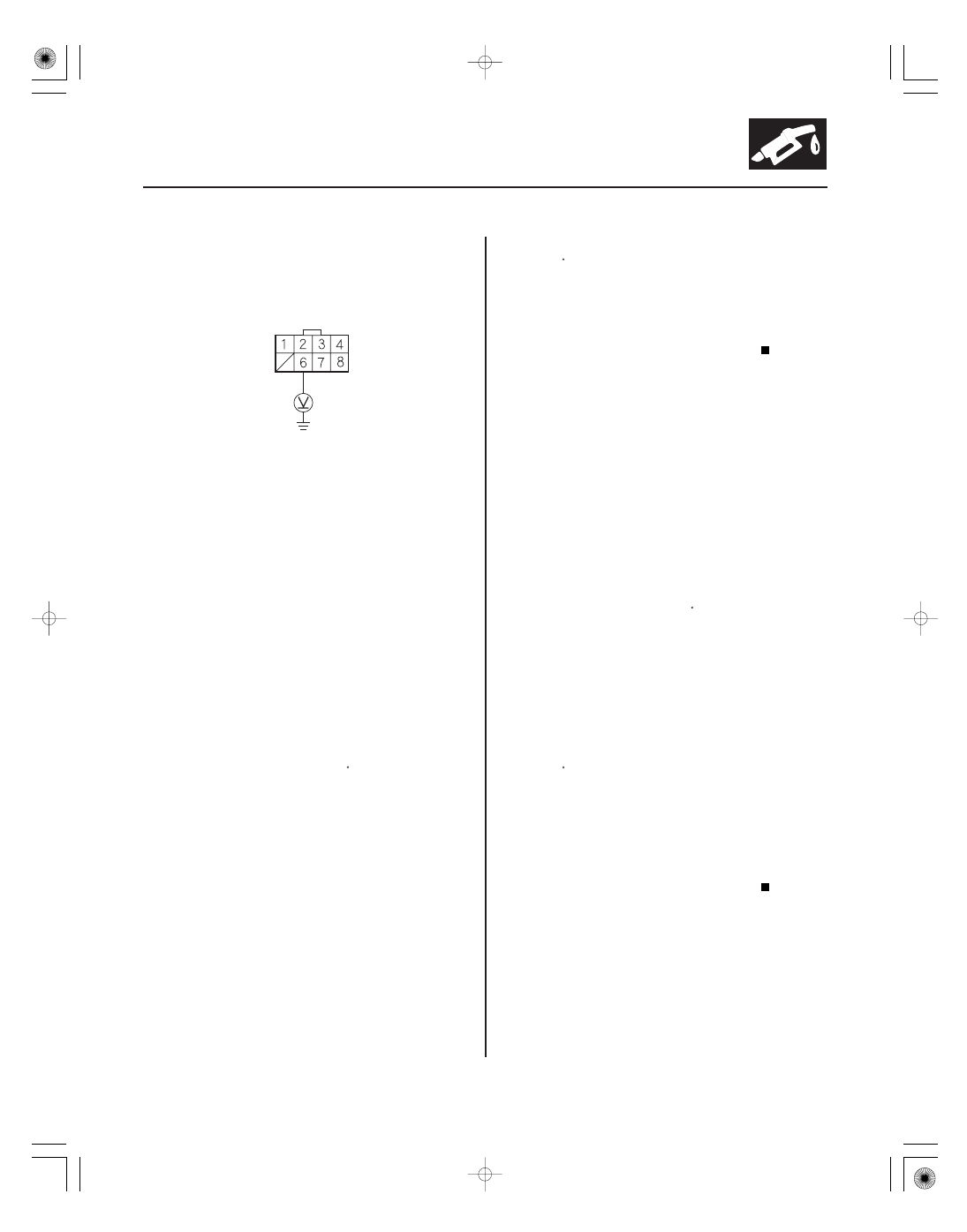

A/F SENSOR (SENSOR 1) 8P CONNECTOR

VSB1 (BLU)
VSB2 (RED/BLU)*

12. Measure voltage between A/F sensor (Sensor 1) 8P

connector terminal No. 6 and body ground.

Go to step 20.

Go to step 13.

13. Replace the A/F sensor (Sensor 1) (see page

11-199).

14. Reconnect all connectors.

15. Turn the ignition switch ON (II).

16. Reset the PCM with the HDS.

17. Do the PCM idle learn procedure (see page 11-273).

18. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the A/F sensor (Sensor 1) and the PCM,
then go to step 1.

Go to step 19.

19. Monitor the OBD STATUS for DTC P2252 and/or

P2255 in the DTCs MENU with the HDS.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs were indicated in step 18,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the A/F sensor
(Sensor 1) and the PCM, then go to step 1. If the
screen indicates NOT COMPLETED, keep idling
until a result comes on.

20. Turn the ignition switch OFF.

21. Reconnect all connectors.

22. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

23. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the A/F sensor (Sensor 1) and the PCM.
If the PCM was updated, substitute a known-good
PCM (see page 11-8), then recheck. If the PCM was
substituted, go to step 1.

Go to step 24.

24. Monitor the OBD STATUS for DTC P2252 and/or

P2255 in the DTCs MENU with the HDS.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs were indicated in step 23,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the A/F sensor
(Sensor 1) and the PCM. If the PCM was updated,
substitute a known-good PCM (see page 11-8), then
recheck. If the PCM was substituted, go to step 1. If
the screen indicates NOT COMPLETED, keep idling
until a result comes on.

Wire side of female terminals

Is ther e about 0.2 V or less?

Is DT C P2252 and/ or P2255 indicated?

Does the scr een indicate PASSED?

Is DT C P2252 and/ or P2255 indicated?

Does the scr een indicate PASSED?

−

ＳＪＣ８Ａ００Ｋ７７１０００９２２７０ＦＡＡＴ００

−

DTC P2270:

DTC P2271:

DTC P2272:

DTC P2273:

YES

11-170

PGM-FI System

DTC Troubleshooting (cont’d)

Rear Secondary HO2S (Bank 1,

Sensor 2) Circuit Signal Stuck Lean

Rear Secondary HO2S (Bank 1,

Sensor 2) Circuit Signal Stuck Rich

Front Secondary HO2S (Bank 2,

Sensor 2) Circuit Signal Stuck Lean

Front Secondary HO2S (Bank 2,

Sensor 2) Circuit Signal Stuck Rich

NOTE:

• Before you troubleshoot, record all freeze data and

any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

• Information marked with an asterisk ( ) applies to the

front bank (Bank 2).

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle.

4. Test-drive under these conditions:

• Engine coolant temperature (ECT SENSOR 1)

above 176 °F (80 °C)

• Vehicle speed between 35

55 mph

(56

88 km/h)

• Drive 1 minute or more

5. Monitor the OBD STATUS for DTC P2270, P2271,

P2272 , and/or P2273 in the DTCs MENU with the
HDS.

Go to step 6.

If the screen indicates PASSED, intermittent

failure, the system is OK at this time. Check for
poor connections or loose terminals at the
secondary HO2S (Sensor 2) and the PCM. If the
screen indicates EXECUTING, keep driving until a
result comes on. If the screen indicates OUT OF
CONDITION, go to step 3 and recheck.

6. Turn the ignition switch OFF.

7. Replace the secondary HO2S (Sensor 2) (see page

11-200).

8. Turn the ignition switch ON (II).

9. Reset the PCM with the HDS.

10. Do the PCM idle learn procedure (see page 11-273).

11. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle.

12. Test-drive under these conditions:

• Engine coolant temperature (ECT SENSOR 1)

above 176 °F (80 °C)

• Vehicle speed between 35

55 mph

(56

88 km/h)

• Drive 1 minute or more

13. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the secondary HO2S (Sensor 2) and
the PCM, then go to step 1.

Go to step 14.

14. Monitor the OBD STATUS for DTC P2270, P2271,

P2272 , and/or P2273 in the DTCs MENU with the
HDS.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs were indicated in step 13,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the secondary
HO2S (Sensor 2) and the PCM, then go to step 1. If
the screen indicates EXECUTING, keep driving until
a result comes on. If the screen indicates OUT OF
CONDITION, go to step 11.

Does the scr een indicate F AILED?

Is DT C P227 0, P227 1, P227 2 , and/ or P227 3
indicated?

Does the scr een indicate PASSED?

ＳＪＣ８Ａ００Ｋ７７１０００９２６１０ＦＡＡＴ３０

−

DTC P2610:

YES

11-171

PCM Internal Power Off Timer

Malfunction

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Check for Temporary DTCs or DTCs with the HDS.

Go to step 4.

Intermittent failure, the system is OK at this

time. If any other Temporary DTCs or DTCs are
indicated, go to the indicated DTC’s
troubleshooting.

4. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

5. Check for Temporary DTCs or DTCs with the HDS.

If the PCM was updated, substitute a known-

good PCM (see page 11-8), then recheck. If the PCM
was substituted, go to step 1.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

Is DT C P2610 indicated?
