Honda Ridgeline. Manual - part 98





YES

NO

YES

NO

YES

NO

11-156

PGM-FI System

DTC Troubleshooting (cont’d)

7. Check the condition of the air cleaner element.

Go to step 8.

Replace the air cleaner element (see page

11-315).

8. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

9. Reset the PCM with the HDS.

10. Do the PCM idle learn procedure (see page 11-273).

11. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle.

12. Test-drive under these conditions:

• Engine coolant temperature (ECT SENSOR 1)

above 158 °F (70 °C)

• Transmission in D position
• Throttle position between 14 degrees and

45 degrees for 2 seconds

13. Check for Temporary DTCs or DTCs with the HDS.

If the PCM was updated, substitute a known-

good PCM (see page 11-8), then go to step 11. If the
PCM was substituted, go to step 1.

Go to step 14.

14. Monitor the OBD STATUS for DTC P2227 in the

DTCs MENU with the HDS.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs were indicated in step 13,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the PCM. If the
PCM was updated, substitute a known-good PCM
(see page 11-8), then go to step 11. If the PCM was
substituted, go to step 1. If the screen indicates
NOT COMPLETED, go to step 11.

Is the air cleaner element OK ?

Is DT C P2227 indicated?

Does the scr een indicate PASSED?

SJC8A00K77100092228FAAT30

SJC8A00K77100092229FAAT30

DTC P2228:

DTC P2229:

YES

NO

YES

NO

YES

NO

YES

NO

11-157

11-157

BARO Sensor Circuit Low Voltage

BARO Sensor Circuit High

Voltage

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

1. Turn the ignition switch ON (II).

2. Check the BARO SENSOR in the DATA LIST with

the HDS.

Go to step 3.

Intermittent failure, the system is OK at this

time.

3. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

4. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the PCM. If the PCM was updated,
substitute a known-good PCM (see page 11-8), then
recheck. If the PCM was substituted in step 3, go to
step 1.

If the PCM was updated, troubleshooting is

complete. If any other Temporary DTCs or DTCs are
indicated, go to the indicated DTC’s
troubleshooting.

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

1. Turn the ignition switch ON (II).

2. Check the BARO SENSOR in the DATA LIST with

the HDS.

Go to step 3.

Intermittent failure, the system is OK at this

time.

3. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

4. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the PCM. If the PCM was updated,
substitute a known-good PCM (see page 11-8), then
recheck. If the PCM was substituted in step 3, go to
step 1.

If the PCM was updated, troubleshooting is

complete. If any other Temporary DTCs or DTCs are
indicated, go to the indicated DTC’s
troubleshooting.

Is about 53 kPa ( 15.6 in.Hg, 397 mmHg), or 1.58 V
or less indicated?

Is DT C P2228 indicated?

Is about 160 kPa ( 47 .2 in.Hg, 1,200 mmHg), or
4.49 V , or mor e indicated?

Is DT C P2229 indicated?

01

02

SJC8A00K77100092237FAAT30

DTC P2237:

DTC P2240:

YES

NO

YES

NO

11-158

PGM-FI System

DTC Troubleshooting (cont’d)

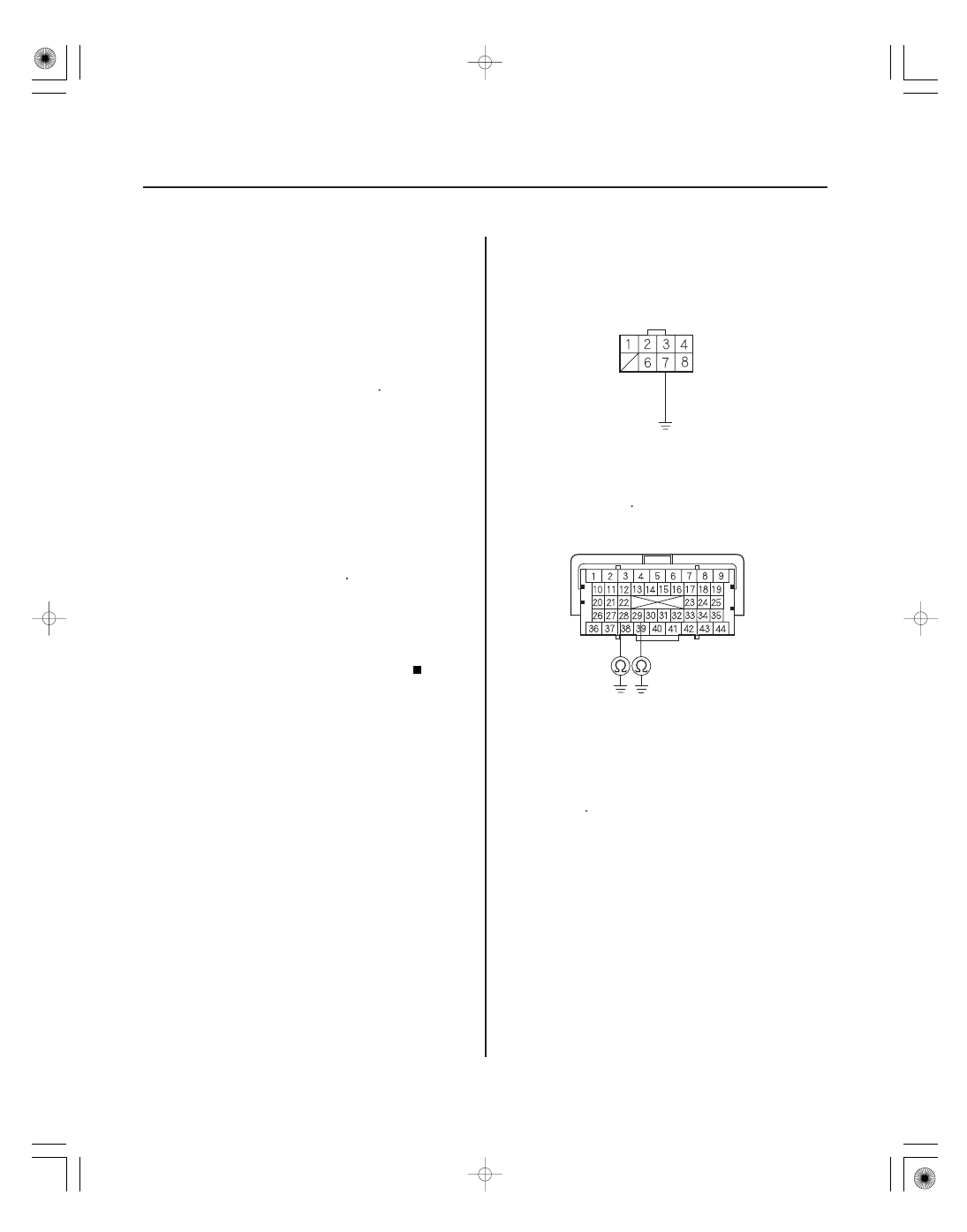

IPB1 (GRN)

JUMPER WIRE

A/F SENSOR (SENSOR 1) 8P CONNECTOR

IPB2 (GRN/RED)*

PCM CONNECTOR B (44P)

IPB2 (GRN/RED)*

IPB1 (GRN)

Rear A/F Sensor (Bank 1,

Sensor 1) IP Circuit High Voltage

Front A/F Sensor (Bank 2,

Sensor 1) IP Circuit High Voltage

NOTE:

• Before you troubleshoot, record all freeze data and

any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

• Information marked with an asterisk ( ) applies to the

front bank (Bank 2).

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle 2 minutes.

4. Check for Temporary DTCs or DTCs with the HDS.

Go to step 5.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the A/F sensor (Sensor 1) and the PCM.

5. Turn the ignition switch OFF.

6. Jump the SCS line with the HDS.

7. Disconnect the A/F sensor (Sensor 1) 8P connector.

8. Disconnect PCM connector B (44P).

9. Connect A/F sensor (Sensor 1) 8P connector

terminal No. 7 to body ground with a jumper wire.

10. Check for continuity between PCM connector

terminal B28 (B29) and body ground.

Go to step 11.

Repair open in the wire between the PCM

(B28 (B29) ) and the A/F sensor (Sensor 1), then go
to step 15.

Wire side of female terminals

Terminal side of female terminals

Is DT C P2237 and/ or P2240 indicated?

Is ther e continuity?

03

YES

NO

YES

NO

YES

NO

YES

NO

YES

NO

11-159

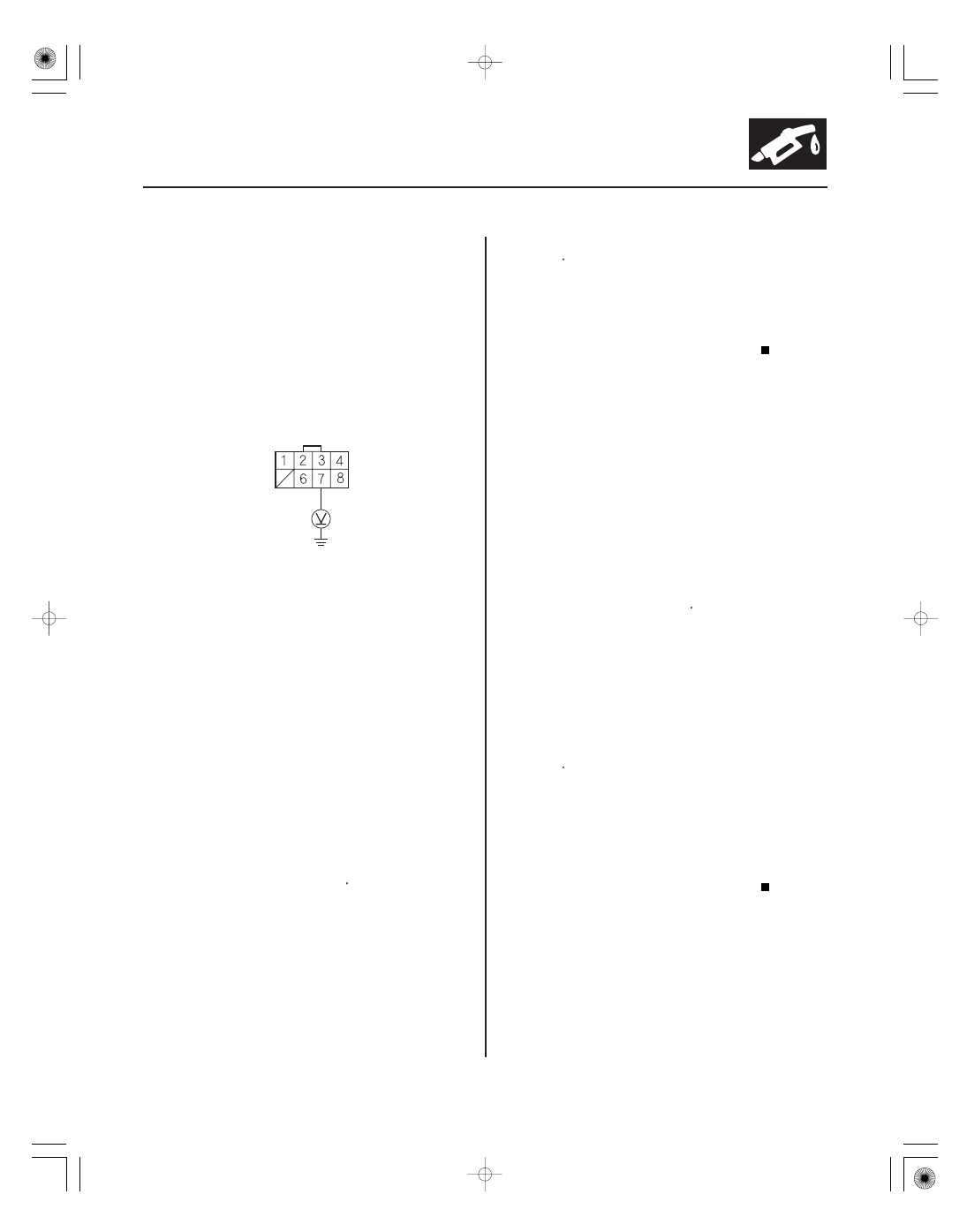

A/F SENSOR (SENSOR 1) 8P CONNECTOR

IPB1 (GRN)
IPB2 (GRN/RED)*

11. Remove the jumper wire from the A/F sensor

(Sensor 1) 8P connector, then reconnect PCM
connector B (44P).

12. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle 2 minutes.

13. Measure voltage between A/F sensor (Sensor 1) 8P

connector terminal No. 7 and body ground.

Go to step 21.

Go to step 14.

14. Replace the A/F sensor (Sensor 1) (see page

11-199).

15. Reconnect all connectors.

16. Turn the ignition switch ON (II).

17. Reset the PCM with the HDS.

18. Do the PCM idle learn procedure (see page 11-273).

19. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the A/F sensor (Sensor 1) and the PCM,
then go to step 1.

Go to step 20.

20. Monitor the OBD STATUS for DTC P2237 and/or

P2240 in the DTCs MENU with the HDS.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs were indicated in step 19,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the A/F sensor
(Sensor 1) and the PCM, then go to step 1. If the
screen indicates NOT COMPLETED, keep idling
until a result comes on.

21. Turn the ignition switch OFF.

22. Reconnect all connectors.

23. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

24. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the A/F sensor (Sensor 1) and the PCM.
If the PCM was updated, substitute a known-good
PCM (see page 11-8), then recheck. If the PCM was
substituted, go to step 1

Go to step 25.

25. Monitor the OBD STATUS for DTC P2237 and/or

P2240 in the DTCs MENU with the HDS.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs were indicated in step 24,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the A/F sensor
(Sensor 1) and the PCM. If the PCM was updated,
substitute a known-good PCM (see page 11-8), then
recheck. If the PCM was substituted, go to step 1. If
the screen indicates NOT COMPLETED, keep idling
until a result comes on.

Wire side of female terminals

Is ther e about 0.2 V or less?

Is DT C P2237 and/ or P2240 indicated?

Does the scr een indicate PASSED?

Is DT C P2237 and/ or P2240 indicated?

Does the scr een indicate PASSED?
