PGM-FI System

DTC Troubleshooting (cont’d)

PCM CONNECTOR C (44P)

ECT SENSOR 2 2P CONNECTOR

SG2 (GRN/YEL)

PCM CONNECTOR C (44P)

ECT2 (GRN/RED)

ECT SENSOR 2 2P CONNECTOR

ECT2
(GRN/RED)

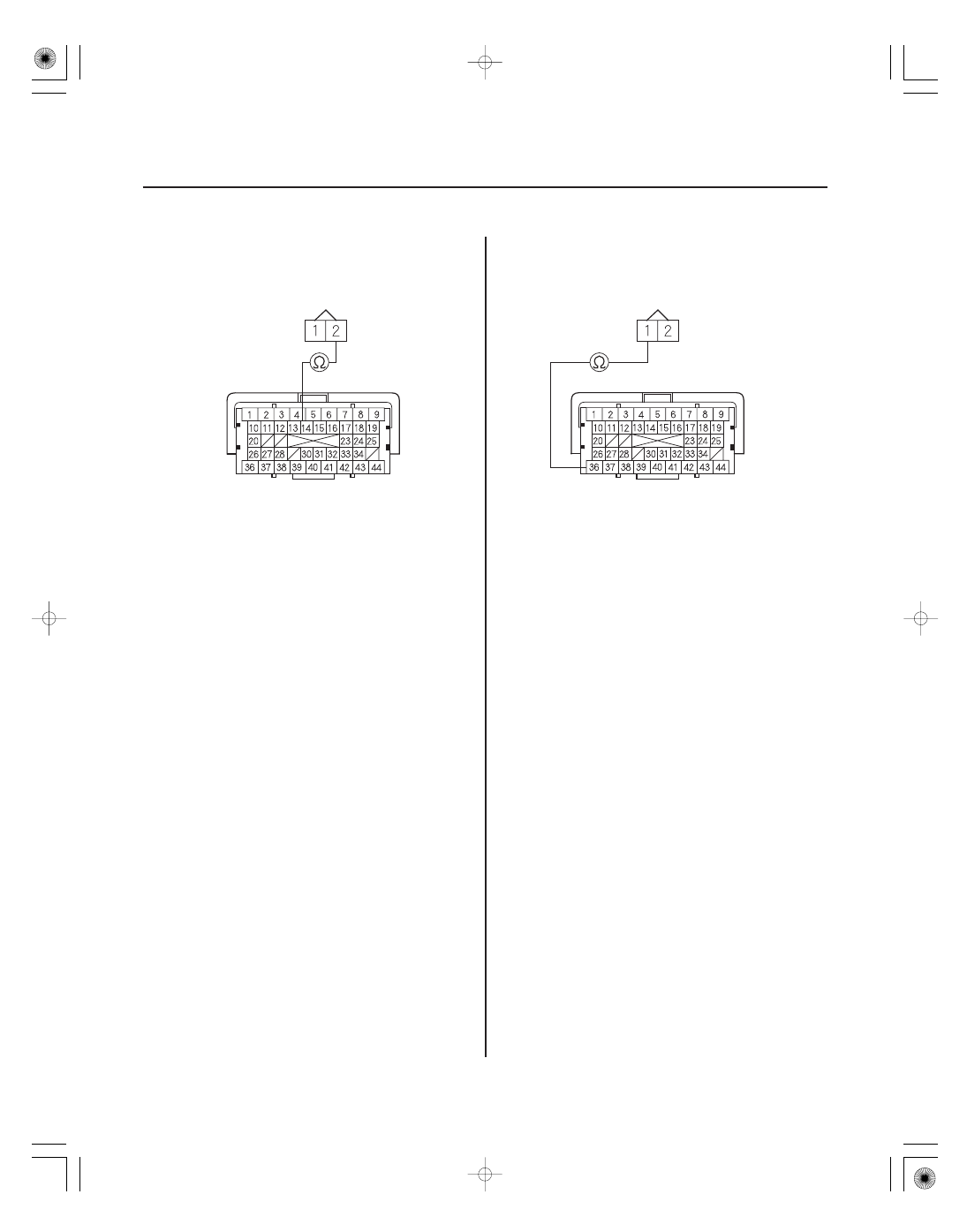

15. Check for continuity between PCM connector

terminal C14 and ECT sensor 2 2P connector
terminal No. 2.

Go to step 27.

Repair open in the wire between the PCM

(C14) and ECT sensor 2, then go to step 22.

16. Turn the ignition switch OFF.

17. Jump the SCS line with the HDS.

18. Disconnect PCM connector C (44P).

19. Check for continuity between PCM connector

terminal C36 and ECT sensor 2 2P connector
terminal No. 1.

Go to step 27.

Repair open in the wire between the PCM

(C36) and ECT sensor 2, then go to step 22.

20. Turn the ignition switch OFF.

21. Replace ECT sensor 2 (see page 11-201).

22. Reconnect all connectors.

23. Turn the ignition switch ON (II).

24. Reset the PCM with the HDS.

25. Do the PCM idle learn procedure (see page 11-273).

Wire side of
female terminals

Terminal side of female terminals

Wire side of
female terminals

Terminal side of female terminals

Is ther e continuity?

−

YES

11-153

26. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at ECT sensor 2 and the PCM, then go to
step 1.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

27. Reconnect all connectors.

28. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

29. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at ECT sensor 2 and the PCM. If the PCM
was updated, substitute a known-good PCM
(see page 11-8), then recheck. If the PCM was
substituted, go to step 1.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

Is DT C P2185 indicated?

ＳＪＣ８Ａ００Ｋ７７１０００９２１９５ＦＡＡＴ３０

−

DTC P2195:

DTC P2197:

YES

11-154

PGM-FI System

DTC Troubleshooting (cont’d)

Rear A/F Sensor (Bank 1,

Sensor 1) Signal Stuck Lean

Front A/F Sensor (Bank 2,

Sensor 1) Signal Stuck Lean

NOTE:

• Before you troubleshoot, record all freeze data and

any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

• Information marked with an asterisk ( ) applies to the

front bank (Bank 2).

• If the vehicle was out of fuel and the engine stalled

before this DTC was stored, refuel, and clear the DTC
with the HDS.

• If DTC P2101, P2108, P2118, P2135, P2176, U0107, or

a combination of P2122 and P2127, P2122 and P2138
or P2127 and P2138 is stored at the same time as DTC
P2195 (P2197) , troubleshoot those DTCs first, then
recheck for DTC P2195 (P2197) .

1. Check the installation of the A/F sensor (Sensor 1).

Go to step 6.

Go to step 2.

2. Turn the ignition switch ON (II).

3. Clear the DTC with the HDS.

4. Start the engine, then let it idle.

5. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the A/F sensor (Sensor 1) and the PCM,
then go to step 13.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the A/F sensor (Sensor 1) and the PCM. If any
other Temporary DTCs or DTCs are indicated, go to
the indicated DTC’s troubleshooting.

6. Turn the ignition switch OFF.

7. Reinstall the A/F sensor (Sensor 1) (see page

11-199).

8. Turn the ignition switch ON (II).

9. Reset the PCM with the HDS.

10. Do the PCM idle learn procedure (see page 11-273).

11. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the A/F sensor (Sensor 1) and the PCM,
then go to step 1.

Go to step 12.

12. Monitor the OBD STATUS for DTC P2195 and/or

P2197 in the DTCs MENU with the HDS.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs were indicated in step 11,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at A/F sensor
(Sensor 1) and the PCM, then go to step 1. If the
screen indicates NOT COMPLETED, keep idling
until a result comes on.

Is the A/ F sensor loose or disconnected f r om the
exhaust pipe?

Is DT C P2195 and/ or P2197 indicated?

Does the scr een indicate PASSED?

ＳＪＣ８Ａ００Ｋ７７１０００９２２２７ＦＡＡＴ３０

−

YES

DTC P2227:

11-155

13. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

14. Start the engine, then let it idle for 2 minutes.

15. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the A/F sensor (Sensor 1) and the PCM.
If the PCM was updated, substitute a known-good
PCM (see page 11-8), then go to step 14. If the PCM
was substituted, go to step 1.

Go to step 16.

16. Monitor the OBD STATUS for DTC P2195 and/or

P2197 in the DTCs MENU with the HDS.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs were indicated in step 15,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the A/F sensor
(Sensor 1) and the PCM. If the PCM was updated,
substitute a known-good PCM (see page 11-8), then
recheck. If the PCM was substituted, go to step 1. If
the screen indicates NOT COMPLETED, keep idling
until a result comes on.

NOTE:

• Before you troubleshoot, record all freeze data and

any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

• If DTC P0107, P0108, P1128, and/or P1129 are stored

at the same time as DTC P2227, troubleshoot those
DTCs first, then recheck for DTC P2227.

1. Turn the ignition switch ON (II), and wait 2 seconds.

2. Check the BARO SENSOR in the DATA LIST with

the HDS.

Go to step 3.

Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8), then recheck. If the
symptom/indication goes away with a known-good
PCM, replace the original PCM (see page 11-205).

3. Clear the DTC with the HDS.

4. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle.

5. Test-drive under these conditions:

• Engine coolant temperature (ECT SENSOR 1)

above 158 °F (70 °C)

• Transmission in D position
• Throttle position between 14 degrees and

45 degrees for 2 seconds

6. Monitor the OBD STATUS for DTC P2227 in the

DTCs MENU with the HDS.

Intermittent failure, the system is OK at this

time.

If the screen indicates FAILED, go to step 7. If

the screen indicates NOT COMPLETED, go to step
5.

(cont’d)

BARO Sensor Circuit Range/

Performance Problem

Is DT C P2195 and/ or P2197 indicated?

Does the scr een indicate PASSED?

Is about 101 kPa ( 29.9 in.Hg, 7 60 mmHg), or about
2.9 V at sea level indicated?

Does the scr een indicate PASSED?
