DTC P0344:

YES

11-120

PGM-FI System

DTC Troubleshooting (cont’d)

CMP Sensor Intermittent

Interruption

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Test-drive the vehicle for 10 minutes in the range of

these recorded freeze data parameters:

• ENGINE SPEED
• VSS

4. Check for Temporary DTCs or DTCs with the HDS.

Go to step 4.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the CMP sensor and the PCM.

5. Check for poor or loose connections at these

connectors and terminals:

• CMP sensor
• PCM
• Engine ground
• Body ground

Go to step 6.

Reconnect or repair the connectors or

terminals, then go to step 9.

6. Check for damage to the CMP sensor pulse

projection on the front camshaft pulley (see page
11-203).

Replace the front camshaft pulley (see page

6-11), then go to step 9.

Go to step 7.

7. Turn the ignition switch OFF.

8. Replace the CMP sensor (see page 11-203).

9. Turn the ignition switch ON (II).

10. Reset the PCM with the HDS.

11. Clear the CKP pattern with the HDS.

12. Do the PCM idle learn procedure (see page 11-273).

13. Do the CKP pattern learn procedure (see page 11-4).

14. Test-drive the vehicle for 10 minutes in the range of

these recorded freeze data parameters:

• ENGINE SPEED
• VSS

15. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the CMP sensor and the PCM, then go
to step 1.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

Is DT C P0344 indicated?

Ar e the connections OK ?

Is ther e damage?

Is DT C P0344 indicated?

ＳＪＣ８Ａ００Ｋ７７１０００９０５６２ＦＡＡＴ００

−

DTC P0562:

YES

11-121

Charging System Low Voltage

NOTE:

• Before you troubleshoot, record all freeze data and

any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

• If any high current load accessories are installed, this

DTC can be set.

• If DTC P16BB and/or P16BC is stored at the same time

as DTC P0562, troubleshoot DTC P16BB and/or P16BC
first, then recheck for DTC P0562.

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Start the engine.

4. Check under these conditions:

• A/C on
• Temperature control at maximum cool
• Blower fan at maximum speed
• Headlights on high beam

5. Hold the engine speed at 2,000 rpm (in Park or

neutral) for 1 minute.

6. Check for Temporary DTCs or DTCs with the HDS.

Replace the alternator (see page 4-34), then

go to step 7.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the alternator and the under-hood fuse/relay box,
and check the battery performance (see page
22-74).

7. Turn the ignition switch ON (II).

8. Reset the PCM with the HDS.

9. Do the PCM idle learn procedure (see page 11-273).

10. Start the engine.

11. Check under these conditions:

• A/C on
• Temperature control at maximum cool
• Blower fan at maximum speed
• Headlights on high beam

12. Hold the engine speed at 2,000 rpm (in Park or

neutral) for 1 minute.

13. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the alternator and the under-hood
fuse/relay box, then go to step 1.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

Is DT C P0562 indicated?

０１

０２

ＳＪＣ８Ａ００Ｋ７７１０００９０５６３ＦＡＡＴ３０

−

DTC P0563:

YES

11-122

PGM-FI System

DTC Troubleshooting (cont’d)

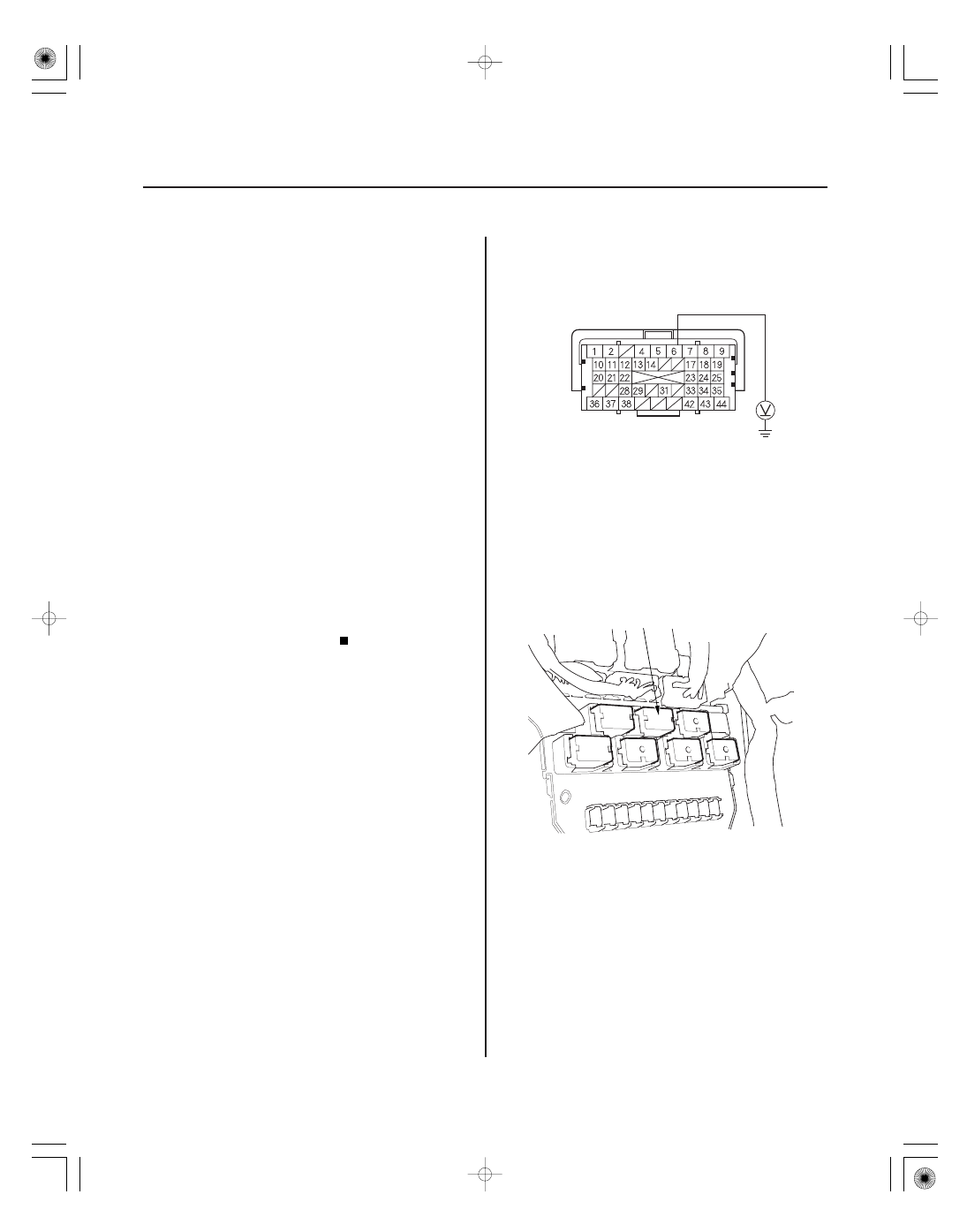

PCM CONNECTOR A (44P)

MRLY (RED/YEL)

PCM Power Source Circuit

Unexpected Voltage

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Turn the ignition switch OFF.

4. Wait 10 seconds.

5. Turn the ignition switch ON (II).

6. Check for Temporary DTCs or DTCs with the HDS.

Go to step 7.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at PGM-FI main relay 1 (FI MAIN) and the No. 8
FI ECU (PCM) (15 A) fuse in the under-hood
fuse/relay box and the PCM.

7. Turn the ignition switch OFF.

8. Jump the SCS line with the HDS.

9. Disconnect PCM connector A (44P).

10. Measure voltage between PCM connector terminal

A6 and body ground.

Go to step 13.

Go to step 11.

11. Remove PGM-FI main relay 1 (FI MAIN) (A) from

the under-dash fuse/relay box.

Terminal side of female terminals

Is DT C P0563 indicated?

Is ther e batter y voltage?

０３

０５

０６

−

YES

11-123

PCM CONNECTOR A (44P)

MRLY (RED/YEL)

PCM CONNECTOR B (44P)

IGP (YEL/BLK)

12. Check for continuity between PCM connector

terminal A6 and body ground.

Repair short in the wire between the PCM

(A6) and PGM-FI main relay 1 (FI MAIN), then go to
step 19.

Go to step 18.

13. Reconnect PCM connector A (44P).

14. Disconnect PCM connector B (44P).

15. Measure voltage between PCM connector terminal

B3 and body ground.

Go to step 16.

Go to step 26.

16. Remove PGM-FI main relay 1 (FI MAIN) (A) from

the under-dash fuse/relay box.

(cont’d)

Terminal side of female terminals

Is ther e continuity?

Is ther e batter y voltage?
