11-84

PGM-FI System

DTC Troubleshooting (cont’d)

AFSHTCR

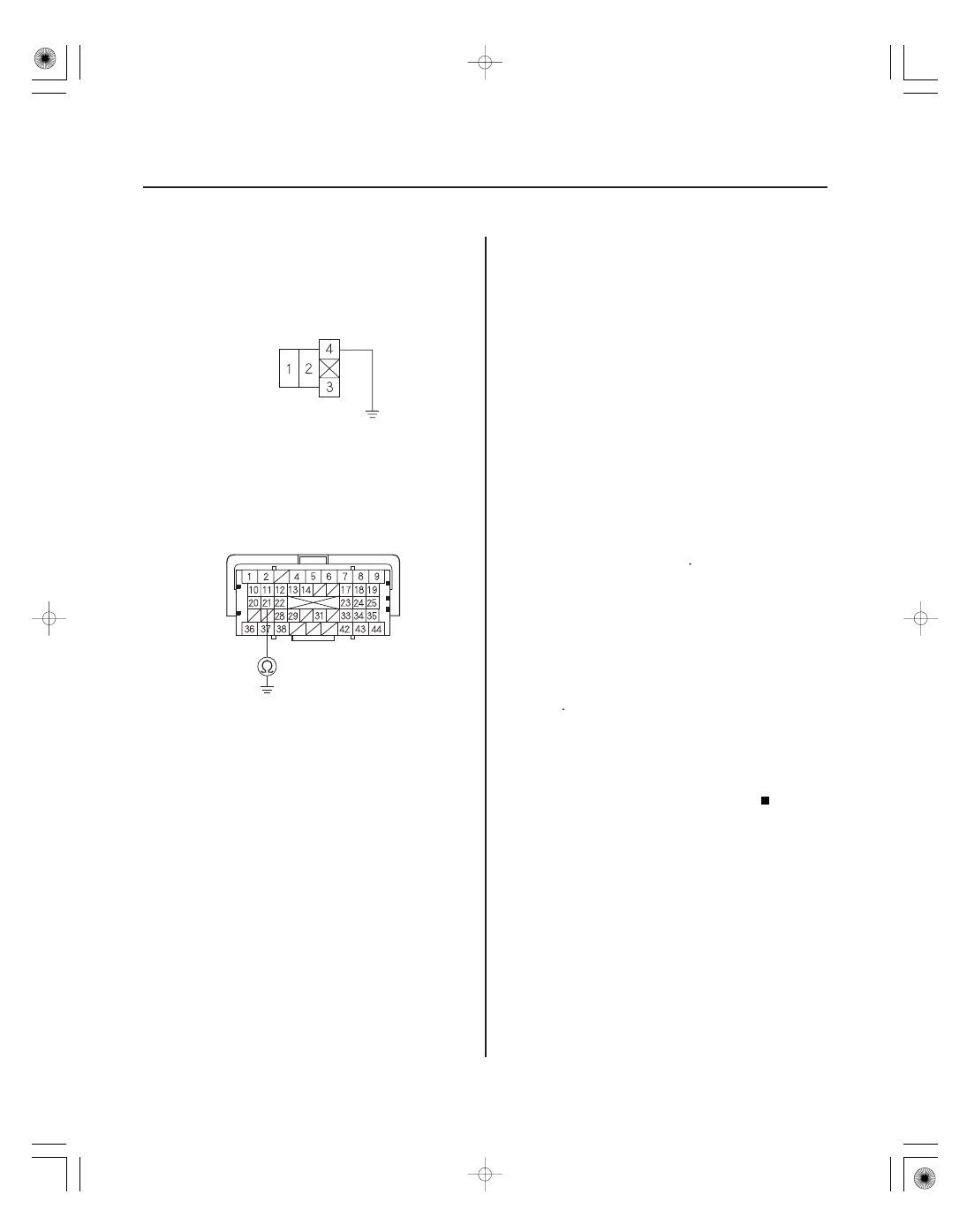

JUMPER
WIRE

A/F SENSOR RELAY (LAF) 4P CONNECTOR

PCM CONNECTOR A (44P)

AFSHTCR (ORN)

20. Connect A/F sensor relay (LAF) 4P connector

terminal No. 4 to body ground with a jumper wire.

21. Check for continuity between PCM connector

terminal A21 and body ground.

Go to step 22.

Repair open in the wire between the PCM

(A21) and the A/F sensor relay (LAF), then go to
step 24.

22. Test the A/F sensor relay (LAF) (see page 22-75).

Go to step 30.

Replace the A/F sensor relay (LAF), then go to

step 24.

23. Replace the A/F sensor (Sensor 1) (see page

11-199).

24. Reconnect all connectors.

25. Turn the ignition switch ON (II).

26. Reset the PCM with the HDS.

27. Do the PCM idle learn procedure (see page 11-273).

28. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the A/F sensor (Sensor 1), the A/F
sensor relay (LAF), the under-dash fuse/relay box,
and the PCM, then go to step 1.

Go to step 29.

29. Monitor the OBD STATUS for DTC P0135 and/or

P0155 in the DTCs MENU with the HDS.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs were indicated in step 28,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the A/F sensor
(Sensor 1), the A/F sensor relay (LAF), the under-
dash fuse/relay box, and the PCM, then go to step
1. If the screen indicates NOT COMPLETED, keep
idling until a result comes on.

Terminal side of female terminals

Terminal side of female terminals

Is ther e continuity?

Is the A/ F sensor r elay ( LAF ) OK ?

Is DT C P0135 and/ or P0155 indicated?

Does the scr een indicate PASSED?

YES

NO

YES

NO

11-85

30. Reconnect all connectors.

31. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

32. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the A/F sensor (Sensor 1), the A/F
sensor relay (LAF), the under-dash fuse/relay box,
and the PCM. If the PCM was updated, substitute a
known-good PCM (see page 11-8), then recheck. If
the PCM was substituted, go to step 1.

Go to step 33.

33. Monitor the OBD STATUS for DTC P0135 and/or

P0155 in the DTCs MENU with the HDS.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs were indicated in step 32,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the A/F sensor
(Sensor 1), the A/F sensor relay (LAF), the under-
dash fuse/relay box, and the PCM. If the PCM was
updated, substitute a known-good PCM (see page
11-8), then recheck. If the PCM was substituted, go
to step 1. If the screen indicates NOT COMPLETED,
keep idling until a result comes on.

Is DT C P0135 and/ or P0155 indicated?

Does the scr een indicate PASSED?

01

SJC8A00K77100090137FAAT30

DTC P0137:

DTC P0157:

YES

NO

YES

NO

YES

NO

11-86

PGM-FI System

DTC Troubleshooting (cont’d)

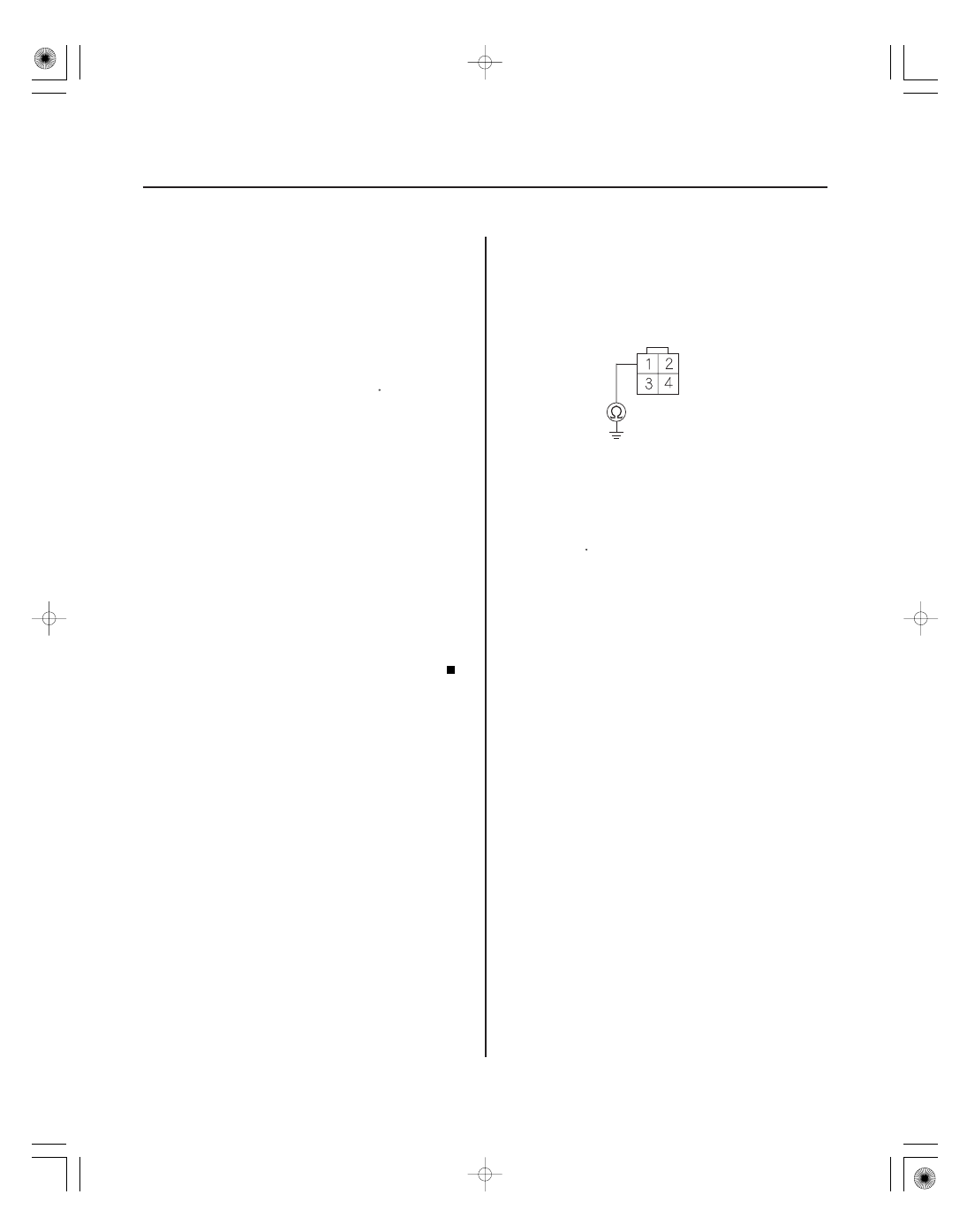

SECONDARY HO2S (SENSOR 2) 4P CONNECTOR

SHO2SB1 (GRN)
SHO2SB2 (WHT)*

Rear Secondary HO2S (Bank 1,

Sensor 2) Circuit Low Voltage

Front Secondary HO2S (Bank 2,

Sensor 2) Circuit Low Voltage

NOTE:

• Before you troubleshoot, record all freeze data and

any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

• Information marked with an asterisk ( ) applies to the

front bank (Bank 2).

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle.

4. Check the HO2S S2 in the DATA LIST with the HDS.

Go to step 5.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the secondary HO2S (Sensor 2) and the PCM.

5. Turn the ignition switch OFF.

6. Disconnect the secondary HO2S (Sensor 2) 4P

connector.

7. Turn the ignition switch ON (II).

8. Check the HO2S S2 in the DATA LIST with the HDS.

Go to step 9.

Go to step 13.

9. Turn the ignition switch OFF.

10. Jump the SCS line with the HDS.

11. Disconnect PCM connector B (44P).

12. Check for continuity between secondary HO2S

(Sensor 2) 4P connector terminal No. 1 and body
ground.

Repair short in the wire between the PCM

(B15 (B16) ) and the secondary HO2S (Sensor 2),
then go to step 15.

Go to step 23.

13. Turn the ignition switch OFF.

14. Replace the secondary HO2S (Sensor 2) (see page

11-200).

15. Reconnect all connectors.

16. Turn the ignition switch ON (II).

17. Reset the PCM with the HDS.

18. Do the PCM idle learn procedure (see page 11-273).

19. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle.

Wire side of female terminals

Does the voltage stay at 0.29 V or less?

Does the voltage stay at 0.29 V or less?

Is ther e continuity?

YES

NO

YES

NO

YES

NO

YES

NO

11-87

20. Test-drive under these conditions:

• Engine coolant temperature (ECT SENSOR 1)

above 176 °F (80 °C)

• Transmission in D position
• Engine speed at 1,500

3,000 rpm

• Drive 1 minute or more

21. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the secondary HO2S (Sensor 2) and
the PCM, then go to step 1.

Go to step 22.

22. Monitor the OBD STATUS for DTC P0137 and/or

P0157 in the DTCs MENU with the HDS.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs were indicated in step 21,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the secondary
HO2S (Sensor 2) and the PCM, then go to step 1. If
the screen indicates EXECUTING, keep driving until
a result comes on. If the screen indicates OUT OF
CONDITION, go to step 20.

23. Reconnect all connectors.

24. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

25. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle.

26. Test-drive under these conditions:

• Engine coolant temperature (ECT SENSOR 1)

above 176 °F (80 °C)

• Transmission in D position
• Engine speed at 1,500

3,000 rpm

• Drive 1 minute or more

27. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the secondary HO2S (Sensor 2) and
the PCM. If the PCM was updated, substitute a
known-good PCM (see page 11-8), then go to step
24. If the PCM was substituted, go to step 1.

Go to step 28.

28. Monitor the OBD STATUS for DTC P0137 and/or

P0157 in the DTCs MENU with the HDS.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs were indicated in step 27,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the secondary
HO2S (Sensor 2) and the PCM. If the PCM was
updated, substitute a known-good PCM (see page
11-8), then go to step 24. If the PCM was substituted,
go to step 1. If the screen indicates NOT
COMPLETED, go to step 24.

Is DT C P0137 and/ or P0157 indicated?

Does the scr een indicate PASSED?

Is DT C P0137 and/ or P0157 indicated?

Does the scr een indicate PASSED?
